arxiv: 2604.18000 · v1 · submitted 2026-04-20 · 💻 cs.RO

Recognition: unknown

Unmasking the Illusion of Embodied Reasoning in Vision-Language-Action Models

Haiweng Xu , Sipeng Zheng , Hao Luo , Wanpeng Zhang , Ziheng Xi , Zongqing Lu
Authors on Pith no claims yet

Pith reviewed 2026-05-10 04:23 UTC · model grok-4.3

classification 💻 cs.RO
keywords vision-language-action modelsembodied reasoningrobotic policiesdiagnostic benchmarksarchitectural bottleneckssemantic feature collapsecausal interventionskinematic isolation
0
0 comments X

The pith

State-of-the-art vision-language-action models fail in dynamic scenarios because of architectural bottlenecks that produce lexical shortcuts and semantic collapse.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces BeTTER, a benchmark that applies targeted causal interventions such as spatial layout shifts and temporal extrapolation while enforcing kinematic isolation to separate high-level reasoning from low-level motor execution. Systematic tests on current VLAs reveal catastrophic breakdowns in changing environments, including reliance on lexical-kinematic shortcuts, behavioral inertia, and semantic feature collapse. These symptoms are traced directly to capacity compression and myopic downsampling in the models' architectures, which degrade their core semantic representations. Static benchmarks hide the problem by allowing models to overfit sensorimotor patterns, and the same failures appear in real-world robot tests.

Core claim

State-of-the-art VLAs catastrophically fail in dynamic scenarios, exhibiting severe lexical-kinematic shortcuts, behavioral inertia, and semantic feature collapse. Mechanistic analysis traces these symptoms to fundamental architectural bottlenecks such as capacity compression and myopic downsampling, which systematically degrade the model's foundational semantic representation. Highly static evaluation protocols mask this degradation by allowing optimization to overfit to sensorimotor priors, and the representational breakdown persists in real-world robotic validation.

What carries the argument

BeTTER, a diagnostic benchmark that applies targeted causal interventions (spatial layout shifts, temporal extrapolation) while enforcing kinematic isolation to decouple high-level reasoning failures from low-level execution limits.

If this is right

  • Highly static evaluation protocols mask representational degradation by allowing optimization to overfit to sensorimotor priors.
  • The representational breakdown is confirmed in real-world robotic validation and is not a simulation artifact.
  • Future VLA paradigms must resolve the structural tension between high-frequency control and high-level reasoning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If capacity compression is the root cause, simply scaling model size or training data may not restore robust semantic representations without changes to the core vision-language-action pipeline.
  • Benchmarks that enforce dynamic changes and kinematic isolation could be applied to other multimodal models to test for similar illusions of reasoning.
  • Architectures that preserve semantic features across temporal and spatial shifts may require explicit mechanisms for long-range dependency tracking beyond current downsampling approaches.

Load-bearing premise

That the kinematic isolation in the causal interventions fully separates high-level reasoning failures from low-level execution limits so that observed drops can be attributed to architecture.

What would settle it

A current VLA architecture that achieves high success rates on BeTTER dynamic scenarios without displaying lexical-kinematic shortcuts, behavioral inertia, or semantic feature collapse.

Figures

Figures reproduced from arXiv: 2604.18000 by Haiweng Xu, Hao Luo, Sipeng Zheng, Wanpeng Zhang, Ziheng Xi, Zongqing Lu.

Figure 1
Figure 1. Figure 1: Unmasking the illusion of embodied reasoning. Left (Illusion): State-of-the-art VLAs achieve high success rates on standard, visually static benchmarks, creating a misleading impression of robust semantic grounding and sequential planning. Middle (Intervention): We introduce systematic cognitive stress tests via controlled interventions (e.g., spatial layout shifts and primitive recomposition) to challenge… view at source ↗
Figure 2

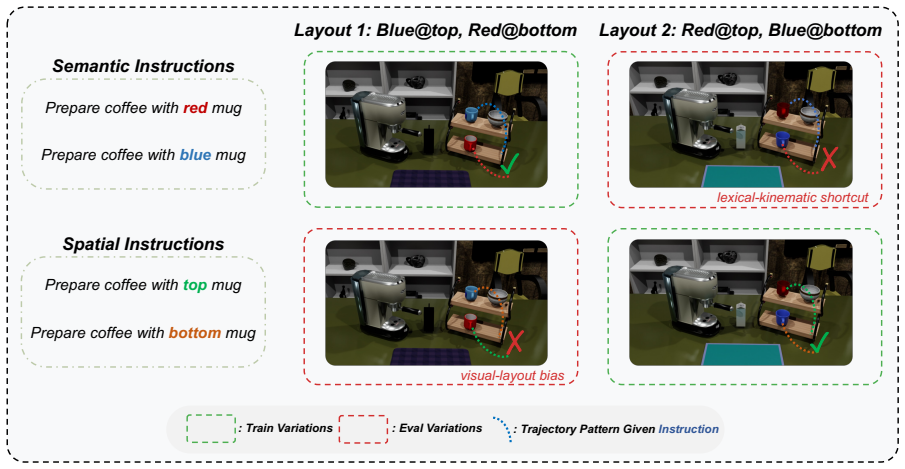

Figure 2. Figure 2: Illustration of shortcut learning in instruction following. We evaluate models under counterfactual layouts by recombining spatial (top/bottom) and semantic (red/blue) instructions. Dashed lines denote observed trajectory patterns. Counterfactual cases (diagonal) expose two representative failure modes: Top-right a lexical-kinematic shortcut, where the token “red” directly triggers a learned motion primiti… view at source ↗
Figure 3

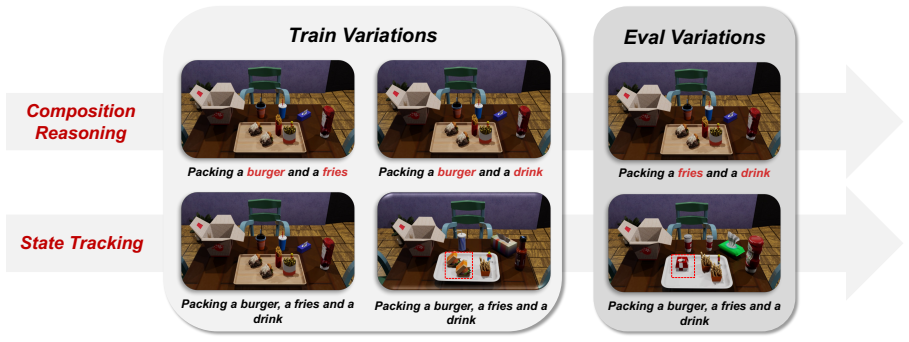

Figure 3. Figure 3: Illustration of reasoning breakdowns in sequential planning. We use the Packing Fast Food Order task to expose two distinct failure modes. Top (Subgoal recomposition): Models trained on fixed sequences (A → B and A → C) fail to generalize to novel compositions (B → C), instead exhibiting behavioral inertia by defaulting to the most frequent starting primitive (A). Bottom (Causal confusion): Models memorize… view at source ↗
Figure 4
Figure 4. Figure 4: Evaluation of fine-grained semantic grounding under adversarial visual distractors. (a) Instance-Level: Adversarial substitutions (e.g., replacing a red apple with a red block) induce severe semantic feature collapse, leading models to act on superficial attributes such as color, π0.5 shows partial robustness. (b) Scene-Level: In cluttered environments without reliable spatial priors, policies fail to grou… view at source ↗
Figure 5
Figure 5. Figure 5: Real-world evaluation protocol. We evaluate model robustness across two task horizons (short vs. long) and two spatial layouts. To disentangle cognitive reasoning from kinematic execution, models are fine-tuned on canonical configurations (a–d) and then subjected to targeted causal interventions (e.g., partial target absence or pre-placed objects). These perturbations expose underlying failure modes and re… view at source ↗
Figure 6

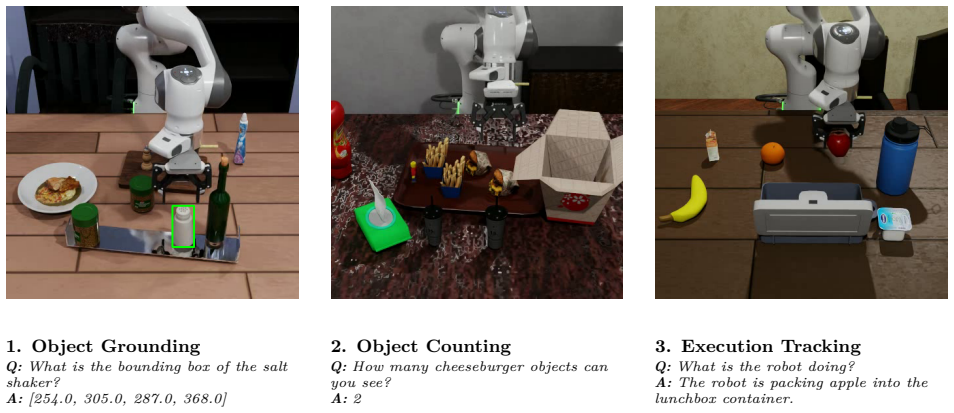

Figure 6. Figure 6: Representative Examples of State-Grounded VQA. By leveraging deterministic privileged simulation states (e.g., exact 3D coordinates, object counts, and procedural task milestones), our automated pipeline generates dense, hallucination-free visual-language supervision. The three panels demonstrate fine￾grained spatial grounding, robust instance counting, and dynamic execution tracking. 23 [PITH_FULL_IMAGE:… view at source ↗
read the original abstract

Recent Vision-Language-Action (VLA) models report impressive success rates on standard robotic benchmarks, fueling optimism about general-purpose physical intelligence. However, recent evidence suggests a systematic misalignment between standard benchmark success and true embodied reasoning, raising the question of whether these high scores reflect genuine cognitive capability. To address this gap, we introduce BeTTER, a diagnostic Benchmark for Testing True Embodied Reasoning in robotic policies. BeTTER applies targeted causal interventions (e.g., spatial layout shifts, temporal extrapolation) while enforcing kinematic isolation to explicitly decouple high-level reasoning failures from low-level execution limits. Through systematic evaluation, we reveal that state-of-the-art VLAs catastrophically fail in dynamic scenarios, exhibiting severe lexical-kinematic shortcuts, behavioral inertia, and semantic feature collapse. Crucially, our mechanistic analysis traces these symptoms to fundamental architectural bottlenecks - such as capacity compression and myopic downsampling - which systematically degrade the model's foundational semantic representation. We demonstrate that highly static evaluation protocols effectively mask this degradation by allowing optimization to overfit to sensorimotor priors. Supported by real-world robotic validation, our findings confirm that this representational breakdown is not a simulation artifact, highlighting the critical need for future VLA paradigms to resolve the structural tension between high-frequency control and high-level reasoning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces BeTTER, a diagnostic benchmark for testing true embodied reasoning in Vision-Language-Action (VLA) models. It applies targeted causal interventions such as spatial layout shifts and temporal extrapolation under kinematic isolation to decouple high-level reasoning from low-level execution. Systematic evaluation reveals that state-of-the-art VLAs exhibit lexical-kinematic shortcuts, behavioral inertia, and semantic feature collapse in dynamic scenarios, which the authors trace to architectural bottlenecks including capacity compression and myopic downsampling. Real-world robotic validation is provided to rule out simulation artifacts, and the work argues that static benchmarks mask these issues by allowing overfitting to sensorimotor priors.

Significance. If the central attribution holds, the work is significant for the robotics and embodied AI community. It supplies an independent benchmark (BeTTER) with falsifiable interventions rather than relying on existing fitted metrics, and includes real-world validation. This could shift evaluation practices away from overly static protocols and highlight structural tensions between high-frequency control and semantic reasoning in VLAs.

major comments (2)
  1. [BeTTER benchmark design] BeTTER benchmark design (abstract and §3): the claim that kinematic isolation successfully attributes performance drops to architectural bottlenecks (capacity compression, myopic downsampling) rather than residual low-level execution limits is load-bearing. The description does not report quantitative checks (e.g., ablation on sensorimotor feedback completeness or state-dependent dynamics controls) that would confirm decoupling in dynamic regimes; without these, unmodeled interactions could still confound the mechanistic analysis.
  2. [Results and mechanistic analysis] Results and mechanistic analysis (§4–5): the abstract states systematic evaluation and real-world validation, yet no quantitative results, error bars, data exclusion criteria, or baseline comparisons are referenced. This makes it impossible to assess the magnitude of the reported failures (e.g., how severe the semantic feature collapse is relative to controls) or to verify that the interventions isolate the claimed architectural causes.
minor comments (2)
  1. [Abstract] The abstract refers to 'highly static evaluation protocols' without citing specific prior benchmarks or protocols being critiqued; adding explicit references would clarify the contrast.
  2. [Benchmark description] Notation for the new benchmark (BeTTER) and its interventions should be defined more formally (e.g., a table listing each causal intervention and its kinematic-isolation enforcement) to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. We address each major comment below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [BeTTER benchmark design] BeTTER benchmark design (abstract and §3): the claim that kinematic isolation successfully attributes performance drops to architectural bottlenecks (capacity compression, myopic downsampling) rather than residual low-level execution limits is load-bearing. The description does not report quantitative checks (e.g., ablation on sensorimotor feedback completeness or state-dependent dynamics controls) that would confirm decoupling in dynamic regimes; without these, unmodeled interactions could still confound the mechanistic analysis.

    Authors: We agree that the kinematic isolation procedure is central to attributing failures to architectural bottlenecks rather than low-level execution. Section 3 describes the targeted causal interventions (spatial layout shifts and temporal extrapolation) under kinematic isolation, but we acknowledge the absence of explicit quantitative ablations on sensorimotor feedback completeness and state-dependent dynamics controls. In the revised version, we will add these ablations to §3 (or a dedicated subsection) to empirically confirm decoupling in dynamic regimes and rule out potential confounds. revision: yes

  2. Referee: [Results and mechanistic analysis] Results and mechanistic analysis (§4–5): the abstract states systematic evaluation and real-world validation, yet no quantitative results, error bars, data exclusion criteria, or baseline comparisons are referenced. This makes it impossible to assess the magnitude of the reported failures (e.g., how severe the semantic feature collapse is relative to controls) or to verify that the interventions isolate the claimed architectural causes.

    Authors: The abstract is a high-level summary and conventionally omits specific numerical values. The full quantitative results—including error bars, data exclusion criteria, baseline comparisons, and the magnitude of failures such as semantic feature collapse—are reported in detail in §4 and §5, together with the real-world validation. To improve readability and address the concern, we will revise the abstract to briefly reference the key quantitative findings and relative severity of the observed issues. revision: partial

Circularity Check

0 steps flagged

Empirical benchmark with independent evaluations; no derivation chain reduces to inputs

full rationale

The paper introduces the BeTTER benchmark and applies causal interventions plus kinematic isolation to evaluate existing VLAs. Claims about failures (lexical-kinematic shortcuts, behavioral inertia, semantic feature collapse) and their attribution to architectural bottlenecks (capacity compression, myopic downsampling) rest on experimental performance drops and real-world validation rather than any equations, fitted parameters renamed as predictions, or self-citation chains. No load-bearing step is shown to be equivalent to its inputs by construction. The work is self-contained against external benchmarks and models.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claims rest on the domain assumption that the benchmark interventions isolate reasoning from execution and that performance drops indicate architectural degradation rather than other causes.

axioms (1)
  • domain assumption Targeted causal interventions such as spatial layout shifts and temporal extrapolation with kinematic isolation decouple high-level reasoning failures from low-level execution limits.
    This premise is invoked to justify that observed failures reflect reasoning deficits rather than control issues.
invented entities (1)
  • BeTTER benchmark no independent evidence
    purpose: Diagnostic tool to expose true embodied reasoning capabilities versus shortcuts in VLA models
    Newly introduced evaluation framework whose validity depends on the isolation assumption.

pith-pipeline@v0.9.0 · 5540 in / 1434 out tokens · 58565 ms · 2026-05-10T04:23:43.129696+00:00 · methodology
