Muscle-inspired magnetic actuators that push, pull, crawl, and grasp

Muhammad Bilal Khan , Florian Hofmann , Kilian Sch\"afer , Matthias Lutzi , Oliver Gutfleisch This is my paper

Pith reviewed 2026-05-10 04:18 UTC · model grok-4.3

classification 💻 cs.RO cond-mat.mtrl-scicond-mat.softphysics.app-ph
keywords magnetic actuatorslaser powder bed fusionsoft roboticsadditive manufacturingmagnetic compositesflexural hingesthermoplastic polyurethane
0
0 comments X

The pith

Tuning laser energy during 3D printing of magnetic composites creates actuators that contract, crawl, and grasp under moderate fields.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a manufacturing technique for muscle-inspired magnetic actuators from a thermoplastic polyurethane and permanent magnet particle composite using laser powder bed fusion. Adjusting the laser energy scale between 1.0 and 3.0 increases tensile strength from 0.28 to 0.99 MPa while keeping 30-45 percent elongation and magnetic response intact. This control allows creation of 0.5 mm thick flexural hinges that bend and fold reversibly without damage. The resulting elongated actuators contract to lift 50 g loads and enable crawling on textured surfaces, while expandable versions grasp objects and anchor loads under 300-500 mT fields, all sustaining at least 50 cycles.

Core claim

By tuning the laser-energy scale between 1.0 and 3.0 in laser powder bed fusion of a TPU/MQP-S composite, both mechanical stiffness and magnetic response are precisely controlled, raising tensile strength from 0.28 to 0.99 MPa while retaining 30-45 percent elongation at break. This enables 0.5 mm-thick flexural hinges that reversibly bend and fold under moderate magnetic fields. The process produces an elongated actuator of 1.57 g that contracts under 500 mT to lift 50 g and crawl with frictional feet at up to 100 percent success, plus an expandable actuator that opens and closes under 300 mT to grasp objects and anchor 50 g suspended loads, with performance maintained over at least 50 full-

What carries the argument

Laser-energy-scale tuning during LPBF of TPU and Nd2Fe14B composite to simultaneously set tensile strength from 0.28 to 0.99 MPa and retained magnetization, forming durable 0.5 mm flexural hinges that deform under magnetic fields.

Load-bearing premise

The LPBF process can be tuned to achieve the reported mechanical properties and magnetization without damaging the Nd2Fe14B particles or polymer matrix, and the actuators will maintain performance over repeated cycles beyond the described lab tests.

What would settle it

A direct measurement showing whether the 0.5 mm hinges survive more than 50 bending cycles under 300-500 mT fields without cracking or loss of contraction force below the level needed to lift 50 g would confirm or refute the durability and tunability claim.

Figures

Figures reproduced from arXiv: 2604.18090 by Florian Hofmann, Kilian Sch\"afer, Matthias Lutzi, Muhammad Bilal Khan, Oliver Gutfleisch.

Figure 2
Figure 2. Figure 2: Material morphology, fabrication, and tunability of 3D [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

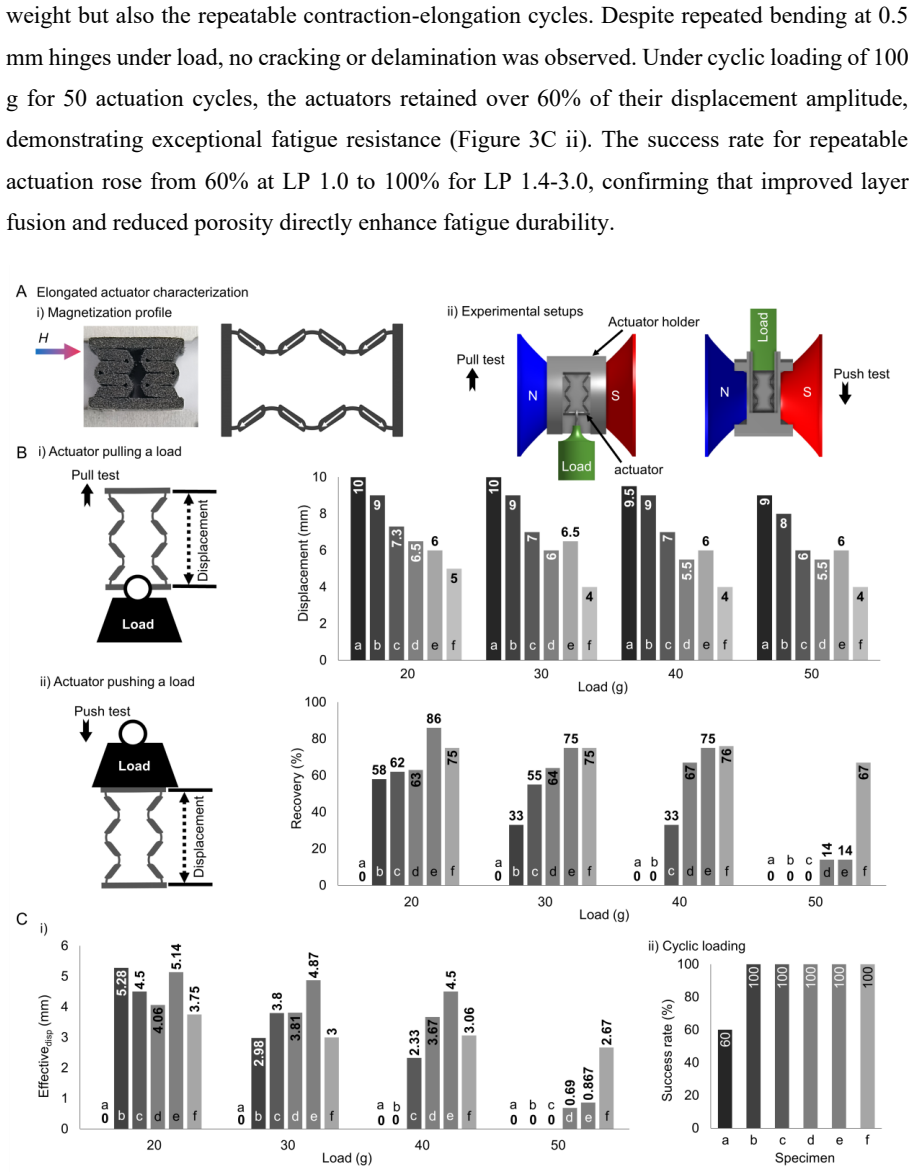

Figure 3. Figure 3: Characterization and performance of elongated muscle [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗

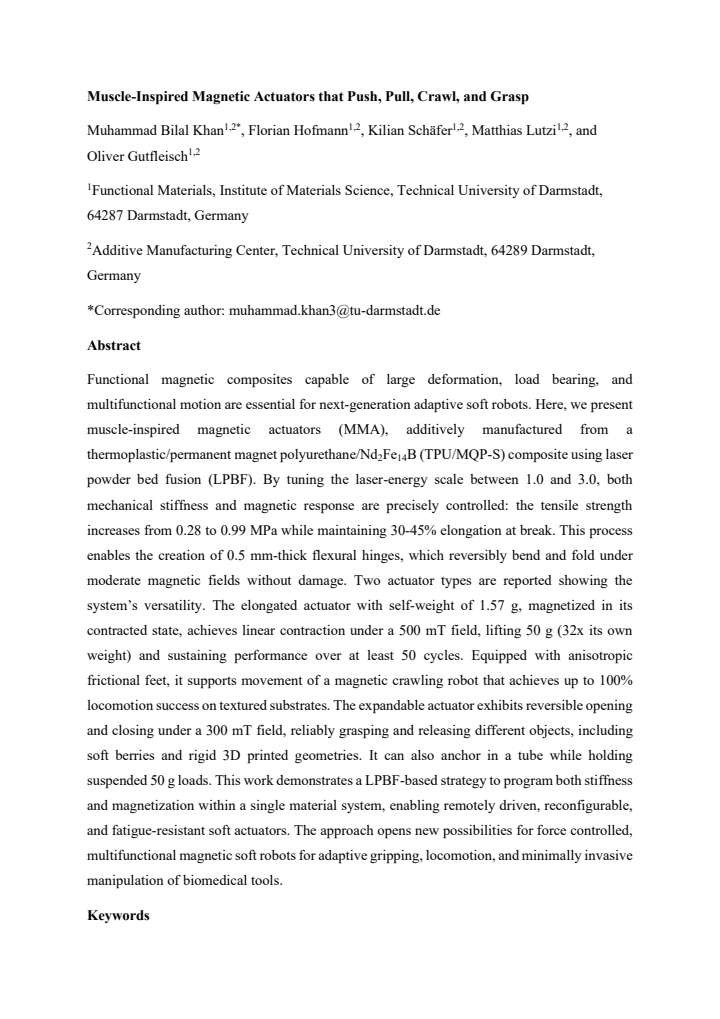

read the original abstract

Functional magnetic composites capable of large deformation, load bearing, and multifunctional motion are essential for next-generation adaptive soft robots. Here, we present muscle-inspired magnetic actuators (MMA), additively manufactured from a thermoplastic/permanent magnet polyurethane/Nd2Fe14B (TPU/MQP-S) composite using laser powder bed fusion (LPBF). By tuning the laser-energy scale between 1.0 and 3.0, both mechanical stiffness and magnetic response are precisely controlled: the tensile strength increases from 0.28 to 0.99 MPa while maintaining 30-45% elongation at break. This process enables the creation of 0.5 mm-thick flexural hinges, which reversibly bend and fold under moderate magnetic fields without damage. Two actuator types are reported showing the system versatility. The elongated actuator with self-weight of 1.57 g, magnetized in its contracted state, achieves linear contraction under a 500 mT field, lifting 50 g (32x its own weight) and sustaining performance over at least 50 cycles. Equipped with anisotropic frictional feet, it supports movement of a magnetic crawling robot that achieves up to 100% locomotion success on textured substrates. The expandable actuator exhibits reversible opening and closing under a 300 mT field, reliably grasping and releasing different objects, including soft berries and rigid 3D printed geometries. It can also anchor in a tube while holding suspended 50 g loads. This work demonstrates a LPBF-based strategy to program both stiffness and magnetization within a single material system, enabling remotely driven, reconfigurable, and fatigue-resistant soft actuators. The approach opens new possibilities for force controlled, multifunctional magnetic soft robots for adaptive gripping, locomotion, and minimally invasive manipulation of biomedical tools.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents muscle-inspired magnetic actuators (MMAs) fabricated from a TPU/Nd2Fe14B composite via laser powder bed fusion (LPBF). By tuning the laser-energy scale from 1.0 to 3.0, the authors report simultaneous control of mechanical properties (tensile strength rising from 0.28 to 0.99 MPa while retaining 30-45% elongation at break) and magnetic response, enabling 0.5 mm flexural hinges. Two designs are demonstrated: an elongated actuator (1.57 g) that contracts under 500 mT to lift 50 g (32× self-weight) over 50 cycles and achieves 100% locomotion success when equipped with frictional feet; and an expandable actuator that grasps objects under 300 mT and anchors 50 g loads in tubes.

Significance. If the experimental claims are substantiated, the work offers a scalable LPBF route to program both stiffness and magnetization within a single composite, which could enable more versatile, remotely actuated soft robots for locomotion, grasping, and biomedical manipulation. The fatigue resistance and load-bearing demonstrations (50 cycles, 32× lift) would represent a practical advance over many existing magnetic soft actuators.

major comments (2)
  1. [Abstract and Results] Abstract and Results sections: The claim that laser-energy scale tuning 'precisely controls' magnetic response (enabling 500 mT contraction and 300 mT grasping) lacks supporting post-print magnetic characterization. No VSM data, hysteresis loops, or remanence values versus energy scale are reported to confirm that Nd2Fe14B particles retain usable magnetization after LPBF, despite melt-pool temperatures likely exceeding the ~310 °C Curie point. This directly undermines the central assertion of dual mechanical-magnetic control.
  2. [Experimental Results] Experimental Results: Performance numbers (50 g lift, 50 cycles, 100% locomotion success) are stated without error bars, trial counts, statistical details, or comparisons to untuned composites or non-magnetized controls. This prevents evaluation of whether the reported outcomes reliably stem from the claimed tuning process rather than variability in fabrication or testing conditions.
minor comments (2)
  1. [Abstract] Abstract: The term 'moderate magnetic fields' is used alongside specific values (500 mT, 300 mT); standardize terminology for clarity.
  2. [Methods/Results] Methods/Results: Expand on how the anisotropic frictional feet are integrated and how the magnetization direction is set in the contracted state to improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review of our manuscript. The comments highlight important areas for strengthening the presentation of our results on dual mechanical-magnetic control via LPBF tuning. We address each major comment below and will revise the manuscript to incorporate additional data and statistical details.

read point-by-point responses

  1. Referee: [Abstract and Results] Abstract and Results sections: The claim that laser-energy scale tuning 'precisely controls' magnetic response (enabling 500 mT contraction and 300 mT grasping) lacks supporting post-print magnetic characterization. No VSM data, hysteresis loops, or remanence values versus energy scale are reported to confirm that Nd2Fe14B particles retain usable magnetization after LPBF, despite melt-pool temperatures likely exceeding the ~310 °C Curie point. This directly undermines the central assertion of dual mechanical-magnetic control.

    Authors: We thank the referee for this observation. The manuscript shows dual control through the measured changes in tensile properties with laser-energy scale and the distinct actuation thresholds (500 mT for contraction, 300 mT for grasping) that result from those changes. However, we acknowledge that direct post-print magnetic characterization (VSM, hysteresis, remanence vs. energy scale) is absent. In the revised manuscript we will add VSM data for samples printed across the 1.0–3.0 energy-scale range to quantify retained magnetization and address the Curie-point concern, including discussion of rapid cooling rates and matrix encapsulation that appear to preserve particle magnetization. revision: yes

  2. Referee: [Experimental Results] Experimental Results: Performance numbers (50 g lift, 50 cycles, 100% locomotion success) are stated without error bars, trial counts, statistical details, or comparisons to untuned composites or non-magnetized controls. This prevents evaluation of whether the reported outcomes reliably stem from the claimed tuning process rather than variability in fabrication or testing conditions.

    Authors: We agree that the current presentation would benefit from explicit statistical reporting. In the revision we will add error bars to all quantitative performance data, state the number of trials (minimum n = 5 per condition), and include control comparisons (non-magnetized TPU and untuned composite specimens) to demonstrate that the reported lifting, cycling, and locomotion results arise from the magnetic tuning rather than fabrication variability. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration with direct measurements only

full rationale

The paper is a pure experimental report on LPBF fabrication of TPU/Nd2Fe14B composites. It states process parameters (laser-energy scale 1.0–3.0), reports measured outcomes (tensile strength 0.28→0.99 MPa, 30–45% elongation, actuation under 300–500 mT fields, cycle life), and shows functional prototypes. No equations, no fitted models, no predictions derived from prior results, and no self-citation chains that substitute for evidence. All claims reduce to physical fabrication and testing data rather than any definitional or statistical equivalence between inputs and outputs. The derivation chain is therefore empty; the work is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 0 axioms · 0 invented entities

No theoretical free parameters, axioms, or invented entities are introduced; the work is an engineering demonstration relying on experimental control of laser energy and standard material properties.

free parameters (1)
  • laser-energy scale = 1.0-3.0
    Experimental control parameter tuned between 1.0 and 3.0 to adjust tensile strength and magnetic response.
