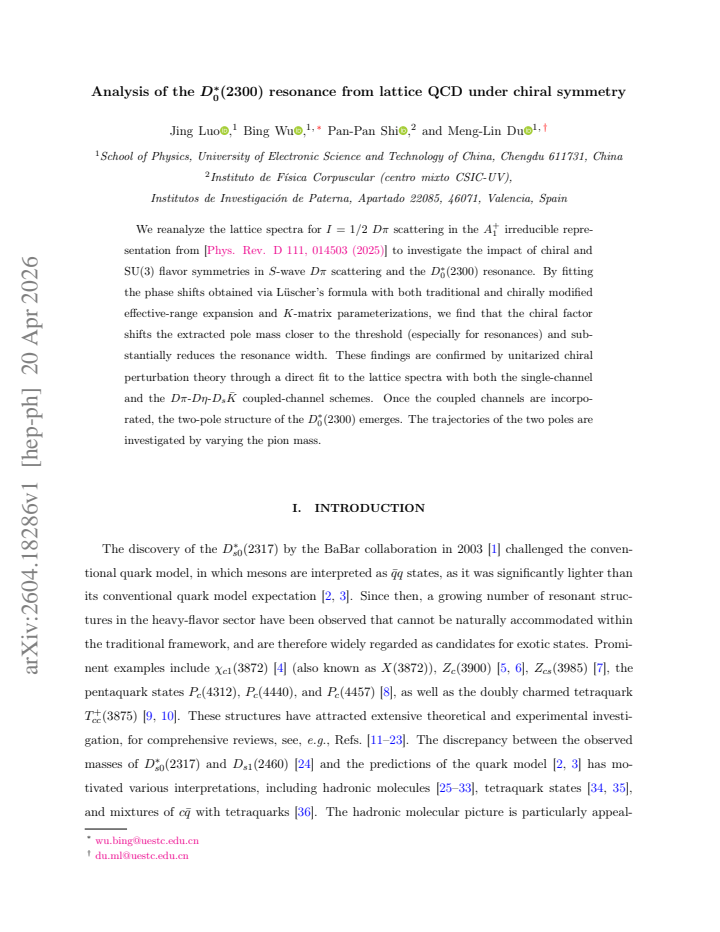

Analysis of the D₀^*(2300) resonance from lattice QCD under chiral symmetry
Pith reviewed 2026-05-10 04:12 UTC · model grok-4.3
The pith
Incorporating coupled channels in lattice QCD analysis reveals a two-pole structure for the D0*(2300) resonance.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Once the coupled channels are incorporated in the unitarized chiral perturbation theory fits to the lattice spectra, the D0*(2300) resonance exhibits a two-pole structure. The trajectories of these two poles are mapped out by varying the pion mass.
What carries the argument
Unitarized chiral perturbation theory (UChPT) in single-channel and coupled-channel (Dπ-Dη-DsKbar) schemes fitted directly to lattice spectra, together with chirally modified effective-range expansion and K-matrix parameterizations of phase shifts extracted via Lüscher's formula.
If this is right
- Chiral factors in the fits shift the resonance pole mass closer to the Dπ threshold.
- The same chiral modifications substantially reduce the resonance width.
- The two-pole structure appears only after the coupled channels are added to the fit.

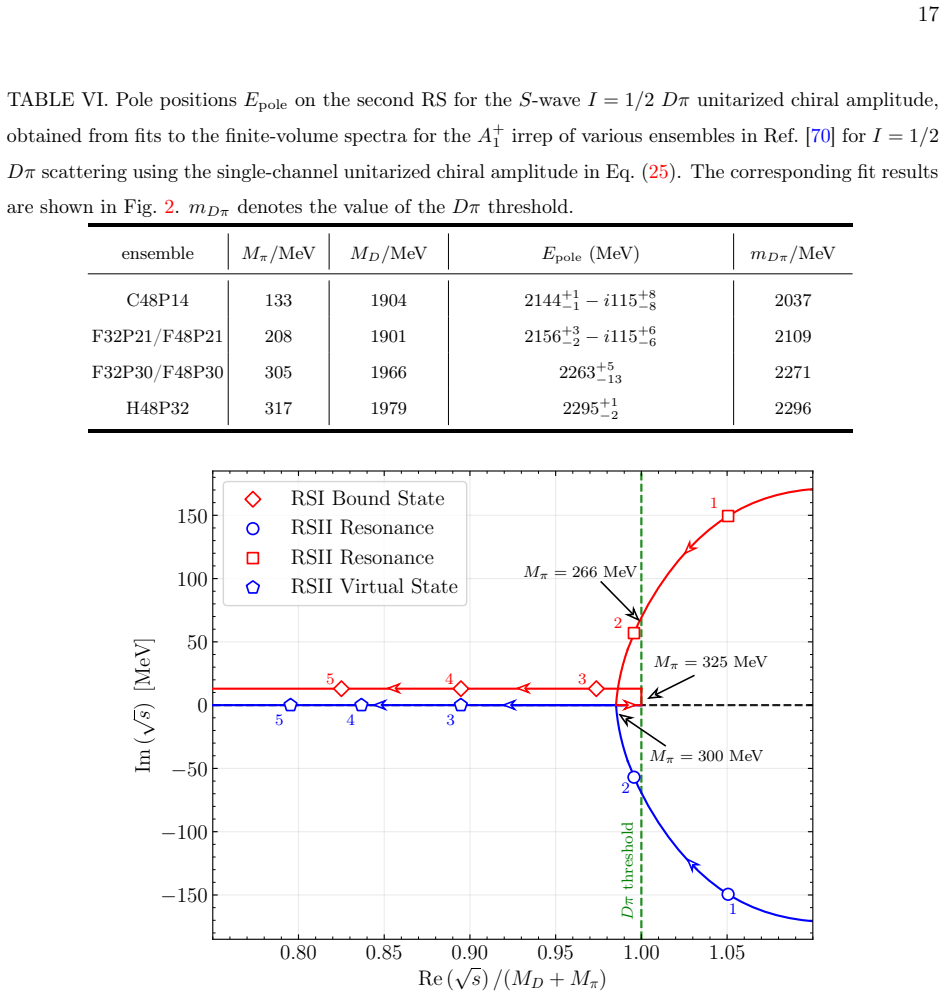

- Varying the pion mass traces the continuous movement of both poles in the complex plane.
Where Pith is reading between the lines
- The dependence on coupled channels implies that SU(3) flavor symmetry breaking plays a key role in fixing the resonance parameters.
- The pion-mass trajectories offer a route to connect results at heavier quark masses to predictions at the physical point.
- The same coupled-channel framework may constrain resonance properties in related heavy-light systems when applied to new lattice spectra.
Load-bearing premise
The chirally modified expansions and the restriction to three coupled channels capture the lattice spectra without large uncontrolled biases from the specific chiral factors or from channels left out.
What would settle it
A lattice QCD computation of Dπ phase shifts near the physical pion mass that yields only one pole or pole locations that disagree with the extrapolated trajectories from the coupled-channel analysis.
Figures
read the original abstract
We reanalyze the lattice spectra for $I=1/2$ $D\pi$ scattering in the $A_1^+$ irreducible representation from [Phys. Rev. D 111, 014503 (2025)] to investigate the impact of chiral and SU(3) flavor symmetries in $S$-wave $D\pi$ scattering and the $D_0^*(2300)$ resonance. By fitting the phase shifts obtained via L\"uscher's formula with both traditional and chirally modified effective-range expansion and $K$-matrix parameterizations, we find that the chiral factor shifts the extracted pole mass closer to the threshold (especially for resonances) and substantially reduces the resonance width. These findings are confirmed by unitarized chiral perturbation theory through a direct fit to the lattice spectra with both the single-channel and the $D\pi$-$D\eta$-$D_s\bar{K}$ coupled-channel schemes. Once the coupled channels are incorporated, the two-pole structure of the $D_0^*(2300)$ emerges. The trajectories of the two poles are investigated by varying the pion mass.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reanalyzes I=1/2 Dπ lattice spectra in the A1+ irrep from a prior Lüscher analysis. Phase shifts are fitted with both standard and chirally modified effective-range expansions and K-matrix forms; these are cross-checked by direct single-channel and Dπ-Dη-DsKbar coupled-channel unitarized ChPT fits to the spectra. The central claim is that the two-pole structure of the D0*(2300) emerges only after coupled channels are included, with the trajectories of both poles then tracked under variation of the pion mass.
Significance. If the model dependence is controlled, the result supplies concrete lattice support for the two-pole scenario of the D0*(2300) as a dynamical consequence of SU(3) chiral dynamics, consistent with expectations from unitarized ChPT for the light scalar nonet. It also quantifies how chiral modifications to the effective-range expansion shift pole positions and widths, offering a useful benchmark for future multi-channel lattice studies.
major comments (2)
- [coupled-channel UChPT section] The claim that the second pole is required by the data rather than imposed by the ansatz rests on the off-diagonal potentials fixed by SU(3) chiral symmetry. Because the input spectra are obtained solely from Dπ scattering in the A1+ irrep, the Dη and DsKbar couplings are not directly constrained; a quantitative assessment of the sensitivity of the second pole position to variations in the fitted low-energy constants or to channel truncation is needed to establish robustness.
- [effective-range and K-matrix fits] The chirally modified effective-range expansion is reported to move the extracted pole closer to threshold and reduce the width. The precise definition of the chiral factor and its relation to the leading-order ChPT amplitude should be shown explicitly, together with a comparison of the resulting pole parameters against the unmodified expansion at the same order.
minor comments (2)
- [lattice spectra reanalysis] Clarify whether the Lüscher quantization condition used to extract the phase shifts already incorporates the finite-volume corrections appropriate for the coupled-channel case or only the single-channel form.
- [fit results] Provide the numerical values of the fitted low-energy constants and their uncertainties for both the single- and coupled-channel UChPT fits to allow direct comparison with other determinations.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the constructive comments. We address the major comments point by point below and have revised the manuscript accordingly to improve clarity and robustness.
read point-by-point responses
-
Referee: [coupled-channel UChPT section] The claim that the second pole is required by the data rather than imposed by the ansatz rests on the off-diagonal potentials fixed by SU(3) chiral symmetry. Because the input spectra are obtained solely from Dπ scattering in the A1+ irrep, the Dη and DsKbar couplings are not directly constrained; a quantitative assessment of the sensitivity of the second pole position to variations in the fitted low-energy constants or to channel truncation is needed to establish robustness.
Authors: We agree that a quantitative assessment of sensitivity to LEC variations and channel truncation strengthens the claim. In the revised manuscript we have added explicit checks: the fitted LECs are varied within their 1σ uncertainties from the Dπ spectra fit, and we also repeat the analysis in a truncated Dπ-Dη model. The second pole persists in all cases, with its real part shifting by at most 15 MeV and imaginary part by 10 MeV. By contrast, the single-channel UChPT fit produces no second pole. These results indicate that the two-pole structure arises from the coupled-channel dynamics fixed by SU(3) symmetry and constrained by the available Dπ data, rather than being an artifact of the ansatz. revision: yes
-
Referee: [effective-range and K-matrix fits] The chirally modified effective-range expansion is reported to move the extracted pole closer to threshold and reduce the width. The precise definition of the chiral factor and its relation to the leading-order ChPT amplitude should be shown explicitly, together with a comparison of the resulting pole parameters against the unmodified expansion at the same order.
Authors: We thank the referee for this request for additional clarity. In the revised manuscript we now include the explicit functional form of the chiral factor in the effective-range expansion, derived directly from the leading-order chiral perturbation theory amplitude for Dπ scattering. We also add a table comparing the extracted pole positions and widths from the unmodified and chirally modified expansions at the same order, confirming the shift toward threshold and the reduction in width. revision: yes
Circularity Check
No significant circularity detected
full rationale
The paper reanalyzes existing lattice spectra for Dπ scattering using Lüscher's formula to extract phase shifts, then fits them with effective-range expansions, K-matrix forms, and both single-channel and coupled-channel UChPT parameterizations. The reported emergence of the two-pole structure occurs as an outcome of the coupled-channel fit to the data rather than being presupposed or redefined from the inputs; single-channel fits are shown not to produce it. No equations reduce the claimed pole trajectories or resonance properties to the lattice inputs by construction, no fitted parameters are relabeled as independent predictions, and the chiral/SU(3) assumptions are external symmetry inputs rather than self-referential. The derivation chain remains self-contained against the lattice data and standard UChPT framework.
Axiom & Free-Parameter Ledger
free parameters (3)
- chiral factor in effective-range expansion
- K-matrix parameters
- UChPT low-energy constants
axioms (2)
- standard math Lüscher's formula relates finite-volume energy levels to infinite-volume phase shifts
- domain assumption Chiral symmetry and SU(3) flavor symmetry constrain the form of the scattering amplitudes near threshold
Reference graph
Works this paper leans on
-
[1]
2149−i163 10464 0.09 0.53
-
[2]
2540−i20 3085 2.50 3.47 F32P21/F48P21 208
-
[3]
2157−i120 10401 0.05 0.53
-
[4]
2497−i26 3781 2.05 2.84 F32P30/F48P30 305
-
[5]
2261 10492 0.004 0.54
-
[6]
2552−i34 4126 1.84 2.76 H48P32 317
-
[7]
2568−i33 4189 1.85 2.85 0.80 0.85 0.90 0.95 1.00 1.05 Re (√ s) /(MD + Mπ) −150 −100 −50 0 50 100 150 Im (√ s) [MeV] RS[000] Bound State RS[100] Resonance RS[100] Resonance RS[100] Virtual State Dπthreshold 1 2 345 1 2 345 Mπ = 262MeV Mπ = 299MeV Mπ = 327MeV FIG. 5. Pole trajectory of theI= 1/2Dπ–Dη–D s ¯Kcoupled-channel unitarized amplitude around 2200 Me...
-
[8]
B. Aubertet al.(BaBar), Observation of a narrow meson decaying toD+ s π0 at a mass of 2.32 GeV/c2, Phys. Rev. Lett.90, 242001 (2003), arXiv:hep-ex/0304021
-
[9]
Godfrey and N
S. Godfrey and N. Isgur, Mesons in a Relativized Quark Model with Chromodynamics, Phys. Rev. D 32, 189 (1985)
1985
-
[10]
S. Godfrey and K. Moats, Properties of Excited Charm and Charm-Strange Mesons, Phys. Rev. D93, 034035 (2016), arXiv:1510.08305 [hep-ph]
- [11]
-
[12]
M. Ablikimet al.(BESIII), Observation of a Charged Charmoniumlike Structure ine+e− →π +π−J/ψ at √s= 4.26GeV, Phys. Rev. Lett.110, 252001 (2013), arXiv:1303.5949 [hep-ex]
- [13]
-
[14]
M. Ablikimet al.(BESIII), Observation of a Near-Threshold Structure in theK+ Recoil-Mass Spectra ine +e− →K +(D− s D∗0 +D ∗− s D0), Phys. Rev. Lett.126, 102001 (2021), arXiv:2011.07855
-
[15]
R. Aaijet al.(LHCb), Observation of a narrow pentaquark state,Pc(4312)+, and of two-peak structure of theP c(4450)+, Phys. Rev. Lett.122, 222001 (2019), arXiv:1904.03947
-
[16]
Aaijet al.(LHCb), Nature Phys.18, 751 (2022), 2109.01038
R. Aaijet al.(LHCb), Observation of an exotic narrow doubly charmed tetraquark, Nature Phys.18, 751 (2022), arXiv:2109.01038
-
[17]
R. Aaijet al.(LHCb), Study of the doubly charmed tetraquarkT+ cc, Nature Commun.13, 3351 (2022), arXiv:2109.01056 [hep-ex]
- [18]
-
[19]
A. Esposito, A. Pilloni, and A. D. Polosa, Multiquark Resonances, Phys. Rept.668, 1 (2017), arXiv:1611.07920 [hep-ph]. 25
- [20]
- [21]
- [22]
-
[23]
N. Brambilla, S. Eidelman, C. Hanhart, A. Nefediev, C.-P. Shen, C. E. Thomas, A. Vairo, and C.-Z. Yuan, TheXY Zstates: experimental and theoretical status and perspectives, Phys. Rept.873, 1 (2020), arXiv:1907.07583
- [24]
-
[25]
M. Albaladejo, A. N. Hiller Blin, A. Pilloni, D. Winney, C. Fernández-Ramírez, V. Mathieu, and A. Szczepaniak (JPAC),XY Zspectroscopy at electron-hadron facilities: Exclusive processes, Phys. Rev. D102, 114010 (2020), arXiv:2008.01001 [hep-ph]
-
[26]
X.-K. Dong, F.-K. Guo, and B.-S. Zou, A survey of heavy–heavy hadronic molecules, Commun. Theor. Phys.73, 125201 (2021), arXiv:2108.02673 [hep-ph]
-
[27]
X.-K. Dong, F.-K. Guo, and B.-S. Zou, A survey of heavy-antiheavy hadronic molecules, Progr. Phys. 41, 65 (2021), arXiv:2101.01021 [hep-ph]
- [28]
-
[29]
Navaset al.(Particle Data Group), Review of particle physics, Phys
S. Navaset al.(Particle Data Group), Review of particle physics, Phys. Rev. D110, 030001 (2024)
2024
- [30]
-
[31]
D. Bessonet al.(CLEO), Observation of a narrow resonance of mass 2.46 GeV/c2 decaying toD ∗+ s π0 and confirmation of theD∗ sJ(2317)state, Phys. Rev. D68, 032002 (2003), [Erratum: Phys.Rev.D 75, 119908 (2007)], arXiv:hep-ex/0305100
- [32]
-
[33]
E. van Beveren and G. Rupp, ObservedDs(2317)and tentativeD(2100–2300)as the charmed cousins of the light scalar nonet, Phys. Rev. Lett.91, 012003 (2003), arXiv:hep-ph/0305035
- [34]
- [35]
-
[36]
Y.-Q. Chen and X.-Q. Li, A Comprehensive four-quark interpretation ofD s(2317),D s(2457)and Ds(2632), Phys. Rev. Lett.93, 232001 (2004), arXiv:hep-ph/0407062. 26
- [37]
- [38]
-
[39]
D. Gamermann, E. Oset, D. Strottman, and M. J. Vicente Vacas, Dynamically generated open and hidden charm meson systems, Phys. Rev. D76, 074016 (2007), arXiv:hep-ph/0612179
-
[40]
Z. Yang, G.-J. Wang, J.-J. Wu, M. Oka, and S.-L. Zhu, Novel Coupled Channel Framework Connecting the Quark Model and Lattice QCD for the Near-threshold Ds States, Phys. Rev. Lett.128, 112001 (2022), arXiv:2107.04860 [hep-ph]
-
[41]
H.-Y. Cheng and W.-S. Hou, B decays as spectroscope for charmed four quark states, Phys. Lett. B 566, 193 (2003), arXiv:hep-ph/0305038
- [42]
- [43]
- [44]
-
[45]
K. Abeet al.(Belle), Study ofB − →D ∗∗0π− (D∗∗0 →D (∗)+π−) decays, Phys. Rev. D69, 112002 (2004), arXiv:hep-ex/0307021
- [46]
- [47]
- [48]
- [49]
- [50]
-
[51]
Burdman and J
G. Burdman and J. F. Donoghue, Union of chiral and heavy quark symmetries, Phys. Lett. B280, 287 (1992)
1992
-
[52]
M. B. Wise, Chiral perturbation theory for hadrons containing a heavy quark, Phys. Rev. D45, R2188 (1992)
1992
-
[53]
Yan, H.-Y
T.-M. Yan, H.-Y. Cheng, C.-Y. Cheung, G.-L. Lin, Y. C. Lin, and H.-L. Yu, Heavy quark symmetry 27 and chiral dynamics, Phys. Rev. D46, 1148 (1992), [Erratum: Phys.Rev.D 55, 5851 (1997)]
1992
- [54]
- [55]
- [56]
- [57]
- [58]
- [59]
- [60]
- [61]
-
[62]
M. Albaladejo, P. Fernandez-Soler, F.-K. Guo, and J. Nieves, Two-pole structure of theD∗ 0(2400), Phys. Lett. B767, 465 (2017), arXiv:1610.06727 [hep-ph]
- [63]
-
[64]
P. Wang and X. G. Wang, Study on0+ states with open charm in unitarized heavy meson chiral approach, Phys. Rev. D86, 014030 (2012), arXiv:1204.5553 [hep-ph]
- [65]
- [66]
-
[67]
R. Aaijet al.(LHCb), Amplitude analysis ofB − →D +π−π− decays, Phys. Rev. D94, 072001 (2016), arXiv:1608.01289 [hep-ex]
-
[68]
Aaijet al.,Dalitz plot analysis of B0 s → D0K −π+ decays, Phys
R. Aaijet al.(LHCb), Dalitz plot analysis ofB 0 s → ¯D0K −π+ decays, Phys. Rev. D90, 072003 (2014), arXiv:1407.7712 [hep-ex]
-
[69]
Aaijet al.(LHCb), Dalitz plot analysis ofB 0 → ¯D0π+π− decays, Phys
R. Aaijet al.(LHCb), Dalitz plot analysis ofB 0 → ¯D0π+π− decays, Phys. Rev. D92, 032002 (2015), arXiv:1505.01710 [hep-ex]
-
[70]
Aaijet al.(LHCb), First observation and amplitude analysis of theB − →D +K −π− decay, Phys
R. Aaijet al.(LHCb), First observation and amplitude analysis of theB − →D +K −π− decay, Phys. 28 Rev. D91, 092002 (2015), [Erratum: Phys.Rev.D 93, 119901 (2016)], arXiv:1503.02995 [hep-ex]
-
[71]
Aaijet al.,Amplitude analysis of B0 → D0K +π− decays, Phys
R. Aaijet al.(LHCb), Amplitude analysis ofB 0 → ¯D0K+π− decays, Phys. Rev. D92, 012012 (2015), arXiv:1505.01505 [hep-ex]
- [72]
-
[73]
Acharyaet al.(ALICE), Studying the interaction between charm and light-flavor mesons, Phys
S. Acharyaet al.(ALICE), Studying the interaction between charm and light-flavor mesons, Phys. Rev. D110, 032004 (2024), arXiv:2401.13541 [nucl-ex]
- [74]
-
[75]
E. Epelbaum, S. Heihoff, U.-G. Meißner, and A. Tscherwon, Can the strong interactions between hadrons be determined using femtoscopy?, arXiv preprint arXiv:2504.08631 (2025), arXiv:2504.08631 [nucl-th]
work page internal anchor Pith review arXiv 2025
-
[76]
R. Molina and E. Oset, Determination of off-shell ambiguities in correlation functions: Strategies to minimize them, Phys. Rev. D112, 096006 (2025), arXiv:2506.03669 [hep-ph]
- [77]
-
[78]
Luscher, Volume Dependence of the Energy Spectrum in Massive Quantum Field Theories
M. Luscher, Volume Dependence of the Energy Spectrum in Massive Quantum Field Theories. 1. Stable Particle States, Commun. Math. Phys.104, 177 (1986)
1986
-
[79]
Luscher, Volume Dependence of the Energy Spectrum in Massive Quantum Field Theories
M. Luscher, Volume Dependence of the Energy Spectrum in Massive Quantum Field Theories. 2. Scattering States, Commun. Math. Phys.105, 153 (1986)
1986
-
[80]
Luscher, Two particle states on a torus and their relation to the scattering matrix, Nucl
M. Luscher, Two particle states on a torus and their relation to the scattering matrix, Nucl. Phys. B 354, 531 (1991)
1991
