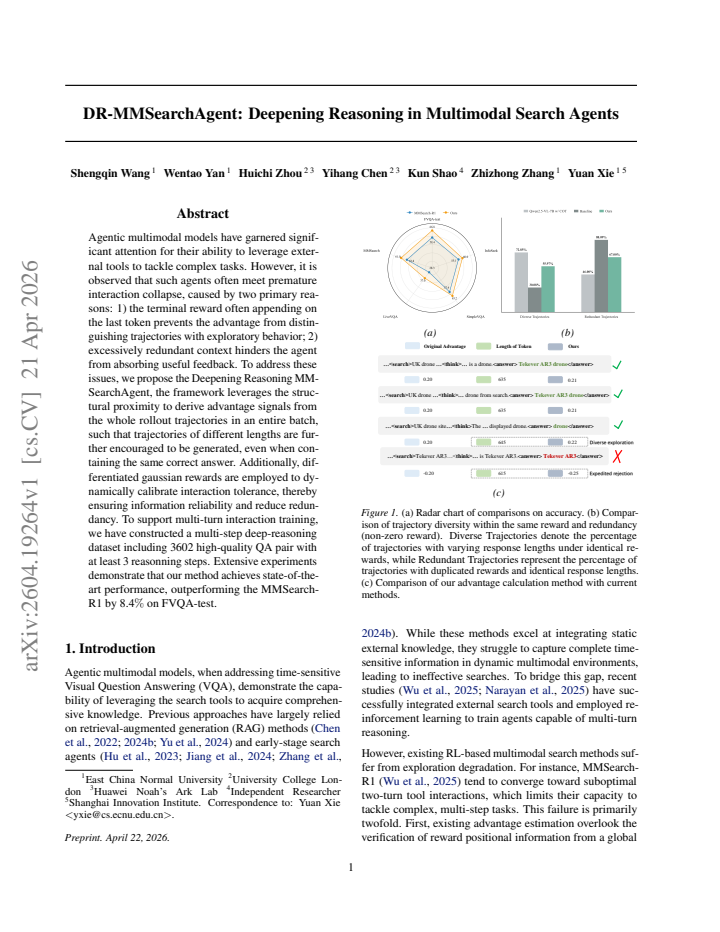

DR-MMSearchAgent: Deepening Reasoning in Multimodal Search Agents
Pith reviewed 2026-05-10 03:18 UTC · model grok-4.3
The pith
DR-MMSearchAgent derives batch-wide advantage signals from full trajectories and applies differentiated Gaussian rewards to keep multimodal search agents from collapsing into short or repetitive interactions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The DR-MMSearchAgent framework addresses premature interaction collapse in agentic multimodal models by deriving advantage signals from whole rollout trajectories within an entire batch using structural proximity, thereby encouraging trajectories of varying lengths even when they share the same correct answer, and by employing differentiated Gaussian rewards to dynamically calibrate interaction tolerance for better information reliability and reduced redundancy. This is enabled by a constructed multi-step deep-reasoning dataset containing 3602 high-quality QA pairs each requiring at least three reasoning steps.
What carries the argument
Structural proximity across batch trajectories for deriving advantage signals over full rollouts, combined with differentiated Gaussian rewards that dynamically calibrate interaction tolerance.
If this is right
- Trajectories of different lengths receive positive advantage signals even when they reach the same final answer.
- Redundant context is reduced while interaction feedback remains reliable.
- Multi-turn training on complex multimodal tasks becomes more stable.

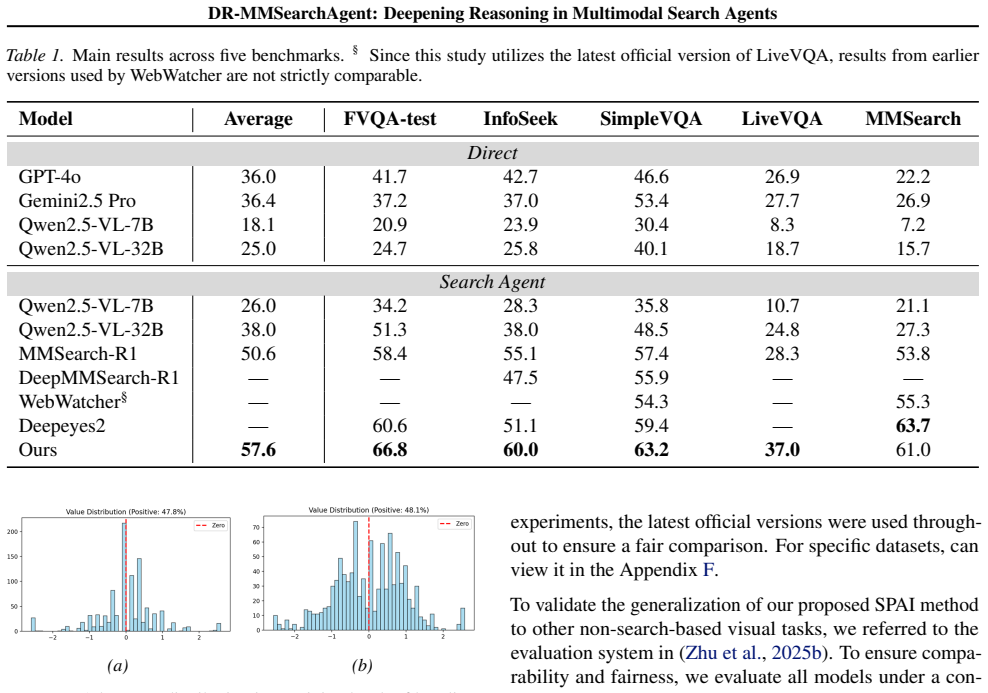

- The method yields an 8.4 percent accuracy improvement over MMSearch-R1 on FVQA-test.
Where Pith is reading between the lines
- Similar batch-proximity advantage estimation could apply to other variable-length reinforcement-learning agent tasks beyond search.
- The multi-step dataset construction approach offers a reusable template for creating training data that requires chained reasoning.
- Differentiated Gaussian reward shaping might reduce context bloat in long-horizon language-model agents more generally.
Load-bearing premise
The assumption that structural proximity across batch trajectories and differentiated Gaussian rewards will reliably distinguish exploratory behavior and reduce redundancy without introducing new instabilities or requiring extensive hyperparameter tuning.
What would settle it
An ablation that removes the batch structural proximity, retrains the agent, and shows no reduction in average trajectory length or final accuracy on FVQA-test would falsify the central benefit of the advantage mechanism.
Figures
read the original abstract
Agentic multimodal models have garnered significant attention for their ability to leverage external tools to tackle complex tasks. However, it is observed that such agents often meet premature interaction collapse, caused by two primary reasons: 1) the terminal reward often appending on the last token prevents the advantage from distinguishing trajectories with exploratory behavior; 2) excessively redundant context hinders the agent from absorbing useful feedback. To address these issues, we propose the Deepening Reasoning MMSearchAgent, the framework leverages the structural proximity to derive advantage signals from the whole rollout trajectories in an entire batch, such that trajectories of different lengths are further encouraged to be generated, even when containing the same correct answer. Additionally, differentiated gaussian rewards are employed to dynamically calibrate interaction tolerance, thereby ensuring information reliability and reduce redundancy. To support multi-turn interaction training, we have constructed a multi-step deep-reasoning dataset including 3602 high-quality QA pair with at least 3 reasonning steps. Extensive experiments demonstrate that our method achieves state-of-the-art performance, outperforming the MMSearch-R1 by 8.4$\%$ on FVQA-test.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes DR-MMSearchAgent to mitigate premature interaction collapse in multimodal search agents. It introduces two mechanisms: (1) using structural proximity across entire batch rollout trajectories to derive advantage signals that encourage generation of trajectories of varying lengths even with the same correct answer, and (2) differentiated Gaussian rewards to dynamically calibrate interaction tolerance, reduce redundancy, and ensure information reliability. The authors also construct a new multi-step deep-reasoning dataset of 3602 high-quality QA pairs requiring at least three reasoning steps. Extensive experiments are claimed to show state-of-the-art performance, with an 8.4% improvement over MMSearch-R1 on FVQA-test.
Significance. If the performance gains can be causally attributed to the proposed mechanisms rather than dataset effects alone, the work could meaningfully advance RL-based training for agentic multimodal models by addressing collapse and context redundancy. The construction of a multi-step reasoning dataset is a concrete contribution that may support future research in this area.
major comments (2)
- [Abstract] Abstract: The central claim of an 8.4% improvement over MMSearch-R1 on FVQA-test is stated without any reference to experimental details, baselines, ablation studies, statistical significance, or error analysis. This prevents assessment of whether the gains arise from the structural proximity advantage estimation or the differentiated Gaussian rewards.
- [Abstract] Abstract: No ablation or controlled comparison is described to isolate the contributions of batch-wide structural proximity for advantage signals and differentiated Gaussian rewards from the effects of the newly introduced 3602-pair multi-step dataset. Without such evidence, the attribution of gains to the proposed RL mechanisms (rather than data scale or quality) remains unverified and load-bearing for the SOTA claim.
minor comments (1)
- [Abstract] Abstract: The phrase 'extensive experiments' is used but no specific metrics, additional test sets, or comparison methods beyond MMSearch-R1 are mentioned.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback on our manuscript. The comments highlight the need for greater clarity in the abstract regarding experimental details and the isolation of our proposed mechanisms from dataset effects. We address each point below and commit to revisions that strengthen the presentation without altering the core contributions.
read point-by-point responses
-
Referee: [Abstract] Abstract: The central claim of an 8.4% improvement over MMSearch-R1 on FVQA-test is stated without any reference to experimental details, baselines, ablation studies, statistical significance, or error analysis. This prevents assessment of whether the gains arise from the structural proximity advantage estimation or the differentiated Gaussian rewards.
Authors: We agree that the abstract is too concise and lacks sufficient context on the supporting experiments. In the revised manuscript, we will expand the abstract to reference the key baselines (MMSearch-R1 and others), the FVQA-test evaluation, and point to the ablation studies and statistical details presented in Sections 4 and 5. These sections include the full comparison results, component ablations, and error analysis that substantiate the reported 8.4% gain. revision: yes
-
Referee: [Abstract] Abstract: No ablation or controlled comparison is described to isolate the contributions of batch-wide structural proximity for advantage signals and differentiated Gaussian rewards from the effects of the newly introduced 3602-pair multi-step dataset. Without such evidence, the attribution of gains to the proposed RL mechanisms (rather than data scale or quality) remains unverified and load-bearing for the SOTA claim.
Authors: We acknowledge that the current manuscript does not include explicit controlled experiments that train the baseline MMSearch-R1 on our new 3602-pair dataset or fully ablate the individual RL components while holding the dataset fixed. While our experiments compare DR-MMSearchAgent against MMSearch-R1 and other methods on the new dataset and include component-wise ablations, dedicated isolation studies would provide stronger causal evidence. We will add these controlled comparisons and ablations in the revised version to better attribute performance gains to the structural proximity advantage estimation and differentiated Gaussian rewards. revision: yes
Circularity Check
No circularity in derivation chain; claims are empirical and self-contained
full rationale
The paper proposes two mechanisms (batch structural proximity for advantage signals and differentiated Gaussian rewards) to address premature collapse, supported by a newly constructed 3602-pair training dataset. No equations, derivations, or parameter-fitting steps are described that reduce the 8.4% FVQA-test gain to a fitted input, self-definition, or self-citation chain. Results are presented as held-out empirical outcomes rather than predictions forced by construction. The central performance claim rests on external evaluation rather than internal redefinition of inputs, making the derivation self-contained with no load-bearing circular steps.
