A Complete Invariant Analysis of the Kerr Spacetime and its Photon Region

Nicholas Layden , Dipanjan Dey , Alan Coley

Authors on Pith no claims yet

Pith reviewed 2026-05-08 07:30 UTC · model grok-4.3

classification 🌀 gr-qc hep-th

keywords Kerr spacetimephoton surfacescurvature invariantsspherical photon orbitsnull geodesicsinvariant characterizationergosurfaces

0 comments

The pith

Curvature invariants yield a function whose zeros locate every spherical photon orbit in Kerr spacetime.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs an invariant description of the Kerr geometry from curvature scalars and extracts from it a single function, parameterized by a Lorentz factor that tracks inclination, whose zeros mark the null geodesics tangent to all photon surfaces. This yields coordinate-free locations for the unstable circular photon orbits together with their conserved energy and angular momentum. A reader cares because the construction turns the search for light-trapping surfaces around rotating black holes into an algebraic problem that works for arbitrary inclination and extends naturally to other axisymmetric spacetimes. The same invariants also identify the ergosphere and horizons.

Core claim

We present an invariant characterization of the Kerr spacetime, and utilize the invariant structure of the spacetime to derive a function whose zeros identify a special family of null geodesics. Each member of this family is tangent to every photon surface in the Kerr photon region, offering a method of invariantly characterizing photon surfaces in axially symmetric spacetimes and thereby providing a computational tool for efficiently computing the geodesic equations for any part of the photon region. The invariant that identifies all of the spherical photon orbits is parameterized by a Lorentz parameter, where the parameter is effectively an inclination angle of the spherical photon orbits.

What carries the argument

A curvature-invariant function, parameterized by a Lorentz factor equivalent to orbital inclination, whose zeros identify the one-parameter family of spherical null geodesics tangent to every photon surface.

Load-bearing premise

The chosen curvature invariants are assumed to encode all geometric information needed to isolate the photon surfaces at arbitrary inclinations without hidden coordinate dependence or prior knowledge of the metric form.

What would settle it

An explicit computation showing that the function vanishes at a radius or inclination where no spherical photon orbit exists, or remains nonzero where a known spherical photon orbit is present.

Figures

Figures reproduced from arXiv: 2604.23389 by Alan Coley, Dipanjan Dey, Nicholas Layden.

**Figure 1.** Figure 1: A set of null vectors from the family (˜ℓK) a initially tangent to a photon surface in the photon region for different K. All vectors start from the equatorial plane, and follow the future directed null geodesic orbit which is identified as belonging to a photon surface. Blue disk: radial extent of the photon region in the equatorial plane. Green line: line of initial points for each of the null vectors. R… view at source ↗

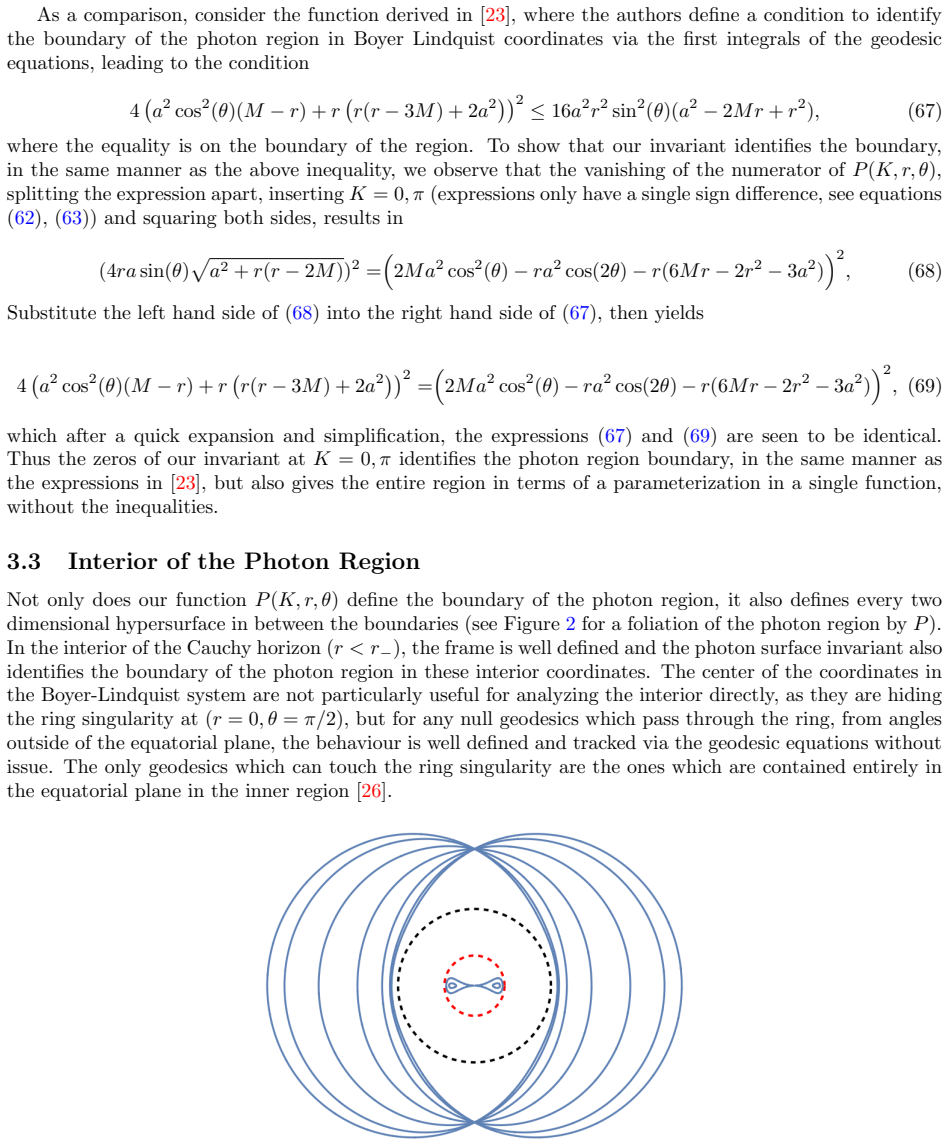

**Figure 2.** Figure 2: Interior foliation of the photon region by view at source ↗

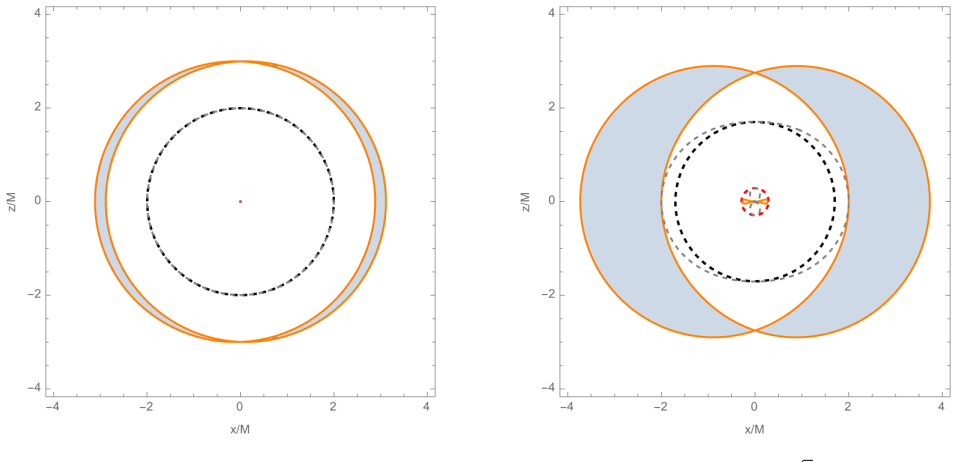

**Figure 3.** Figure 3: a = 1/10 view at source ↗

**Figure 6.** Figure 6: a = 0.999 view at source ↗

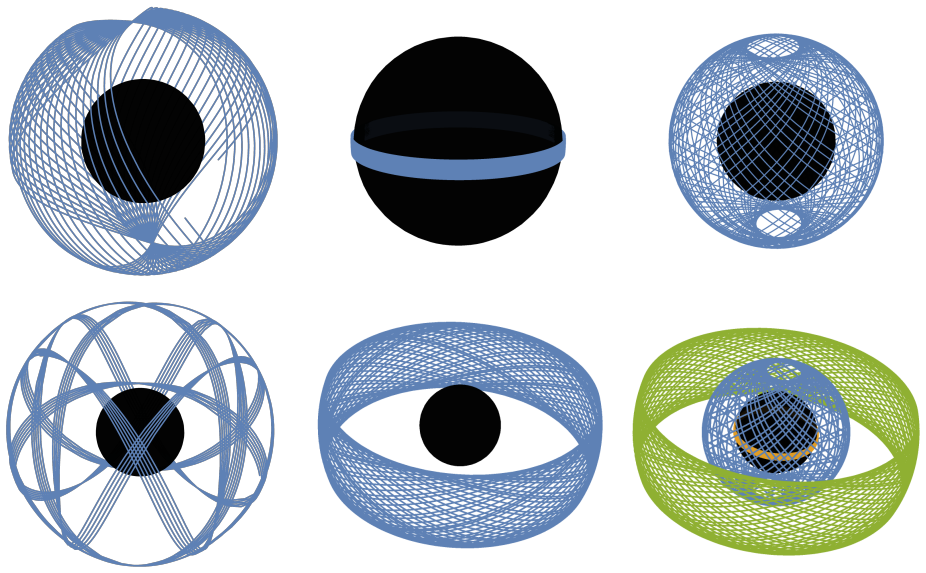

**Figure 9.** Figure 9: Various photon surfaces traced by geodesics. Initial data for ( view at source ↗

read the original abstract

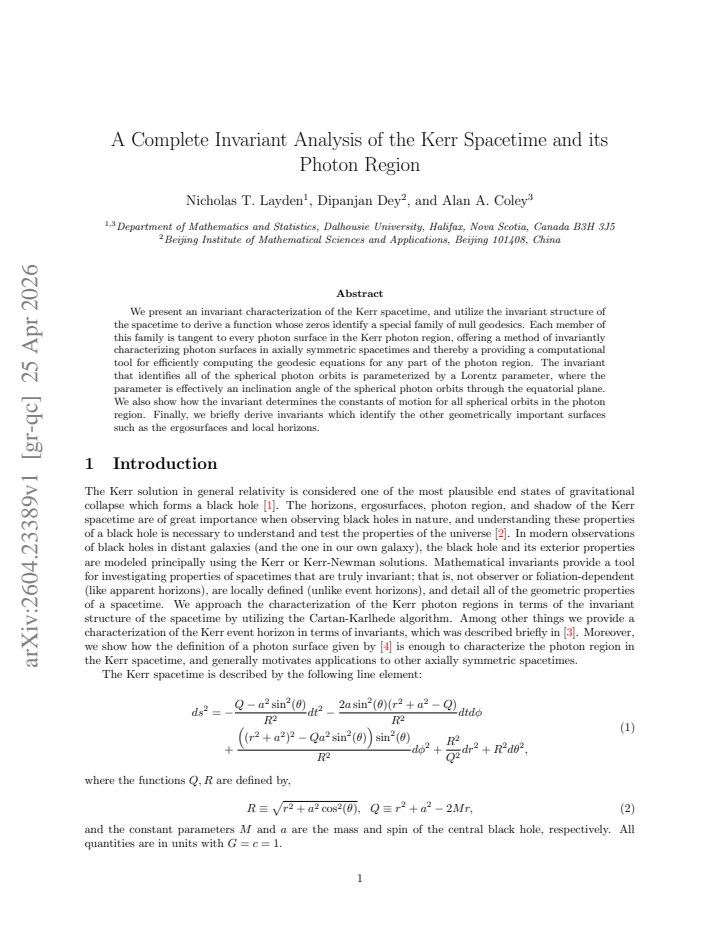

We present an invariant characterization of the Kerr spacetime, and utilize the invariant structure of the spacetime to derive a function whose zeros identify a special family of null geodesics. Each member of this family is tangent to every photon surface in the Kerr photon region, offering a method of invariantly characterizing photon surfaces in axially symmetric spacetimes and thereby a providing a computational tool for efficiently computing the geodesic equations for any part of the photon region. The invariant that identifies all of the spherical photon orbits is parameterized by a Lorentz parameter, where the parameter is effectively an inclination angle of the spherical photon orbits through the equatorial plane. We also show how the invariant determines the constants of motion for all spherical orbits in the photon region. Finally, we briefly derive invariants which identify the other geometrically important surfaces such as the ergosurfaces and local horizons.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Kerr gets an invariant photon-orbit locator via one function, but the derivation needs checking for any hidden coordinate dependence in the Lorentz parameter.

read the letter

The main thing to know is that this paper constructs an invariant function from curvature scalars whose zeros mark the full set of spherical photon orbits in Kerr, all parameterized by a single Lorentz parameter that acts like an inclination angle. They also use invariants to pick out the ergosurfaces and horizons, and show how the function gives the constants of motion for those orbits. This is presented as a computational tool for geodesics in the photon region of axially symmetric spacetimes. What the work does well is turn a family of orbits into something locatable through invariants rather than repeated coordinate solving, which could help with shadow modeling or ray tracing once the details are solid. The approach stays within the exact-solutions lane and tries to stay coordinate-free where possible. The soft spot is that the abstract gives no equations, no explicit form of the function, and no reduction check against the known equatorial photon orbit. The stress-test concern lands here: even if the final function is built from invariants, defining the Lorentz parameter as an inclination through the equatorial plane could still embed an axis choice or metric assumption that is not purely invariant. Without the derivation steps it is impossible to rule that out or confirm there is no circularity with the standard Kerr constants. If the math holds and the function is reproducible from the invariants alone, the result is useful for the subfield. This paper is for people working on Kerr geodesics, photon rings, or invariant methods in GR. A reader who needs practical tools for the photon region or wants to see curvature invariants applied to black-hole surfaces will find something concrete. It deserves a serious referee because the claim is specific and the topic is relevant, even though the current write-up is thin on evidence. I recommend sending it to peer review and asking the referees to check the explicit construction and its invariance properties against known results.

Referee Report

1 major / 2 minor

Summary. The manuscript presents an invariant characterization of the Kerr spacetime using curvature invariants. It derives a function whose zeros identify a special family of null geodesics, each tangent to every photon surface in the Kerr photon region. This function is parameterized by a Lorentz parameter that encodes the inclination of spherical photon orbits relative to the equatorial plane. The work further shows that the invariant determines the constants of motion for all such orbits and derives additional invariants identifying ergosurfaces and local horizons.

Significance. If the central claim holds, the paper supplies a coordinate-independent method to locate and characterize the full family of spherical photon orbits in Kerr spacetime for arbitrary inclinations. This could serve as an efficient computational tool for geodesic equations in the photon region and extend to other axially symmetric spacetimes, representing a useful advance in invariant GR techniques.

major comments (1)

[§4] §4 (derivation of the zero-locating function and Lorentz parameter): The central claim requires that the function is constructed from curvature invariants alone and that its zeros exactly mark all spherical photon orbits at arbitrary inclination without coordinate-dependent input. The parameterization by the Lorentz parameter, described as an inclination through the equatorial plane, appears to reference the axis of symmetry; if its definition or calibration uses the explicit Kerr metric components or Boyer-Lindquist form, the characterization is not purely invariant and the method for arbitrary inclination rests on a hidden assumption.

minor comments (2)

The abstract and introduction would benefit from a short outline of the specific curvature invariants employed before presenting the derived function.
Notation for the Lorentz parameter and its relation to the constants of motion could be clarified with an explicit equation linking them.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the positive assessment of its potential significance. We address the single major comment below.

read point-by-point responses

Referee: [§4] §4 (derivation of the zero-locating function and Lorentz parameter): The central claim requires that the function is constructed from curvature invariants alone and that its zeros exactly mark all spherical photon orbits at arbitrary inclination without coordinate-dependent input. The parameterization by the Lorentz parameter, described as an inclination through the equatorial plane, appears to reference the axis of symmetry; if its definition or calibration uses the explicit Kerr metric components or Boyer-Lindquist form, the characterization is not purely invariant and the method for arbitrary inclination rests on a hidden assumption.

Authors: We agree that a purely invariant characterization must ultimately be expressible using only curvature invariants, without ongoing reference to a particular coordinate chart. The derivation in §4 begins with the Kerr metric in Boyer-Lindquist coordinates solely to isolate the unique combination of Weyl invariants that vanishes on the photon surfaces; once identified, the resulting function is rewritten exclusively in terms of those invariants together with a single dimensionless scalar parameter. This parameter is fixed by the ratio of the conserved energy and angular momentum along the null geodesic and can be determined at any point from the local frame or from the invariant Killing scalars, without explicit reference to the rotation axis. The axis itself is invariantly identified as the direction in which the timelike Killing vector becomes null on the ergosurface. Consequently, the zeros of the function locate the spherical photon orbits for any inclination once the parameter value is supplied, and the expression itself contains no coordinate-dependent quantities. We will add a short clarifying paragraph in the revised §4 that explicitly separates the discovery step from the final invariant form and demonstrates evaluation in an alternative chart. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained via invariants

full rationale

The paper claims to start from curvature invariants of the Kerr spacetime and derive a function whose zeros mark the photon surfaces, parameterized by a Lorentz factor that encodes inclination. No quoted step reduces the target function to a fitted input, self-defined quantity, or load-bearing self-citation by construction. The central result is presented as following directly from the invariant structure without the derivation collapsing to its own coordinate choices or prior author results. This is the expected honest non-finding for an invariant-analysis paper whose explicit equations are not shown to be tautological.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Abstract-only; the Lorentz parameter is introduced as a free choice that labels orbits, and the Kerr solution is taken as given.

free parameters (1)

Lorentz parameter
Introduced to parameterize the invariant that identifies spherical photon orbits by their inclination through the equatorial plane.

axioms (1)

domain assumption The Kerr spacetime is the unique stationary axisymmetric vacuum solution of Einstein's equations with the standard properties.
The paper begins from the Kerr metric as the background spacetime whose invariants are analyzed.

pith-pipeline@v0.9.0 · 5440 in / 1319 out tokens · 32004 ms · 2026-05-08T07:30:44.059303+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

29 extracted references · 9 canonical work pages · 1 internal anchor

[1]

Final States of Gravitational Collapse

R. M. Wald. “Final States of Gravitational Collapse”.Physical Review Letters26 (26 1971), pp. 1653– 1655

1971
[2]

First M87 Event Horizon Telescope Results. I. The Shadow of the Supermassive Black Hole

K. Akiyama et al. “First M87 Event Horizon Telescope Results. I. The Shadow of the Supermassive Black Hole”.The Astrophysical Journal Letters875.1 (Apr. 2019), p. L1

2019
[3]

Cartan Invariants and Event Horizon Detection, Extended Version

D. D. McNutt et al. “Cartan Invariants and Event Horizon Detection, Extended Version”.General Relativity and Gravitation50.4 (2018). [Erratum: Gen.Rel.Grav. 52, 6 (2020)], p. 37. arXiv:1709.03362 [gr-qc]

work page arXiv 2018
[4]

Claudel, K

C.-M. Claudel, K. S. Virbhadra, and G. F. R. Ellis. “The Geometry of photon surfaces”.J. Math. Phys.42 (2001), pp. 818–838. arXiv:gr-qc/0005050

work page arXiv 2001
[5]

Shadows and parameter estimation of rotating quantum corrected black holes and constraints from EHT observation of M87* and Sgr A*

H. Ali, S. U. Islam, and S. G. Ghosh. “Shadows and parameter estimation of rotating quantum corrected black holes and constraints from EHT observation of M87* and Sgr A*”.Journal of High Energy Astrophysics47 (July 2025), p. 100367

2025
[6]

First M87 Event Horizon Telescope Results. I. The Shadow of the Supermassive Black Hole

Event Horizon Telescope Collaboration et al. “First M87 Event Horizon Telescope Results. I. The Shadow of the Supermassive Black Hole”.Astrophysical Journal Letters875.1, L1 (Apr. 2019), p. L1. arXiv:1906.11238 [astro-ph.GA]

work page internal anchor Pith review arXiv 2019
[7]

First M87 Event Horizon Telescope Results. V. Physical Origin of the Asymmetric Ring

Event Horizon Telescope Collaboration et al. “First M87 Event Horizon Telescope Results. V. Physical Origin of the Asymmetric Ring”.The Astrophysical Journal Letters875.1 (2019), p. L5

2019
[8]

New approach to the quasinormal modes of a black hole

V. Ferrari and B. Mashhoon. “New approach to the quasinormal modes of a black hole”.Physical Review D30 (2 1984), pp. 295–304

1984
[9]

Black-hole normal modes: A WKB approach. IV. Kerr black holes

E. Seidel and S. Iyer. “Black-hole normal modes: A WKB approach. IV. Kerr black holes”.Physical Review D41 (2 1990), pp. 374–382

1990
[10]

Gravitational-wave signatures of massive black hole formation

B. J. Kelly et al. “Gravitational-wave signatures of massive black hole formation”.Classical and Quan- tum Gravity42.24 (Dec. 2025), p. 245010

2025
[11]

Black Hole Parameter Estimation from Its Shadow

R. Kumar and S. G. Ghosh. “Black Hole Parameter Estimation from Its Shadow”.The Astrophysical Journal892.2 (Mar. 2020), p. 78

2020
[12]

Invariant characterization of the Kerr spacetime: Locating the horizon and measuring the mass and spin of rotating black holes using curvature invariants

M. Abdelqader and K. Lake. “Invariant characterization of the Kerr spacetime: Locating the horizon and measuring the mass and spin of rotating black holes using curvature invariants”.Physical Review D91.8 (Apr. 2015)

2015
[13]

Black hole boundaries

I. Booth. “Black hole boundaries”.Can. J. Phys.83 (2005), pp. 1073–1099. arXiv:gr-qc/0508107

work page Pith review arXiv 2005
[14]

Geometric horizons

A. A. Coley, D. D. McNutt, and A. A. Shoom. “Geometric horizons”.Physics Letters B771 (Aug. 2017), 131–135

2017
[15]

Identification of black hole horizons using scalar curvature invariants

A. Coley and D. McNutt. “Identification of black hole horizons using scalar curvature invariants”. Classical and Quantum Gravity35.2 (Dec. 2017), p. 025013

2017
[16]

Computer-aided classification of the Ricci tensor in general relativity

G. C. Joly and M. A. H. MacCallum. “Computer-aided classification of the Ricci tensor in general relativity”.Classical and Quantum Gravity7.4 (Apr. 1990), p. 541

1990
[17]

Classification of the Weyl tensor in higher dimen- sions

A. Coley, R. Milson, V. Pravda, and A. Pravdov´ a. “Classification of the Weyl tensor in higher dimen- sions”.Class. Quant. Grav.21 (2004), pp. L35–L42. arXiv:gr-qc/0401008

work page arXiv 2004
[18]

Stephani et al.Exact Solutions of Einstein’s Field Equations

H. Stephani et al.Exact Solutions of Einstein’s Field Equations. 2nd ed. Cambridge Monographs on Mathematical Physics. Cambridge University Press, 2003. 24

2003
[19]

An invariant characterization of the quasi-spherical Szekeres dust models

A. A. Coley, N. Layden, and D. D. McNutt. “An invariant characterization of the quasi-spherical Szekeres dust models”.General Relativity and Gravitation51.12 (2019), p. 164. arXiv:2103.05305 [gr-qc]

work page arXiv 2019
[20]

Field of an Arbitrarily Accelerating Point Mass

W. Kinnersley. “Field of an Arbitrarily Accelerating Point Mass”.Physical Review186 (5 1969), pp. 1335–1336

1969
[21]

Spacetimes characterized by their scalar curvature invariants

A. Coley, S. Hervik, and N. Pelavas. “Spacetimes characterized by their scalar curvature invariants”. Classical and Quantum Gravity26.2 (Jan. 2009), p. 025013

2009
[22]

C. F. Paganini, B. Ruba, and M. A. Oancea.Characterization of Null Geodesics on Kerr Spacetimes
[23]

arXiv:1611.06927 [gr-qc]

work page arXiv
[24]

Photon regions and shadows of Kerr-Newman-NUT black holes with a cosmological constant

A. Grenzebach, V. Perlick, and C. L¨ ammerzahl. “Photon regions and shadows of Kerr-Newman-NUT black holes with a cosmological constant”.Physical Review D89.12 (June 2014)

2014
[25]

Definition of a photon surface in an invariant spin frame

D. Dey, A. A. Coley, and N. T. Layden. “Definition of a photon surface in an invariant spin frame”. Physical Review D109.6 (2024), p. 064021. arXiv:2401.11936 [gr-qc]

work page arXiv 2024
[26]

Photon regions in stationary axisymmetric spacetimes and um- bilic conditions

K. V. Kobialko and D. V. Gal’tsov. “Photon regions in stationary axisymmetric spacetimes and um- bilic conditions”.The Sixteenth Marcel Grossmann Meeting, pp. 3874–3884. eprint:https : / / www . worldscientific.com/doi/pdf/10.1142/9789811269776_0322

work page doi:10.1142/9789811269776_0322
[27]

O’Neill.The Geometry of Kerr Black Holes

B. O’Neill.The Geometry of Kerr Black Holes. Dover Books on Physics. Dover Publications, 2014

2014
[28]

Chandrasekhar.The mathematical theory of black holes

S. Chandrasekhar.The mathematical theory of black holes. 1983

1983
[29]

Analytical solution of the geodesic equation in Kerr-(anti-) de Sitter space-times

E. Hackmann, C. L¨ ammerzahl, V. Kagramanova, and J. Kunz. “Analytical solution of the geodesic equation in Kerr-(anti-) de Sitter space-times”.Physical Review D81.4 (Feb. 2010). 25

2010
