ReActor: Reinforcement Learning for Physics-Aware Motion Retargeting
Pith reviewed 2026-05-08 08:44 UTC · model grok-4.3
The pith
A bilevel optimization framework retargets human motions to robots by jointly training a tracking policy with reinforcement learning inside physics simulation.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By casting retargeting as the upper level of a bilevel program whose lower level trains a reinforcement-learning policy to track the retargeted trajectory inside a physics simulator, and by supplying an approximate gradient for the upper-level objective, the framework discovers retargeting parameters that preserve the original motion's character while guaranteeing physical feasibility from only a sparse set of semantic rigid-body matches.
What carries the argument
Bilevel optimization that couples an upper-level retargeting parameterization with a lower-level reinforcement-learning policy trained to track the motion under full physics simulation, using an approximate gradient to make the outer optimization tractable.
If this is right
- Only a sparse set of semantic rigid-body correspondences is required instead of dense or manual feature matching.
- Retargeting parameters are identified automatically, removing the need for per-motion manual tuning.
- The adapted motions are free of physical inconsistencies such as foot sliding or dynamically infeasible forces.
- The motions support robust imitation learning that transfers from simulation to hardware.
- The same pipeline works across morphologies that differ substantially from the human source, including quadrupeds.
Where Pith is reading between the lines
- Embedding physics simulation inside the retargeting loop may shrink the usual sim-to-real gap for imitation policies.
- The bilevel structure could be reused for other motion-adaptation tasks where control and morphology changes must be solved together.
- Once trained, the retargeting parameters might serve as a fast feed-forward adapter for new reference motions without re-optimizing.
- Extending the approach to online retargeting during execution could let robots adjust human-like motions on the fly.
Load-bearing premise
The approximate gradient computed for the upper-level loss is accurate enough to drive the bilevel optimizer to useful parameter values without trapping it in poor local minima or demanding prohibitive computation.
What would settle it
Running the method on a new robot morphology and observing that the output motion still exhibits foot sliding, self-collisions, or cannot be tracked by the learned policy without further manual fixes would show the central claim is false.
Figures

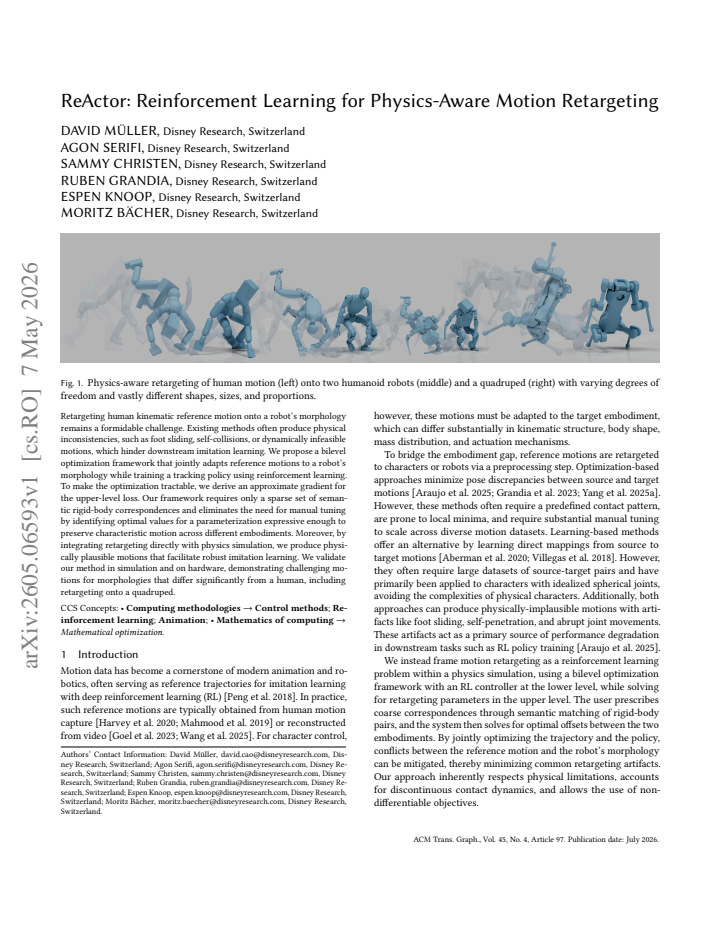

read the original abstract
Retargeting human kinematic reference motion onto a robot's morphology remains a formidable challenge. Existing methods often produce physical inconsistencies, such as foot sliding, self-collisions, or dynamically infeasible motions, which hinder downstream imitation learning. We propose a bilevel optimization framework that jointly adapts reference motions to a robot's morphology while training a tracking policy using reinforcement learning. To make the optimization tractable, we derive an approximate gradient for the upper-level loss. Our framework requires only a sparse set of semantic rigid-body correspondences and eliminates the need for manual tuning by identifying optimal values for a parameterization expressive enough to preserve characteristic motion across different embodiments. Moreover, by integrating retargeting directly with physics simulation, we produce physically plausible motions that facilitate robust imitation learning. We validate our method in simulation and on hardware, demonstrating challenging motions for morphologies that differ significantly from a human, including retargeting onto a quadruped.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes ReActor, a bilevel optimization framework for physics-aware motion retargeting that jointly adapts a human reference motion to a target robot morphology (via a parameterization) while training a tracking policy with reinforcement learning. An approximate gradient is derived for the upper-level loss to make the optimization tractable; the method requires only sparse semantic rigid-body correspondences, claims to eliminate manual tuning by automatically identifying optimal parameterization values that preserve characteristic motion, and integrates retargeting directly with physics simulation to produce plausible motions suitable for imitation learning. Validation is reported in simulation and on hardware for morphologies including quadrupeds that differ significantly from human form.
Significance. If the central claims hold, the work would be significant for robotics motion retargeting and imitation learning: it automates what is typically a manual, embodiment-specific process, directly enforces physical plausibility via simulation, and demonstrates results on challenging cross-embodiment cases (e.g., human-to-quadruped). The bilevel formulation that couples retargeting and policy training is a constructive idea that could reduce downstream sim-to-real gaps.
major comments (2)
- [§3.2] §3.2 (Bilevel Optimization and Approximate Gradient): The derivation of the approximate gradient for the upper-level loss is load-bearing for the tractability and automation claims, yet the manuscript provides no quantitative validation of its accuracy (e.g., comparison to finite differences on a simplified case, error bounds, or ablation against exact gradients where feasible). Without this, it is unclear whether the optimizer reliably reaches solutions that preserve characteristic motion or merely converges to local minima that still require post-hoc tuning.
- [§5] §5 (Experiments, quadruped and hardware results): The reported success on morphologies differing significantly from human form rests on qualitative and aggregate metrics, but lacks direct quantitative comparison to hand-tuned baselines or alternative retargeting methods on load-bearing physical-plausibility measures (foot sliding, self-collision rate, torque feasibility). This weakens the claim that the automatic parameterization eliminates manual intervention.
minor comments (2)
- [§3] The notation for the retargeting parameterization (free parameters, bounds, and how semantic correspondences map to them) is introduced piecemeal; a consolidated table or diagram in §3 would improve readability.

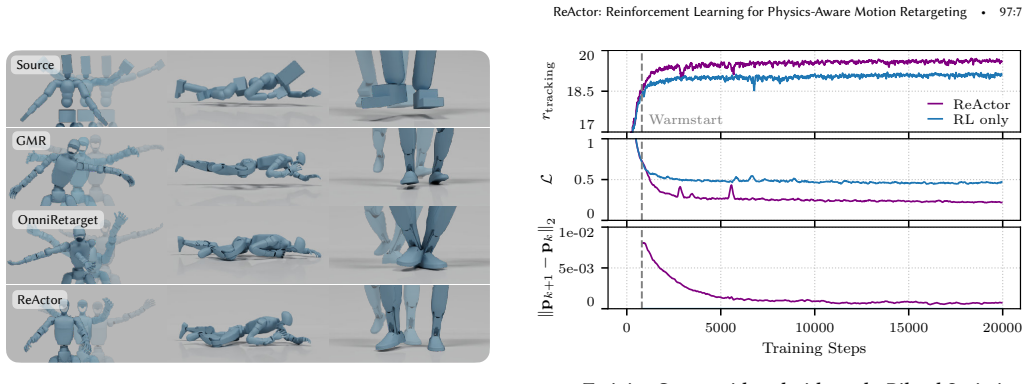

- [Figures 4-6] Figure captions for qualitative motion results could explicitly state the source human motion, target robot, and any post-processing applied, to allow readers to assess preservation of characteristic features.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback on our manuscript. We address each major comment below and describe the revisions we will incorporate to strengthen the work.
read point-by-point responses
-
Referee: [§3.2] §3.2 (Bilevel Optimization and Approximate Gradient): The derivation of the approximate gradient for the upper-level loss is load-bearing for the tractability and automation claims, yet the manuscript provides no quantitative validation of its accuracy (e.g., comparison to finite differences on a simplified case, error bounds, or ablation against exact gradients where feasible). Without this, it is unclear whether the optimizer reliably reaches solutions that preserve characteristic motion or merely converges to local minima that still require post-hoc tuning.
Authors: We agree that explicit quantitative validation of the approximate gradient would strengthen the tractability claims. The derivation enables the bilevel optimization to remain computationally feasible, and the successful retargeting results across embodiments provide indirect empirical support. However, we acknowledge the absence of direct comparisons such as finite-difference checks or error bounds in the current manuscript. In the revised version, we will add an ablation study on simplified cases that compares the approximate gradient to finite differences and exact gradients (where feasible), including quantitative error metrics and analysis of convergence to characteristic-motion-preserving solutions. revision: yes
-
Referee: [§5] §5 (Experiments, quadruped and hardware results): The reported success on morphologies differing significantly from human form rests on qualitative and aggregate metrics, but lacks direct quantitative comparison to hand-tuned baselines or alternative retargeting methods on load-bearing physical-plausibility measures (foot sliding, self-collision rate, torque feasibility). This weakens the claim that the automatic parameterization eliminates manual intervention.
Authors: We appreciate the call for stronger quantitative evidence on physical plausibility. The current experiments emphasize feasibility on challenging cross-embodiment cases (including human-to-quadruped) using qualitative demonstrations and aggregate metrics to highlight the automation benefit. We agree that direct comparisons on specific measures would better support the elimination of manual tuning. In the revision, we will add quantitative evaluations against hand-tuned baselines and alternative retargeting methods, reporting foot-sliding distances, self-collision rates, and torque feasibility for the quadruped simulation and hardware results. revision: yes
Circularity Check
No significant circularity; derivation relies on external physics simulation and standard bilevel RL optimization.
full rationale
The paper's core contribution is a bilevel optimization that jointly performs motion retargeting and RL policy training, using an approximate gradient derived for tractability. This does not reduce any claimed prediction or result to its inputs by construction, nor does it rely on self-definitional parameters, fitted inputs renamed as predictions, or load-bearing self-citations. The framework explicitly integrates external physics simulation and requires only sparse rigid-body correspondences as input, with the optimization discovering parameterization values rather than presupposing them. No ansatz is smuggled via citation, and no uniqueness theorem from prior author work is invoked to force the method. The derivation chain is therefore self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
free parameters (1)
- retargeting parameterization
axioms (1)
- domain assumption Physics simulator provides sufficiently accurate dynamics for the target robot morphology
