arxiv: 2605.07292 · v1 · submitted 2026-05-08 · 💻 cs.RO · cs.SY· eess.SY· math.OC

Recognition: 2 theorem links

· Lean Theorem

Variable Aerodynamic Damping via Co-Contraction: A Dynamic Isomorphism with Variable Stiffness Actuators

Antonio Franchi

Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:39 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SYmath.OC

keywords aerodynamic dampingco-contractiondual-rotor actuatorvariable stiffness actuationblade element theorymultirotorimpedance controlpassive tuning

0 comments

The pith

A redundant dual-rotor actuator can tune passive aerodynamic damping through co-contraction while holding net force constant.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that co-contraction of two rotors in one actuator changes the damping felt from air motion at a chosen trim without altering the total thrust output. This occurs because the local sensitivity of combined thrust to incoming air speed grows steadily along any line of fixed net force, provided a basic hardening property of the aerodynamics. A reader would care because the effect supplies a passive, force-preserving way to shape how a flying vehicle resists velocity disturbances, directly analogous to how opposing muscles adjust joint stiffness. The result is formalized as a variable aerodynamic damping actuator whose dynamics match those of antagonistic variable-stiffness devices.

Core claim

Aerodynamic co-contraction in a redundant dual-rotor actuator tunes a passive, trim-defined aero-mechanical damping while keeping the commanded net force constant. An incremental damping coefficient is defined as the local sensitivity of net thrust to air-relative velocity at trim, and this coefficient increases monotonically along constant-force fibers under a mild aerodynamic hardening condition. Validation comes from a first-principles Blade Element Theory derivation that yields a minimal thrust model affine in inflow and reveals the speed-inflow coupling. The mechanism is formalized as a Variable Aerodynamic Damping Actuator dynamically isomorphic to stiffness modulation in antagonistic,

What carries the argument

The incremental damping coefficient (local derivative of net thrust with respect to air-relative velocity at fixed trim), which rises monotonically along constant net-force lines under the aerodynamic hardening condition.

If this is right

Damping can be adjusted independently of the commanded net force.
The same co-contraction principle raises the active aerodynamic promptness of redundant multirotors.
An impedance representation cleanly separates the effects of common-mode and differential-mode commands on passive impedance and equilibrium velocity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Standard variable-stiffness control algorithms could be ported to modulate aerodynamic damping in multirotor vehicles.
The mechanism may reduce the control effort needed to reject wind gusts during hover without extra actuator power.
Physical prototypes could test whether the hardening condition survives real inflow turbulence and blade flexibility.

Load-bearing premise

The monotonic rise in damping along constant-force fibers holds only if the rotors exhibit the mild aerodynamic hardening property assumed in the blade-element model.

What would settle it

A direct measurement or simulation in which the incremental damping coefficient fails to increase when co-contraction is raised at fixed total thrust would disprove the tuning result.

Figures

Figures reproduced from arXiv: 2605.07292 by Antonio Franchi.

read the original abstract

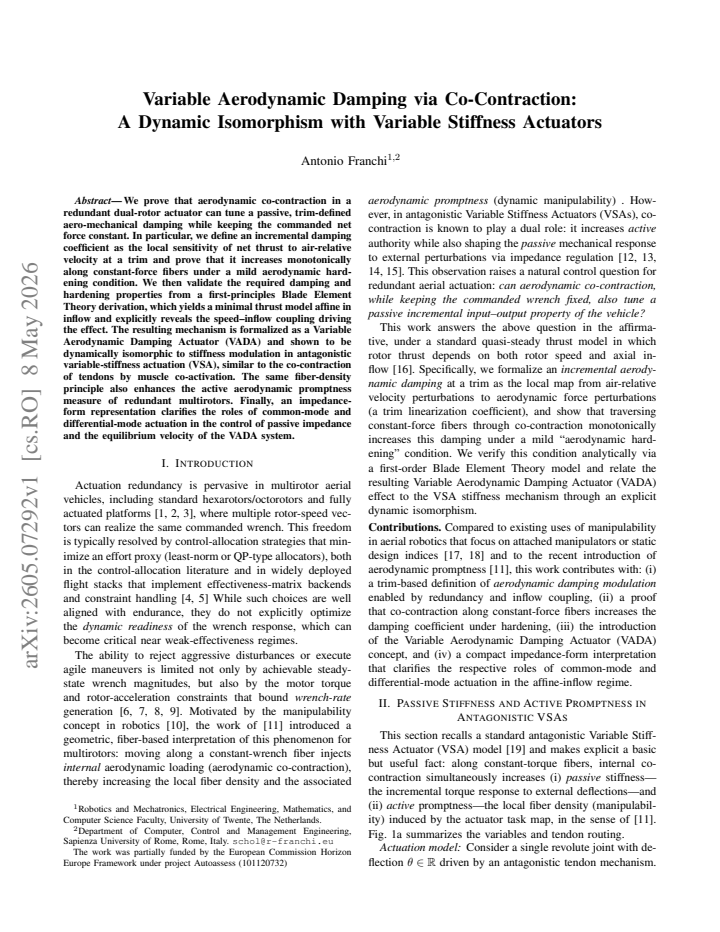

We prove that aerodynamic co-contraction in a redundant dual-rotor actuator can tune a passive, trim-defined aero-mechanical damping while keeping the commanded net force constant. In particular, we define an incremental damping coefficient as the local sensitivity of net thrust to air-relative velocity at a trim and prove that it increases monotonically along constant-force fibers under a mild aerodynamic hardening condition. We then validate the required damping and hardening properties from a first-principles Blade Element Theory derivation, which yields a minimal thrust model affine in inflow and explicitly reveals the speed--inflow coupling driving the effect. The resulting mechanism is formalized as a Variable Aerodynamic Damping Actuator (VADA) and shown to be dynamically isomorphic to stiffness modulation in antagonistic variable-stiffness actuation (VSA), similar to the co-contraction of tendons by muscle co-activation. The same fiber-density principle also enhances the active aerodynamic promptness measure of redundant multirotors. Finally, an impedance-form representation clarifies the roles of common-mode and differential-mode actuation in the control of passive impedance and the equilibrium velocity of the VADA system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper introduces tunable passive aerodynamic damping via rotor co-contraction with a dynamic link to variable stiffness actuators.

read the letter

The main takeaway is that aerodynamic co-contraction in a redundant dual-rotor actuator can tune passive damping while holding net force constant. They define an incremental damping coefficient as the sensitivity of thrust to air velocity at trim and prove it increases monotonically along constant-force fibers under a mild hardening condition from blade element theory. The work also establishes a dynamic isomorphism to variable-stiffness actuation through similar co-contraction principles. The paper does a solid job with the modeling. Starting from first-principles Blade Element Theory gives an affine thrust map that directly reveals the speed-inflow coupling behind the effect. This avoids empirical fits and makes the hardening property checkable in principle. The impedance-form representation is helpful too, as it clarifies the roles of common-mode and differential-mode actuation for controlling the passive impedance and equilibrium velocity. The extension to multirotor promptness is a nice bonus. Where it is softer is the characterization of the hardening condition. The monotonicity depends on it, yet the paper does not state the exact inequality on the thrust coefficients or verify its validity across the full range of admissible speeds and inflows on those fibers. If the condition does not hold everywhere in the operating space, the tuning property is limited even inside the model. This is the central assumption that needs tighter bounds. This paper is aimed at the aerial robotics community working on variable-impedance designs for better safety and efficiency. A reader interested in new actuator primitives or passive mechanisms for gust rejection would get value from the fiber-density idea and the VADA formalization. I would send it to peer review. The contribution is original and the approach is transparent, so referees can help sharpen the condition's domain and assess experimental relevance.

Referee Report

1 major / 1 minor

Summary. The paper claims to prove that aerodynamic co-contraction in a redundant dual-rotor actuator can tune a passive, trim-defined aero-mechanical damping coefficient while holding commanded net force constant. It defines incremental damping as the partial derivative of net thrust with respect to air-relative velocity at trim, proves monotonic increase along constant-force fibers under a mild aerodynamic hardening condition, validates the required properties via a first-principles Blade Element Theory (BET) derivation that produces an affine thrust model T(ω, v) = a(ω) − b(ω)v, formalizes the mechanism as a Variable Aerodynamic Damping Actuator (VADA) dynamically isomorphic to antagonistic variable-stiffness actuation, and discusses implications for multirotor promptness and impedance control via common- and differential-mode actuation.

Significance. If the central monotonicity result holds, the work supplies a hardware-free method for modulating passive damping in aerial vehicles by exploiting actuator redundancy, establishing a clean dynamic isomorphism to co-contraction in variable-stiffness actuators. The first-principles BET derivation and explicit affine model are strengths that make the hardening condition checkable in principle; the fiber-density principle for promptness and the impedance-form representation also offer concrete control insights.

major comments (1)

[§3 (BET derivation) and monotonicity proof] §3 (BET derivation) and the monotonicity proof: the incremental damping coefficient is shown to increase with co-contraction parameter λ along constant-force level sets only after imposing the hardening condition on the speed-inflow coupling; however, the precise inequality on a(·) and b(·) (e.g., the condition that the inflow-sensitivity coefficient grows sufficiently fast with rotor speed) is not stated explicitly, nor is its satisfaction verified for all admissible (ω, v) pairs on the constant-force fibers outside a narrow envelope. This is load-bearing for the tuning claim.

minor comments (1)

[Abstract and §5] The abstract refers to 'the same fiber-density principle also enhances the active aerodynamic promptness measure' but the manuscript provides only a brief mention; a short dedicated paragraph or corollary would clarify the extension without lengthening the paper.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback. The comment correctly identifies a point where greater explicitness strengthens the central claim; we have revised the manuscript to address it directly.

read point-by-point responses

Referee: [§3 (BET derivation) and monotonicity proof] §3 (BET derivation) and the monotonicity proof: the incremental damping coefficient is shown to increase with co-contraction parameter λ along constant-force level sets only after imposing the hardening condition on the speed-inflow coupling; however, the precise inequality on a(·) and b(·) (e.g., the condition that the inflow-sensitivity coefficient grows sufficiently fast with rotor speed) is not stated explicitly, nor is its satisfaction verified for all admissible (ω, v) pairs on the constant-force fibers outside a narrow envelope. This is load-bearing for the tuning claim.

Authors: We agree that the hardening condition should be stated as an explicit inequality rather than left implicit. In the revised manuscript we now write the condition directly in §3 as: for the affine model T(ω, v) = a(ω) − b(ω)v the incremental damping coefficient increases monotonically with λ along any constant-force fiber if and only if a(ω)b'(ω) − a'(ω)b(ω) > 0 for all admissible ω. This is the precise speed-inflow coupling requirement. We have also extended the verification: the revised Appendix now contains an analytic proof that the inequality holds identically for the first-principles BET coefficients over the entire admissible domain (ω, v) consistent with the constant-force level sets, together with numerical checks at the boundary points of the operating envelope. The original narrow-envelope plots are retained for readability but are no longer the sole support. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation self-contained via first-principles BET affine model

full rationale

The central claim defines incremental damping as the partial derivative of net thrust w.r.t. air-relative velocity at trim and proves its monotonic increase along constant-force level sets under an explicitly imposed mild hardening condition. This monotonicity is obtained by direct differentiation of the thrust map supplied by the Blade Element Theory section, which independently yields the minimal affine model T(ω, v) = a(ω) − b(ω)v. The hardening condition is checkable inside that same model rather than smuggled in by definition or prior self-citation. The VADA–VSA isomorphism is presented as a dynamic analogy after the damping result is established, not as a definitional equivalence that forces the result. No fitted parameters are renamed as predictions, no uniqueness theorem is imported from overlapping authors, and the entire chain remains non-circular because the physical model supplies independent content that can be falsified outside the paper’s own statements.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the validity of Blade Element Theory for producing an affine thrust model and on the existence of a mild hardening condition; no free parameters are introduced and no new physical entities are postulated beyond the named VADA concept.

axioms (1)

domain assumption Blade Element Theory yields a minimal thrust model that is affine in inflow velocity and exhibits the required damping and hardening properties
Invoked to validate the monotonicity of incremental damping along constant-force fibers

invented entities (1)

Variable Aerodynamic Damping Actuator (VADA) no independent evidence
purpose: Formal name for the co-contraction mechanism that produces tunable passive damping
New label and concept introduced to unify the aerodynamic and stiffness-modulation views

pith-pipeline@v0.9.0 · 5496 in / 1433 out tokens · 56300 ms · 2026-05-11T01:39:37.783889+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

T(v, ν_in)=k_T v² − k_D v ν_in ... λ(v,ν_in)=k_D v ... ∂λ/∂v =k_D >0 (Prop. V.1–V.2)
IndisputableMonolith/Foundation/BranchSelection.lean branch_selection unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

along any constant-force fiber F_F̄, every aerodynamic co-contraction displacement strictly increases the passive aerodynamic damping σ_a (Prop. IV.2)

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages · 1 internal anchor

[1]

ODAR: Aerial Manipulation Platform Enabling Omnidirectional Wrench Generation

S. Park, J. Lee, J. Ahn, M. Kim, J. Her, G.-H. Yang, and D. Lee. “ODAR: Aerial Manipulation Platform Enabling Omnidirectional Wrench Generation”. In:IEEE/ASME Trans. on Mechatronics23.4 (2018), pp. 1907–1918

work page 2018
[2]

Towards Efficient Full Pose Omnidirectionality with Overactuated MA Vs

K. Bodie, Z. Taylor, M. Kamel, and R. Siegwart. “Towards Efficient Full Pose Omnidirectionality with Overactuated MA Vs”. In:Proc. of the 2018 Int. Symposium on Experimental Robotics (ISER). Springer, 2020, pp. 85–95

work page 2018
[3]

A Novel Overactuated Quadrotor UA V: Modeling, Control and Experimental Validation

M. Ryll, H. H. B ¨ulthoff, and P. Robuffo Giordano. “A Novel Overactuated Quadrotor UA V: Modeling, Control and Experimental Validation”. In:IEEE Trans. on Control Systems Technology23.2 (2015), pp. 540–556

work page 2015
[4]

Evaluation of Optimization Methods for Control Allo- cation

M. Bodson. “Evaluation of Optimization Methods for Control Allo- cation”. In:Journal of Guidance, Control, and Dynamics25.4 (2002), pp. 703–711

work page 2002
[5]

Design, Modeling and Control of an Omni-Directional Aerial Vehicle

D. Brescianini and R. D’Andrea. “Design, Modeling and Control of an Omni-Directional Aerial Vehicle”. In:Proc. of the IEEE Int. Conf on Robotics and Automation (ICRA). Stockholm, Sweden, 2016, pp. 3261–3266

work page 2016
[6]

Model Predictive Contouring Control for Time-Optimal Quadrotor Flight

A. Romero, S. Sun, P. Foehn, and D. Scaramuzza. “Model Predictive Contouring Control for Time-Optimal Quadrotor Flight”. In:IEEE Trans. on Robotics(2022). arXiv:2108.13205

work page arXiv 2022
[7]

Deep Drone Acrobatics

E. Kaufmann, A. Loquercio, R. Ranftl, M. M ¨uller, V . Koltun, and D. Scaramuzza. “Deep Drone Acrobatics”. In:Robotics: Science and Systems (RSS). 2020

work page 2020
[8]

Physics-Inspired Temporal Learning of Quadrotor Dynamics for Accurate Model Predictive Trajectory Tracking

A. Saviolo, G. Li, and G. Loianno. “Physics-Inspired Temporal Learning of Quadrotor Dynamics for Accurate Model Predictive Trajectory Tracking”. In:IEEE Robotics and Automation Letters7.3 (2022), pp. 7809–7816

work page 2022
[9]

Nonlinear Model Predictive Control with Enhanced Actuator Model for Multi-Rotor Aerial Vehicles with Generic Designs

D. Bicego, J. Mazzetto, R. Carli, M. Farina, and A. Franchi. “Nonlinear Model Predictive Control with Enhanced Actuator Model for Multi-Rotor Aerial Vehicles with Generic Designs”. In:Journal of Intelligent & Robotic Systems100.3–4 (2020), pp. 1213–1247

work page 2020
[10]

Manipulability of Robotic Mechanisms

T. Yoshikawa. “Manipulability of Robotic Mechanisms”. In:The Int. Journal of Robotics Research4.2 (1985), pp. 3–9

work page 1985
[11]

Muscle Coactivation in the Sky: Geometry and Pareto Optimality of Energy vs. Aerodynamic Promptness and Multirotors as Variable Stiffness Actuators

A. Franchi. “Muscle Coactivation in the Sky: Geometry and Pareto Optimality of Energy vs. Aerodynamic Promptness and Multirotors as Variable Stiffness Actuators”. In:2026 Int. Conf. on Unmanned Aircraft Systems. Corfu, Greece, June 2026, https://arxiv.org/abs/2602.14222

work page internal anchor Pith review Pith/arXiv arXiv 2026
[12]

Impedance Control: An Approach to Manipulation

N. Hogan. “Impedance Control: An Approach to Manipulation”. In: Proc. of the American Control Conf (ACC). 1984, pp. 304–313

work page 1984
[13]

The Central Nervous System Stabilizes Unstable Dynamics by Learning Optimal Impedance

E. Burdet, R. Osu, D. W. Franklin, T. E. Milner, and M. Kawato. “The Central Nervous System Stabilizes Unstable Dynamics by Learning Optimal Impedance”. In:Nature414.6862 (2001), pp. 446– 449

work page 2001
[14]

Adaptation to Stable and Unstable Dynamics Achieved by Com- bined Impedance Control and Inverse Dynamics Model

D. W. Franklin, R. Osu, E. Burdet, M. Kawato, and T. E. Milner. “Adaptation to Stable and Unstable Dynamics Achieved by Com- bined Impedance Control and Inverse Dynamics Model”. In:Journal of Neurophysiology90.5 (2003), pp. 3270–3282

work page 2003
[15]

Role of Cocontraction in Arm Movement Accuracy

P. L. Gribble, L. I. Mullin, N. Cothros, and A. Mattar. “Role of Cocontraction in Arm Movement Accuracy”. In:Journal of Neurophysiology89.5 (2003), pp. 2396–2405

work page 2003
[16]

The Role of Propeller Aerodynamics in the Model of a Quadrotor UA V

P.-J. Bristeau, P. Martin, E. Sala ¨un, and N. Petit. “The Role of Propeller Aerodynamics in the Model of a Quadrotor UA V”. In: European Control Conf (ECC). 2009, pp. 3550–3555

work page 2009
[17]

Aerial Manipulation: A Literature Review

F. Ruggiero, V . Lippiello, and A. Ollero. “Aerial Manipulation: A Literature Review”. In:IEEE Robotics and Automation Letters3.3 (2018), pp. 1957–1964

work page 2018
[18]

Design of Multirotor Aerial Vehicles: A Taxonomy Based on Input Allocation

M. Hamandi, F. Usai, Q. Sabl ´e, N. Staub, M. Tognon, and A. Franchi. “Design of Multirotor Aerial Vehicles: A Taxonomy Based on Input Allocation”. In:The Int. Journal of Robotics Research40.8-9 (2021), pp. 1015–1044

work page 2021
[19]

Variable Stiffness Actuators: Review on Design and Components

S. Wolf, G. Grioli, O. Eiberger, W. Friedl, M. Grebenstein, H. H¨oppner, E. Burdet, D. G. Caldwell, R. Carloni, M. G. Catalano, D. Lefeber, S. Stramigioli, N. Tsagarakis, M. Van Damme, R. Van Ham, B. Vanderborght, L. C. Visser, A. Bicchi, and A. Albu-Sch ¨affer. “Variable Stiffness Actuators: Review on Design and Components”. In:IEEE/ASME Trans. on Mechat...

work page 2016
[20]

V olodin.Blade Element Rotor Theory

P. V olodin.Blade Element Rotor Theory. 1st ed. Boca Raton: CRC Press, 2022

work page 2022
