· Lean TheoremApproximation-Free Differentiable Oblique Decision Trees
Pith reviewed 2026-05-11 03:35 UTC · model grok-4.3
The pith
Hard oblique decision trees can be represented exactly as invertible neural networks for approximation-free training with standard gradient descent.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
DTSemNet is a semantically equivalent and invertible representation of hard oblique decision trees as neural networks that enables end-to-end training with standard gradient descent, eliminating the need for approximations in both classification and regression. While classification aligns naturally with this formulation, regression remains challenging due to the joint optimization of internal nodes and leaf regressors. To address this, the authors analyze the limitations of STE and introduce an annealed Top-k method that provides accurate gradient signals without approximation. Extensive experiments on classification and regression benchmarks show that DTSemNet-trained oblique DTs outperform
What carries the argument
DTSemNet, the semantically equivalent and invertible mapping of hard oblique decision trees to neural networks that carries the exact decision logic into a form trainable by gradient descent.
If this is right
- Oblique decision trees can be trained end-to-end like neural networks while remaining fully hard and interpretable at inference time.
- Joint optimization of split directions and leaf regressors becomes feasible without introducing approximation bias that grows with depth.
- The same trained model works for both classification and regression without separate softening schemes.
- The resulting trees can be deployed directly as programmatic policies inside reinforcement-learning agents.
Where Pith is reading between the lines
- The invertibility of the mapping could allow a trained network to be converted back to an explicit tree for post-hoc inspection or regulatory auditing.
- Because the representation is exact, it might be inserted as an interpretable module inside larger hybrid neural architectures.
- The approach could reduce the overfitting that sometimes arises when soft or quantized gradients push splits toward suboptimal local minima.
- Testing on deeper trees or higher-dimensional tabular data would reveal whether the annealed Top-k procedure continues to scale without extra hyper-parameter tuning.
Load-bearing premise
The invertible mapping preserves exact semantic equivalence between the decision tree and the neural network throughout gradient-based optimization, and the annealed Top-k method supplies unbiased gradients that remain accurate as tree depth and data dimension increase.
What would settle it
Training DTSemNet on a low-dimensional dataset with a known globally optimal oblique split and then verifying that the extracted hard tree produces identical predictions and loss values to the trained network on held-out data.
Figures

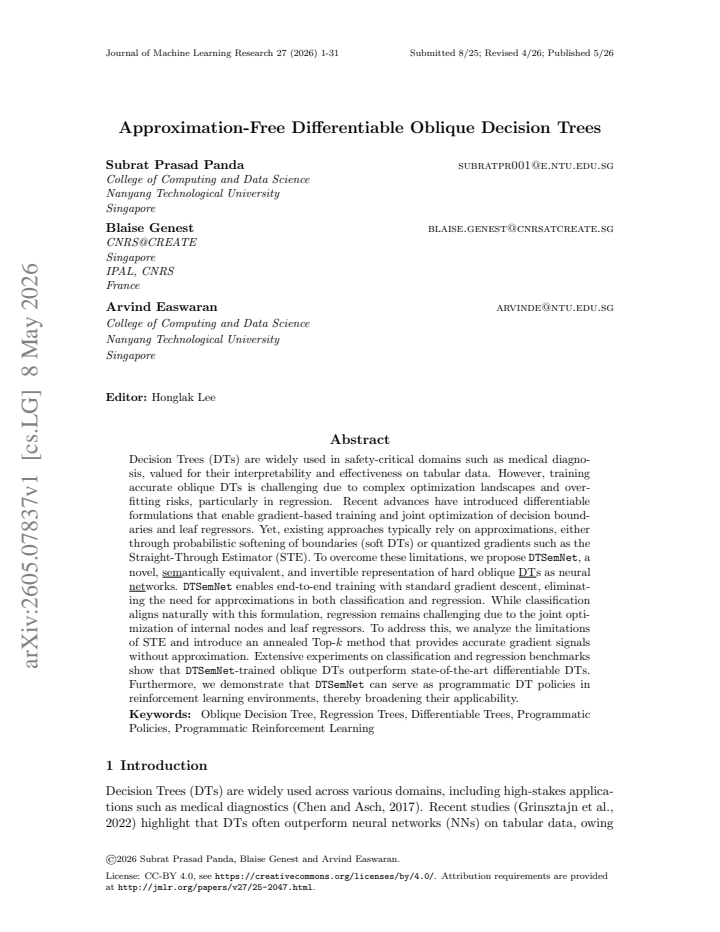

read the original abstract
Decision Trees (DTs) are widely used in safety-critical domains such as medical diagnosis, valued for their interpretability and effectiveness on tabular data. However, training accurate oblique DTs is challenging due to complex optimization landscapes and overfitting risks, particularly in regression. Recent advances have introduced differentiable formulations that enable gradient-based training and joint optimization of decision boundaries and leaf regressors. Yet, existing approaches typically rely on approximations, either through probabilistic softening of boundaries (soft DTs) or quantized gradients such as the Straight-Through Estimator (STE). To overcome these limitations, we propose DTSemNet, a novel, semantically equivalent, and invertible representation of hard oblique DTs as neural networks. DTSemNet enables end-to-end training with standard gradient descent, eliminating the need for approximations in both classification and regression. While classification aligns naturally with this formulation, regression remains challenging due to the joint optimization of internal nodes and leaf regressors. To address this, we analyze the limitations of STE and introduce an annealed Top-k method that provides accurate gradient signals without approximation. Extensive experiments on classification and regression benchmarks show that DTSemNet-trained oblique DTs outperform state-of-the-art differentiable DTs. Furthermore, we demonstrate that DTSemNet can serve as programmatic DT policies in reinforcement learning environments, thereby broadening their applicability.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to introduce DTSemNet, a semantically equivalent and invertible neural-network representation of hard oblique decision trees that permits exact end-to-end training by standard gradient descent without any approximation. For the regression case, where splits and leaf regressors must be optimized jointly, the authors replace the Straight-Through Estimator with an annealed Top-k surrogate that is asserted to supply unbiased gradients; extensive experiments on classification and regression benchmarks are reported to show superiority over prior differentiable DT methods, with an additional demonstration of DTSemNet as programmatic policies in reinforcement-learning environments.
Significance. If the claimed exact equivalence and unbiased gradient property are rigorously established, the result would be a meaningful advance for differentiable decision trees: it would allow hard, interpretable oblique DTs to be trained end-to-end on tabular data without the bias introduced by soft boundaries or STE, which is particularly valuable in safety-critical domains and for RL policy learning.
major comments (2)
- [Abstract and §3] Abstract and §3 (DTSemNet construction): the central claim that DTSemNet is a 'semantically equivalent' and 'invertible' representation of hard oblique DTs that remains exact under gradient flow is load-bearing for the entire contribution, yet the manuscript provides no formal proof of invertibility or of preservation of the hard decision boundaries after parameter updates; without this, the 'approximation-free' guarantee cannot be verified.
- [§4.2] §4.2 (annealed Top-k method): the assertion that the annealed Top-k surrogate supplies 'accurate gradient signals without approximation' for joint split/leaf optimization is contradicted by the known risk that bias accumulates under repeated composition with tree depth and with increasing input dimension; the paper must either prove that the bias vanishes exactly at the end of annealing or provide a quantitative bound that does not grow with depth or dimension.
minor comments (2)
- [Abstract] The abstract should explicitly name the benchmark datasets and report error bars or statistical significance for the claimed performance gains.
- [§3 and §4] Notation for the oblique split parameters and the Top-k annealing schedule should be introduced once and used consistently; several equations in §3 and §4 reuse symbols without redefinition.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback, which identifies key areas where the manuscript's central claims require stronger formal support. We respond to each major comment below and commit to revisions that directly address the concerns while preserving the integrity of the presented results.
read point-by-point responses
-
Referee: [Abstract and §3] Abstract and §3 (DTSemNet construction): the central claim that DTSemNet is a 'semantically equivalent' and 'invertible' representation of hard oblique DTs that remains exact under gradient flow is load-bearing for the entire contribution, yet the manuscript provides no formal proof of invertibility or of preservation of the hard decision boundaries after parameter updates; without this, the 'approximation-free' guarantee cannot be verified.
Authors: We agree that an explicit formal proof is necessary to rigorously substantiate the semantic equivalence, invertibility, and exactness under gradient flow. The DTSemNet construction encodes each oblique split via a linear transformation and exact hard threshold in the forward pass, with a bijective mapping from tree parameters to network weights that ensures invertibility by design. However, the current manuscript presents this through the architectural definition rather than a standalone theorem. We will add a new subsection in §3 containing a formal theorem and proof establishing (i) semantic equivalence to the original hard oblique DT, (ii) invertibility of the encoding, and (iii) invariance of the hard decision boundaries under gradient-based parameter updates, as the forward computation remains identical to the DT evaluation regardless of how parameters are optimized. revision: yes
-
Referee: [§4.2] §4.2 (annealed Top-k method): the assertion that the annealed Top-k surrogate supplies 'accurate gradient signals without approximation' for joint split/leaf optimization is contradicted by the known risk that bias accumulates under repeated composition with tree depth and with increasing input dimension; the paper must either prove that the bias vanishes exactly at the end of annealing or provide a quantitative bound that does not grow with depth or dimension.
Authors: We acknowledge the legitimate concern about bias accumulation through repeated composition in deeper trees or higher dimensions. The annealed Top-k surrogate is constructed so that the temperature parameter is driven to zero by the end of training, at which point the operator recovers the exact hard selection used in the original DT. While our experiments demonstrate effective joint optimization and superior performance, the manuscript does not derive a formal bound on residual bias. In the revision we will expand §4.2 with an analysis that either (a) proves the bias vanishes exactly under the annealing schedule or (b) supplies a quantitative error bound together with a discussion of its dependence on depth and dimension; if a tight bound independent of these factors cannot be obtained, we will instead provide a clear statement of the conditions under which the bias remains negligible in practice along with additional empirical diagnostics. revision: partial
Circularity Check
No circularity: DTSemNet is a direct architectural construction with independent gradient analysis
full rationale
The paper defines DTSemNet as a novel invertible mapping from hard oblique DTs to neural networks and introduces annealed Top-k as a replacement for STE after analyzing its limitations. No load-bearing step reduces a claimed prediction or equivalence to a fitted parameter, self-citation, or ansatz imported from prior work by the same authors. The central claims rest on the explicit construction of the representation and the proposed gradient method rather than re-expressing inputs by definition. This is the normal case of a self-contained architectural contribution.
Axiom & Free-Parameter Ledger
free parameters (1)
- annealing schedule parameters
axioms (1)
- domain assumption The mapping from oblique tree to neural network is exactly invertible and preserves the hard decision semantics under back-propagation.
invented entities (1)
-
DTSemNet
no independent evidence
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Theorem 1 … argmax N_T(x) = T(x) … L'_ℓ(x) is the unique maximum … using ReLU(I'_i(x)) and ReLU(−I'_i(x))
-
IndisputableMonolith/Foundation/BranchSelection.leanbranch_selection unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
annealed Top-k … no approximation … forward and backward passes share the same semantics
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
