Resource-Aware Evolutionary Neural Architecture Search for Cardiac MRI Segmentation

Farhana Yasmin , Mahade Hasan , Haipeng Liu , Amjad Ali , Ghulam Muhammad , Yu Xue
Authors on Pith no claims yet

Pith reviewed 2026-05-12 01:22 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.ETcs.LG
keywords cardiac MRI segmentationneural architecture searchevolutionary algorithmUNetresource-aware optimizationDice similarity coefficientHausdorff distanceACDC dataset
0
0 comments X

The pith

CardiacNAS discovers a UNet variant with 93.22% DSC using only 3.58M parameters and 14.56 GFLOPs for cardiac MRI segmentation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents an evolutionary neural architecture search framework called CardiacNAS that builds on a UNet-like supernet and a cardiac-specific search space covering depth, width, kernels, attention, fusion, activations, dropout, and residual scaling. The method treats segmentation accuracy, measured by Dice similarity coefficient and 95th-percentile Hausdorff distance, as objectives to be maximized while minimizing model size and floating-point operations under fixed compute budgets. Candidate networks are sampled, trained briefly on proxy budgets, and evolved via crossover, mutation, and elitist selection. On the ACDC dataset the final architecture outperforms six hand-designed baselines in the accuracy-efficiency tradeoff, reaching 93.22 percent average DSC and 4.73 mm HD95. This matters for clinical workflows because accurate yet lightweight segmentation enables quantitative ventricular assessment on devices with limited memory or processing power.

Core claim

CardiacNAS couples a UNet-like supernet with a cardiac-aware search space and performs resource-aware evolutionary search that jointly optimizes DSC and HD95 against parameter count and FLOPs. Architectures are instantiated, trained under proxy budgets, and refined through crossover, mutation, and elitist selection. The best resulting model attains 93.22 percent average DSC and 4.73 mm HD95 with 3.58 million parameters and 14.56 GFLOPs, exceeding the accuracy-efficiency balance of six state-of-the-art hand-designed methods. Analyses show that the searched attention and fusion choices together with residual scaling improve boundary fidelity and training stability.

What carries the argument

The resource-aware evolutionary optimizer that evolves candidate architectures from a UNet-like supernet under a cardiac-aware search space, using proxy-budget training to rank designs by the joint objectives of DSC, HD95, model size, and FLOPs.

If this is right

  • Attention and fusion modules selected by the search improve boundary delineation in low-contrast cardiac regions.
  • Residual scaling in the discovered architectures contributes to more stable training and consistent performance across scans.
  • Explicit reporting of parameter counts and FLOPs allows direct assessment of deployability on clinical hardware.
  • The framework supplies a repeatable procedure for generating efficient CMR segmentation models under explicit compute constraints.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same search strategy could be transferred to other medical imaging tasks such as CT or ultrasound cardiac analysis with only modest redefinition of the search space.
  • Repeating the evolutionary search several times and comparing the resulting top models would indicate how sensitive final performance is to random seed and population initialization.
  • Correlation studies between design factors and performance could be extended to identify reusable building blocks for efficient medical segmentation networks beyond the ACDC dataset.

Load-bearing premise

Proxy-budget training during the search produces architecture rankings that remain valid after full convergence, and the cardiac-aware search space plus evolutionary operators are sufficient to find designs meaningfully better than the six hand-designed baselines.

What would settle it

Retrain the top-searched architecture and the six baselines to full convergence on the ACDC dataset and compare the final DSC and HD95 values; if the searched model no longer leads in the accuracy-efficiency tradeoff the central claim fails.

Figures

Figures reproduced from arXiv: 2605.08238 by Amjad Ali, Farhana Yasmin, Ghulam Muhammad, Haipeng Liu, Mahade Hasan, Yu Xue.

Figure 1
Figure 1. Figure 1: Overall framework of CardiacNAS, showing supernet initialization, candidate generation through crossover and mutation, and evolutionary selection [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

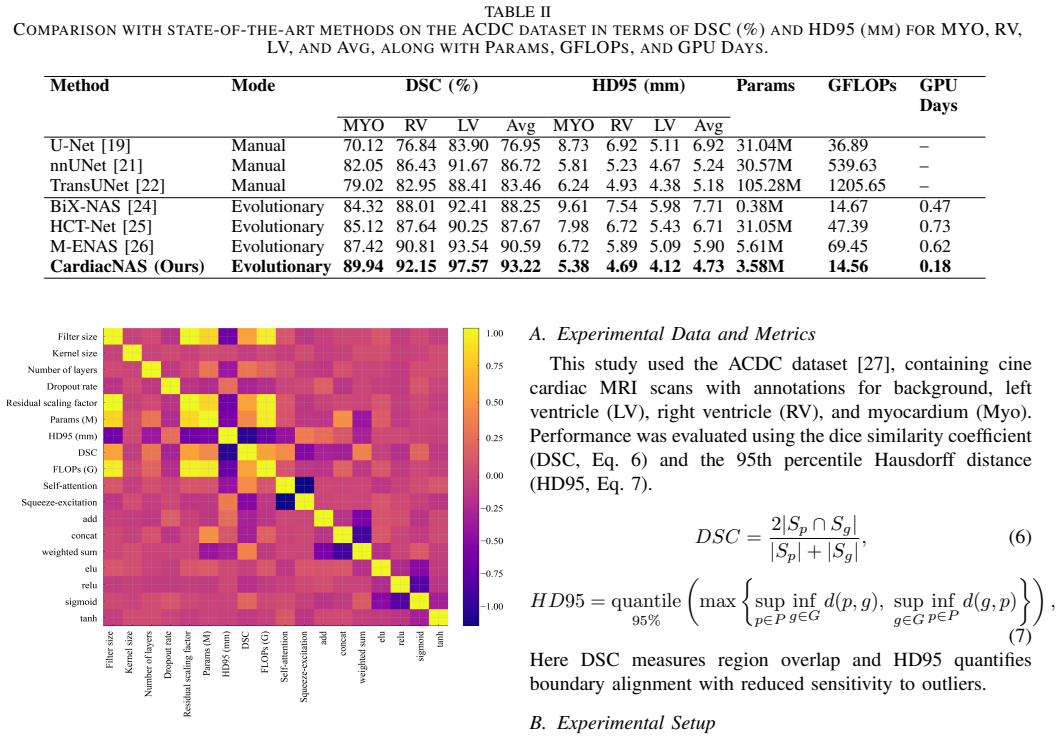

Figure 2
Figure 2. Figure 2: Correlation matrix across 200 architectures, showing how attention [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Qualitative comparison on ACDC cardiac MRI. Columns: image, GT overlay, and predictions from U-Net, nnU-Net, TransUNet, BiX-NAS, HCT-Net, [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: ACDC validation curves of average HD95 (mm) for the same seven [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

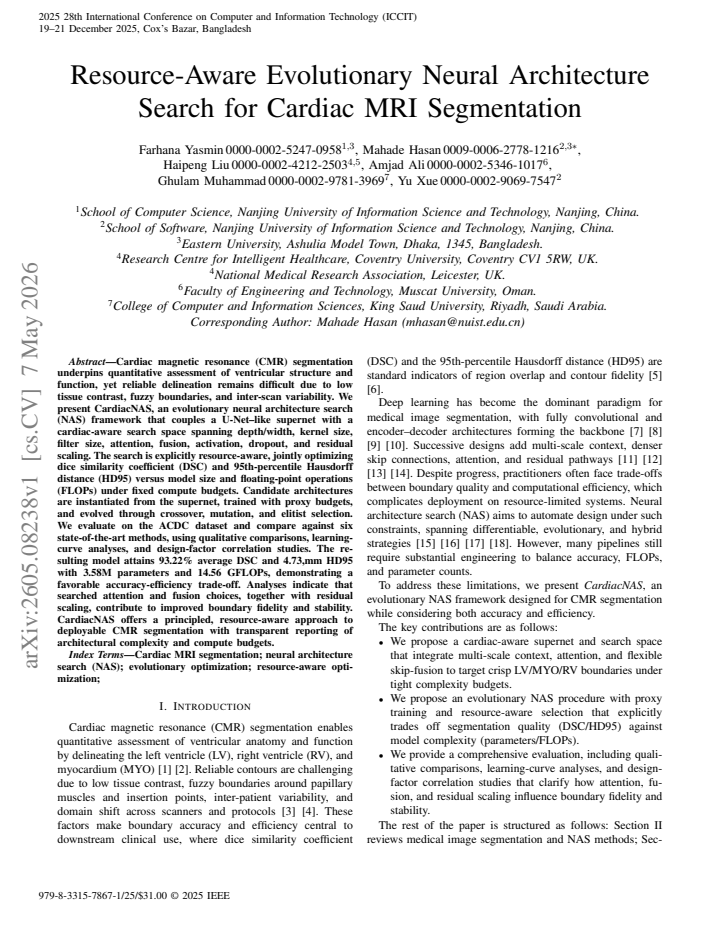

read the original abstract

Cardiac magnetic resonance (CMR) segmentation underpins quantitative assessment of ventricular structure and function, yet reliable delineation remains difficult due to low tissue contrast, fuzzy boundaries, and inter scan variability. We present CardiacNAS, an evolutionary neural architecture search (NAS) framework that couples a UNet like supernet with a cardiac aware search space spanning depth width, kernel size, filter size, attention, fusion, activation, dropout, and residual scaling. The search is explicitly resource aware, jointly optimizing dice similarity coefficient (DSC) and 95th percentile Hausdorff distance (HD95) versus model size and floating point operations (FLOPs) under fixed compute budgets. Candidate architectures are instantiated from the supernet, trained with proxy budgets, and evolved through crossover, mutation, and elitist selection. We evaluate on the ACDC dataset and compare against six state of the art methods, using qualitative comparisons, learning curve analyses, and design factor correlation studies. The resulting model attains 93.22% average DSC and 4.73 mm HD95 with 3.58M parameters and 14.56 GFLOPs, demonstrating a favorable accuracy efficiency trade off. Analyses indicate that searched attention and fusion choices, together with residual scaling, contribute to improved boundary fidelity and stability. CardiacNAS offers a principled, resource aware approach to deployable CMR segmentation with transparent reporting of architectural complexity and compute budgets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper introduces CardiacNAS, an evolutionary neural architecture search (NAS) framework for cardiac MRI segmentation. It couples a UNet-like supernet with a cardiac-aware search space spanning depth, width, kernel size, filter size, attention, fusion, activation, dropout, and residual scaling. The search is resource-aware, jointly optimizing DSC and HD95 against model size and FLOPs under fixed budgets. Candidates are instantiated from the supernet, trained with proxy budgets, and evolved via crossover, mutation, and elitist selection. On the ACDC dataset, the resulting model is compared to six state-of-the-art hand-designed methods using quantitative metrics, qualitative results, learning curves, and design-factor correlations. The discovered architecture attains 93.22% average DSC and 4.73 mm HD95 with 3.58M parameters and 14.56 GFLOPs.

Significance. If the central empirical claims hold, the work offers a practical, transparent method for discovering efficient architectures tailored to CMR segmentation. The explicit resource awareness, domain-specific search space, and post-search analyses of attention/fusion/residual choices provide useful insights into factors affecting boundary fidelity and stability, supporting deployable models in clinical settings.

major comments (1)
  1. [Methods (search procedure)] Methods (search procedure): The evolutionary search ranks and selects architectures exclusively under proxy training budgets, with full-budget training applied only to the single final model whose performance (93.22% DSC, 4.73 mm HD95) is reported. No rank-correlation study, ablation, or validation is described showing that proxy rankings predict full-budget ordering. This directly affects the claim that the cardiac-aware space plus evolutionary operators discovered a meaningfully superior accuracy-efficiency tradeoff versus the six baselines, because any material rank reversal under full training would mean a different architecture should have been selected.
minor comments (1)
  1. [Abstract] Abstract: 'state of the art methods' should read 'state-of-the-art methods'.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comment on the search procedure below and will revise the paper to incorporate additional validation as suggested.

read point-by-point responses

  1. Referee: The evolutionary search ranks and selects architectures exclusively under proxy training budgets, with full-budget training applied only to the single final model whose performance (93.22% DSC, 4.73 mm HD95) is reported. No rank-correlation study, ablation, or validation is described showing that proxy rankings predict full-budget ordering. This directly affects the claim that the cardiac-aware space plus evolutionary operators discovered a meaningfully superior accuracy-efficiency tradeoff versus the six baselines, because any material rank reversal under full training would mean a different architecture should have been selected.

    Authors: We acknowledge that the current manuscript does not include an explicit rank-correlation analysis between proxy and full-budget training. Proxy budgets are used during search to manage computational cost, which is standard in NAS literature, but we agree that demonstrating their predictive power would strengthen the claims. In the revised version, we will add a dedicated analysis: we will re-train a representative subset of 12 architectures (selected across the evolutionary generations) under full budgets and compute Spearman's rank correlation on DSC and HD95. We will report the correlation coefficients, discuss any rank reversals, and clarify that all six baseline methods were trained and evaluated with full budgets for fair comparison of the final model. This addition will be placed in the Methods or Experiments section with supporting tables. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical NAS results are direct experimental outcomes

full rationale

The paper describes an evolutionary NAS procedure that instantiates candidates from a supernet, trains them under proxy budgets, applies crossover/mutation/elitist selection, and reports the fully-trained performance of the selected architecture on the ACDC dataset. The headline numbers (93.22% DSC, 4.73 mm HD95, 3.58 M params, 14.56 GFLOPs) are measured outputs of this process, not quantities that reduce by the paper's own equations or self-citations to the search inputs. No self-definitional loops, fitted-input predictions, or load-bearing self-citations appear in the provided text; the cardiac-aware search space and resource-aware objective are stated as design choices rather than derived necessities. The result is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Insufficient information in the abstract to enumerate specific free parameters, axioms, or invented entities; the work relies on standard assumptions of supervised segmentation (i.i.d. data, Dice as proxy for clinical utility) and evolutionary search convergence.

pith-pipeline@v0.9.0 · 5570 in / 1130 out tokens · 25072 ms · 2026-05-12T01:22:31.717130+00:00 · methodology
