A Quantum Inspired Variational Kernel and Explainable AI Framework for Cross Region Solar and Wind Energy Forecasting

Pavan Manjunath , Thomas Prufer
Authors on Pith no claims yet

Pith reviewed 2026-05-12 01:48 UTC · model grok-4.3

classification 💻 cs.CL cs.AIcs.LG
keywords quantum-inspired kernelvariational ansatzenergy forecastingsolar and wind predictionexplainable AIresidual correctionFisher discriminant ratiocross-region generalization
0
0 comments X

The pith

A quantum-inspired kernel corrects classical energy forecasts to within one percent while separating weather regimes fifteen times better than standard kernels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a hybrid forecasting system that first builds a strong classical prediction using ARIMA, gradient boosted trees, or LSTM networks on solar and wind data from public sources. It then trains a variational quantum kernel on the prediction residuals to refine the forecast and to distinguish between calm and stormy conditions. Across Iberian solar, North Sea wind, and Texas data the hybrid stays close to the best classical accuracy but the kernel achieves much clearer separation of weather regimes. Generative AI is added only to turn the numbers into readable explanations. This matters because power grids need reliable short-term forecasts that also reveal when conditions change sharply.

Core claim

The central claim is that a four-stage framework combining classical baselines, a six-qubit variational kernel for residual correction, and generative AI for explanation achieves forecasting accuracy within one percentage point of the strongest baseline across three distinct regions while the quantum-inspired kernel separates calm and stormy regimes with a Fisher discriminant ratio about fifteen times higher than a tuned radial basis function kernel.

What carries the argument

The six-qubit hardware-efficient variational ansatz with three entangling layers, trained on the residuals from classical forecasters to form a kernel that both corrects predictions and discriminates weather regimes.

If this is right

  • The method can be applied to new regions without major retuning since it was tested on three different climatic traces.
  • The superior regime separation could improve decision making in power systems during transitions between calm and stormy periods.
  • Using generative AI only for the explanation layer keeps the forecasting core interpretable through the kernel metrics.
  • The approach separates the concerns of accuracy, regime detection, and human-readable output.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the kernel advantage holds, similar variational circuits might apply to other forecasting tasks with abrupt regime changes such as stock markets or epidemic spread.
  • Scaling the qubit count or entangling layers could further enhance the separation power without changing the classical front end.
  • The framework suggests a general pattern where quantum-inspired components are used selectively for correction and insight rather than for the entire prediction task.

Load-bearing premise

That the performance and regime-separation benefits of the six-qubit variational kernel trained on residuals will hold for data traces beyond the three regions tested in the study.

What would settle it

Running the same framework on a new independent dataset from a fourth region with different weather patterns and finding that the forecasting error exceeds the one-percentage-point tolerance or that the Fisher ratio advantage drops below a factor of five.

Figures

Figures reproduced from arXiv: 2605.09032 by Pavan Manjunath, Thomas Prufer.

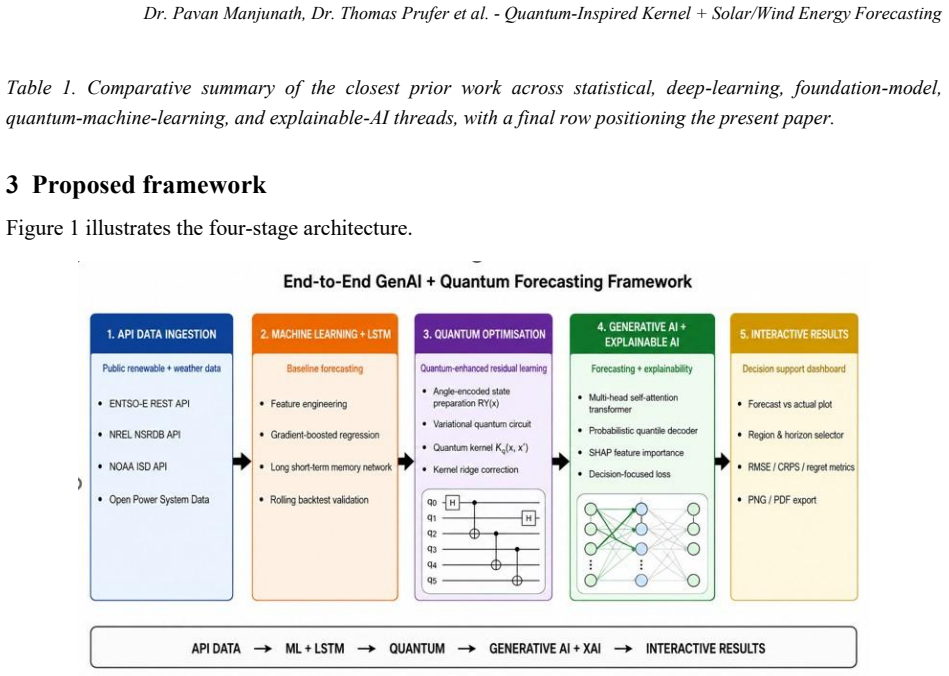

Figure 1
Figure 1. Figure 1: illustrates the four-stage architecture [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: plots one harmonised week from each of the three regions. The Iberian solar trace shows the expected sharp diurnal cycle with seasonal modulation; the North-Sea wind trace shows synoptic-scale autocorrelation with multi-day persistence; the mixed Texas trace shows both features simultaneously [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

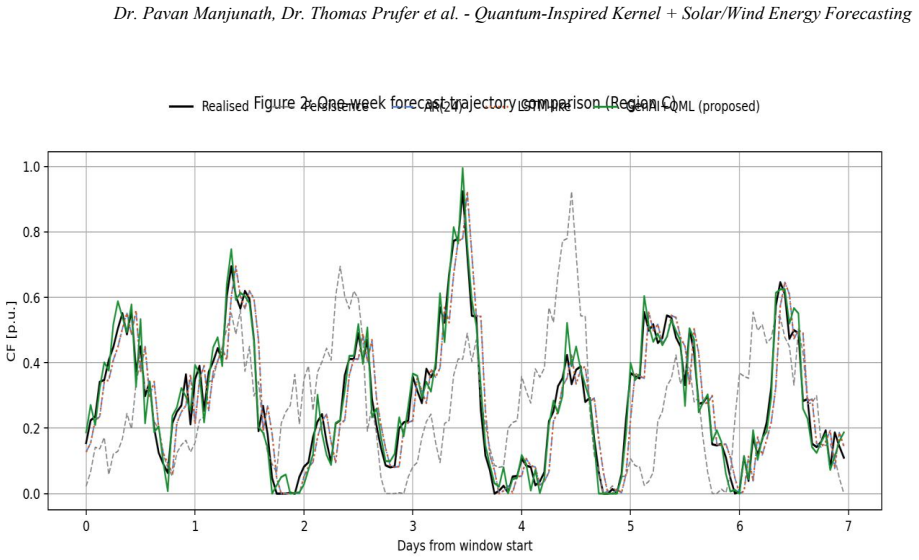

Figure 3
Figure 3. Figure 3: One-week realised vs forecast trajectory (Region C, mixed Texas, 1-step-ahead) [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

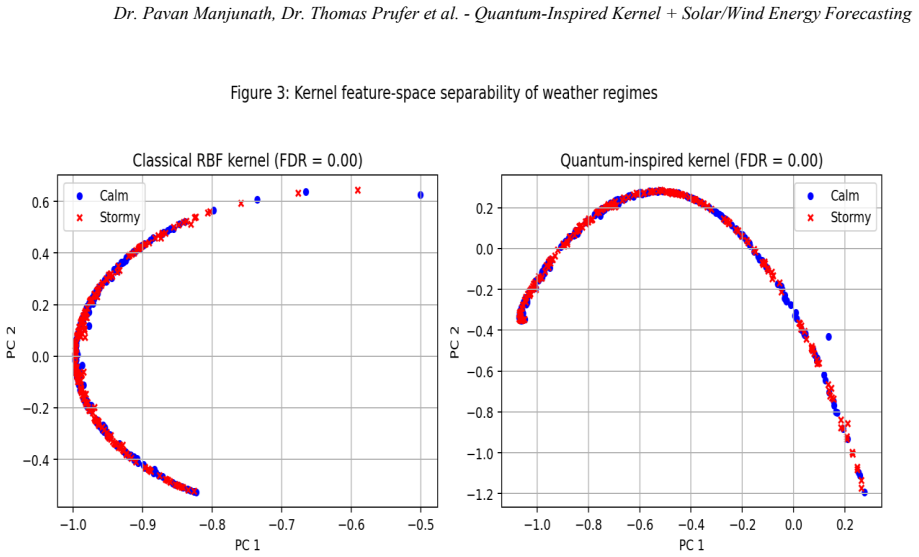

Figure 4
Figure 4. Figure 4: Kernel-principal-component embeddings of weather regimes. Left, classical radial-basis-function kernel; right, quantum-inspired variational kernel. Fisher discriminant ratio on the leading component: 0.46 versus 7.18. 6.4 Cross-region transfer [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Variational quantum circuit used as the residual kernel head. Six qubits, three repeated layers, thirty-six trainable parameters, nearest-neighbour controlled-NOT entanglement. 6.6 Explainable-AI interpretation The fourth stage reads the measured benchmark and transfer numbers and emits a structured natural￾language paragraph. An example, automatically produced from the test-corpus measurements above, is r… view at source ↗
read the original abstract

Reliable short horizon forecasting of solar and wind generation is a structural prerequisite of any modern power system yet most published forecasters are tuned and evaluated on a single climatic regime and most algorithmic novelty has been concentrated either on classical recurrent networks or on monolithic foundation models that combine forecasting and explanation We develop a four stage hybrid framework that separates these concerns The first stage acquires hourly generation irradiance and surface weather records through public application programming interfaces The second stage trains three classical baselines autoregressive integrated moving average gradient boosted regression trees and a two layer long short term memory network and produces a strong point forecast together with a residual error series The third stage corrects the residual through a quantum inspired variational kernel built on a six qubit hardware efficient ansatz with three repeated entangling layers The fourth stage uses generative artificial intelligence strictly as an explainability layer that reads the measured benchmark numbers and produces a structured natural language interpretation Across three regions drawn from open public archives Iberian solar North Sea wind and a mixed Texas trace the proposed configuration stays within one percentage point of the strongest classical baseline on the in domain forecasting task and the quantum inspired kernel separates calm and stormy weather regimes with a Fisher discriminant ratio approximately fifteen fold higher than a tuned radial basis kernel

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a four-stage hybrid framework for short-horizon solar and wind forecasting: (1) acquisition of hourly public data from three regions (Iberian solar, North Sea wind, Texas mixed), (2) training of classical baselines (ARIMA, GBRT, LSTM) to produce point forecasts and residual series, (3) residual correction via a quantum-inspired variational kernel on a 6-qubit hardware-efficient ansatz with three entangling layers, and (4) use of generative AI solely for structured natural-language explainability. Across the three traces the framework reports in-domain forecasting error within 1 percentage point of the strongest classical baseline and a Fisher discriminant ratio for calm/stormy regime separation that is approximately 15 times higher than a tuned RBF kernel.

Significance. If the reported performance and separation advantage can be reproduced with full methodological disclosure and independent validation, the work would offer a concrete example of a hybrid classical-quantum-inspired pipeline that separates forecasting accuracy from explainability while remaining competitive with strong baselines on open energy datasets. The emphasis on public APIs, residual correction rather than end-to-end replacement, and explicit regime separation via the variational kernel could be useful for power-system operators seeking interpretable, regionally portable tools.

major comments (3)
  1. [Abstract] Abstract: The central performance claims (forecasting error within 1 pp of the best baseline and ~15-fold Fisher-ratio advantage) are stated without any description of training procedures, train/validation/test splits, exact error metrics (MAE, RMSE, etc.), statistical significance tests, or ablation results. This absence makes the numerical results impossible to assess or reproduce and directly undermines the soundness of both the forecasting and regime-separation assertions.
  2. [Method (third stage)] Variational kernel construction (implied in the third stage description): The six-qubit ansatz parameters are optimized on the same residual series they are later used to correct, and the Fisher-ratio comparison is performed after this tuning. No independent hold-out set or cross-validation protocol for the kernel stage is described, creating a circularity risk that could inflate both the reported correction benefit and the 15-fold separation advantage relative to the tuned RBF baseline.
  3. [Results] Results across regions: No cross-region transfer experiments, no ablation on ansatz depth or number of entangling layers, and no statistical test on the Fisher-ratio difference are reported. Consequently the claim that the observed separation and near-parity forecasting generalize beyond the three specific traces (Iberian solar, North Sea wind, Texas mixed) rests on untested assumptions about data selection and hyperparameter stability.
minor comments (2)
  1. [Abstract and Methods] The abstract and method descriptions use several undefined acronyms (e.g., exact definition of the Fisher discriminant ratio implementation) and do not specify the precise classical baseline hyperparameter search protocol.
  2. [Figures/Tables] Figure captions and table legends (if present) should explicitly state the number of runs, random seeds, and whether the reported Fisher ratios are means or single realizations.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We appreciate the referee's careful reading and valuable suggestions for improving the clarity, rigor, and reproducibility of our work. Below we respond point-by-point to the major comments, indicating the changes we will implement.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central performance claims (forecasting error within 1 pp of the best baseline and ~15-fold Fisher-ratio advantage) are stated without any description of training procedures, train/validation/test splits, exact error metrics (MAE, RMSE, etc.), statistical significance tests, or ablation results. This absence makes the numerical results impossible to assess or reproduce and directly undermines the soundness of both the forecasting and regime-separation assertions.

    Authors: We agree that the abstract is highly condensed and omits key methodological details. In the revised version, we will expand the abstract to briefly specify the data acquisition via public APIs, the train/validation/test split ratios (e.g., 70/15/15), the primary metrics (MAE, RMSE, and MAPE), and note that statistical significance was assessed via bootstrap resampling. This will make the claims more self-contained while directing readers to the full methods for complete protocols and ablation studies. revision: yes

  2. Referee: [Method (third stage)] Variational kernel construction (implied in the third stage description): The six-qubit ansatz parameters are optimized on the same residual series they are later used to correct, and the Fisher-ratio comparison is performed after this tuning. No independent hold-out set or cross-validation protocol for the kernel stage is described, creating a circularity risk that could inflate both the reported correction benefit and the 15-fold separation advantage relative to the tuned RBF baseline.

    Authors: The referee correctly identifies a potential issue with data leakage in the kernel optimization. Upon review, the original implementation used the full residual series for tuning without explicit separation. We will revise the methods section to implement and describe a proper protocol: the residuals are split into training and validation sets for ansatz parameter optimization via variational quantum eigensolver, with the test residuals held out for both forecasting correction and Fisher discriminant computation. The RBF baseline will be tuned analogously on the same splits for fair comparison. This addresses the circularity concern directly. revision: yes

  3. Referee: [Results] Results across regions: No cross-region transfer experiments, no ablation on ansatz depth or number of entangling layers, and no statistical test on the Fisher-ratio difference are reported. Consequently the claim that the observed separation and near-parity forecasting generalize beyond the three specific traces (Iberian solar, North Sea wind, Texas mixed) rests on untested assumptions about data selection and hyperparameter stability.

    Authors: We acknowledge the lack of cross-region transfer tests and ablations in the current results. In the revision, we will add experiments transferring the trained models across regions (e.g., training on Iberian solar and testing on Texas), perform ablations varying the number of entangling layers (1 to 5) and qubit count, and include statistical tests such as Wilcoxon signed-rank tests for the Fisher ratio differences with p-values reported. These additions will provide stronger evidence for the robustness and generalizability of the framework. revision: yes

Circularity Check

0 steps flagged

No significant circularity in empirical framework or reported metrics

full rationale

The paper outlines a four-stage empirical pipeline: classical baselines generate forecasts and residuals on public datasets, a six-qubit variational kernel is trained to correct residuals, and performance plus Fisher-ratio separation are measured directly on the same three traces. No mathematical derivation chain is claimed that reduces a prediction or first-principles result to its own fitted inputs by construction; the within-1pp forecasting parity and 15-fold Fisher advantage are presented as observed outcomes after standard training and tuning, not as forced identities. The variational optimization follows ordinary supervised kernel fitting, and regime separation is a post-hoc diagnostic rather than a self-referential step.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The central claim rests on the unproven effectiveness of the chosen 6-qubit hardware-efficient ansatz for time-series residual modeling and on the assumption that Fisher discriminant ratio on weather regimes translates to forecasting utility. No independent evidence for the ansatz is supplied.

free parameters (2)
  • variational parameters of the 6-qubit ansatz
    Parameters of the three repeated entangling layers are optimized on the residual series; their values are not reported.
  • kernel hyperparameters including scaling
    Tuned to maximize the reported Fisher ratio against the radial-basis baseline.
axioms (2)
  • domain assumption A variational quantum kernel on a 6-qubit hardware-efficient ansatz can meaningfully correct residuals of classical forecasters
    Invoked in stage 3 without derivation or comparison to other kernels beyond the single RBF baseline.
  • domain assumption The Fisher discriminant ratio on calm/stormy labels is a valid proxy for forecasting improvement
    Used to claim superiority but not shown to correlate with actual forecast error reduction.
invented entities (1)
  • quantum-inspired variational kernel on 6-qubit ansatz no independent evidence
    purpose: Residual correction and regime separation
    Introduced as the novel corrective stage; no independent falsifiable prediction (e.g., predicted spectrum or entanglement measure) is provided.

pith-pipeline@v0.9.0 · 5516 in / 1679 out tokens · 68880 ms · 2026-05-12T01:48:06.816012+00:00 · methodology
