The Quantum Hamiltonian Analysis Toolkit: Lowering the Barrier to Quantum Computing with Hamiltonians

Brendan K. Krueger , Stephan Eidenbenz , Shamminuj Aktar , Rishabh Bhardwaj , John K. Golden , George Grattan , Abhijith Jayakumar , Anna Matsekh

show 3 more authors

Scott Pakin Nandakishore Santhi Reuben Tate

Authors on Pith no claims yet

Pith reviewed 2026-05-13 02:29 UTC · model grok-4.3

classification 🪐 quant-ph physics.comp-ph

keywords quantum HamiltonianHamiltonian simulationfault-tolerant quantum computingsoftware toolkituser interfaceerror tolerancequantum algorithms

0 comments

The pith

QHAT provides a user-friendly toolkit for generating, analyzing, and simulating Hamiltonians on fault-tolerant quantum computers using simple error-based inputs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the Quantum Hamiltonian Analysis Toolkit as software that lets researchers work with Hamiltonians through an interface driven by practical needs like maximum allowable error. Users can generate Hamiltonians from basic system descriptions, save intermediate files for related work, and run simulations across multiple supported algorithms without specifying technical parameters such as step counts or approximation orders. This design aims to enable productive research on quantum applications by keeping the focus on user goals rather than quantum computing internals. The result is a streamlined workflow that lowers the entry barrier while delivering analysis results for a range of studies.

Core claim

QHAT is an application that supplies a powerful interface for studying Hamiltonians and Hamiltonian simulation on fault-tolerant quantum computers. It supports Hamiltonians from multiple sources or generates them from simple system descriptions, saves intermediate data for reuse, and derives algorithm parameters from user-facing concepts such as maximum allowable error rather than algorithmic details like steps or orders.

What carries the argument

The input abstraction centered on maximum allowable error and other user needs, which automatically handles derivation of simulation parameters and supports multiple algorithm choices.

If this is right

Researchers can complete studies on quantum applications without acquiring deep expertise in quantum algorithms.
A single workflow supports multiple algorithm options and analysis types for Hamiltonian simulation.
Generated Hamiltonians and saved intermediate files enable efficient reuse when exploring related systems.
Emphasis on error tolerances rather than technical parameters produces results across a broad range of studies with low setup cost.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Toolkits of this type could speed adoption of quantum simulation in chemistry and physics by letting domain experts focus on their systems instead of algorithm tuning.
Integration with cloud quantum services might eventually allow direct execution of the generated simulations on hardware.
By making error budgeting explicit at the input stage, such tools implicitly promote error-aware design in applied quantum research.

Load-bearing premise

The toolkit's implemented algorithms correctly convert user-specified error tolerances into accurate Hamiltonian simulations without introducing unstated numerical or algorithmic errors.

What would settle it

Take a known solvable Hamiltonian, input a specific maximum error tolerance into QHAT, run the generated simulation, and compare the observed error against the tolerance to check whether internal translation errors cause the actual accuracy to fall short.

Figures

Figures reproduced from arXiv: 2605.11162 by Abhijith Jayakumar, Anna Matsekh, Brendan K. Krueger, George Grattan, John K. Golden, Nandakishore Santhi, Reuben Tate, Rishabh Bhardwaj, Scott Pakin, Shamminuj Aktar, Stephan Eidenbenz.

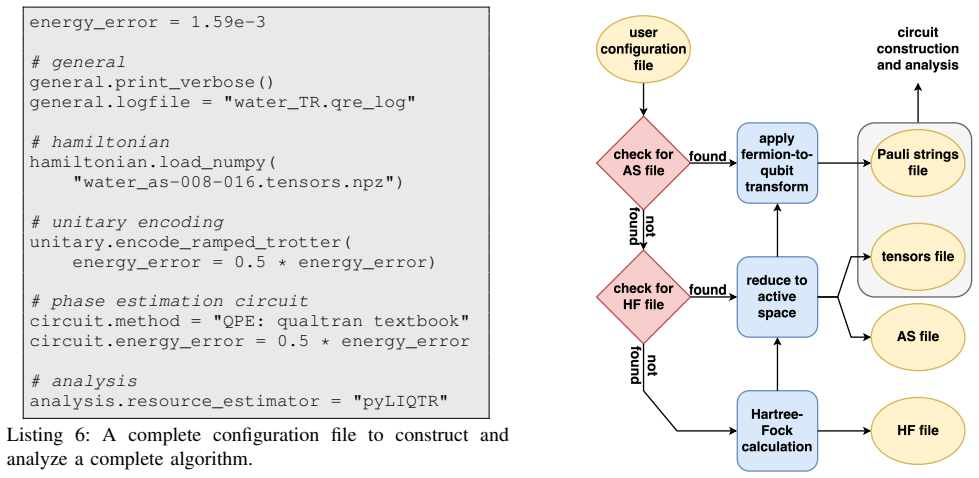

**Figure 2.** Figure 2: Diagram of Hamiltonian generator. Each step fur [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

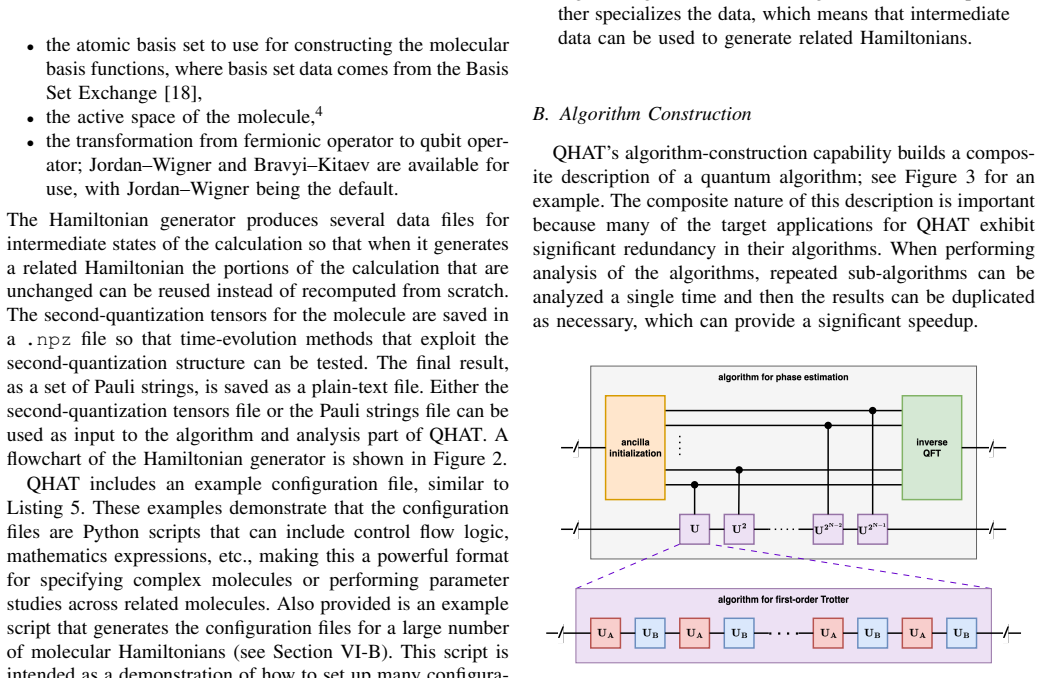

**Figure 3.** Figure 3: Diagram of composite algorithm model. Each red [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Diagram of QHAT workflow, showing the variety of options available (green) and in progress (yellow). Additional [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

**Figure 5.** Figure 5: Hamiltonians generated by QHAT (Section VI-B) [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

**Figure 6.** Figure 6: Preliminary results for resource estimates of the 540 Hamiltonians shown in Figure 5. The full algorithm is phase [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

**Figure 8.** Figure 8: Fidelity of first-order Trotter evolution across randomly [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

**Figure 7.** Figure 7: Trotterization error in the final time-evolved [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

read the original abstract

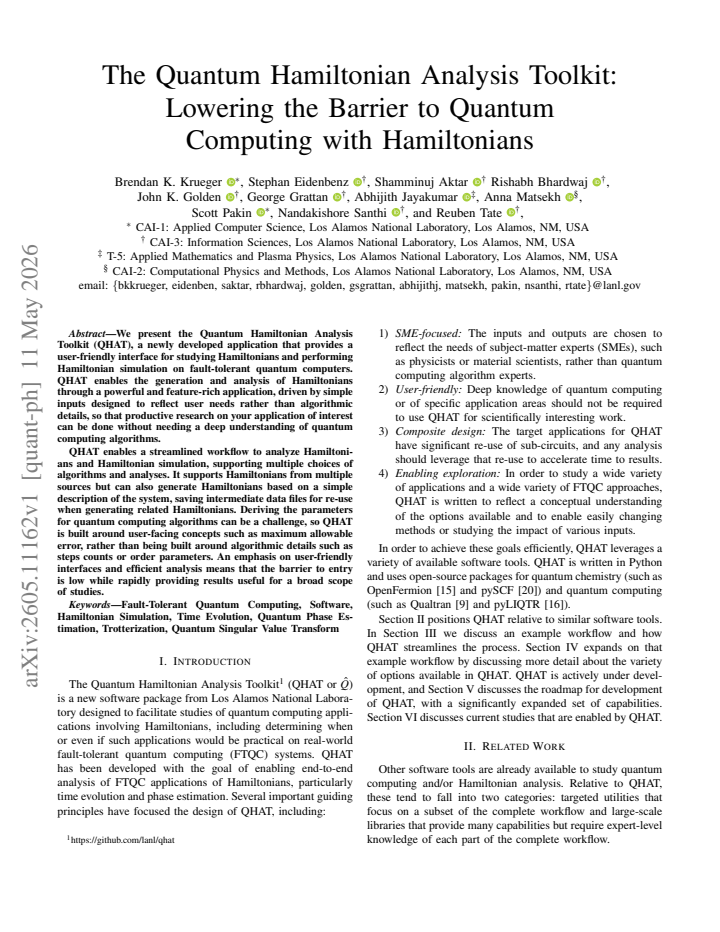

We present the Quantum Hamiltonian Analysis Toolkit (QHAT), a newly developed application that provides a user-friendly interface for studying Hamiltonians and performing Hamiltonian simulation on fault-tolerant quantum computers. QHAT enables the generation and analysis of Hamiltonians through a powerful and feature-rich application, driven by simple inputs designed to reflect user needs rather than algorithmic details, so that productive research on your application of interest can be done without needing a deep understanding of quantum computing algorithms. QHAT enables a streamlined workflow to analyze Hamiltonians and Hamiltonian simulation, supporting multiple choices of algorithms and analyses. It supports Hamiltonians from multiple sources but can also generate Hamiltonians based on a simple description of the system, saving intermediate data files for re-use when generating related Hamiltonians. Deriving the parameters for quantum computing algorithms can be a challenge, so QHAT is built around user-facing concepts such as maximum allowable error, rather than being built around algorithmic details such as steps counts or order parameters. An emphasis on user-friendly interfaces and efficient analysis means that the barrier to entry is low while rapidly providing results useful for a broad scope of studies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

QHAT is a new interface that wraps existing Hamiltonian simulation methods around user-friendly error controls, but the paper gives no benchmarks or validation to show those controls actually work.

read the letter

The paper presents QHAT as a toolkit that lets users describe a physical system or pull Hamiltonians from several sources, then run simulations on fault-tolerant quantum computers by specifying a maximum allowable error instead of algorithm parameters like step counts. That user-facing design is the main practical move here. It also saves intermediate files so related Hamiltonians can be regenerated without starting over, and it supports multiple existing algorithms under one roof. Those choices make sense for lowering the entry barrier for people who know their application but not the quantum computing details. The workflow description is straightforward and the emphasis on reuse and broad analysis is clear. What the paper does not show is any evidence that the error-to-parameter translation is implemented correctly. There are no benchmarks against known exact results, no test suites, no comparisons of simulated costs or errors to literature values, and no code or data releases mentioned. The central promise—that simple user inputs produce accurate simulations without hidden numerical problems—rests on unverified implementation details. This is a tool paper, not a new physical result, so the absence of verification is the main gap. Readers who already work with Hamiltonian simulation and want a more convenient front end might find the interface ideas useful once the tool is released and tested. A serious referee could evaluate it as a software contribution, but only if the authors add concrete validation that the claimed workflows match independent calculations. I would send it to review with that requirement rather than desk-reject it outright.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces the Quantum Hamiltonian Analysis Toolkit (QHAT), a software application providing a user-friendly interface for generating, analyzing, and simulating Hamiltonians on fault-tolerant quantum computers. It supports Hamiltonians from multiple sources or simple system descriptions, reuses intermediate data, and derives simulation parameters from user-facing inputs such as maximum allowable error rather than low-level algorithmic details like step counts or Trotter orders, with the goal of enabling productive research without requiring deep expertise in quantum algorithms.

Significance. If the toolkit's internal mappings from user error tolerances to algorithm parameters are shown to be correct and efficient, QHAT could meaningfully lower the barrier to Hamiltonian simulation studies, supporting broader adoption in quantum chemistry and materials applications. The design emphasis on multiple algorithm choices and data reuse is a constructive approach to usability, but the current manuscript supplies no code, benchmarks, or validation, preventing assessment of whether these features deliver accurate results in practice.

major comments (2)

[Abstract] Abstract and main text: The central claim that QHAT correctly translates user-specified maximum allowable error into accurate simulation parameters and outputs for multiple algorithms rests on unshown implementation details; no benchmarks, validation test suites, or comparisons against exact results or literature costs are provided, leaving the correctness of the error-tolerance workflow unverified and load-bearing for the utility assertion.
[Workflow description] Workflow description: The manuscript states that QHAT supports Hamiltonians from multiple sources and generates them from simple system descriptions while saving intermediate files, but supplies no concrete examples of input-output pairs, error propagation analysis, or verification that the generated Hamiltonians match expected spectra or dynamics.

minor comments (2)

The manuscript would benefit from a table or figure summarizing the supported Hamiltonian classes, algorithms, and analysis options to improve clarity for readers.
Consider including at least one worked example with explicit user inputs, derived parameters, and resulting simulation metrics to illustrate the claimed user-friendly workflow.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review of the manuscript. We address each major comment below and outline the revisions we will make to strengthen the presentation of the toolkit's correctness and usability.

read point-by-point responses

Referee: [Abstract] Abstract and main text: The central claim that QHAT correctly translates user-specified maximum allowable error into accurate simulation parameters and outputs for multiple algorithms rests on unshown implementation details; no benchmarks, validation test suites, or comparisons against exact results or literature costs are provided, leaving the correctness of the error-tolerance workflow unverified and load-bearing for the utility assertion.

Authors: We acknowledge that the manuscript does not contain explicit benchmarks, validation test suites, or direct comparisons to exact results or literature costs. The current text emphasizes the design of the user-facing error-tolerance interface and the overall workflow rather than exhaustive numerical validation. The underlying mappings from error tolerances to algorithm parameters (including step counts, orders, and resource estimates) are implemented and unit-tested within the open-source code. In the revised manuscript we will add a dedicated validation subsection that reports results for at least two algorithms on small benchmark Hamiltonians, showing agreement with exact diagonalization within the user-specified error bounds, together with references to the corresponding test cases and any relevant literature cost comparisons. revision: yes
Referee: [Workflow description] Workflow description: The manuscript states that QHAT supports Hamiltonians from multiple sources and generates them from simple system descriptions while saving intermediate files, but supplies no concrete examples of input-output pairs, error propagation analysis, or verification that the generated Hamiltonians match expected spectra or dynamics.

Authors: We agree that the workflow section would be strengthened by concrete examples. The manuscript currently presents a high-level description without specific input-output pairs or explicit error-propagation calculations. In the revised version we will expand this section with two worked examples: (1) generation of a Heisenberg spin-chain Hamiltonian from a minimal system description, including the saved intermediate data files and verification of the spectrum against the known analytical result; (2) derivation of simulation parameters from a user-specified maximum allowable error, with a short discussion of how the tolerance propagates through the chosen algorithm. These additions will directly illustrate the claimed functionality and verification steps. revision: yes

Circularity Check

0 steps flagged

Tool description with no derivations or predictions

full rationale

The manuscript describes a software toolkit (QHAT) for generating, analyzing, and simulating Hamiltonians via a user-friendly interface. No mathematical derivations, predictions of new quantities, fitted parameters, or uniqueness theorems are claimed or presented. The central claims concern workflow design and input abstractions (e.g., maximum allowable error), which are descriptive rather than derived from prior results within the paper. No equations, self-citations, or ansatzes are invoked in a load-bearing way that could reduce to the inputs by construction. The work is self-contained as a tool presentation and requires no circularity analysis.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

The paper introduces a software toolkit with no mathematical derivations, fitted parameters, or physical axioms beyond standard quantum computing concepts; the only new element is the toolkit itself.

invented entities (1)

QHAT no independent evidence
purpose: User-friendly interface and workflow for Hamiltonian analysis and simulation
The toolkit is introduced in this work as a new application.

pith-pipeline@v0.9.0 · 5544 in / 1052 out tokens · 69695 ms · 2026-05-13T02:29:49.965105+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

QHAT enables a streamlined workflow to analyze Hamiltonians and Hamiltonian simulation, supporting multiple choices of algorithms and analyses, driven by simple inputs designed to reflect user needs rather than algorithmic details.
IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

For product formulas, QHAT provides first- and second-order Trotter expressions. These use error estimates from Childs et al. [5] to optimize the choice of Trotter expression and the number of Trotter steps.

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

25 extracted references · 25 canonical work pages · 3 internal anchors

[1]

Andreas B ¨artschi et al.Potential Applications of Quan- tum Computing at Los Alamos National Laboratory

work page
[2]

arXiv: 2406.06625[quant-ph].URL: https: //arxiv.org/abs/2406.06625

work page arXiv
[3]

Ville Bergholm et al.PennyLane: Automatic differenti- ation of hybrid quantum-classical computations. 2022. arXiv: 1811.04968[quant-ph].URL: https://arxiv. org/abs/1811.04968

work page internal anchor Pith review Pith/arXiv arXiv 2022
[4]

Strong error bounds for Trot- ter and strang-splittings and their implications for quantum chemistry

Daniel Burgarth et al. “Strong error bounds for Trot- ter and strang-splittings and their implications for quantum chemistry”. In:Phys. Rev. Res.6 (4 Nov. 2024), p. 043155.DOI: 10 . 1103 / PhysRevResearch . 6 . 043155.URL: https : / / link . aps . org / doi / 10 . 1103 / PhysRevResearch.6.043155

work page 2024
[5]

Random Compiler for Fast Hamilto- nian Simulation

Earl Campbell. “Random Compiler for Fast Hamilto- nian Simulation”. In:Phys. Rev. Lett.123 (7 Aug. 2019), p. 070503.DOI: 10 . 1103 / PhysRevLett . 123 . 070503.URL: https : / / link . aps . org / doi / 10 . 1103 / PhysRevLett.123.070503

work page 2019
[6]

Theory of Trotter Error with Commutator Scaling

Andrew M. Childs et al. “Theory of Trotter Error with Commutator Scaling”. In:Physical Review X11.1 (Feb. 2021).ISSN: 2160-3308.DOI: 10.1103/physrevx.11. 011020.URL: http://dx.doi.org/10.1103/PhysRevX.11. 011020

work page doi:10.1103/physrevx.11 2021
[7]

Zenodo, Aug

Cirq Developers.Cirq. Zenodo, Aug. 2025.DOI: 10 . 5281/ZENODO.4062499.URL: https://zenodo.org/doi/ 10.5281/zenodo.4062499

work page doi:10.5281/zenodo.4062499 2025
[8]

Stim: a fast stabilizer circuit simulator

Craig Gidney. “Stim: a fast stabilizer circuit simulator”. In:Quantum5 (July 2021), p. 497.ISSN: 2521-327X. DOI: 10.22331/q-2021-07-06-497.URL: https://doi.org/ 10.22331/q-2021-07-06-497

work page doi:10.22331/q-2021-07-06-497.url: 2021
[9]

Lower bounds for the Trotter error

Alexander Hahn et al. “Lower bounds for the Trotter error”. In:Phys. Rev. A111 (2 Feb. 2025), p. 022417. DOI: 10.1103/PhysRevA.111.022417.URL: https://link. aps.org/doi/10.1103/PhysRevA.111.022417

work page doi:10.1103/physreva.111.022417.url: 2025
[10]

Harrigan et al.Expressing and Analyzing Quantum Algorithms with Qualtran

Matthew P. Harrigan et al.Expressing and Analyzing Quantum Algorithms with Qualtran. 2024. arXiv: 2409. 04643[quant-ph].URL: https://arxiv.org/abs/2409. 04643

work page 2024
[11]

Quantum computing with Qiskit

Ali Javadi-Abhari et al.Quantum computing with Qiskit. 2024.DOI: 10.48550/arXiv.2405.08810. arXiv: 2405. 08810[quant-ph]

work page internal anchor Pith review Pith/arXiv arXiv doi:10.48550/arxiv.2405.08810 2024
[12]

Quantum Simulation with Sum- of-Squares Spectral Amplification

Robbie King et al. “Quantum Simulation with Sum- of-Squares Spectral Amplification”. In:Phys. Rev. Lett. 136 (11 Mar. 2026), p. 110601.DOI: 10.1103/m3fj- m4rm.URL: https://link.aps.org/doi/10.1103/m3fj- m4rm

work page doi:10.1103/m3fj- 2026
[13]

Quantifying and Controlling Entanglement in the Quantum Magnet Cs 2CoCl4

Pontus Laurell et al. “Quantifying and Controlling Entanglement in the Quantum Magnet Cs 2CoCl4”. In: Phys. Rev. Lett.127 (3 July 2021), p. 037201.DOI: 10.1103/PhysRevLett.127.037201.URL: https://link. aps.org/doi/10.1103/PhysRevLett.127.037201

work page doi:10.1103/physrevlett.127.037201.url: 2021
[14]

Even More Efficient Quantum Com- putations of Chemistry Through Tensor Hypercontrac- tion

Joonho Lee et al. “Even More Efficient Quantum Com- putations of Chemistry Through Tensor Hypercontrac- tion”. In:PRX Quantum2 (3 July 2021), p. 030305. DOI: 10 . 1103 / PRXQuantum . 2 . 030305.URL: https : //link.aps.org/doi/10.1103/PRXQuantum.2.030305

work page doi:10.1103/prxquantum.2.030305 2021
[15]

Fast Quantum Simulation of Electronic Structure by Spectral Amplification

Guang Hao Low et al. “Fast Quantum Simulation of Electronic Structure by Spectral Amplification”. In: Phys. Rev. X15 (4 Oct. 2025), p. 041016.DOI: 10.1103/ pb2g-j9cw.URL: https://link.aps.org/doi/10.1103/pb2g- j9cw

work page doi:10.1103/pb2g- 2025
[16]

OpenFermion: the electronic structure package for quantum computers

Jarrod R McClean et al. “OpenFermion: the electronic structure package for quantum computers”. In:Quantum Science and Technology5.3 (June 2020), p. 034014. DOI: 10.1088/2058-9565/ab8ebc.URL: https://doi.org/ 10.1088/2058-9565/ab8ebc

work page doi:10.1088/2058-9565/ab8ebc.url: 2020
[17]

Version v1.4.2

Kevin Obenland et al.pyLIQTR. Version v1.4.2. Jan. 2026.DOI: 10.5281/zenodo.18154991.URL: https://doi. org/10.5281/zenodo.18154991

work page doi:10.5281/zenodo.18154991.url: 2026
[18]

Accepted to PRX Quantum

Dhrumil Patel et al.Optimal Coherent Quantum Phase Estimation via Tapering. Accepted to PRX Quantum

work page
[19]

arXiv: 2403.18927[quant-ph].URL: https: //arxiv.org/abs/2403.18927

work page internal anchor Pith review Pith/arXiv arXiv
[20]

New Basis Set Exchange: An Open, Up-to-Date Resource for the Molecular Sci- ences Community

Benjamin P. Pritchard et al. “New Basis Set Exchange: An Open, Up-to-Date Resource for the Molecular Sci- ences Community”. In:Journal of Chemical Informa- tion and Modeling59.11 (2019). PMID: 31600445, pp. 4814–4820.DOI: 10.1021/acs.jcim.9b00725. eprint: https://doi.org/10.1021/acs.jcim.9b00725.URL: https: //doi.org/10.1021/acs.jcim.9b00725

work page doi:10.1021/acs.jcim.9b00725 2019
[21]

Trotter er- ror with commutator scaling for the Fermi-Hubbard model

Ansgar Schubert and Christian B. Mendl. “Trotter er- ror with commutator scaling for the Fermi-Hubbard model”. In:Phys. Rev. B108 (19 Nov. 2023), p. 195105. DOI: 10.1103/PhysRevB.108.195105.URL: https://link. aps.org/doi/10.1103/PhysRevB.108.195105

work page doi:10.1103/physrevb.108.195105.url: 2023
[22]

Sun , author X

Qiming Sun et al. “Recent developments in the PySCF program package”. In:The Journal of Chemical Physics 153.2 (July 2020), p. 024109.ISSN: 0021-9606.DOI: 10.1063/5.0006074. eprint: https://pubs.aip.org/aip/ jcp / article - pdf / doi / 10 . 1063 / 5 . 0006074 / 16722275 / 024109 1 online.pdf.URL: https://doi.org/10.1063/5. 0006074

work page doi:10.1063/5.0006074 2020
[23]

Svore, A

Krysta Svore et al. “Q#: Enabling Scalable Quantum Computing and Development with a High-level DSL”. In:Proceedings of the Real World Domain Specific Languages Workshop 2018. RWDSL2018. ACM, Feb. 2018.DOI: 10.1145/3183895.3183901.URL: http://dx. doi.org/10.1145/3183895.3183901

work page doi:10.1145/3183895.3183901.url: 2018
[24]

An Analysis of Commutation-Based Trotter Ordering Strategies on Heisenberg-Style Hamiltonians

Reuben Tate, Shamminuj Aktar, and Stephan Eidenbez. “An Analysis of Commutation-Based Trotter Ordering Strategies on Heisenberg-Style Hamiltonians”. In prepa- ration. 2026

work page 2026
[25]

Ordering of trotterization: Impact on errors in quantum simulation of electronic structure

Andrew Tranter et al. “Ordering of trotterization: Impact on errors in quantum simulation of electronic structure”. In:Entropy21.12 (2019), p. 1218

work page 2019
