Near the magic angle, twisted bilayer graphene’s breathing-to-bending reconstruction is a soft-mode freeze of two A1 moiré flexural phonons.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-10 22:53 UTC pith:I3FL5ZJC

load-bearing objection Clean soft-mode story for TBG reconstruction: two A1 modes really do carry the multi-Ångstrom pathway, and the continuum η story is secondary but useful. the 2 major comments →

arxiv 2607.06711 v1 pith:I3FL5ZJC submitted 2026-07-07 cond-mat.mes-hall cond-mat.mtrl-scicond-mat.str-elphysics.comp-ph

Moir\'e Phonon Condensation in Magic-Angle Twisted Bilayer Graphene

Zhanghao Zhouyin , Jyun-jie Jiang , Xianghua Kong , Hong Guo This is my paper
classification cond-mat.mes-hall cond-mat.mtrl-scicond-mat.str-elphysics.comp-ph PACS 63.22.Np73.22.Pr68.65.Pq63.20.D-
keywords moiré phonon condensationmagic-angle twisted bilayer graphenesoft-mode transitionflexural phononslattice reconstructionA1 modesflat bands
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Twisted bilayer graphene is known to switch from weak breathing corrugation to large common bending of both sheets near the magic angle, but the lattice coordinate that drives the switch has been missing. This paper shows the switch is a soft-mode condensation: layer-symmetric A1 moiré flexural phonons soften on the breathing branch, lose stiffness, and freeze into the bent morphology. At 1.08 degrees the entire reconstruction of 11,164 atoms (maximum atomic shift 2.30 Å) is captured by only those two phonon modes with more than 99.5 percent spectral weight. A continuum theory isolates a single control parameter η that grows with moiré wavelength and drives the flexural stiffness through zero. The same condensed coordinates also reshape flat-band width, Fermi velocity, and real-space electron density. The result supplies a concrete, twist-tunable structural order parameter for moiré reconstruction.

Core claim

The breathing-to-bending crossover in magic-angle twisted bilayer graphene is Moiré Phonon Condensation: layer-symmetric A1 moiré flexural phonons soften, become unstable near the magic angle, and freeze into the bent morphology. At θ=1.08° the displacement from breathing saddle to bending minimum of all 11,164 atoms is confined to two A1 modes at >99.5 percent weight, so those modes act as the structural order parameter.

What carries the argument

Moiré Phonon Condensation (MPC): the soft-mode freeze of layer-symmetric A1 moiré flexural phonons. A first-harmonic continuum theory reduces the instability to a single dimensionless control parameter η = Seff/(κ_eff g^{2}) that grows with moiré wavelength and drives flexural stiffness negative.

Load-bearing premise

The theory treats the layer-spacing modulation as essentially fixed during the transition, so the whole reconstruction can be described by a single mid-surface height field and first-harmonic stress alone.

What would settle it

Measure the lowest layer-symmetric A1 moiré flexural frequency versus twist angle on the stable (larger-angle) side: if ω^{2}_A1 does not soften toward zero as the angle approaches the breathing-to-bending crossover, MPC is ruled out.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Reconstruction in magic-angle graphene is a twist-controlled soft-mode order parameter rather than a generic multi-mode relaxation path.
  • The condensed A1 coordinates can be used as mode-resolved knobs that reshape flat-band width, Fermi velocity, and AA-centered LDOS texture.
  • Low-frequency Raman or Brillouin scattering can track A1 softening on the stable side and the subsequent freeze into finite bending amplitude.
  • A similar low-dimensional phonon collapse occurs in twisted hBN, suggesting MPC is a broader reconstruction mechanism in twisted layered materials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If MPC is general, other moiré systems (twisted TMD bilayers, graphene/hBN) should show analogous A1-like flexural softening and few-mode reconstruction near their own critical angles.
  • Selective optical or electrostatic driving of the electronically active A1 mode could offer a dynamical route to gate flat-band kinetic energy without changing average twist.
  • The same length-scale amplification of stress-bending competition may appear in any membrane system whose internal stress period is set by a tunable moiré wavelength.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The manuscript identifies the breathing-to-bending reconstruction of twisted bilayer graphene near the magic angle as a soft-mode condensation of layer-symmetric A1 moiré flexural phonons (Moiré Phonon Condensation, MPC). At θ=1.08°, the displacement from the breathing saddle to the bending endpoint for all 11164 atoms (maximum shift 2.30 Å) is captured by two A1 phonon eigenvectors with spectral weight P1,2 > 99.5% under both REBO+KC (99.881%) and MLFF (99.539%). A first-harmonic continuum theory for the mid-surface height w(r) reduces the instability to a dimensionless control parameter η = Seff/(κeff g²), whose growth with moiré length scale drives flexural softening. Mode-resolved tight-binding calculations show that the two condensed coordinates couple differently to flat-band width, Fermi velocity, and LDOS texture. The authors propose Raman/Brillouin tests of A1 softening and argue that MPC supplies a twist-controlled structural order parameter for moiré reconstruction.

Significance. If the spectral-weight result holds, the paper supplies a concrete dynamical coordinate for a reconstruction that has previously been treated mainly as an endpoint energy-minimization problem. The dual-force-field agreement on P1,2 > 99.5% for a multi-Ångstrom, multi-thousand-atom displacement is a strong, falsifiable numerical claim. The continuum reduction isolates a geometric g⁻² amplification of an otherwise smooth stress–bending competition, and the mode-resolved electronic response shows that the condensed coordinates are not electronically inert. Similar low-dimensional collapse is reported for twisted hBN, suggesting a broader mechanism. The work therefore offers both a structural order parameter and a concrete experimental signature (softening of layer-symmetric A1 moiré flexural modes).

major comments (2)
  1. The continuum control parameter η (Eqs. 7–12 and Fig. 3) is extracted by finite differences of Seff and κeff around the breathing configuration under the same force fields used for the atomistic projection. The manuscript should state explicitly whether Seff and κeff are taken from REBO+KC, MLFF, or both, and whether the angle sweep of η (and the location of the η≈1 crossover) is robust under the second force field. Without that check, the claim that the growing moiré length scale is the dominant driver remains tied to a single potential parameterization.
  2. The one-field reduction (Eqs. 5–6 and Fig. 2c) treats the layer-antisymmetric spacing d(r) as essentially fixed (amplitude change ~0.01 Å). While the residual spectral weight outside the two A1 modes is <0.5%, the paper should quantify the projection of ΔR onto any layer-antisymmetric or higher-harmonic flexural channels that appear in the full Hessian, so that the continuum truncation is validated rather than assumed from the visual similarity of d maps alone.
minor comments (4)
  1. Notation for the two condensed modes alternates between A1^(1)/A1^(2) and A(1)1/A(2)1; a single consistent superscript/subscript convention would help.
  2. Fig. 1 caption reports P = 99.88% and 99.539%; the main text uses 99.881% and 99.539%. Align the reported digits.
  3. The experimental proposal (low-frequency Raman/Brillouin tracking of ω²_A1(θ)) would be strengthened by a rough estimate of the expected frequency scale or intensity relative to known interlayer modes.
  4. A brief statement of how the breathing saddle is obtained without symmetry constraints (and how residual modes are removed to form R′_breathing) would improve reproducibility of the two-mode landscape in Fig. 2b.

Circularity Check

0 steps flagged

No significant circularity: the two-mode spectral-weight claim is an operational projection of an independently relaxed endpoint onto Hessian eigenvectors, and continuum η is extracted by finite differences rather than fitted to force the instability.

full rationale

The load-bearing atomistic result is operational, not definitional. The breathing saddle is obtained by unconstrained relaxation; the Γ-point Hessian supplies unstable A1 eigenvectors; the bending endpoint is a separate energy-minimized structure (reachable from multiple kicks in the unstable subspace); and P1,2 is the ordinary spectral weight of ΔR = Rbending − Rbreathing on those eigenvectors (Eqs. 1–3). High weight is not forced by construction: anharmonic mixing into the full (3N−6) space could have produced large residual weight, yet residual weight is <0.5% under two independent force fields (REBO+KC 99.881%, MLFF 99.539%). The continuum theory (Eqs. 7–12) extracts Seff and κeff by finite differences around the breathing configuration and uses first-harmonic Airy stress as a minimal D6-preserving truncation; η = Seff/(κeff g2) then explains the angle trend via the geometric factor g−2. That is a calibrated continuum reduction of the same force field, not a fit that renames the target instability as a prediction. Electronic bands are computed on structures frozen along the already-identified eigenvectors (Eq. 13), so they are consequences, not inputs. Soft-mode citations [12–15] are classical external literature; no self-citation uniqueness theorem or ansatz-smuggling chain carries the central claim. Naming the known breathing-to-bending crossover “MPC” is framing, not circular renaming of a result forced by the paper’s own inputs. Score 0.

Axiom & Free-Parameter Ledger

3 free parameters · 5 axioms · 2 invented entities

The central claim rests on classical atomistic force fields, continuum membrane elasticity with first-harmonic Airy stress, and the soft-mode theory of displacive transitions. Seff and κeff are extracted numbers from those force fields; η is their dimensionless combination with the geometric g². MPC is a named mechanism for an observed soft-mode freeze, not a new fundamental field. No free parameters are hand-tuned to force the 99.5% weight; that weight is a computed projection.

free parameters (3)
  • Seff (first-harmonic Airy-stress amplitude)
    Extracted by finite differences around the breathing-relaxed configuration from the chosen force field; enters η = Seff/(κeff g²) and thus the continuum instability criterion.
  • κeff (effective flexural bending stiffness)
    Likewise extracted from the force field around the breathing reference; sets the curvature penalty against which stress-induced negative stiffness competes.
  • REBO+KC and MLFF force-field parameterizations
    Classical potentials (and the MLFF) define the energy landscape, Hessian, and endpoint displacements; the 99.5% spectral weight and soft-mode spectrum inherit their accuracy.
axioms (5)
  • domain assumption Soft-mode theory of displacive structural transitions: a phonon whose squared frequency is driven through zero becomes the structural order parameter once anharmonicity selects a finite amplitude.
    Invoked explicitly in the introduction and conclusion to frame MPC; citations [12–15].
  • domain assumption Layer-symmetric mid-surface height w(r) is the dominant reconstruction coordinate; layer-antisymmetric d(r) remains essentially fixed (similar AA/AB texture, amplitude change ~0.01 Å).
    Justified by Fig. 2c decomposition and used to reduce the problem to the one-field energy E[w] in Eq. (7).
  • ad hoc to paper First-harmonic truncation of the Airy stress Φ(r)=Φ1/3 ∑ cos(Gm·r) is sufficient to capture the soft flexural instability while preserving moiré D6 symmetry.
    Stated as the minimal symmetry-preserving form; produces the single control parameter η and the continuum modes in Fig. 3.
  • domain assumption Classical continuum membrane energy with bending term κeff(∇²w)² and geometric stress coupling Σeff_ij ∂i w ∂j w describes the moiré-scale flexural stiffness.
    Standard thin-membrane elasticity applied to the bilayer mid-surface; Eq. (7).
  • standard math Γ-point Hessian eigenvectors of the breathing saddle form a valid basis for projecting the finite bending endpoint displacement (linear spectral weight P1,2).
    Operational definition of the two-mode collapse; Eqs. (1)–(3).
invented entities (2)
  • Moiré Phonon Condensation (MPC) independent evidence
    purpose: Name the twist-driven soft-mode freeze of layer-symmetric A1 moiré flexural phonons as the structural order parameter for breathing-to-bending reconstruction.
    A named mechanism for a computed soft-mode pathway, not a new particle or force. Independent handle proposed via Raman/Brillouin softening of ω²_A1(θ) toward zero before the crossover.
  • Dimensionless control parameter η = Seff/(κeff g²) independent evidence
    purpose: Collapse the continuum flexural eigenproblem to a single twist-dependent ratio that changes sign of stiffness as g shrinks.
    Derived within the first-harmonic model; its dominant variation is geometric (g⁻²), with Seff/κeff varying smoothly. Falsifiable by comparing predicted imaginary-mode onset vs angle to atomistic Hessians.

pith-pipeline@v1.1.0-grok45 · 14781 in / 4048 out tokens · 50408 ms · 2026-07-10T22:53:57.573642+00:00 · methodology

0 comments
read the original abstract

Twisted bilayer graphene reconstructs from weak breathing corrugation to large common bending near the magic angle, but the origin of this collective crossover has remained unclear. Here we show that the crossover is a soft-mode condensation of layer-symmetric $A_1$ moir\'e flexural phonons: these modes soften on the breathing branch, lose stiffness near the magic angle, and freeze into the bending morphology. We call this mechanism Moir\'e Phonon Condensation (MPC). At $\theta=1.08^\circ$, it is extremely surprising that displacements of all 11164 atoms in the moir\'e supercell, with a maximum atomic position shift of 2.30 Angstrom, is captured by only two $A_1$ phonon modes at more than $99.5\%$ spectral weight. A first-harmonic continuum theory identifies a dimensionless control parameter of the phenomenon, showing that as the twist approaches the magic angle, the growing moir\'e length scale amplifies a smooth stress-bending competition until the flexural stiffness changes sign. Mode-resolved tight-binding calculations further show that the condensed phonon coordinates are electronically active. This work identifies MPC as a twist-controlled structural order parameter for moir\'e reconstruction.

Figures

Figures reproduced from arXiv: 2607.06711 by Hong Guo, Jyun-jie Jiang, Xianghua Kong, Zhanghao Zhouyin.

Figure 1
Figure 1. Figure 1: FIG. 1. Overview of Moir´e Phonon Condensation. The [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

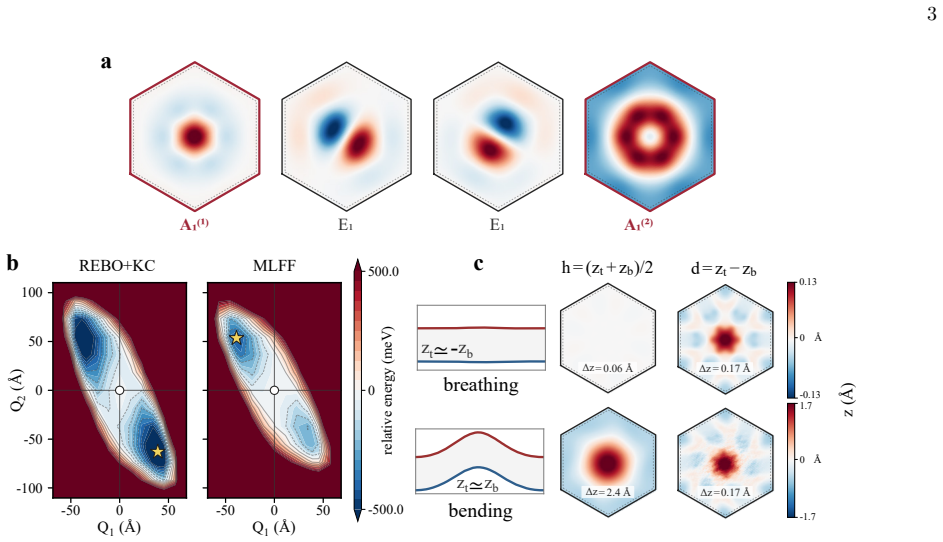

Figure 2. Figure 2: FIG. 2. Atomistic signature of Moir´e Phonon Condensation. Panel (a) shows the layer-symmetric height patterns of the [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. First-harmonic continuum theory of Moir´e Phonon Condensation. The layer-symmetric height field [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Electronic response to condensed moir´e phonons. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
