REVIEW 3 major objections 4 minor
Colored $\Delta_T$ noise probes the topological character of edge modes
T0 review · 3 major / 4 minor · reviewed 2026-08-01 · deepseek-v4-flash
Pith's one-line read Colored Δ_T noise distinguishes chiral, spin-conserving helical, and spin-flip helical edge modes.
desk verdict Plausible finite-frequency Δ_T noise fingerprint for QSH versus trivial edges, but missing supplement and a unit error mean the details need a careful referee. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The key object is the colored (finite-frequency) symmetrized Δ_T-noise autocorrelation, Δ_{αα}(ω), evaluated in the scattering formalism at the thermovoltage where the average charge current vanishes. The analysis turns on an energy-dependent quantum point contact with transmission T_0(E)=1/[1+exp(−2π(E−E_1)/(ℏΩ_x))], which breaks electron-hole symmetry and generates frequency-dependent scattering kernels. In the QSH case, the scattering matrix includes a spin-flip probability P_0 at the QPC; P_0=0 recovers the spin-conserving helical edge, and P_0≠0 models the trivial edge. The mechanism that separates the three edge types is the combination of zero-current thermovoltage, frequency-dependen
What would settle it
Measure the colored Δ_T noise of a quantum Hall bar at any finite frequency: observing any nonzero value would falsify the chiral prediction. Alternatively, in a clean quantum spin Hall device biased as in Setup 2, the model predicts exactly zero Δ_T noise for spin-conserving helical edges; a finite measured signal would falsify the trivial-vs-topological distinction.
Extended reading notes
Core claim
The central claim is that colored Δ_T noise is a qualitative, topology-sensitive observable. The authors compute the symmetrized finite-frequency autocorrelation of current fluctuations, S_{αα}(ω), within the scattering formalism, then isolate the nonequilibrium component driven by a temperature gradient at the thermovoltage that enforces zero average current. They find: for a chiral QH edge, Δ_22^T(ω)=0 identically at all frequencies, because the noise contains no term proportional to the temperature difference; for a spin-conserving helical QSH edge, it is finite and changes sign with frequency, going from positive at ω=0 to predominantly negative at finite frequency; for a spin-flip helic
Load-bearing premise
The spin-flip helical (trivial) edge is modeled solely by a local spin-flip probability P_0 at the quantum point contact, so the predicted distinction would collapse if real trivial-phase transport involves bulk conduction, disorder-assisted scattering, or interaction effects.
Editorial extensions
If this is right
- Chiral edge modes in a quantum Hall bar should show identically zero colored Δ_T noise at any frequency, offering a null test for one-way edge transport.
- Spin-conserving helical edge modes should exhibit a finite, sign-reversing colored Δ_T noise, a feature absent in white-noise measurements.
- In the second bias setup, spin-flip (trivial) helical edges produce finite colored shot noise and finite Δ_T noise, while spin-conserving helical edges produce zero—a qualitative trivial-versus-topological distinction.
- Electron-hole asymmetry at the quantum point contact changes magnitudes but preserves the qualitative pattern, making the fingerprints robust to realistic energy-dependent scattering.
- The predicted frequency range (ℏω of order meV, i.e., 1–10 GHz) is within reach of existing high-frequency noise measurement techniques.
Reading between the lines
- If the exact zero for chiral edges extends beyond this scattering model, it would suggest a general rule: at zero average current, any finite-frequency thermal noise in a chiral one-way edge is purely equilibrium or vacuum in origin—testable in fractional quantum Hall edges where zero-frequency Δ_T noise has already been studied.
- The trivial-phase model treats spin-flip scattering as a single local probability; a natural extension is to test whether the Setup-2 zero-vs-finite contrast survives disorder-distributed spin flips or bulk conduction, which real InAs/GaSb trivial phases may host.
- The frequency at which the sign reversal occurs may track the thermovoltage eU_th; experimentally following the zero-crossing as a function of ΔT could provide a quantitative cross-check of the model.
- Because colored shot noise and colored Δ_T noise respond differently to P_0 in the two setups, a combined measurement could in principle extract both the spin-flip probability and the edge-mode character from a single device.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes finite-frequency (colored) Δ_T noise as a probe to distinguish chiral, spin-conserving helical, and spin-flip helical (trivial) edge modes in four-terminal quantum Hall and quantum spin Hall geometries with a quantum point contact. Using scattering theory, the authors derive expressions for colored shot noise and colored Δ_T noise under two bias protocols. The central claims are that chiral edge modes give identically zero colored shot noise and zero Δ_T noise; spin-conserving helical edge modes give a finite, sign-changing shot-noise spectrum and a sign-reversing Δ_T-noise spectrum in one setup; and spin-flip helical (trivial) edge modes exhibit a positive/zero shot-noise spectrum but a sign-reversing Δ_T-noise spectrum in another setup. The main text contains the key formulas, while the full derivations of the s-matrices and noise expressions are relegated to a Supplemental Material referenced with a placeholder URL. Numerical results are shown for one representative parameter set.
Significance. If the central results hold, the proposal is of genuine experimental interest: Δ_T noise at zero average current avoids Joule heating, and the predicted qualitative contrasts—zero versus finite, sign reversal versus no sign reversal—could be tested with high-frequency noise measurements in the GHz regime. The authors also make their Mathematica code available on GitHub, which is a useful element of reproducibility. However, the current version of the manuscript is not self-contained: the central derivations are in a Supplemental Material that is not included, and the model for the trivial phase is a one-parameter local spin-flip ad hoc description whose relation to real InAs/GaSb trivial phases is not established. These issues prevent independent verification of the main claims and limit the confidence with which the results can be accepted.
major comments (3)
- [Supplemental Material reference (URL placeholder), Eqs. (8), (9), (14)–(17)] The central derivations of the quantum Hall and quantum spin Hall s-matrices, the noise formulas, and the thermovoltage expressions are all relegated to a Supplemental Material whose URL is 'URL_will_be_inserted_by_publisher'. The main text states 'As derived in ... SM' for Eqs. (8), (14), (15), (16), and (17), but the SM is not available to the reader or the referee. This is a load-bearing issue: without the derivations, the equations and the claimed limiting behaviors cannot be checked. The manuscript should include the supplemental derivations as an appendix or provide a freely accessible supplement in the review package.
- [Spin-flip helical (trivial) model, Eq. (17) and SM Sec. II] The trivial edge phase is modeled solely by a local spin-flip probability P0 at the QPC on an otherwise ideal helical edge, with P0=0 reducing to the spin-conserving helical case. Refs. [5,6] are cited to justify that trivial-phase InAs/GaSb can mimic topological conductance, but those experiments do not establish that the microscopic mechanism is exclusively local spin-flip scattering on an intact helical edge. If bulk conduction, disorder-assisted processes, or interaction effects contribute in the trivial phase, the scattering matrix underlying Eqs. (13)–(17) is incomplete and the predicted zero-vs-finite Δ_T-noise contrast between spin-conserving and spin-flip helical edges may not survive. The authors should either justify this model more rigorously or explicitly discuss how their conclusions depend on the assumption that the trivial phase is captured by this single local parameter.

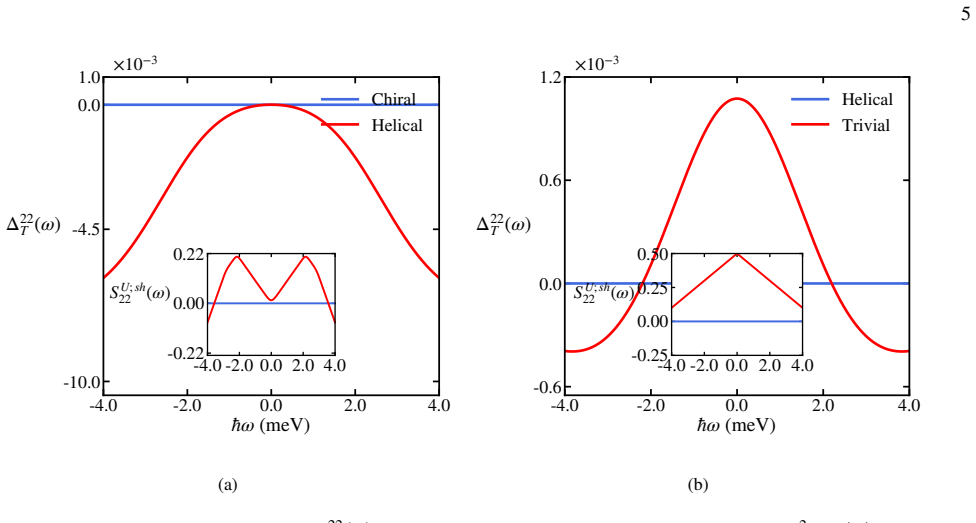

- [Fig. 2 and parameter dependence] The robustness claim is presented on the basis of a single parameter set. In particular, the value of P0 used in Fig. 2(b) is not stated in the caption or in the text. Equation (17) shows that the Δ_T-noise magnitude scales as P0(1−P0), so the sign reversal is formally P0-independent, but the visibility of the effect and the signal-to-noise ratio depend on P0. The authors should state the P0 value used and show how the qualitative contrast behaves as P0 is varied (e.g., small P0, P0 near 0.5, P0 near 1). This is necessary to support the claim that the probe is robust.
minor comments (4)
- [General presentation] There are several typographical errors: 'flutuations' (page 3), 'satisifed' (page 4), 'the the quantum noise' (page 5), and 'V oltages' in Table I. These should be corrected.
- [References] The name 'C. Spaanslatt' appears in Refs. [15], [16], [17], and [19]; the correct spelling is likely 'C. Spånslätt'. Please verify and standardize.
- [Equation (14)] The Heaviside step function θ(x) is used without explicit definition. Also, the integration limits in the third term of Eq. (14) are unusual when eU−|ℏω| is negative; a short clarification of the conventions would improve readability.
- [Fig. 2 caption] The caption of Fig. 2(b) should specify the value of P0 used. This is essential for reproducibility, especially since the trivial-phase result depends on P0.
Circularity Check
No significant circularity: the colored Δ_T noise results are derived from explicit scattering matrices and not from fitted inputs or load-bearing self-citations.
full rationale
The derivation chain is self-contained: the paper starts from the standard scattering formula for finite-frequency noise (Eq. (5)), specifies the QPC transmission T0(E) (Eq. (7)), and computes the noise correlations and thermovoltage from the scattering matrices. The chiral, spin-conserving helical, and spin-flip helical (trivial) results follow algebraically from the model; no parameter is fitted to the target Δ_T noise and then presented as a prediction. The parameter P0 is a model input representing spin-flip scattering, and the result Δ22_T(ω)=2G0P0(1−P0)(ΔT)^2∫dE ... is a derived consequence, not a redefinition of the observable. The statement that Setup 1 gives only quantitative differences between helical and spin-flip helical states is a scope limitation, not a circular step. The self-citations (Refs. 10, 24, 26, 27) are used for background or motivation and are not load-bearing for the central derivation. The physics assumption that the trivial phase is represented by a local spin-flip probability P0 is a modeling choice that could affect the experimental relevance, but it is not a circular reduction.
Assumptions & free parameters
free parameters (5)
- QPC threshold energy ℏΩy =
4.3 meV
- QPC step width ℏΩx =
0.1 ℏΩy = 0.43 meV
- Spin-flip probability P0 =
0 (helical) or nonzero (trivial)
- Voltage bias eU =
5 meV
- Average temperature T̄ and ΔT/T̄ =
T̄=10 K, ΔT=0.1 T̄ = 1 K
assumptions (5)
- standard math Scattering theory of finite-frequency noise (Blanter-Büttiker, Büttiker)
- standard math Spin-resolved noise correlator formula of Dragomirova and Nikolić
- domain assumption The QPC transmission model T0(E) = 1/(1+exp[-2π(E-E1)/(ℏΩx)])
- domain assumption Spin-flip scattering at the QPC with probability P0 faithfully represents trivial edge modes
- standard math Autocorrelation symmetry S_αα(ω)=S_αα(−ω)
Cite this review
Pith. "Pith review of Colored $\Delta_T$ noise probes the topological character of edge modes." pith.science (2026). https://pith.science/paper/4OBMWLKO
@misc{pith2026260717354,
author = {Pith},
title = {Pith review of: Colored $\Delta_T$ noise probes the topological character of edge modes},
year = {2026},
howpublished = {\url{https://pith.science/paper/4OBMWLKO}},
note = {Machine review of arXiv:2607.17354}
}
abstract
We investigate colored $\Delta_T$ noise, i.e., finite-frequency $\Delta_T$ noise, as a probe of edge-mode (EM) transport in quantum Hall and quantum spin Hall systems. Colored $\Delta_T$ noise probes finite-frequency nonequilibrium current fluctuations and dynamical transport properties that are often obscured in DC measurements of conductance and noise. Since $\Delta_T$ noise is driven solely by a temperature and voltage bias under zero average charge current conditions, it eliminates current-induced Joule heating and directly probes intrinsic thermal fluctuations. We show that chiral, spin-conserving helical, and spin-flip helical (trivial) EMs exhibit distinct colored $\Delta_T$-noise signatures under appropriate bias protocols. Incorporating energy-dependent scattering through a quantum point contact, we demonstrate that electron-hole asymmetry significantly modifies the finite-frequency spectrum while preserving these distinguishing features. Notably, colored $\Delta_T$ noise exhibits a frequency-dependent sign reversal absent in the corresponding white ($\omega=0$) $\Delta_T$ noise. We further investigate zero-temperature colored quantum shot noise and find that it vanishes identically for chiral EMs, whereas the spin-conserving helical response changes sign with frequency. By contrast, spin-flip helical (trivial) EMs exhibit a positive colored shot-noise spectrum. However, the corresponding colored $\Delta_T$ noise retains its characteristic sign reversal, providing a robust distinction between spin-conserving helical and spin-flip helical (trivial) EM transport. These results establish colored $\Delta_T$ noise as a robust, experimentally accessible, complementary probe for identifying chiral, spin-conserving helical, and spin-flip helical (trivial) EM transport in mesoscopic topological systems.
Figures
