arxiv: 2606.31510 · v1 · pith:HC5T3NDLnew · submitted 2026-06-30 · 🌌 astro-ph.HE

Magnetic field and plasma number density from radio and millimeter core measurements in AGN jets

E.E. Nokhrina , A.P. Lobanov , A.Yu. Istomin , V.A. Frolova This is my paper

Pith reviewed 2026-07-01 04:29 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords AGN jetsVLBImagnetic fieldplasma densitysynchrotron emissionjet coresrelativistic jets
0
0 comments X

The pith

Multifrequency VLBI core data indicate magnetic flux decay and plasma acceleration in some AGN jets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a framework to estimate magnetic field strength B* and emitting plasma number density N* as functions of jet width d from VLBI measurements of core size and brightness temperature across 2 to 230 GHz. It applies the standard self-absorbed synchrotron emission model while assuming power-law dependencies of Doppler factor, Lorentz factor, magnetic field, and plasma density on jet width for arbitrary boundary shapes. This yields B*(d) and N*(d) and explores the relation between their rest-frame energy densities. A sympathetic reader would care because these quantities control how relativistic jets are launched and sustained near the central black hole in active galactic nuclei. Application to observed cores suggests magnetic flux decay and effective plasma acceleration at least in some sources.

Core claim

Using multifrequency VLBI observations of the core size and brightness temperature, the magnetic field B* and plasma number density N* can be estimated independently as functions of the jet width d. The analysis of these quantities in a sample of sources indicates the possible presence of magnetic flux decay and effective plasma acceleration within the observed cores in at least some AGN jets.

What carries the argument

Framework deriving B*(d) and N*(d) from core width and brightness temperature measurements under power-law assumptions in the self-absorbed synchrotron emission model.

If this is right

  • Magnetic field strength and plasma density can be derived separately as functions of jet width from multifrequency core data.
  • The relation between rest-frame magnetic and plasma energy densities can be examined along the jet.
  • Magnetic flux decay is present within the cores of at least some sources.
  • Effective plasma acceleration occurs inside the observed cores of at least some sources.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could map magnetic and plasma properties in the jet-launching region closer to the black hole than single-frequency studies allow.
  • If the trends hold across larger samples, they would favor jet models in which magnetic flux is not conserved and particles are accelerated within the first few parsecs.
  • Higher-frequency millimeter observations with better resolution would provide a direct test of the derived B(d) and N(d) slopes.

Load-bearing premise

The jet Doppler factor, Lorentz factor, magnetic field strength, and plasma density follow power-law dependencies on the jet width.

What would settle it

New multifrequency observations yielding core sizes and brightness temperatures that cannot be fit by any single set of power-law indices for B(d) and N(d) would show the framework does not apply.

Figures

Figures reproduced from arXiv: 2606.31510 by A.P. Lobanov, A.Yu. Istomin, E.E. Nokhrina, V.A. Frolova.

Figure 1

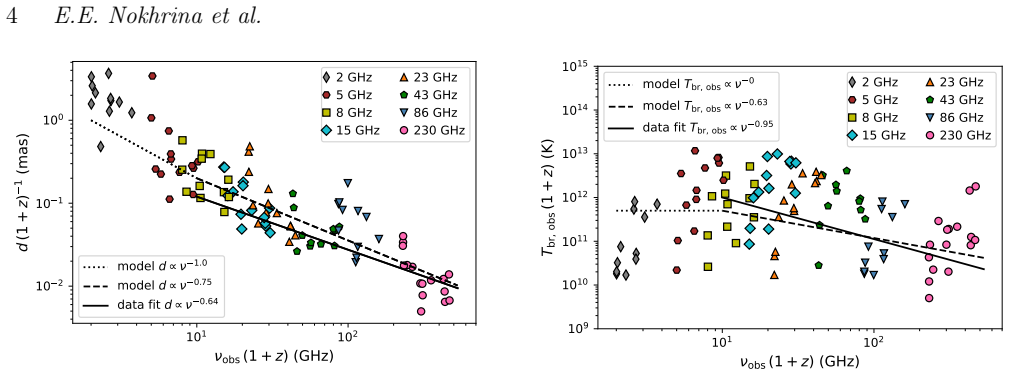

Figure 1. Figure 1: Comparison of model scenarios 1 and 5 (see [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 3

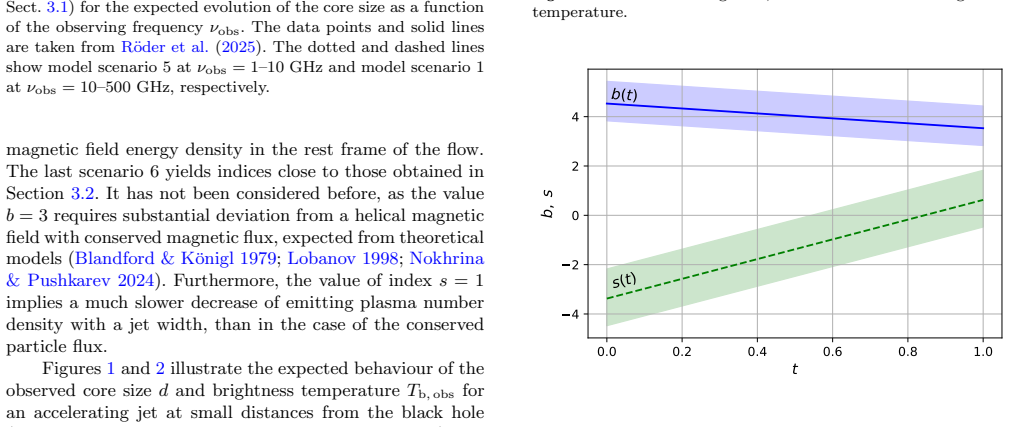

Figure 3. Figure 3: Dependence of the indices b (blue solid line) and s (green dashed line), describing the scaling of B∗ and N∗ with jet width d, on the Doppler-factor evolution index t. The relations are calculated from Equations (13) and (15) using the values of p and q reported by R¨oder et al. (2025) and assuming α = −0.5. The shaded regions reflect the reported uncertainties in p and q. fected by the variability induced… view at source ↗
Figure 4

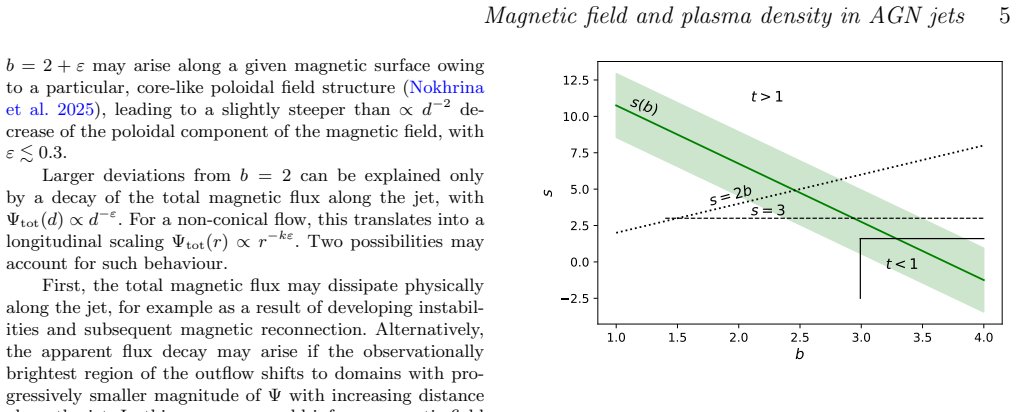

Figure 4. Figure 4: Relation between the power indices b and s (green line) and its uncertainty (green shaded region), computed for the mea￾sured values of of p and q. The dashed black line denotes the con￾dition of the emitting plasma number density conservation and continuity along a linearly accelerating jet with Γ ∝ d (Nokhrina & Pushkarev 2024). The dotted black line corresponds to equipar￾tition between the emitting pla… view at source ↗
Figure 5

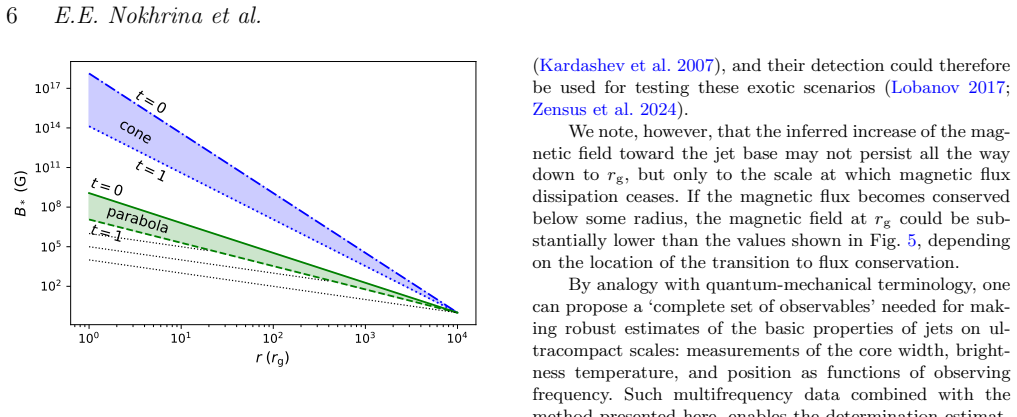

Figure 5. Figure 5: Illustration of potential impact of jet shape on estimates of magnetic field as a function of the de-projected distance along the jet, expressed in units of gravitational radius rg. We adopt the scaling 1 pc=104 rg (corresponding to a black hole mass of M = 5 × 109 M⊙) and assume B∗ = 1 G at a distance of 1 pc. Green lines and shaded region correspond to a parabolic jet with k = 0.5, while blue lines and s… view at source ↗
read the original abstract

Understanding the mechanism for launching relativistic jets in active galactic nuclei relies upon measuring the magnetic field strength and emitting plasma number density, tracing their evolution along the jet, and determining the relation between their rest frame energy densities. This can be achieved using measurements of the size and brightness temperature of the compact region at the jet base (the ``core'') obtained with very long baseline interferometry (VLBI) across frequencies from 2 to 230~GHz. We develop a framework for independently estimating the magnetic field B* and the emitting plasma number density N* as functions of the jet width $d$, using multifrequency VLBI observations of the core size and brightness temperature. We apply the standard model of self-absorbed synchrotron emission, assuming power-law dependencies of the jet Doppler factor, Lorentz factor, magnetic field strength, and plasma density on the jet width. For an arbitrary jet boundary shape, we derive the dependencies B*(d) and N*(d), and explore a possible relation between the rest frame energy densities of the magnetic field and the emitting plasma. Analysis of core widths and brightness temperatures measured at multiple frequencies points to the possible presence of a magnetic flux decay and effective plasma acceleration within the observed cores at least in some sources of the sample.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a framework to estimate the magnetic field strength B* and emitting plasma number density N* as functions of jet width d in AGN jets from multifrequency VLBI core size and brightness temperature measurements (2–230 GHz). It assumes power-law dependencies of the Doppler factor, Lorentz factor, magnetic field, and plasma density on jet width for arbitrary boundary shape, derives B*(d) and N*(d), explores the relation between their rest-frame energy densities, and applies the method to a sample, concluding that the data point to possible magnetic flux decay and effective plasma acceleration within the cores in at least some sources.

Significance. If the modeling assumptions hold, the framework provides a systematic way to trace B and N evolution along the jet base and relate their energy densities, which bears directly on jet-launching physics. The derivation for arbitrary jet boundary shape and the use of multi-frequency core data are concrete strengths that could enable falsifiable predictions once the power-law indices are validated against observations.

major comments (2)
  1. [§3] §3: The expressions for B*(d) and N*(d) are obtained by assuming power-law scalings for δ(d), Γ(d), B(d), and N(d); the manuscript does not demonstrate an independent constraint on these indices from the multifrequency core-width and T_b data alone, so the inferred trends for flux decay and acceleration are not guaranteed by the observations if the true radial dependencies deviate from power laws.
  2. [Application to sample data] Application to sample data: The claim that magnetic flux decay and plasma acceleration occur in at least some sources rests on the fitted power-law indices; without an explicit goodness-of-fit test or comparison to non-power-law forms, the extracted B*(d) and N*(d) trends remain model-dependent and load-bearing for the central observational conclusion.
minor comments (2)
  1. The abstract states that a possible relation between rest-frame energy densities is explored but does not indicate whether this relation is derived analytically or fitted numerically from the B*(d) and N*(d) expressions.
  2. Notation for the jet width d and the starred quantities B* and N* is introduced without an early explicit definition of the reference frame or normalization, which would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight important aspects of the modeling assumptions. We address each major comment point by point below.

read point-by-point responses

  1. Referee: [§3] §3: The expressions for B*(d) and N*(d) are obtained by assuming power-law scalings for δ(d), Γ(d), B(d), and N(d); the manuscript does not demonstrate an independent constraint on these indices from the multifrequency core-width and T_b data alone, so the inferred trends for flux decay and acceleration are not guaranteed by the observations if the true radial dependencies deviate from power laws.

    Authors: We agree that the derivation of B*(d) and N*(d) is performed under the explicit assumption of power-law scalings for δ(d), Γ(d), B(d), and N(d), as stated in the abstract and throughout §3. The multifrequency core size and brightness temperature data are used to determine the power-law indices within this framework; no claim is made that the data provide an independent constraint on the indices absent the power-law assumption. If the true dependencies deviate from power laws, the inferred trends would not hold. We have revised §3 to more explicitly state this conditional nature and to note that validation against non-power-law forms would require additional numerical modeling. revision: partial

  2. Referee: [Application to sample data] Application to sample data: The claim that magnetic flux decay and plasma acceleration occur in at least some sources rests on the fitted power-law indices; without an explicit goodness-of-fit test or comparison to non-power-law forms, the extracted B*(d) and N*(d) trends remain model-dependent and load-bearing for the central observational conclusion.

    Authors: The manuscript already qualifies the conclusion with cautious phrasing ('points to the possible presence of a magnetic flux decay and effective plasma acceleration within the observed cores at least in some sources'). To address the concern, the revised manuscript includes an explicit goodness-of-fit evaluation for the power-law models applied to the sample data. While a systematic comparison to non-power-law functional forms lies outside the analytical scope of the current work, we have expanded the discussion of model dependence in the conclusions section. The power-law assumption is what enables the closed-form derivation for arbitrary jet boundary shapes, which remains a central contribution. revision: yes

Circularity Check

1 steps flagged

Power-law ansatz on δ(d), Γ(d), B(d), N(d) forces derived B*(d) and N*(d) trends by construction

specific steps
  1. fitted input called prediction [Abstract]
    "We apply the standard model of self-absorbed synchrotron emission, assuming power-law dependencies of the jet Doppler factor, Lorentz factor, magnetic field strength, and plasma density on the jet width. For an arbitrary jet boundary shape, we derive the dependencies B*(d) and N*(d)"

    The derivation of B*(d) and N*(d) explicitly starts from assumed power-law forms for B(d) and N(d) (plus δ and Γ), so the resulting functions and any inferred decay/acceleration are shaped by the indices fitted to the multifrequency core data; the 'estimation' reduces to the input ansatz rather than emerging independently from observations.

full rationale

The paper's framework assumes power-law scalings for Doppler factor, Lorentz factor, magnetic field, and density versus jet width d, then derives B*(d) and N*(d) from core size and brightness temperature data under the self-absorbed synchrotron model. This makes the extracted trends for magnetic flux decay or plasma acceleration direct consequences of the fitted indices rather than independent inferences; the abstract explicitly ties the derivation to these assumptions for arbitrary boundary shapes. No external validation or non-power-law check is indicated, producing partial circularity in the central claim.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The method rests on the standard self-absorbed synchrotron model plus power-law assumptions for several jet parameters; no free parameters are numerically fitted in the abstract, but the power-law indices function as adjustable quantities.

free parameters (1)
  • power-law indices for Doppler factor, Lorentz factor, B, and N versus jet width
    Assumed functional forms that allow derivation of B*(d) and N*(d); values not stated in abstract.
axioms (1)
  • domain assumption Standard model of self-absorbed synchrotron emission applies to the compact core region
    Invoked to relate observed core size and brightness temperature to B* and N*.
