arxiv: 2205.13524 · v4 · pith:I7UAEGO5new · submitted 2022-05-26 · 💻 cs.CV · cs.GR

PREF: Phasorial Embedding Fields for Compact Neural Representations

Binbin Huang , Xinhao Yan , Anpei Chen , Shenghua Gao , Jingyi Yu This is my paper

Pith reviewed 2026-05-24 11:54 UTC · model grok-4.3

classification 💻 cs.CV cs.GR
keywords phasorial embedding fieldsfrequency-based neural representationscompact neural fieldsneural radiance fieldssigned distance functionsFourier feature mappingphasor volume
0
0 comments X

The pith

A compact 3D phasor volume lets shallow MLPs encode high-frequency signals in neural representations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents PREF, which augments a shallow MLP with a phasor volume whose frequencies spread uniformly across a 2D plane and dilate along a third axis. A custom transform that mixes fast Fourier transform with local interpolation accelerates the mapping, while a Parsvel regularizer stabilizes training. The goal is to shrink the MLP size that frequency-based methods normally require, bringing their speed closer to hybrid representations without losing detail capture. This matters for applications like fitting images, regressing signed distance functions, and reconstructing neural radiance fields, where high frequencies have been costly to represent.

Core claim

A 3D phasor volume with uniform 2D-plane frequency distribution and 1D-axis dilation, accessed through an FFT-plus-interpolation operator and stabilized by a Parsvel regularizer, lets a shallow MLP cover more border spectra than prior Fourier feature mappings or positional encodings, thereby reducing MLP cost in frequency-based neural representations while preserving robustness across 2D image, 3D SDF, and 5D NeRF tasks.

What carries the argument

The compact 3D phasor volume with uniform 2D frequency plane plus 1D dilation, accessed by a tailored FFT-plus-interpolation transform.

If this is right

  • Reduces the MLP depth needed for frequency-based representations, narrowing the runtime gap to hybrid methods.
  • Enables compact models for 2D image fitting, 3D signed distance regression, and 5D radiance field reconstruction.
  • Increases interpretability of the learned frequency components through the explicit phasor volume structure.
  • Maintains robustness without post-hoc hyperparameter search across the tested tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The plane-plus-dilation layout may generalize to other spectral embedding problems where uniform coverage of high frequencies is needed.
  • Replacing deeper MLPs with this volume could lower memory use in real-time rendering pipelines that already employ frequency encodings.
  • The regularizer's stabilizing effect might transfer to other oscillatory or Fourier-based optimization settings outside neural fields.

Load-bearing premise

The chosen 3D phasor layout, FFT-interpolation mapping, and Parsvel regularizer together let a shallow MLP capture high-frequency content without task-specific tuning or loss of robustness.

What would settle it

Run the same high-frequency scene reconstruction with PREF's shallow MLP and with a deeper standard frequency MLP; if the shallow version visibly loses detail or requires heavier regularization to match quality, the efficiency claim fails.

Figures

Figures reproduced from arXiv: 2205.13524 by Anpei Chen, Binbin Huang, Jingyi Yu, Shenghua Gao, Xinhao Yan.

Figure 1
Figure 1. Figure 1: A conceptual overview of accelerating frequency-based implicit neural representation. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

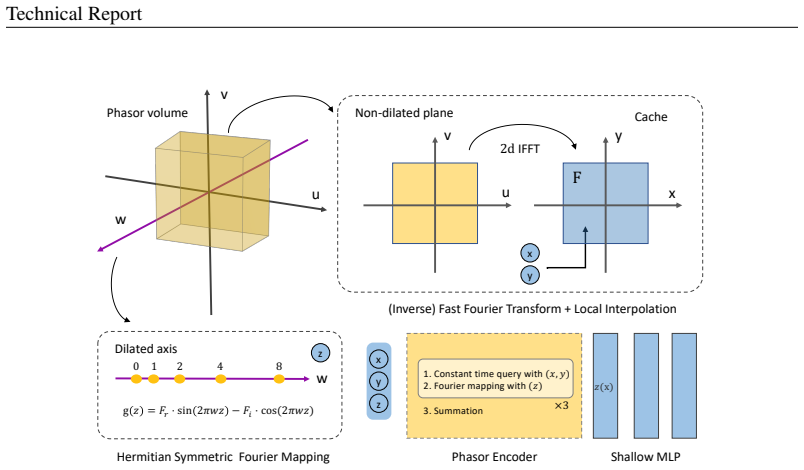

Figure 2. Figure 2: Visual depiction of our PREF. See text for the detail illustration of phasor volume (Sec. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration on overfitting. PSNR 35.65 PSNR 36.44 (a) wo / ℒreg (b) w / ℒreg density density [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 6
Figure 6. Figure 6: Qualitative visualizations of regressed SDF. The left image shows our regressed result. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 5
Figure 5. Figure 5: shows. Details are included in Supp D. Such multi-scale representation can benefit many GT Regressed 𝜎 = 1 𝜎 = 5 𝜎 = 10 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Qualitative comparisons. We compare to NeRF (Mildenhall et al., 2020) which encode [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Image Regression (from Natural dataset) [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Phasor volume decomposition. Let the phasor volume with zero frequency centered. We [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
read the original abstract

We present an efficient frequency-based neural representation termed PREF: a shallow MLP augmented with a phasor volume that covers significant border spectra than previous Fourier feature mapping or Positional Encoding. At the core is our compact 3D phasor volume where frequencies distribute uniformly along a 2D plane and dilate along a 1D axis. To this end, we develop a tailored and efficient Fourier transform that combines both Fast Fourier transform and local interpolation to accelerate na\"ive Fourier mapping. We also introduce a Parsvel regularizer that stables frequency-based learning. In these ways, Our PREF reduces the costly MLP in the frequency-based representation, thereby significantly closing the efficiency gap between it and other hybrid representations, and improving its interpretability. Comprehensive experiments demonstrate that our PREF is able to capture high-frequency details while remaining compact and robust, including 2D image generalization, 3D signed distance function regression and 5D neural radiance field reconstruction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper introduces PREF, a frequency-based neural representation consisting of a shallow MLP augmented by a compact 3D phasor volume in which frequencies are distributed uniformly along a 2D plane and dilated along a 1D axis. A tailored FFT-plus-local-interpolation transform is developed to accelerate frequency mapping, and a Parsvel regularizer is introduced to stabilize training. The central claim is that this construction allows the shallow MLP to capture high-frequency content, reduces the MLP size relative to prior frequency-based methods, closes the efficiency gap with hybrid representations, and improves interpretability, with supporting experiments on 2D image generalization, 3D SDF regression, and 5D NeRF reconstruction.

Significance. If the quantitative results and ablations hold, the constructive design of the 3D phasor volume together with the efficient FFT+interpolation transform and Parsvel regularizer would constitute a practical advance in frequency-based neural representations. It offers a route to shallower networks for high-frequency tasks while retaining robustness, which could influence the design of compact implicit representations in computer vision and graphics.

minor comments (3)
  1. [Abstract] Abstract: the claim of 'comprehensive experiments' and 'improved performance' is stated without any numerical values, error bars, or baseline comparisons; while the full experiments section presumably supplies these, the abstract would benefit from one or two concrete metrics to allow readers to gauge the magnitude of the reported gains.
  2. [§3] The description of the Parsvel regularizer (presumably in §3) would be strengthened by an explicit equation or pseudocode showing how it is applied during optimization, as the current high-level statement leaves the precise implementation open to interpretation.
  3. [Figures 4-7] Figure captions and axis labels in the experimental results should explicitly state the network depth and parameter count used for PREF versus the compared frequency-based and hybrid baselines, to make the efficiency claims immediately verifiable from the figures.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive evaluation, recognition of the practical advance in frequency-based representations, and recommendation for minor revision. We appreciate the constructive feedback on the design of the 3D phasor volume, FFT+interpolation transform, and Parsvel regularizer.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper presents PREF as a constructive design: a compact 3D phasor volume with uniform 2D + 1D dilation layout, a tailored FFT-plus-interpolation transform, and a Parsvel regularizer that together allow a shallow MLP to capture high frequencies. No equations, fitting procedures, or self-citations are shown that reduce the central efficiency or interpretability claims to quantities defined by their own inputs. The derivation chain is self-contained as an explicit architectural choice rather than a tautological reduction, consistent with the reader's assessment of score 2.0 with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

Abstract-only review supplies insufficient detail to enumerate free parameters or background axioms; the phasor volume is presented as a newly introduced construct.

invented entities (1)
  • Phasor volume no independent evidence
    purpose: Compact storage of frequency information for neural signal representation
    Introduced in the abstract as the central new data structure.

pith-pipeline@v0.9.0 · 5701 in / 1164 out tokens · 28553 ms · 2026-05-24T11:54:34.712486+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

28 extracted references · 28 canonical work pages · 1 internal anchor

  1. [1]

    SAL: sign agnostic learning of shapes from raw data

    Matan Atzmon and Yaron Lipman. SAL: sign agnostic learning of shapes from raw data. In 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition, CVPR 2020, Seattle, WA, USA, June 13-19, 2020,

    work page 2020

  2. [2]

    Tensorf: Tensorial radiance fields

    Anpei Chen, Zexiang Xu, Andreas Geiger, Jingyi Yu, and Hao Su. Tensorf: Tensorial radiance fields. arXiv preprint arXiv:2203.09517, 2022a. Wanli Chen, Xinge Zhu, Ruoqi Sun, Junjun He, Ruiyu Li, Xiaoyong Shen, and Bei Yu. Tensor low- rank reconstruction for semantic segmentation. In European Conference on Computer Vision . Springer,

    work page arXiv

  3. [3]

    Mobilenerf: Exploit- ing the polygon rasterization pipeline for efficient neural field rendering on mobile architectures

    Zhiqin Chen, Thomas Funkhouser, Peter Hedman, and Andrea Tagliasacchi. Mobilenerf: Exploit- ing the polygon rasterization pipeline for efficient neural field rendering on mobile architectures. arXiv preprint arXiv:2208.00277, 2022b. James W Cooley and John W Tukey. An algorithm for the machine calculation of complex fourier series. Mathematics of computatio...

    work page arXiv

  4. [4]

    Implicit geometric regu- larization for learning shapes

    Amos Gropp, Lior Yariv, Niv Haim, Matan Atzmon, and Yaron Lipman. Implicit geometric regu- larization for learning shapes. In Proceedings of the 37th International Conference on Machine Learning, ICML 2020, 13-18 July 2020, Virtual Event , volume 119 of Proceedings of Machine Learning Research,

    work page 2020

  5. [5]

    Baking neural radiance fields for real-time view synthesis

    Peter Hedman, Pratul P Srinivasan, Ben Mildenhall, Jonathan T Barron, and Paul Debevec. Baking neural radiance fields for real-time view synthesis. arXiv preprint arXiv:2103.14645,

    work page arXiv

  6. [6]

    Fourier opacity mapping

    Jon Jansen and Louis Bavoil. Fourier opacity mapping. InProceedings of the 2010 ACM SIGGRAPH symposium on Interactive 3D Graphics and Games ,

    work page 2010

  7. [7]

    Surfacenet: An end-to-end 3d neural network for multiview stereopsis

    Mengqi Ji, Juergen Gall, Haitian Zheng, Yebin Liu, and Lu Fang. Surfacenet: An end-to-end 3d neural network for multiview stereopsis. In IEEE International Conference on Computer Vision, ICCV 2017, V enice, Italy, October 22-29, 2017,

    work page 2017

  8. [8]

    Kingma and Jimmy Ba

    Diederik P. Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In 3rd Inter- national Conference on Learning Representations, ICLR 2015, San Diego, CA, USA, May 7-9, 2015, Conference Track Proceedings,

    work page 2015

  9. [9]

    Neural sparse voxel fields

    Lingjie Liu, Jiatao Gu, Kyaw Zaw Lin, Tat-Seng Chua, and Christian Theobalt. Neural sparse voxel fields. arXiv preprint arXiv:2007.11571,

    work page arXiv 2007

  10. [10]

    Zero-shot learning of con- tinuous 3d refractive index maps from discrete intensity-only measurements

    Renhao Liu, Yu Sun, Jiabei Zhu, Lei Tian, and Ulugbek Kamilov. Zero-shot learning of con- tinuous 3d refractive index maps from discrete intensity-only measurements. arXiv preprint arXiv:2112.00002,

    work page arXiv

  11. [11]

    Acorn: Adaptive coordinate networks for neural scene representation

    Julien NP Martel, David B Lindell, Connor Z Lin, Eric R Chan, Marco Monteiro, and Gordon Wetzstein. Acorn: Adaptive coordinate networks for neural scene representation. arXiv preprint arXiv:2105.02788,

    work page arXiv

  12. [12]

    Mescheder, Michael Oechsle, Michael Niemeyer, Sebastian Nowozin, and Andreas Geiger

    Lars M. Mescheder, Michael Oechsle, Michael Niemeyer, Sebastian Nowozin, and Andreas Geiger. Occupancy networks: Learning 3d reconstruction in function space. In IEEE Conference on Computer Vision and Pattern Recognition, CVPR 2019, Long Beach, CA, USA, June 16-20, 2019,

    work page 2019

  13. [13]

    Instant neural graphics prim- itives with a multiresolution hash encoding

    Thomas M¨uller, Alex Evans, Christoph Schied, and Alexander Keller. Instant neural graphics prim- itives with a multiresolution hash encoding. arXiv preprint arXiv:2201.05989,

    work page arXiv

  14. [14]

    Mescheder, Michael Oechsle, and Andreas Geiger

    Michael Niemeyer, Lars M. Mescheder, Michael Oechsle, and Andreas Geiger. Differentiable volu- metric rendering: Learning implicit 3d representations without 3d supervision. In2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition, CVPR 2020, Seattle, WA, USA, June 13-19, 2020,

    work page 2020

  15. [15]

    Unisurf: Unifying neural implicit surfaces and radiance fields for multi-view reconstruction

    Michael Oechsle, Songyou Peng, and Andreas Geiger. Unisurf: Unifying neural implicit surfaces and radiance fields for multi-view reconstruction. arXiv preprint arXiv:2104.10078,

    work page arXiv

  16. [16]

    Newcombe, and Steven Lovegrove

    Jeong Joon Park, Peter Florence, Julian Straub, Richard A. Newcombe, and Steven Lovegrove. Deepsdf: Learning continuous signed distance functions for shape representation. In IEEE Con- ference on Computer Vision and Pattern Recognition, CVPR 2019, Long Beach, CA, USA, June 16-20, 2019,

    work page 2019

  17. [17]

    Charles Ruizhongtai Qi, Hao Su, Matthias Nießner, Angela Dai, Mengyuan Yan, and Leonidas J. Guibas. V olumetric and multi-view cnns for object classification on 3d data. In 2016 IEEE Conference on Computer Vision and Pattern Recognition, CVPR 2016, Las V egas, NV , USA, June 27-30, 2016,

    work page 2016

  18. [18]

    Kilonerf: Speeding up neural radiance fields with thousands of tiny mlps

    Christian Reiser, Songyou Peng, Yiyi Liao, and Andreas Geiger. Kilonerf: Speeding up neural radiance fields with thousands of tiny mlps. arXiv preprint arXiv:2103.13744,

    work page arXiv

  19. [19]

    Scene representation networks: Con- tinuous 3d-structure-aware neural scene representations

    11 Technical Report Vincent Sitzmann, Michael Zollh¨ofer, and Gordon Wetzstein. Scene representation networks: Con- tinuous 3d-structure-aware neural scene representations. In Advances in Neural Information Processing Systems 32: Annual Conference on Neural Information Processing Systems 2019, NeurIPS 2019, December 8-14, 2019, V ancouver , BC, Canada,

    work page 2019

  20. [20]

    Direct voxel grid optimization: Super-fast conver- gence for radiance fields reconstruction

    Cheng Sun, Min Sun, and Hwann-Tzong Chen. Direct voxel grid optimization: Super-fast conver- gence for radiance fields reconstruction. arXiv preprint arXiv:2111.11215,

    work page arXiv

  21. [21]

    NeuS: Learning Neural Implicit Surfaces by Volume Rendering for Multi-view Reconstruction

    Peng Wang, Lingjie Liu, Yuan Liu, Christian Theobalt, Taku Komura, and Wenping Wang. Neus: Learning neural implicit surfaces by volume rendering for multi-view reconstruction. arXiv preprint arXiv:2106.10689, 2021a. Peng-Shuai Wang, Yang Liu, Yu-Qi Yang, and Xin Tong. Spline positional encoding for learning 3d implicit signed distance fields. arXiv preprin...

    work page internal anchor Pith review Pith/arXiv arXiv

  22. [22]

    Point-nerf: Point-based neural radiance fields

    Qiangeng Xu, Zexiang Xu, Julien Philip, Sai Bi, Zhixin Shu, Kalyan Sunkavalli, and Ulrich Neu- mann. Point-nerf: Point-based neural radiance fields. arXiv preprint arXiv:2201.08845,

    work page arXiv

  23. [23]

    Neumesh: Learning disentangled neural mesh-based implicit field for geometry and tex- ture editing

    Bangbang Yang, Chong Bao, Junyi Zeng, Hujun Bao, Yinda Zhang, Zhaopeng Cui, and Guofeng Zhang. Neumesh: Learning disentangled neural mesh-based implicit field for geometry and tex- ture editing. arXiv preprint arXiv:2207.11911,

    work page arXiv

  24. [24]

    Plenoxels: Radiance fields without neural networks

    Alex Yu, Sara Fridovich-Keil, Matthew Tancik, Qinhong Chen, Benjamin Recht, and Angjoo Kanazawa. Plenoxels: Radiance fields without neural networks. arXiv preprint arXiv:2112.05131, 2021a. Alex Yu, Ruilong Li, Matthew Tancik, Hao Li, Ren Ng, and Angjoo Kanazawa. Plenoctrees for real-time rendering of neural radiance fields. arXiv preprint arXiv:2103.14024, ...

    work page arXiv

  25. [25]

    Nerf++: Analyzing and improving neural radiance fields

    12 Technical Report Kai Zhang, Gernot Riegler, Noah Snavely, and Vladlen Koltun. Nerf++: Analyzing and improving neural radiance fields. arXiv preprint arXiv:2010.07492,

    work page arXiv 2010

  26. [26]

    "" res: resolution size d: reduced dim size ks: output kernel size

    Algorithm 1 PREF Encoder in a PyTorch-like style. import torch import torch.nn as nn class PREF(nn.Module): def _init_(self, res, d, ks): """ res: resolution size d: reduced dim size ks: output kernel size """ Nx, Ny, Nz = res # log sampling freq in reduced dimension self.freq = torch.tensor([0]+[2 **i for i in torch.arange(d-1)]) self.Pu = nn.Parameter(t...

    work page 2020

  27. [27]

    We show the comparisons of the dense volume variants with our PREF (frequency-based scheme)

    34.09 25.44 32.78 36.74 34.46 29.57 33.20 29.12 31.95 612.1 Ours 34.95 25.00 33.08 36.44 35.27 29.33 33.25 29.23 32.08 34.4 Table 4: PSNR results on each scene from the Synthetic-NeRF dataset (Mildenhall et al., 2020). We show the comparisons of the dense volume variants with our PREF (frequency-based scheme). radiance field reconstruction), the per-sample...

    work page 2020

  28. [28]

    We useL1 loss with 15k iterations to produce the final results

    with default parameters ( β1 = 0.9,β 2 = 0.999,ϵ = 1e−8), a learning rate of 1e−4. We useL1 loss with 15k iterations to produce the final results. D L EVEL OF DETAIL FILTERING Recall that the continuous embedding field of PREF is synthesized from a phasor volume under various frequencies. Therefore, thanks to Fourier transforms, various tools such as convol...

    work page 2020
