arxiv: 1907.08320 · v1 · pith:KJBFAVOBnew · submitted 2019-07-18 · 💻 cs.RO · cs.CV· cs.LG· cs.SY· eess.SY

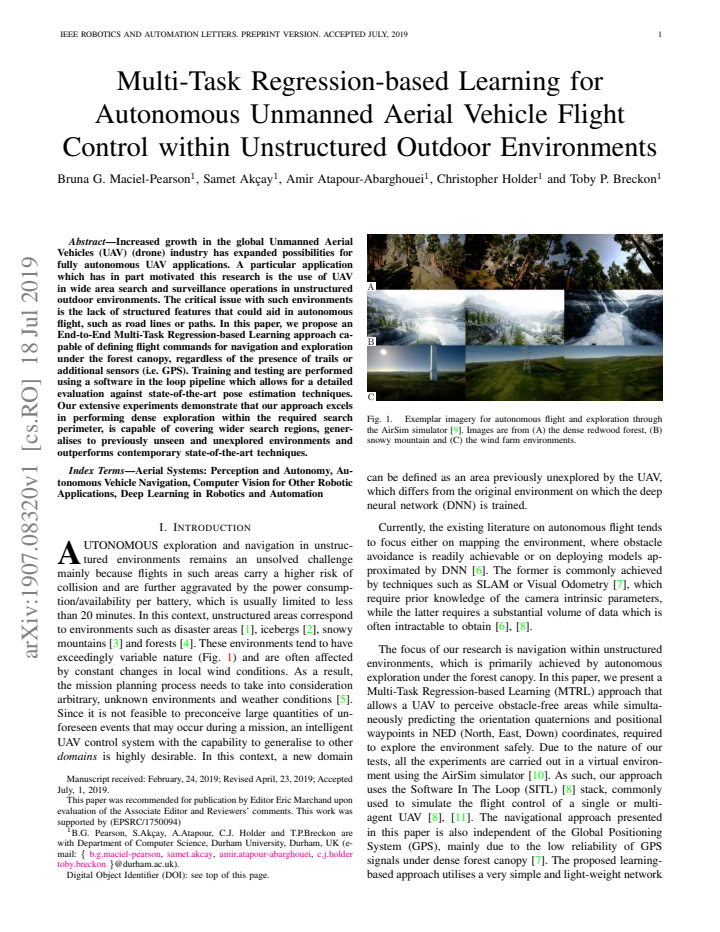

Multi-Task Regression-based Learning for Autonomous Unmanned Aerial Vehicle Flight Control within Unstructured Outdoor Environments

Bruna G. Maciel-Pearson , Samet Akcay , Amir Atapour-Abarghouei , Christopher Holder , Toby P. Breckon This is my paper

Pith reviewed 2026-05-24 19:27 UTC · model grok-4.3

classification 💻 cs.RO cs.CVcs.LGcs.SYeess.SY
keywords UAV navigationautonomous flightmulti-task learningregressionforest environmentsend-to-end learningGPS-denied navigationsimulation training
0
0 comments X

The pith

Multi-task regression learning generates flight commands for UAVs to navigate and explore forests using only camera images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an end-to-end multi-task regression approach that produces navigation and exploration commands for UAVs flying under forest canopy. Traditional methods rely on structured features like trails or external sensors such as GPS, which are often unavailable in dense outdoor settings. The method trains in simulation to map raw images directly to control outputs across multiple tasks at once. Experiments indicate it achieves dense coverage inside search areas, reaches broader regions, works in new environments, and exceeds existing pose estimation methods.

Core claim

The end-to-end multi-task regression-based learning approach defines flight commands for navigation and exploration under the forest canopy regardless of trails or GPS, with experiments showing dense exploration within required perimeters, wider search coverage, generalization to unseen environments, and better results than state-of-the-art techniques in software-in-the-loop testing.

What carries the argument

End-to-end multi-task regression network that maps single images to multiple simultaneous flight control outputs.

If this is right

  • Enables dense exploration inside designated search perimeters without external positioning aids.
  • Supports coverage of wider regions than single-task or pose-estimation baselines.
  • Transfers to previously unseen forest environments without retraining.
  • Outperforms current state-of-the-art techniques in simulation-based evaluations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same image-to-command mapping could apply to other GPS-denied settings such as urban canyons or indoor spaces.
  • Real deployment would require explicit validation that simulator image statistics match actual forest lighting and motion.
  • Adding detection tasks to the multi-task output could turn the same network into a combined navigator and searcher.

Load-bearing premise

The software simulator produces flight dynamics and camera images close enough to real forests that simulation performance carries over to physical UAVs.

What would settle it

A physical UAV test flight in an actual forest where the learned model loses stable control despite working in simulation.

Figures

Figures reproduced from arXiv: 1907.08320 by Amir Atapour-Abarghouei, Bruna G. Maciel-Pearson, Christopher Holder, Samet Akcay, Toby P. Breckon.

Figure 1

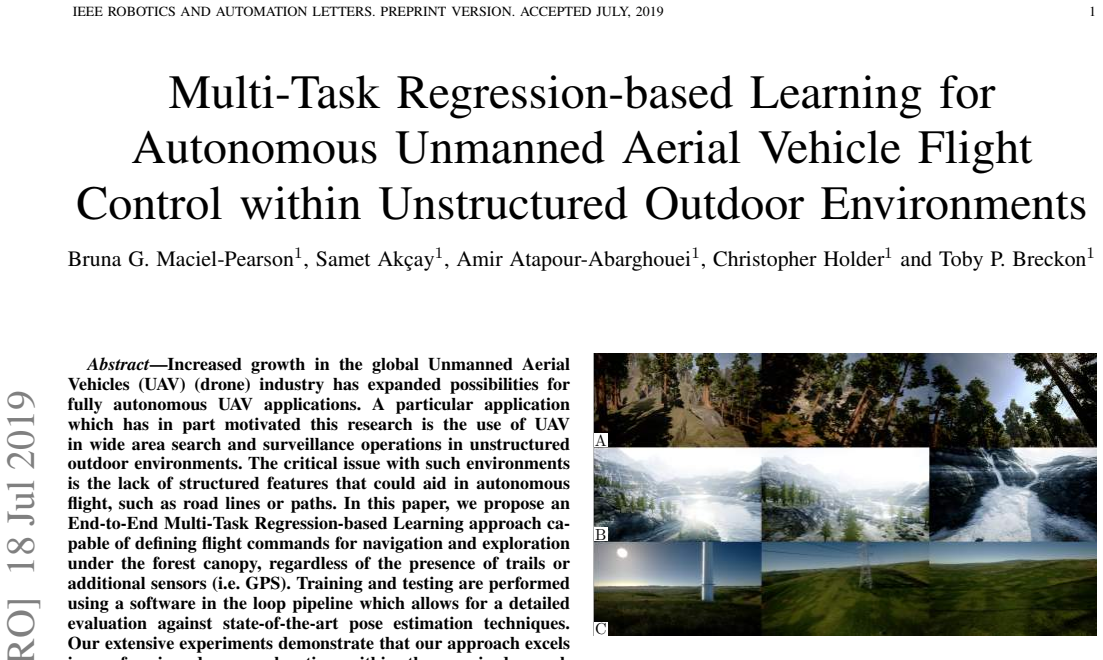

Figure 1. Figure 1: Exemplar imagery for autonomous flight and exploration through [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

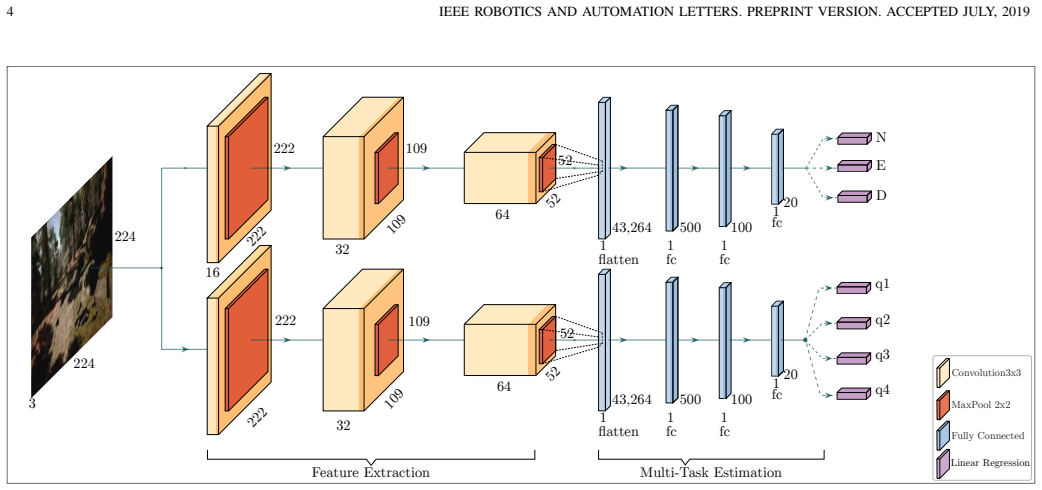

Figure 2. Figure 2: The proposed Multi-Task Regression-based Learning approach. The network predicts 3 positional ( [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

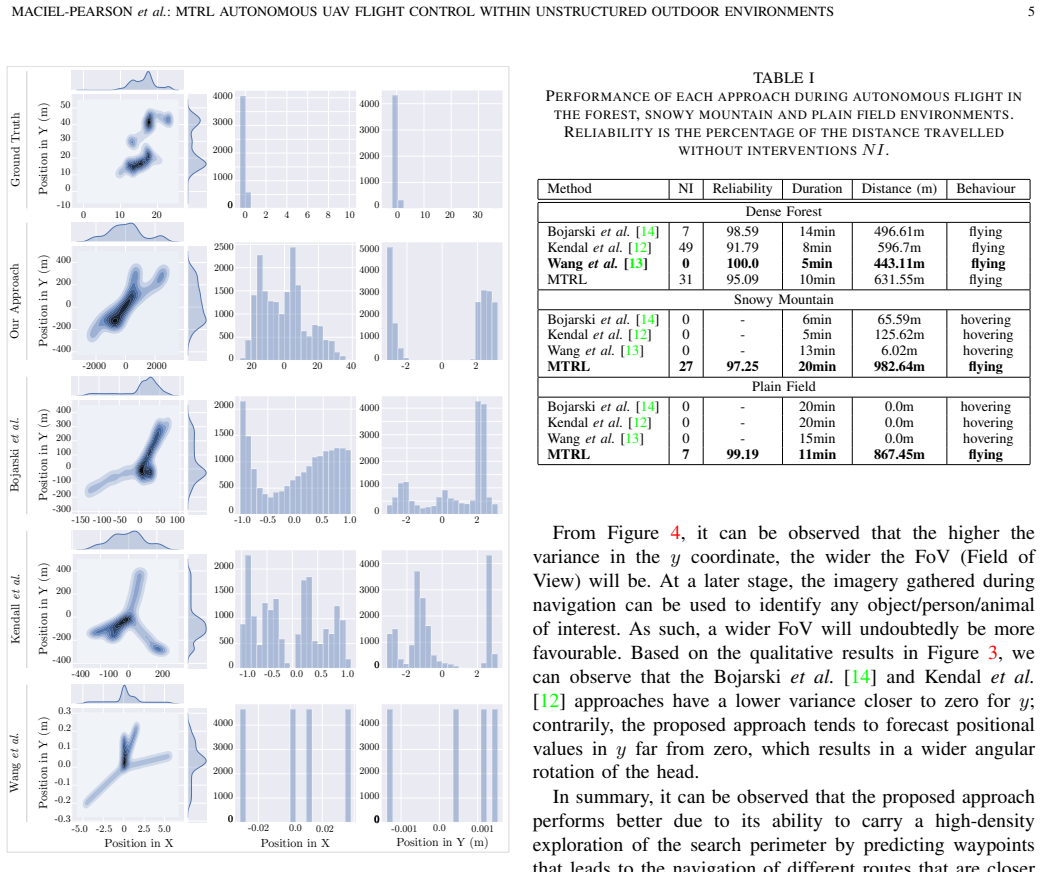

Figure 3. Figure 3: 2D representation of flights using the test set. Left image shows the [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

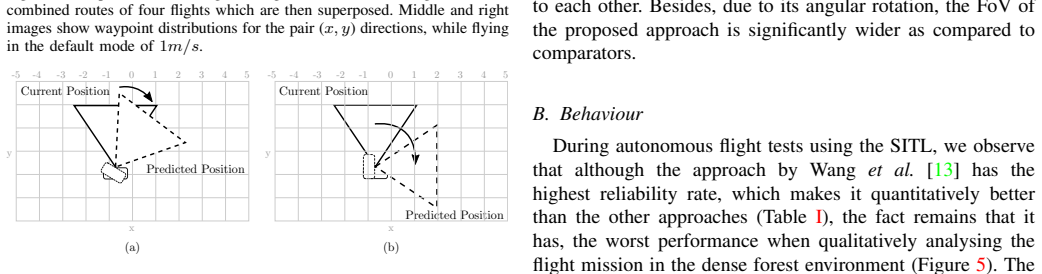

Figure 4. Figure 4: Illustration of the angular rotation of the UAV when the values in the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

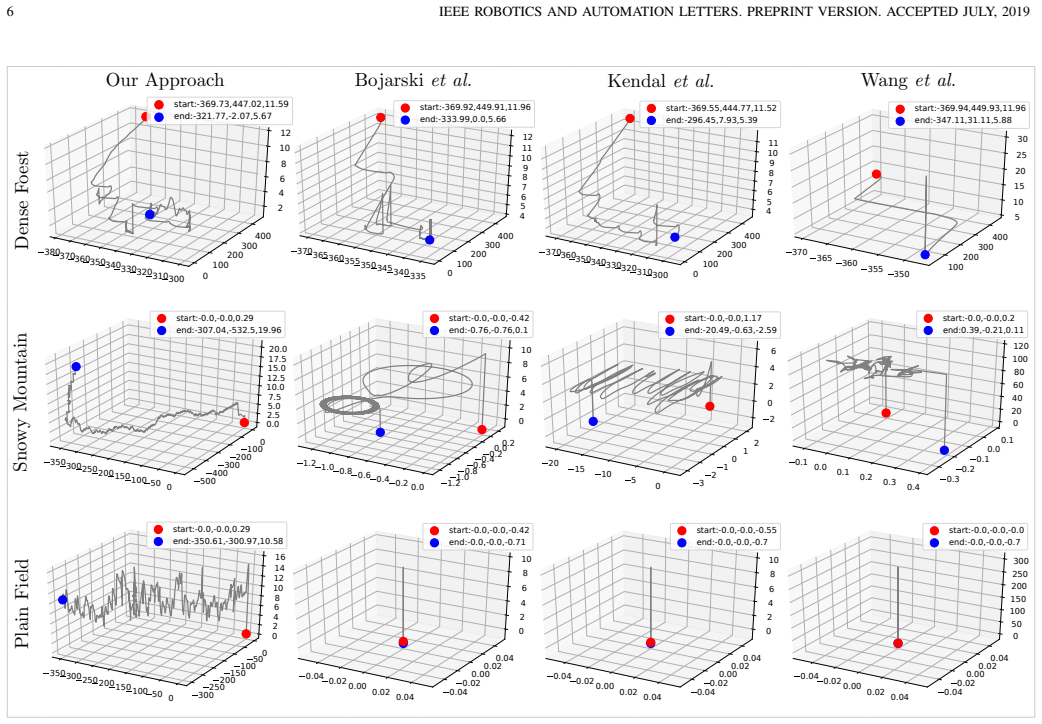

Figure 5. Figure 5: Comparison of each approach when autonomously flying under the canopy of a dense forest, over a snowy mountain and over a plain field. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

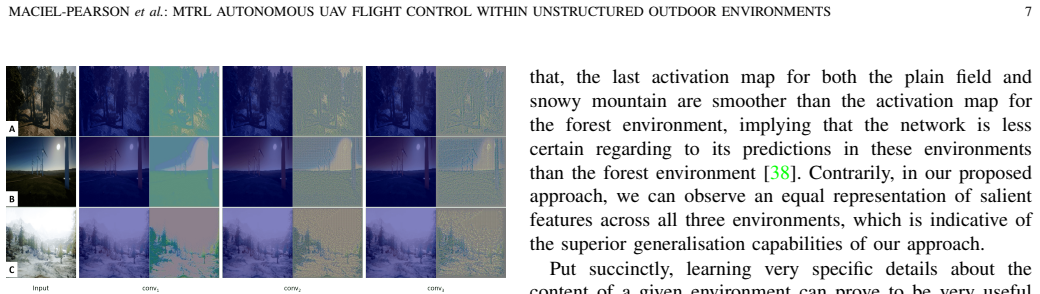

Figure 6. Figure 6: Heat and activation maps from the three last convolutional layers [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

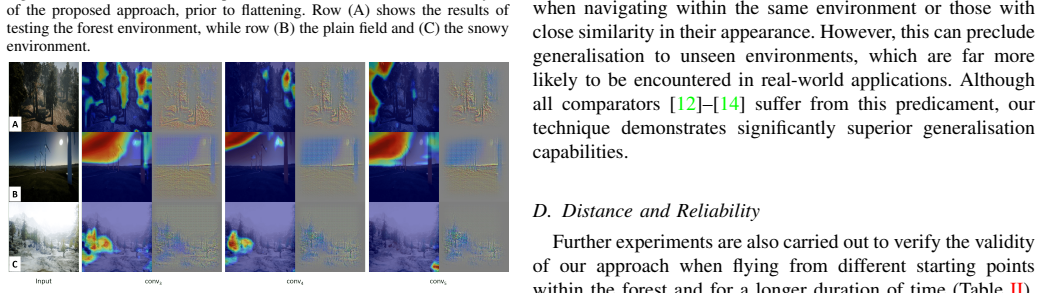

Figure 7. Figure 7: Three last convolutional layers of Bojarski [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Three last inception layers of Kendall et al. [12] approach [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9

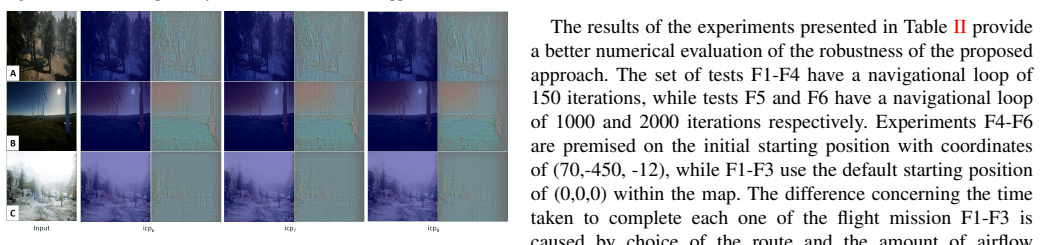

Figure 9. Figure 9: Three last convolutional layers of Wang et al. [13] approach. 7-9, the deeper the network, the more specific is the knowledge acquired about the training environment. This phenomenon is mainly attributed to the fact later layers tend not only to retain spatial information but also to learn high-level semantic information about the scene [38], [39], as is the case for the approaches by Kendall et al. [12] (… view at source ↗
read the original abstract

Increased growth in the global Unmanned Aerial Vehicles (UAV) (drone) industry has expanded possibilities for fully autonomous UAV applications. A particular application which has in part motivated this research is the use of UAV in wide area search and surveillance operations in unstructured outdoor environments. The critical issue with such environments is the lack of structured features that could aid in autonomous flight, such as road lines or paths. In this paper, we propose an End-to-End Multi-Task Regression-based Learning approach capable of defining flight commands for navigation and exploration under the forest canopy, regardless of the presence of trails or additional sensors (i.e. GPS). Training and testing are performed using a software in the loop pipeline which allows for a detailed evaluation against state-of-the-art pose estimation techniques. Our extensive experiments demonstrate that our approach excels in performing dense exploration within the required search perimeter, is capable of covering wider search regions, generalises to previously unseen and unexplored environments and outperforms contemporary state-of-the-art techniques.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper proposes an end-to-end multi-task regression-based learning method to generate flight commands for autonomous UAV navigation and exploration under forest canopy in unstructured outdoor environments, without relying on trails, paths, or GPS. Training and testing occur exclusively in a software-in-the-loop simulator, with claims that the approach achieves dense exploration within search perimeters, covers wider regions, generalizes to unseen environments, and outperforms contemporary state-of-the-art pose estimation techniques.

Significance. If the simulation results transfer to physical UAVs, the work could contribute to learning-based control for GPS-denied forest operations. The multi-task regression formulation for simultaneous navigation and exploration tasks is a reasonable empirical approach in robotics, but the absence of any real-world validation or sim-to-real analysis substantially limits the immediate significance for practical autonomous UAV applications.

major comments (2)
  1. [Abstract] Abstract: the central claims of outperformance, generalization to unseen environments, and superior dense exploration are presented without any quantitative metrics, error bars, dataset sizes, ablation studies, or statistical details, preventing verification of the performance assertions from the given text.
  2. [Abstract] Abstract and evaluation description: all reported results rely solely on software-in-the-loop simulation with no physical UAV flights, no domain-randomization experiments, and no quantification of simulator fidelity to real forest conditions (e.g., canopy dynamics, lighting, or wind); this directly undermines the applicability of the learned commands to actual unstructured outdoor UAV flight.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the detailed feedback. We address each major comment below, indicating planned revisions where they strengthen the manuscript without misrepresenting the simulation-based scope of the work.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claims of outperformance, generalization to unseen environments, and superior dense exploration are presented without any quantitative metrics, error bars, dataset sizes, ablation studies, or statistical details, preventing verification of the performance assertions from the given text.

    Authors: We agree that the abstract would benefit from quantitative support. The body of the manuscript contains the requested details from extensive simulation experiments (including metrics on coverage, generalization success, comparisons to pose-estimation baselines, and ablation studies). We will revise the abstract to include key quantitative results, error bars where applicable, and references to dataset sizes and statistical details to make the claims verifiable from the abstract alone. revision: yes

  2. Referee: [Abstract] Abstract and evaluation description: all reported results rely solely on software-in-the-loop simulation with no physical UAV flights, no domain-randomization experiments, and no quantification of simulator fidelity to real forest conditions (e.g., canopy dynamics, lighting, or wind); this directly undermines the applicability of the learned commands to actual unstructured outdoor UAV flight.

    Authors: The manuscript states upfront that all training and testing use a software-in-the-loop simulator, and all performance claims are confined to that setting. This choice enables repeatable, controlled comparisons against baselines that would be difficult in the field. We will add an expanded limitations section discussing simulator assumptions, the lack of domain randomization, and the absence of real-world flights or fidelity quantification. The contribution is the multi-task regression formulation and its simulation evaluation; we do not claim direct transfer to physical UAVs. revision: partial

standing simulated objections not resolved
  • The absence of physical UAV flights, domain-randomization experiments, and quantitative simulator fidelity analysis cannot be addressed by new data collection within the scope of a revision, as these were not part of the original simulation study.

Circularity Check

0 steps flagged

No circularity: empirical ML training and simulation evaluation with no derivations or self-referential predictions

full rationale

The paper describes an end-to-end multi-task regression model trained and tested inside a software-in-the-loop simulator for UAV navigation. No equations, first-principles derivations, or claimed predictions are present that could reduce to fitted parameters by construction. All performance claims (dense exploration, generalization, outperforming SOTA) rest on direct empirical comparison within the same simulator pipeline. No self-citation load-bearing uniqueness theorems, ansatz smuggling, or renaming of known results occur. This is a standard empirical study; the absence of any derivation chain means no circular reduction is possible.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that simulation images and dynamics are representative, plus standard supervised-learning assumptions that the collected training trajectories cover the distribution of forest scenes encountered at test time. No new physical entities or ad-hoc constants are introduced beyond typical neural-network hyperparameters.

free parameters (1)
  • network weights
    Learned from simulation trajectories; central claim depends on these fitted values generalizing.
axioms (1)
  • domain assumption Simulation-to-reality gap is small enough for performance transfer
    Invoked when authors extrapolate simulation results to real UAV flight capability.

pith-pipeline@v0.9.0 · 5746 in / 1164 out tokens · 16613 ms · 2026-05-24T19:27:03.134307+00:00 · methodology
