arxiv: 2510.12773 · v2 · pith:LYQICRXNnew · submitted 2025-10-14 · 💻 cs.CL · cs.AI· cs.LG

Dr.LLM: Dynamic Layer Routing in LLMs

Ahmed Heakl , Martin Gubri , Salman Khan , Sangdoo Yun , Seong Joon Oh This is my paper

Pith reviewed 2026-05-21 19:56 UTC · model grok-4.3

classification 💻 cs.CL cs.AIcs.LG
keywords dynamic layer routingLLM efficiencyadaptive computationMCTS supervisionfrozen model retrofittingper-layer routersbudget-aware inference
0
0 comments X

The pith

Dr. LLM retrofits frozen LLMs with lightweight routers that learn to skip, execute, or repeat layers using MCTS supervision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Dr. LLM as a way to equip pretrained language models with per-layer routers that decide whether to skip, run, or repeat each transformer block. These routers are trained explicitly on high-quality layer sequences discovered by Monte Carlo Tree Search, so the model can spend fewer layers on easy inputs and more on hard ones. The approach keeps the original model weights unchanged and adds only small bottleneck MLPs plus windowed pooling and focal loss to handle imbalance. A sympathetic reader would care because current LLMs waste computation by always using every layer, while this method aims to deliver accuracy gains and compute savings at inference time without full retraining.

Core claim

Dr. LLM equips pretrained models with lightweight per-layer routers deciding to skip, execute, or repeat a block; routers are trained with explicit supervision from MCTS-derived high-quality layer configurations that preserve or improve accuracy under a compute budget.

What carries the argument

Lightweight per-layer bottleneck MLP routers, trained with windowed pooling and focal loss on MCTS supervision, that output skip/execute/repeat decisions for each transformer block.

Load-bearing premise

High-quality layer configurations found by MCTS on in-domain tasks provide supervision signals that lightweight routers can reliably learn and generalize to out-of-domain tasks with only minimal accuracy loss.

What would settle it

Routers trained on ARC and DART layer paths produce more than a 0.85 percent accuracy drop or fail to reduce average layer count when tested on MMLU, GSM8k, or GPQA.

Figures

Figures reproduced from arXiv: 2510.12773 by Ahmed Heakl, Martin Gubri, Salman Khan, Sangdoo Yun, Seong Joon Oh.

Figure 1
Figure 1. Figure 1: Dr.LLM improves ac￾curacy while reducing computa￾tion. Number of layers used per example vs. accuracy on ARC and DART, averaged on six models. Large language models (LLMs) typically process every token through a fixed stack of transformer layers, regardless of the input’s difficulty. This static-depth regime results in wasted computation for easy prompts and insufficient flexibility for challenging reasoni… view at source ↗
Figure 2
Figure 2. Figure 2: Our layer routing based on hidden states. Dr.LLM augments a frozen decoder-only LLM with per-layer routers that decide to skip, execute, or repeat a block once. Routers read windowed summaries of hidden states and are trained from MCTS￾derived targets (Sec. 4). For clarity, the diagram also highlights the router internals and the flow of hidden states across layers. Skip layers Execute Layer-wise Routing R… view at source ↗

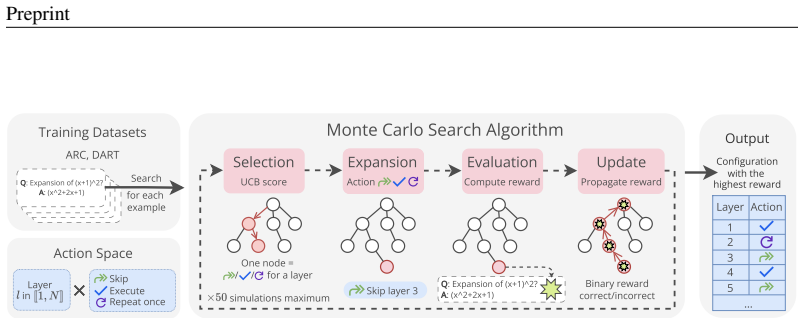

Figure 3
Figure 3. Figure 3: Length-aware MCTS used to collect the supervised training dataset of per-layer routing configurations (skip/execute/repeat). For each input, MCTS explores modified layer paths and retains accuracy-preserving or improving ones under a compute budget. To stabilize decisions on long contexts while keeping overhead negligible, we adopt windowed mean pooling: the first W⌊T /W⌋ tokens are divided into contiguous… view at source ↗

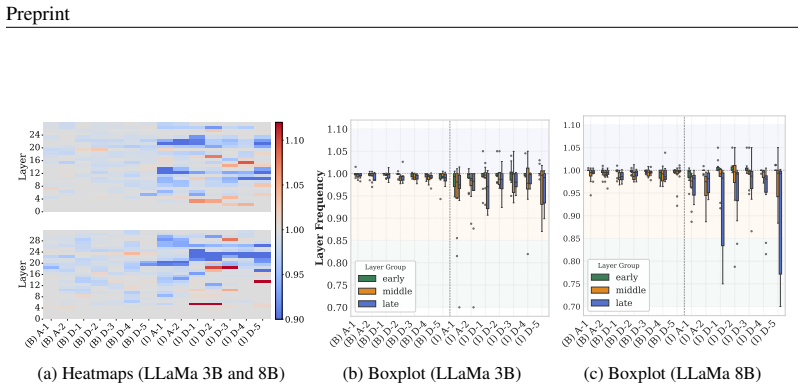

Figure 4
Figure 4. Figure 4: Analysis of routing decisions per layer, dataset, and model. (a) Layer frequency of LLaMa 3B and 8B base (B) and instruct (I) models across ARC and DART. (b,c) Layer frequency grouped by early, middle, and late layers. The x-axis corresponds to the dataset difficulty levels: ARC-Easy (A-1), ARC-Challenge (A-2), and DART levels 1–5 (from D-1 to D-5). computation. Thus, Dr.LLM not only yields efficiency and … view at source ↗
Figure 5
Figure 5. Figure 5: Ablation study. We apply Dr.LLM on LLaMa3.2-3B and control: (a) the effect of bottle￾neck dimension, (b) the effect of number of linear layers, and (c) the effect of number of windows. 6.5 ABLATION STUDIES Router internals. We ablate the router components to understand their effect on accuracy and efficiency ( [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

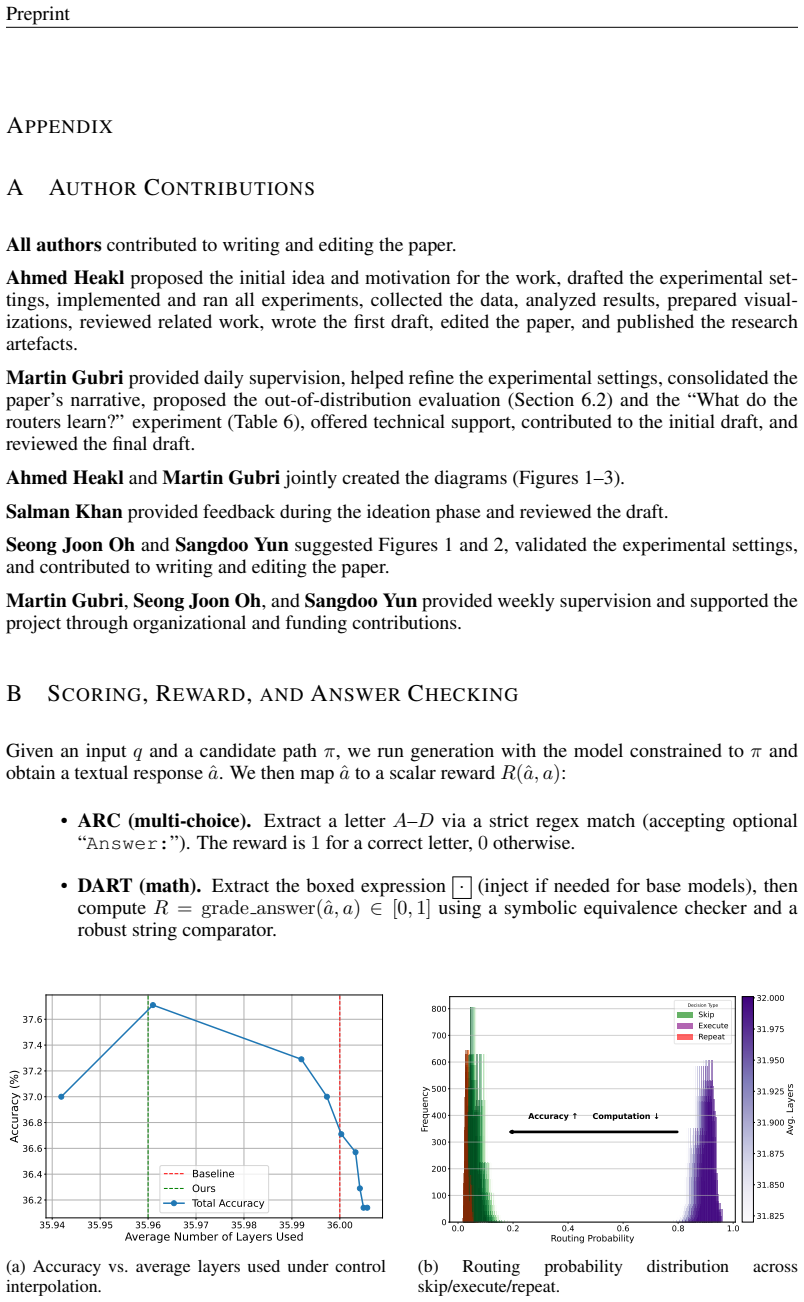

Figure 6
Figure 6. Figure 6: Fine-grained control in LLaMA-8B. (a) Accuracy as a function of interpolated routing decisions, compared to baseline (red) and ours (green). (b) Histogram of routing probabilities. Shifts from execute → skip correlate with higher accuracy, while repeat allocations increase computation. 13 [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Effect of loss choice under class imbalance. Macro F1 across training for weighted CE, focal, and plain CE. While all losses perform similarly on the majority execute class, only focal loss improves skip accuracy and yields non-trivial repeat accuracy, highlighting its necessity for minority classes. C FINE-GRAINED CONTROL OF ROUTER DECISIONS Beyond analyzing learned routing policies, we study whether rout… view at source ↗
Figure 8
Figure 8. Figure 8: Effect of window size on router training. Larger pooling windows consistently improve minority-class accurac. Gains saturate beyond 16 windows, suggesting diminishing returns. E TRAINING ON MORE WINDOWS Windowed mean pooling stabilizes router decisions by aggregating hidden states over larger con￾texts [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗

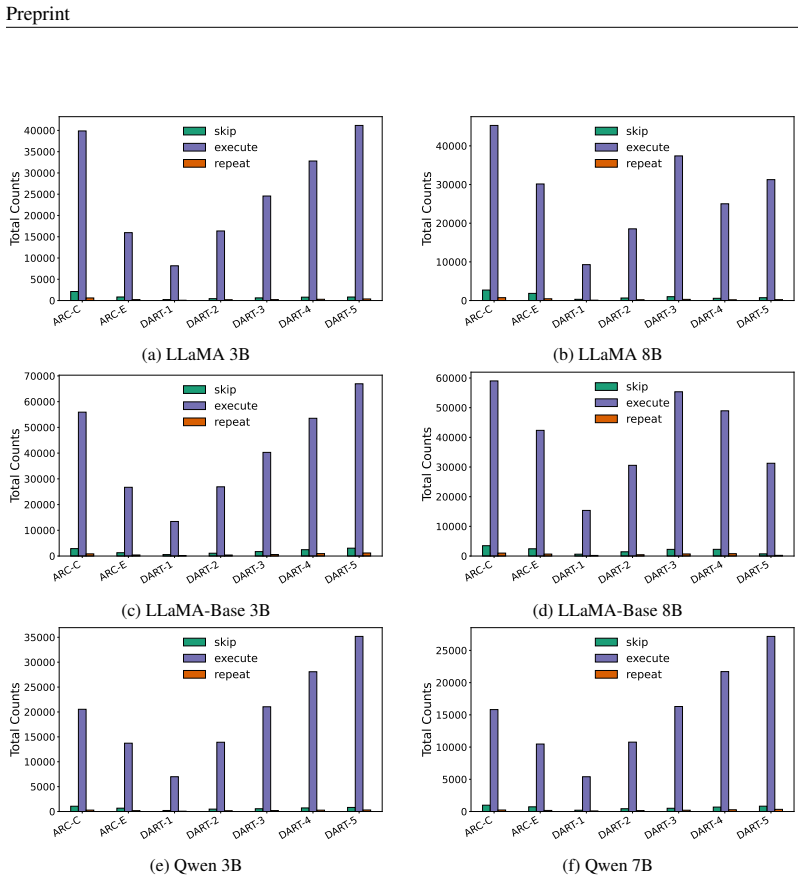

Figure 9
Figure 9. Figure 9: Label distribution across models. Distribution of skip/execute/repeat actions across datasets for different planners: (a) LLaMA-3B, (b) LLaMA-8B, (c) LLaMA-Base-3B, (d) LLaMA￾Base-8B, (e) Qwen-3B, (f) Qwen-7B. that deeper refinement is allocated where multi-step reasoning is required. Instruction-tuned mod￾els exhibit more aggressive skipping than base models, supporting the view that fine-tuning creates f… view at source ↗
Figure 10
Figure 10. Figure 10: Per-layer routing frequency across datasets and models. Heatmaps show the mean usage per layer (0 = skip, 1 = execute, 2 = repeat) for six backbones: (a) LLaMA-3.2-3B-Instruct, (b) LLaMA-3.1-8B-Instruct, (c) LLaMA-3.2-3B-Base, (d) LLaMA-3.1-8B-Base, (e) Qwen2.5-3B￾Instruct, and (f) Qwen2.5-7B-Instruct. The x-axis corresponds to benchmark subsets (ARC-E, ARC￾C, DART1–5). Early layers are consistently execu… view at source ↗
read the original abstract

Large Language Models (LLMs) process every token through all layers of a transformer stack, causing wasted computation on simple queries and insufficient flexibility for harder ones that need deeper reasoning. Adaptive-depth methods can improve efficiency, but prior approaches rely on costly inference-time search, architectural changes, or large-scale retraining, and in practice often degrade accuracy despite efficiency gains. We introduce Dr. LLM, Dynamic routing of Layers for LLMs, a retrofittable framework that equips pretrained models with lightweight per-layer routers deciding to skip, execute, or repeat a block. Routers are trained with explicit supervision: using Monte Carlo Tree Search (MCTS), we derive high-quality layer configurations that preserve or improve accuracy under a compute budget. Our design, windowed pooling for stable routing, focal loss with class balancing, and bottleneck MLP routers, ensures robustness under class imbalance and long sequences. On ARC (logic) and DART (math), Dr. LLM improves accuracy by up to +3.4%p while saving 5 layers per example on average. Routers generalize to out-of-domain tasks (MMLU, GSM8k, AIME, TruthfulQA, SQuADv2, GPQA, PIQA, AGIEval) with only 0.85% accuracy drop while retaining efficiency, and outperform prior routing methods by up to +7.7%p. Overall, Dr. LLM shows that explicitly supervised routers retrofit frozen LLMs for budget-aware, accuracy-driven inference without altering base weights. Code is available at https://github.com/parameterlab/dr-llm.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents Dr. LLM, a retrofittable framework for dynamic layer routing in pretrained LLMs. Lightweight per-layer bottleneck-MLP routers, trained via supervised imitation of MCTS-derived skip/execute/repeat configurations on in-domain tasks (ARC, DART), decide layer usage at inference time. The design incorporates windowed pooling and focal loss with class balancing. Reported results include up to +3.4%p accuracy gains and 5-layer average savings on in-domain tasks, +7.7%p outperformance versus prior routers, and generalization to OOD benchmarks (MMLU, GSM8k, etc.) with only 0.85% accuracy drop, all without modifying base model weights.

Significance. If the results hold, the work demonstrates a practical, low-cost way to equip frozen LLMs with budget-aware adaptive depth via explicit external supervision, avoiding full retraining or expensive inference-time search. The combination of MCTS-derived targets, focal loss, and windowed pooling addresses class imbalance and sequence-length issues in a concrete, reproducible manner; the public code release further strengthens the contribution for deployment-oriented efficiency research.

major comments (2)
  1. [OOD evaluation] OOD evaluation section: The central claim that MCTS-derived configurations on ARC/DART supply supervision signals that routers can reliably approximate on unseen tasks rests on the 0.85% OOD accuracy drop. However, the manuscript provides no router-decision histograms, agreement rates with MCTS optima, or per-task ablation on OOD inputs; without these, it remains possible that routers default to full execution under distribution shift and that the small drop is not attributable to successful transfer of the learned policy.
  2. [Results] Experimental details (Tables reporting accuracy and layer savings): The abstract and results cite concrete gains (+3.4%p, 5-layer savings, +7.7%p vs. priors) but the provided text does not include variance across seeds, full baseline implementations, or statistical significance tests. These omissions make it difficult to assess whether the efficiency-accuracy trade-off is robust or sensitive to hyper-parameter choices such as the focal-loss balancing weights.
minor comments (2)
  1. [Method] Notation for router output (skip/execute/repeat) should be defined explicitly with a small equation or table early in the method section to avoid ambiguity when discussing the three-way classification.
  2. [Method] The manuscript mentions 'windowed pooling for stable routing' but does not specify the window size or pooling operation in sufficient detail for reproduction; a short pseudocode block or hyper-parameter table would help.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below, providing clarifications and committing to revisions that strengthen the evidence for our claims without altering the core contributions.

read point-by-point responses

  1. Referee: [OOD evaluation] OOD evaluation section: The central claim that MCTS-derived configurations on ARC/DART supply supervision signals that routers can reliably approximate on unseen tasks rests on the 0.85% OOD accuracy drop. However, the manuscript provides no router-decision histograms, agreement rates with MCTS optima, or per-task ablation on OOD inputs; without these, it remains possible that routers default to full execution under distribution shift and that the small drop is not attributable to successful transfer of the learned policy.

    Authors: We agree that additional diagnostics would make the transfer claim more robust. In the revised manuscript we will add router-decision histograms and per-layer agreement rates with the MCTS-derived targets for representative OOD tasks (MMLU, GSM8k, GPQA). We will also include a per-task ablation table that reports average layer usage and accuracy when the router is forced to full execution versus its learned policy. These figures will show that the routers continue to produce non-trivial skip/repeat decisions on OOD inputs and that the observed layer savings are not an artifact of defaulting to the full model. revision: yes

  2. Referee: [Results] Experimental details (Tables reporting accuracy and layer savings): The abstract and results cite concrete gains (+3.4%p, 5-layer savings, +7.7%p vs. priors) but the provided text does not include variance across seeds, full baseline implementations, or statistical significance tests. These omissions make it difficult to assess whether the efficiency-accuracy trade-off is robust or sensitive to hyper-parameter choices such as the focal-loss balancing weights.

    Authors: We acknowledge the value of reporting variability and formal significance testing. We have re-executed the main experiments across five random seeds and will report means and standard deviations in all accuracy and layer-savings tables. Full re-implementation details for the prior routers (including hyper-parameter settings used for fair comparison) will be added to the appendix. We will also include a sensitivity analysis on the focal-loss gamma and class-balancing weights, together with paired statistical tests (Wilcoxon signed-rank) against the strongest baseline to quantify the reliability of the reported gains. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation relies on external MCTS supervision and held-out evaluation

full rationale

The paper derives router decisions via explicit supervision from Monte Carlo Tree Search (MCTS) run on the frozen base LLM to produce high-quality skip/execute/repeat configurations on in-domain tasks (ARC, DART). These configurations serve as training targets for lightweight bottleneck-MLP routers using focal loss and windowed pooling; the routers are then evaluated for accuracy and efficiency on separate out-of-domain benchmarks (MMLU, GSM8k, etc.). This is ordinary imitation learning followed by external validation rather than any self-referential fit, parameter renaming, or self-citation chain that reduces the central claim to its own inputs. No equations or steps in the provided description exhibit a prediction that equals its supervision by construction, and the reported 0.85% OOD drop is measured against independent test sets.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on the premise that MCTS can produce reliable supervision targets and that simple MLP routers with focal loss and windowed pooling can learn to replicate them. No new physical entities are introduced.

free parameters (1)
  • focal loss class-balancing weights
    Used to counter severe class imbalance between skip/execute/repeat decisions; concrete values not stated in abstract.
axioms (2)
  • domain assumption Monte Carlo Tree Search can derive high-quality layer configurations that preserve or improve accuracy under a compute budget.
    Invoked to generate the supervision targets for router training.
  • domain assumption Lightweight per-layer routers can make stable decisions from local hidden states without future token information.
    Required for the per-layer routing setup on long sequences.

pith-pipeline@v0.9.0 · 5832 in / 1467 out tokens · 221772 ms · 2026-05-21T19:56:25.492784+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

23 extracted references · 23 canonical work pages · 10 internal anchors

  1. [1]

    Mixture-of-recursions: Learning dynamic recur- sive depths for adaptive token-level computation.arXiv preprint arXiv:2507.10524,

    Sangmin Bae, Yujin Kim, Reza Bayat, Sungnyun Kim, Jiyoun Ha, Tal Schuster, Adam Fisch, Hrayr Harutyunyan, Ziwei Ji, Aaron Courville, et al. Mixture-of-recursions: Learning dynamic recur- sive depths for adaptive token-level computation.arXiv preprint arXiv:2507.10524,

    work page arXiv

  2. [2]

    Think you have Solved Question Answering? Try ARC, the AI2 Reasoning Challenge

    Peter Clark, Isaac Cowhey, Oren Etzioni, Tushar Khot, Ashish Sabharwal, Carissa Schoenick, and Oyvind Tafjord. Think you have solved question answering? try arc, the ai2 reasoning challenge. arXiv preprint arXiv:1803.05457,

    work page internal anchor Pith review Pith/arXiv arXiv

  3. [3]

    Training Verifiers to Solve Math Word Problems

    Karl Cobbe, Vineet Kosaraju, Mohammad Bavarian, Mark Chen, Heewoo Jun, Lukasz Kaiser, Matthias Plappert, Jerry Tworek, Jacob Hilton, Reiichiro Nakano, et al. Training verifiers to solve math word problems.arXiv preprint arXiv:2110.14168,

    work page internal anchor Pith review Pith/arXiv arXiv

  4. [4]

    Universal Transformers

    Mostafa Dehghani, Stephan Gouws, Oriol Vinyals, Jakob Uszkoreit, and Łukasz Kaiser. Universal transformers.arXiv preprint arXiv:1807.03819,

    work page internal anchor Pith review Pith/arXiv arXiv

  5. [5]

    Layer- skip: Enabling early exit inference and self-speculative de- coding

    Mostafa Elhoushi, Akshat Shrivastava, Diana Liskovich, Basil Hosmer, Bram Wasti, Liangzhen Lai, Anas Mahmoud, Bilge Acun, Saurabh Agarwal, Ahmed Roman, et al. Layerskip: Enabling early exit inference and self-speculative decoding.arXiv preprint arXiv:2404.16710,

    work page arXiv

  6. [6]

    He, B., Yin, L., Zhen, H.-L., Liu, S., Wu, H., Zhang, X., Yuan, M., and Ma, C

    URLhttps://zenodo.org/records/12608602. Jonas Geiping, Sean McLeish, Neel Jain, John Kirchenbauer, Siddharth Singh, Brian R Bartoldson, Bhavya Kailkhura, Abhinav Bhatele, and Tom Goldstein. Scaling up test-time compute with latent reasoning: A recurrent depth approach.arXiv preprint arXiv:2502.05171,

    work page arXiv

  7. [7]

    Router-tuning: A simple and effective approach for enabling dynamic-depth in transformers.arXiv preprint arXiv:2410.13184,

    Shwai He, Tao Ge, Guoheng Sun, Bowei Tian, Xiaoyang Wang, and Dong Yu. Router-tuning: A simple and effective approach for enabling dynamic-depth in transformers.arXiv preprint arXiv:2410.13184,

    work page arXiv

  8. [8]

    Measuring Massive Multitask Language Understanding

    Dan Hendrycks, Collin Burns, Steven Basart, Andy Zou, Mantas Mazeika, Dawn Song, and Jacob Steinhardt. Measuring massive multitask language understanding.arXiv preprint arXiv:2009.03300,

    work page internal anchor Pith review Pith/arXiv arXiv 2009

  9. [9]

    Camels in a changing climate: Enhancing lm adaptation with tulu 2,

    Hamish Ivison, Yizhong Wang, Valentina Pyatkin, Nathan Lambert, Matthew Peters, Pradeep Dasigi, Joel Jang, David Wadden, Noah A Smith, Iz Beltagy, et al. Camels in a changing cli- mate: Enhancing lm adaptation with tulu 2.arXiv preprint arXiv:2311.10702,

    work page arXiv

  10. [10]

    Skip a layer or loop it? test-time depth adaptation of pretrained llms.arXiv preprint arXiv:2507.07996,

    10 Preprint Ziyue Li, Yang Li, and Tianyi Zhou. Skip a layer or loop it? test-time depth adaptation of pretrained llms.arXiv preprint arXiv:2507.07996,

    work page arXiv

  11. [11]

    TruthfulQA: Measuring How Models Mimic Human Falsehoods

    Stephanie Lin, Jacob Hilton, and Owain Evans. Truthfulqa: Measuring how models mimic human falsehoods.arXiv preprint arXiv:2109.07958,

    work page internal anchor Pith review Pith/arXiv arXiv

  12. [12]

    Decoupled Weight Decay Regularization

    Ilya Loshchilov and Frank Hutter. Decoupled weight decay regularization.arXiv preprint arXiv:1711.05101,

    work page internal anchor Pith review Pith/arXiv arXiv

  13. [13]

    Adaptive layer-skipping in pre-trained llms.arXiv preprint arXiv:2503.23798,

    Xuan Luo, Weizhi Wang, and Xifeng Yan. Adaptive layer-skipping in pre-trained llms.arXiv preprint arXiv:2503.23798,

    work page arXiv

  14. [14]

    American invitational mathematics examination - aime

    MAA. American invitational mathematics examination - aime. In American Invitational Mathematics Examination - AIME 2024, Febru- ary

    work page 2024

  15. [15]

    Shortgpt: Layers in large language models are more redundant than you expect

    URLhttps://maa.org/math-competitions/ american-invitational-mathematics-examination-aime. Xin Men, Mingyu Xu, Qingyu Zhang, Bingning Wang, Hongyu Lin, Yaojie Lu, Xianpei Han, and Weipeng Chen. Shortgpt: Layers in large language models are more redundant than you expect, 2024.URL https://arxiv. org/abs/2403.03853, 2(3):4,

    work page arXiv 2024

  16. [16]

    Know What You Don't Know: Unanswerable Questions for SQuAD

    Pranav Rajpurkar, Robin Jia, and Percy Liang. Know what you don’t know: Unanswerable questions for squad.arXiv preprint arXiv:1806.03822,

    work page internal anchor Pith review Pith/arXiv arXiv

  17. [17]

    Mixture-of-Depths: Dynamically allocating compute in transformer-based language models

    David Raposo, Sam Ritter, Adam Santoro, Greg Wayne, Theophane Weber, Matt Botvinick, A¨aron van den Oord, and Razvan Pascanu. Mixture-of-depths: Dynamically allocating compute in transformer-based language models.arXiv preprint arXiv:2404.02258,

    work page internal anchor Pith review Pith/arXiv arXiv

  18. [18]

    Outrageously Large Neural Networks: The Sparsely-Gated Mixture-of-Experts Layer

    Noam Shazeer, Azalia Mirhoseini, Krzysztof Maziarz, Andy Davis, Quoc Le, Geoffrey Hinton, and Jeff Dean. Outrageously large neural networks: The sparsely-gated mixture-of-experts layer. arXiv preprint arXiv:1701.06538,

    work page internal anchor Pith review Pith/arXiv arXiv

  19. [19]

    DeeBERT: Dynam ic Early Exiting for Accelerating BERT Inference,

    Ji Xin, Raphael Tang, Jaejun Lee, Yaoliang Yu, and Jimmy Lin. Deebert: Dynamic early exiting for accelerating bert inference.arXiv preprint arXiv:2004.12993,

    work page arXiv 2004

  20. [20]

    Looped transformers are better at learning learning algorithms.arXiv preprint arXiv:2311.12424,

    Liu Yang, Kangwook Lee, Robert Nowak, and Dimitris Papailiopoulos. Looped transformers are better at learning learning algorithms.arXiv preprint arXiv:2311.12424,

    work page arXiv

  21. [21]

    AGIEval: A Human-Centric Benchmark for Evaluating Foundation Models

    11 Preprint Wanjun Zhong, Ruixiang Cui, Yiduo Guo, Yaobo Liang, Shuai Lu, Yanlin Wang, Amin Saied, Weizhu Chen, and Nan Duan. Agieval: A human-centric benchmark for evaluating foundation models.arXiv preprint arXiv:2304.06364,

    work page internal anchor Pith review Pith/arXiv arXiv

  22. [22]

    What do the routers learn?

    12 Preprint APPENDIX A AUTHORCONTRIBUTIONS All authorscontributed to writing and editing the paper. Ahmed Heaklproposed the initial idea and motivation for the work, drafted the experimental set- tings, implemented and ran all experiments, collected the data, analyzed results, prepared visual- izations, reviewed related work, wrote the first draft, edited...

    work page 2000

  23. [23]

    As shown in Fig

    reweights classes and down-modulates easy majority examples, forcing learning on rare actions. As shown in Fig. 7, all losses perform similarly onexecute, but focal substantially improvesskipaccuracy and is the only setup where non-trivialrepeataccuracy is learned. Thus, focal loss is essential to mitigate imbalance and enable useful skip/repeat routing. ...

    work page 2000
