Pix2Act learns 3D robot manipulation by predicting continuous 2D keypoint paths in stereo camera planes and recovering poses by triangulation, with per-camera equivariant augmentation that raises success over strong baselines.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-14 06:32 UTC pith:PQ4U6KAE

load-bearing objection Solid robotics methods paper: continuous multi-view image actions plus n-equivariant augmentation deliver real gains; the “lossless” claim is a bit soft but not fatal. the 3 major comments →

arxiv 2607.11167 v1 pith:PQ4U6KAE submitted 2026-07-13 cs.RO cs.AIcs.LG

Pix2Act: Image-Space Manipulation Policies with Equivariant Augmentation

Haojie Huang , Linfeng Zhao , Haotian Liu , Zhang Ye , Si-Yuan Huang , Mingxi Jia , Boce Hu , Fangzhou Lin
show 4 more authors
Yu Qi Dian Wang Robin Walters Robert Platt
This is my paper
classification cs.RO cs.AIcs.LG
keywords imitation learningrobotic manipulationimage-space actionsequivariant data augmentationdiffusion policymulti-view triangulationkeypoint trajectoriesn-equivariance
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper claims that closed-loop 3D manipulation is easier to learn when actions are written as continuous, unbounded 2D keypoint trajectories on dual camera planes and then recovered by triangulation, rather than predicted directly in SE(3). Because observations and actions share the same image coordinates, each camera view can be rotated or translated together with its action paths—what the authors formalize as n-equivariance—so training effectively covers whole orbits of viewpoints instead of isolated demos. They implement this with Diffusion X-Net, which fuses multi-view features while using shared per-view diffusion heads so independent image transforms stay consistent. On ten MimicGen tasks with 100 demonstrations, the method reaches 75.2% average success versus 63.1% for the best competing baseline, and it beats a standard diffusion policy on four real UR5 tasks while holding up under side-camera rotations. A reader who cares about sample-efficient, camera-grounded robot learning would care because the geometric coupling of in-hand cameras and the gripper becomes both a simpler prediction target and free, symmetry-respecting data augmentation.

Core claim

Pix2Act shows that representing SE(3) action chunks as continuous unbounded image-space keypoint trajectories on dual in-hand cameras, then recovering end-effector poses by triangulation, turns high-dimensional 3D control into a 2D prediction problem that still reconstructs full poses without discretization loss. Aligning observations and actions in image space enables equivariant per-camera transforms; with a multi-view transformer and shared diffusion heads that respect n-equivariance, the policy enlarges the effective training support, learns transform-invariant action structure, and outperforms strong image, voxel, point-cloud, and prior keypoint baselines in simulation and on a physical

What carries the argument

n-equivariance—the requirement that independent SE(2) transforms (and permutations) of n camera images must transform the matching image-space action chunks the same way—together with continuous unbounded image action chunks recovered by triangulation and Diffusion X-Net (multi-view attention plus shared per-view diffusion heads) that make that symmetry usable at train and test time.

Load-bearing premise

The method depends on a fixed, calibrated dual in-hand stereo pair and on patching near-plane blow-ups by holding the last valid image coordinate so triangulation stays accurate enough for precise control.

What would settle it

On high-precision insertion tasks, measure whether triangulated 3D trajectories systematically diverge from demonstration ground truth when 2D predictions look correct, especially under small camera miscalibration or frequent plane-crossing; if they do, and success falls to or below direct 3D action baselines, the lossless image-space claim fails.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Aligning actions with image coordinates makes joint observation–action augmentation routine without voxels or full 3D equivariant networks.
  • Continuous (not discrete) multi-view keypoints plus cross-view fusion reduce out-of-frame and triangulation inconsistencies relative to prior pixel-keypoint policies.
  • Independent head-camera augmentation can yield policies that stay usable when the agent view moves at deployment.
  • Learning on orbits of multi-view transforms can improve sample efficiency by covering more of the data manifold from the same demos.
  • The same image-action interface can carry multi-task language tokens with faster convergence, as the paper’s multi-task extension suggests.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Many closed-loop SE(3) policies may be spending capacity on a higher-dimensional action space than the image-plane geometry that actually drives contact.
  • Extending the representation to multi-finger hands will need richer keypoints and will lose the simple 180° camera-swap symmetry of parallel jaws.
  • If plane-crossing holds become common, hybrid 2D/3D action representations may be needed for free-space motions that leave the current camera plane.
  • Independent per-camera augmentation could serve as a lightweight alternative to architectural equivariance for other multi-view control settings.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. Pix2Act reformulates closed-loop 3D manipulation as continuous, unbounded 2D keypoint trajectory prediction on dual in-hand camera planes, recovering SE(3) end-effector poses by triangulation. The image-space action representation enables n-equivariant data augmentation (independent per-camera SE(2) transforms of observations and actions, plus camera permutation equivariance; Props. 1–2) and is realized by Diffusion X-Net, a multi-view transformer with shared per-view DiT heads. On 10 MimicGen tasks with 100 demos, the method reports 75.2% average success versus 63.1% for the strongest baseline (EquiDiff-Voxel); ablations isolate equivariant augmentation, shared heads, and image-space vs. 3D actions (Table 2). Real UR5 experiments on four tasks outperform Diffusion Policy and remain robust under agent-view camera rotations. Limitations include a calibrated dual in-hand setup and a hold-last-valid heuristic for out-of-plane projections.

Significance. If the results hold under the stated hardware assumptions, the paper offers a practical and conceptually clean alternative to SE(3) action chunks: continuous image-space keypoints that are both more learnable and naturally aligned for equivariant augmentation. The n-equivariance framing (SE(2) ≀ S_n), the shared-head Diffusion X-Net design that respects it, and the consistent gains on high-precision MimicGen variants and real-robot camera-perturbation tests are concrete contributions. Strengths include a multi-task extension, real-world transfer with measured reconstruction error ~10^{-6}, and ablations that separate representation, architecture, and augmentation effects. The work is of clear interest to the imitation-learning and equivariant-robotics communities, provided the projection pipeline’s practical losslessness is better quantified.

major comments (3)
  1. Abstract and §4.1 claim the projection–triangulation pipeline is “lossless” / “fully invertible” and recovers “full precision.” Appendix 7.7, however, replaces image coordinates with |pix| > ρ ≈ 1.5s by the previous action to avoid out-of-plane blow-ups. This heuristic is load-bearing for high-precision tasks (Square, Threading) yet is neither quantified (how often it fires on MimicGen demos/rollouts) nor ablated. Without that evidence the “lossless” claim overstates the method’s guarantees under the fixed dual in-hand geometry.
  2. Table 1 reports best-checkpoint mean success over 50 tests with no error bars or seed statistics in the main table (Appendix 7.8 mentions two seeds only for simulation evaluation). Given that the central claim is a 12-point average gain over EquiDiff-Voxel and larger gains on high-precision tasks, the absence of variability measures makes it hard to judge whether the ranking is stable. At minimum, means ± std over seeds (or confidence intervals) should be added for the main comparison and the key ablations in Table 2.
  3. §5.1 / Table 1 baselines: EquiDiff (Img/Voxel), ACT, and DP3 results are taken from Wang et al. [30] and use different observation setups (single in-hand or multi-depth + one in-hand) than Pix2Act’s dual in-hand + agent view. Motion Track and Diffusion Policy share the image setup, but the cross-paper numbers for the 3D baselines are not re-run under matched cameras. The paper should either re-evaluate the strongest 3D baselines under the same dual in-hand + agent-view configuration or clearly qualify that those comparisons are not hardware-matched.
minor comments (5)
  1. Figure 1 and the abstract emphasize “lossless” recovery; a short quantitative statement of triangulation residual on held-out demos (already ~10^{-6} in real-world text) should appear in the main body, not only in §5.2.
  2. Proposition 1–2 and the wreath-product claim are clear, but a one-line statement that n-equivariance of π implies SE(2)^n ⋊ S_n invariance of the triangulated 3D policy would help readers who skip the appendix.
  3. Table 2 “w/o shared head” shows a 42-point drop on Square; a brief discussion of why permutation equivariance matters more on insertion tasks would strengthen the architecture claim.
  4. Typos / polish: “V oxel” spacing in Table 1; “Equidiff” vs “EquiDiff” inconsistency; “n-equivarianceto” missing space in §4.2.
  5. Code and trained checkpoints are not mentioned; releasing them would substantially raise reproducibility given the custom X-Net and dual-camera setup.

Circularity Check

0 steps flagged

No circular derivation: empirical imitation-learning method with geometric action representation and held-out success metrics; self-citations are related-work baselines only.

full rationale

Pix2Act is an empirical robotics/imitation-learning paper. Its load-bearing chain is (i) a geometric reparameterization of SE(3) action chunks as continuous unbounded multi-view image keypoints with triangulation recovery (P,T), (ii) n-equivariance (Props. 1–2) enforced by per-camera SE(2) data augmentation and a shared-head Diffusion X-Net, and (iii) success rates on held-out MimicGen episodes and real UR5 trials versus external baselines. Nothing in that chain reduces a claimed prediction to a fitted constant or to a self-defined quantity: training minimizes a standard diffusion noise objective on demonstration image-action chunks; evaluation reports task success on unseen tests (Tables 1–3). Projection–triangulation invertibility is a camera-geometry claim under stated calibration assumptions, not a fit renamed as a result. Self-citations (e.g. EquiDiff [30], prior equivariant transporter/grasp work by overlapping authors) appear as related work and baselines, not as uniqueness theorems or load-bearing premises that force the performance claim. No fitted-input-as-prediction, no ansatz smuggled as derivation, no renaming of a known empirical law. Circularity score is therefore 0.

Axiom & Free-Parameter Ledger

5 free parameters · 5 axioms · 3 invented entities

The paper is an empirical ML method paper. Load-bearing content is mostly standard robotics/ML background plus design choices (keypoint set, dual in-hand cameras, augmentation ranges, diffusion training). No new physical entities; invented constructs are representational and architectural. Free parameters are ordinary training/augmentation hyperparameters that affect measured success rates but are not claimed as universal constants.

free parameters (5)
  • SE(2) augmentation rotation range = [-30°, +30°]
    Rotations sampled uniformly from [-30°, +30°] per camera during training (Appendix 7.8); chosen by authors, not derived.
  • SE(2) augmentation translation range = ±h/8, ±w/8
    Image shifts up to ±h/8 and ±w/8 (Appendix 7.8); hand-chosen scale of support enlargement.
  • Out-of-plane stability threshold ρ = ≈1.5 × image size
    Coordinates with |pix| > ρ held to last valid value; ρ≈1.5s (Appendix 7.7/7.9). Directly affects whether the ‘lossless continuous’ claim holds in practice.
  • Action chunk horizon and execute length = h=12 exec=8 (sim); horizon 10 (real)
    Predict 12 steps, execute first 8 in sim; real deployment horizon 10 at 10 Hz (§5.1, Appendix 7.8). Standard but free design knobs.
  • Diffusion training schedule and network widths = as listed in Appendix 7.7–7.8
    LR 1e-4 cosine, batch 256, 800 epochs, DDPM 100 / DDIM 16 steps, DiT 12×768, encoder channel stacks (Appendix 7.7–7.8). Fitted for performance, not predicted.
axioms (5)
  • domain assumption Known camera matrices and fixed dual in-hand offset relative to the end-effector enable invertible projection/triangulation of gripper keypoints.
    Stated in §4.1 and Limitations §6; method requires calibrated stereo-like in-hand setup.
  • domain assumption Four gripper-finger keypoints plus scalar width bijectively encode parallel-jaw SE(3) pose for the tasks considered.
    §4.1 mapping M and inverse via Gram–Schmidt; limited to parallel-jaw grippers by authors’ own scope note.
  • ad hoc to paper Independent per-camera SE(2) transforms of observations should transform image-space action chunks equivariantly (Prop. 1), and camera permutations should permute action chunks (Prop. 2).
    Core symmetry claims of §4.2; motivated geometrically but enforced mainly by data augmentation plus shared heads, not hard equivariant layers.
  • domain assumption Imitation from finite expert demos with diffusion denoising yields a policy that generalizes under MimicGen spatial variants and real initial-condition variation.
    Standard IL assumption underlying all reported success rates (§3, §5).
  • standard math Standard multiview geometry: triangulation of corresponding continuous image points recovers 3D points (up to calibration error).
    Used throughout §4.1 and Algorithms 1–2.
invented entities (3)
  • image action chunk (continuous unbounded multi-view keypoint trajectories) no independent evidence
    purpose: Replace SE(3) action chunks with 2D paths in each camera plane so observation and action share coordinates and triangulation recovers 3D control.
    Defined in §4.1 Eq. (1); central representation. Independent evidence is empirical task success, not an external physical measurement.
  • n-equivariance (SE(2)≀Sn symmetry of multi-camera image-action policies) no independent evidence
    purpose: Formalize independent per-camera roto-translations plus camera permutation so augmentation enlarges data support and induces 3D action invariance after triangulation.
    Propositions 1–2 and Appendix 7.2. Softly induced by augmentation/architecture rather than proven network equivariance.
  • Diffusion X-Net no independent evidence
    purpose: Fuse dual in-hand and agent views with multi-view transformer and shared per-view DiT heads compatible with n-equivariant training.
    §4.3 and Figure 2; architectural invention evaluated only inside this paper’s experiments.

pith-pipeline@v1.1.0-grok45 · 25108 in / 3865 out tokens · 54588 ms · 2026-07-14T06:32:03.177810+00:00 · methodology

0 comments
read the original abstract

Representing manipulation actions as 2D trajectories in the camera plane provides a compact and interpretable basis for learning complex 3D manipulation policies. However, it also creates challenges from out-of-frame trajectories and limited precision. We propose Pix2Act, an imitation learning method that addresses these challenges by generating continuous image-space keypoint trajectories in each camera plane and losslessly recovering end-effector poses via triangulation. This reformulates high-dimensional 3D control as a simpler, more learnable 2D prediction problem. Crucially, it aligns observations and actions in the same coordinate space, enabling equivariant transformations to jointly rotate individual camera images together with their image-space actions. We analyze the symmetry properties of this augmentation and design a network architecture that can fuse multiple camera views while respecting their per-view rotations. As a result, Pix2Act implicitly enlarges the support of the data distribution and learns invariant action structures across transformations, yielding improved generalization and overall performance. Across diverse simulated and real-world manipulation tasks, Pix2Act outperforms state-of-the-art baselines and remains robust under camera perturbations.

Figures

Figures reproduced from arXiv: 2607.11167 by Boce Hu, Dian Wang, Fangzhou Lin, Haojie Huang, Haotian Liu, Linfeng Zhao, Mingxi Jia, Robert Platt, Robin Walters, Si-Yuan Huang, Yu Qi, Zhang Ye.

Figure 1

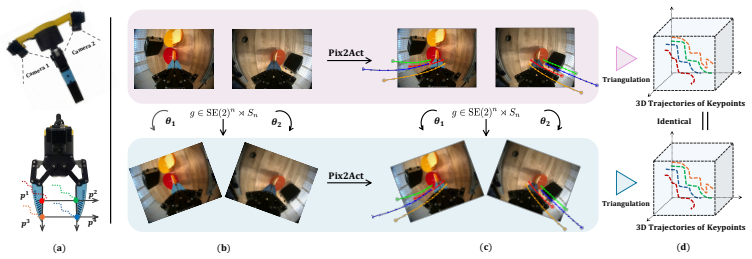

Figure 1. Figure 1: From left to right: (a) an illustration of our dual in-hand camera setup and the selected keypoints; (b,c) our proposed method consumes stereo images and predicts image actions for these keypoints; independent image rotations result in consistent transformations of the 2D action trajectories; (d) triangulation yields consistent 3D results for both the original and transformed image pairs, as they convey th… view at source ↗
Figure 2
Figure 2. Figure 2: Architecture of Diffusion X-Net. (a) Observation Encoding; (b) Action Generation. The left branches of X-Net take two in-hand images and one side-view image as input. The center of X-Net features a multi-view transformer that enables communication between the in-hand features and the side-view context features. The right branches of X-Net regress two sets of continuous keypoints separately from the two in-… view at source ↗
Figure 3
Figure 3. Figure 3: Manipulation Tasks from Mimicgen. The upper row and the bottom row show the initial states and the goal states. Method StackThree Kitchen PickPlace Hammer Mug Coffee CoffeePr. NutAsm. Square Threading Avg. Equidiff (Img) [30] 55 67 42 65 49 60 77 74 25 22 53.6 Equidiff (Voxel) [30] 75 85 58 70 53 65 80 67 39 39 63.1 DP3 (PCD) [37] 7 45 12 54 21 34 10 16 7 12 21.8 ACT [85] 6 37 7 38 23 19 32 42 6 10 22.0 Mo… view at source ↗
Figure 4
Figure 4. Figure 4: Performance Comparisons on Different Types of Task. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Real-world manipulation tasks. The four single-arm tasks evaluated on our UR5 platform. average drop, with larger degradation on harder tasks (Square, Threading), supporting that permutation equivariance helps the model better exploit per-view augmentations. Third, directly predicting 3D action chunks from X-Net tokens, in either absolute or relative form, degrades performance by 27.8% and 13.8% respective… view at source ↗
Figure 6
Figure 6. Figure 6: Multi-task Training Demonstrates Faster Convergence across Epochs. Test Success Rate as a function of Training Epoch. As shown in [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Predicted trajectory visualization. Predicted image-space keypoint trajectories overlaid on the top and bottom in-hand camera views for two real-world tasks. Trajectories remain consistent across the two views. Visualization of predicted trajectories [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Real-world robot setup and initial task variations. (a) The UR5 platform with two FLIR Blackfly in￾hand cameras and one Intel RealSense D455 agent-view camera. (b–e) Representative initial object configurations for two of the four tasks; configurations are randomized within the workspace at the start of each trial. Plug Flower Put in Drawer [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Agent-view camera perturbations during evaluation. Each row shows five representative agent-view frames captured with the side-view camera randomly perturbed (A small figure embedded in the top right ), for the Plug Flower task (top) and Put in Drawer task (bottom). The in-hand cameras are rigidly mounted to the end-effector and therefore cannot be perturbed independently. Pix2Act remains stable across the… view at source ↗
Figure 10
Figure 10. Figure 10: Performance Comparisons on Different Types of Task. [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Observed images in simulation. From left to right: top in-hand view, bottom in-hand view, and agent view. Each is a 128 × 128 RGB image. Action representation. We canonicalize the 2D image-coordinate trajectories by subtracting the image-space gripper-center keypoint. Since an image translation shifts both the gripper center and the image action chunk identically, this oper￾ation induces translation invar… view at source ↗
Figure 11
Figure 11. Figure 11: Long-horizon task illustration. The top row shows kitchen-d1, and the bottom row shows coffee￾preparation-d1. 18 [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
