Not What You Asked For: Typographic Attacks in Household Robot Manipulation

Ali Iranmanesh , Peng Liu This is my paper

Pith reviewed 2026-05-20 09:22 UTC · model grok-4.3

classification 💻 cs.CR cs.AIcs.RO
keywords typographic attacksrobot manipulationvision-language modelsCLIPadversarial attacks3D semantic mappingembodied AIhousehold robots
0
0 comments X

The pith

Typographic attacks using printed stickers cause household robots to physically grasp and deliver the wrong objects with a 67.8% success rate in simulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines how printed text on objects can trick vision-language models used by robots into misidentifying them during household tasks. In simulations of robot manipulation, these typographic attacks succeed in about two-thirds of cases, even with varied viewing angles and no special optimization. The misclassifications then spread through the robot's 3D map of the environment, resulting in the robot physically picking up and moving the incorrect item. A sympathetic reader would care because this reveals a practical safety issue in robots that rely on flexible language-based perception for everyday assistance.

Core claim

In a controlled evaluation pool of 59 attributable episodes, the attack achieves an overall Attack Success Rate (ASR) of 67.8%, rising to 70.0% among fully successful episodes, under uncontrolled viewing angles and occlusion with no perceptual optimization. Perceptual errors propagate through the persistent 3D semantic map to produce kinetic failures where the robot physically grasps and delivers the wrong object.

What carries the argument

The decoupled CLIP+DETIC perception architecture that exposes a frozen CLIP encoder to adversarial stickers while maintaining geometric grounding via DETIC.

Load-bearing premise

The Habitat-based HomeRobot simulation with the decoupled CLIP+DETIC perception architecture accurately captures how typographic misclassifications would propagate to physical actions in real modular robot systems.

What would settle it

A physical experiment where a typographic sticker is placed on an object and the robot is observed to grasp a different object matching the text instead.

Figures

Figures reproduced from arXiv: 2605.18593 by Ali Iranmanesh, Peng Liu.

Figure 1

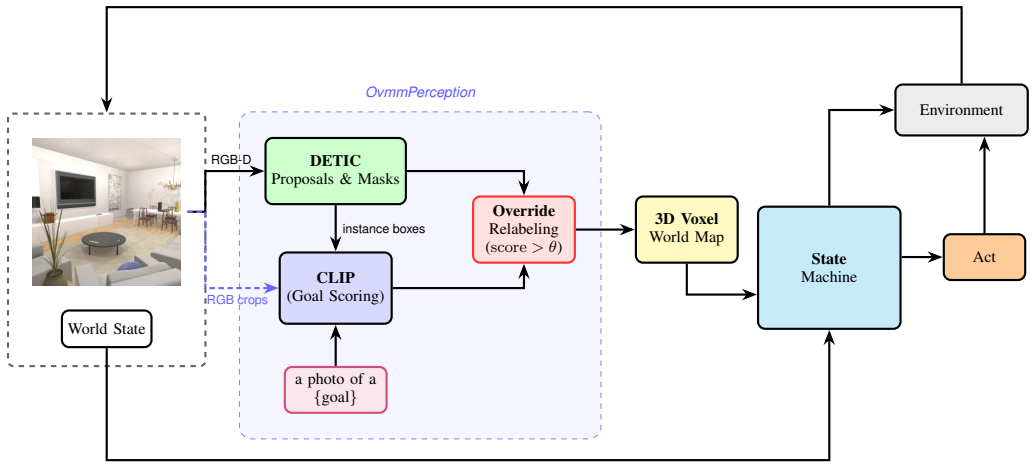

Figure 1. Figure 1: Architecture of the modified HomeRobot agent. DETIC (green) handles spatial proposals and geometry; a frozen CLIP encoder (blue) serves as the [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Pre-attack failure distribution across all 1,199 HomeRobot validation episodes by phase of first failure. [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
read the original abstract

Open-vocabulary embodied AI agents increasingly rely on vision-language models such as CLIP for object perception and task grounding. However, the shared embedding space that enables this flexibility introduces a structural vulnerability to typographic attacks, where printed text in a physical scene semantically overrides visual judgment. While prior work has quantified this threat in static 2D benchmarks and 3D navigation tasks, its impact on the full Sense-Plan-Act pipeline of household robot manipulation remains unexplored. This work evaluates typographic attacks in a Habitat-based simulation using the HomeRobot benchmark. We introduce a decoupled perception architecture that exposes a frozen CLIP encoder to adversarial stickers while maintaining geometric grounding via DETIC. In a controlled evaluation pool of 59 attributable episodes, the attack achieves an overall Attack Success Rate (ASR) of 67.8%, rising to 70.0% among fully successful episodes, under uncontrolled viewing angles and occlusion with no perceptual optimization. Critically, we find that perceptual errors propagate through the persistent 3D semantic map to produce kinetic failures, defined here as physically executed grasping and transport of the wrong object driven by an adversarially poisoned semantic state. In these cases, the robot physically grasps and delivers the wrong object to a target receptacle. These results establish typographic misclassification as a real, measurable, and physically consequential threat to the safety of modular manipulation pipelines that prior typographic attack research has left unexamined.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper evaluates typographic attacks on open-vocabulary household robot manipulation in a Habitat-based HomeRobot simulation. It introduces a decoupled perception architecture using a frozen CLIP encoder alongside DETIC for geometric grounding. Over a controlled set of 59 attributable episodes with uncontrolled viewing angles and occlusion, the attack achieves a 67.8% overall Attack Success Rate (rising to 70.0% in fully successful episodes) with no perceptual optimization. Perceptual misclassifications from adversarial text stickers propagate through the persistent 3D semantic map, leading to kinetic failures in which the robot physically grasps and delivers the wrong object.

Significance. If the central empirical findings hold, the work is significant for demonstrating that typographic vulnerabilities in vision-language models can produce physically executed errors in the full Sense-Plan-Act pipeline of modular manipulation systems. The concrete ASR measurements, focus on propagation to kinetic failures, and use of an existing benchmark provide a measurable baseline that prior 2D and navigation-focused typographic attack studies have not addressed. The decoupled architecture isolates the contribution of the frozen CLIP component, which strengthens the mechanistic interpretation.

major comments (2)
  1. [Evaluation setup and results sections] Evaluation setup and results sections: The headline 67.8% ASR and kinetic-failure propagation claim rest on the assumption that the Habitat HomeRobot simulator with decoupled CLIP+DETIC faithfully reproduces how typographic misclassifications affect real modular robot systems. No ablations or sensitivity analysis are reported for simulator-specific factors such as depth noise, variable illumination on printed stickers, or partial occlusions from robot motion, leaving the least-secured step of the pipeline under-supported.
  2. [Results on kinetic failures] Results on kinetic failures: The manuscript defines kinetic failures as physically executed wrong-object grasps and transports driven by poisoned semantic state, yet provides no comparison against integrated (non-decoupled) perception stacks or real-robot validation. This comparison is load-bearing for the claim that the observed failures are representative of deployed modular systems rather than an artifact of the chosen simulation architecture.
minor comments (2)
  1. [Abstract] The abstract states the attack succeeds 'with no perceptual optimization,' but the main text should explicitly confirm whether any attack generation or sticker placement heuristics were used beyond random or fixed placement.
  2. [Figures and evaluation description] Figure captions and the episode-selection description would benefit from a brief statement of how 'attributable episodes' were filtered to ensure reproducibility.

Simulated Author's Rebuttal

2 responses · 2 unresolved

We thank the referee for the detailed and constructive feedback. The comments highlight important considerations regarding the scope of our simulation-based evaluation, and we address each point below while clarifying the design choices and limitations of the current study.

read point-by-point responses

  1. Referee: [Evaluation setup and results sections] Evaluation setup and results sections: The headline 67.8% ASR and kinetic-failure propagation claim rest on the assumption that the Habitat HomeRobot simulator with decoupled CLIP+DETIC faithfully reproduces how typographic misclassifications affect real modular robot systems. No ablations or sensitivity analysis are reported for simulator-specific factors such as depth noise, variable illumination on printed stickers, or partial occlusions from robot motion, leaving the least-secured step of the pipeline under-supported.

    Authors: We agree that further sensitivity analysis on simulator-specific factors would strengthen the presentation. In the revised manuscript we will add ablations that vary depth noise levels and occlusion parameters within the Habitat simulator, reporting the resulting impact on ASR to demonstrate stability of the attack propagation. The HomeRobot benchmark already incorporates variable lighting and motion-induced occlusions; we will expand the results section with explicit discussion of these modeled factors and their relation to the observed kinetic failures. revision: yes

  2. Referee: [Results on kinetic failures] Results on kinetic failures: The manuscript defines kinetic failures as physically executed wrong-object grasps and transports driven by poisoned semantic state, yet provides no comparison against integrated (non-decoupled) perception stacks or real-robot validation. This comparison is load-bearing for the claim that the observed failures are representative of deployed modular systems rather than an artifact of the chosen simulation architecture.

    Authors: The decoupled CLIP+DETIC architecture was deliberately selected to isolate the contribution of the frozen vision-language model, thereby providing a direct mechanistic account of how typographic misclassifications in the semantic map lead to kinetic failures. Adding comparisons to integrated perception stacks would require re-implementing and re-evaluating alternative pipelines on the same episode set, which lies outside the scope of the present work. Real-robot validation is an important direction for future research but is not addressed by the current simulation study, which instead supplies a controlled baseline using an established benchmark. revision: no

standing simulated objections not resolved
  • Real-robot validation of typographic attacks under physical lighting and sticker conditions
  • Direct empirical comparisons against non-decoupled integrated perception stacks on the identical evaluation episodes

Circularity Check

0 steps flagged

Empirical measurement of attack success in simulation

full rationale

The paper reports direct experimental results from running a fixed number of episodes in the Habitat HomeRobot simulator with a decoupled CLIP+DETIC perception stack. The central numbers (67.8% ASR over 59 episodes, 70.0% among fully successful episodes, and the occurrence of kinetic failures) are obtained by counting observable outcomes under the stated conditions. No equations, fitted parameters presented as predictions, self-referential definitions, or load-bearing self-citations appear in the derivation chain. The evaluation is therefore self-contained empirical data collection rather than a derivation that reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the fidelity of the simulation environment and the assumption that the decoupled perception setup exposes a general vulnerability without additional optimizations.

axioms (1)
  • domain assumption The Habitat simulation with HomeRobot benchmark and DETIC geometric grounding sufficiently models real-world perceptual and action propagation under typographic attacks.
    Evaluation results are presented as evidence of physical consequence, but rest on unvalidated simulation assumptions.
