Sixteen-Fold Way for Fermionic Topological Orders

Abhinav Prem; Matthew Yu; Ryohei Kobayashi

arxiv: 2606.28682 · v1 · pith:VHYP4VEMnew · submitted 2026-06-27 · ❄️ cond-mat.str-el · hep-th· math-ph· math.MP· math.QA· quant-ph

Sixteen-Fold Way for Fermionic Topological Orders

Ryohei Kobayashi , Abhinav Prem , Matthew Yu This is my paper

Pith reviewed 2026-06-30 09:08 UTC · model grok-4.3

classification ❄️ cond-mat.str-el hep-thmath-phmath.MPmath.QAquant-ph

keywords fermionic topological orderst Hooft anomalyone-form symmetrysixteen-fold wayanyon spinsSPT phasesWalker-Wang modelsZ2 symmetry

0 comments

The pith

A sixteen-fold family of fermionic topological orders is distinguished by the mod-16 anomaly of a Z2 one-form symmetry generated by a single nontrivial Z2 anyon.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper identifies a sixteen-fold family of two-plus-one dimensional fermionic topological orders. This family is an analogue to Kitaev's sixteen-fold way for bosonic systems but relies on an intrinsically fermionic anomaly. The distinguishing feature is the mod 16 't Hooft anomaly of a Z2 one-form symmetry generated by one nontrivial Z2 anyon. This setup allows anyon spins that bosonic phases forbid, with the simplest example being an Abelian order with a Z2 anyon of spin one-eighth. These orders appear as gapped boundaries of three-plus-one dimensional fermionic symmetry-protected topological phases that gain a Z16 classification when the spin structure is twisted.

Core claim

The central claim is that fermionic topological orders host a new sixteen-fold family distinguished by the mod 16 't Hooft anomaly of a Z2 one-form symmetry generated by a single nontrivial Z2 anyon. This anomaly is intrinsically fermionic and permits anyon spins forbidden in bosonic phases, such as a single Z2 Abelian anyon with spin 1/8. Each member of the family can be realized as the gapped boundary of a (3+1)D fermionic SPT phase protected by the Z2 one-form symmetry, acquiring a Z16 classification under twisted spin structure. The phases are constructed microscopically from Walker-Wang models coupled to local fermions.

What carries the argument

The mod 16 't Hooft anomaly of the Z2 one-form symmetry generated by a single nontrivial Z2 anyon, which distinguishes the family and enables new anyon spins.

If this is right

The anomaly permits anyon spins forbidden in bosonic topological orders.
Each theory realizes as gapped boundary of (3+1)D fermionic SPT phase with Z16 classification under twisted spin structure.
Microscopic realization via lattice models from Walker-Wang models coupled to local fermions.
Forms a fermionic analogue of Kitaev's sixteen-fold way.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Experimental searches for topological orders could focus on detecting this specific anomaly through boundary states or response functions.
The classification may generalize to other symmetries or dimensions, leading to broader families of fermionic phases.
Twisting the spin structure provides a new way to classify higher-dimensional SPT phases.
One could test by attempting to construct the simplest example with spin 1/8 anyon and measure its properties.

Load-bearing premise

That the mod-16 't Hooft anomaly of the Z2 one-form symmetry generated by a single nontrivial Z2 anyon is sufficient to distinguish the sixteen-fold family and allows the forbidden anyon spins.

What would settle it

Finding a fermionic topological order with a Z2 anyon of spin 1/8 that does not exhibit the expected mod 16 anomaly, or failing to realize any member as a boundary of the corresponding (3+1)D SPT phase.

Figures

Figures reproduced from arXiv: 2606.28682 by Abhinav Prem, Matthew Yu, Ryohei Kobayashi.

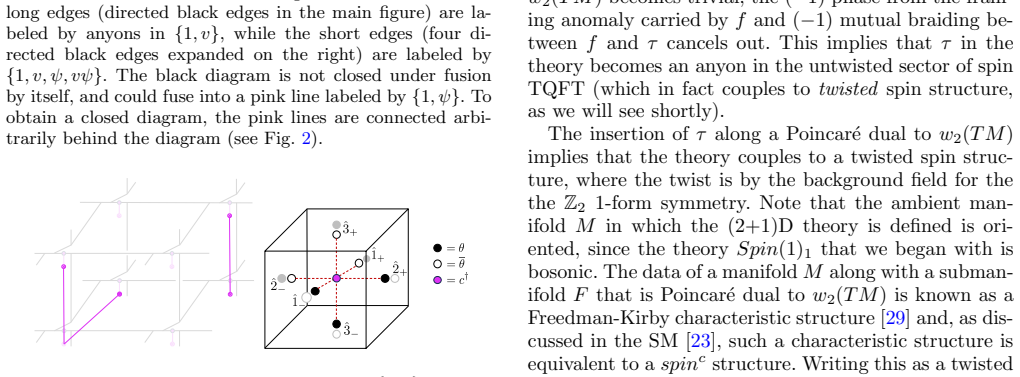

**Figure 2.** Figure 2: FIG. 2. Left: Given that the assignment of [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

read the original abstract

Fermionic topological orders can host 't Hooft anomalies with no bosonic counterpart. We identify a new sixteen-fold family of (2+1)D fermionic topological orders, forming a fermionic analogue of Kitaev's sixteen-fold way. This family is distinguished by the mod 16 't Hooft anomaly of a $\mathbb{Z}_2$ one-form symmetry, generated in each theory by a single nontrivial $\mathbb{Z}_2$ anyon. This intrinsically fermionic anomaly permits anyon spins that are forbidden in bosonic phases; the simplest new example is an Abelian fermionic topological order containing a single $\mathbb{Z}_2$ Abelian anyon of spin 1/8. Each theory can be realized as the gapped boundary of a (3+1)D fermionic symmetry-protected topological (SPT) phase protected by the $\mathbb{Z}_2$ one-form symmetry, which acquires a $\mathbb{Z}_{16}$ classification once the spacetime spin structure is twisted by the one-form symmetry. We realize these phases microscopically via lattice models built from Walker-Wang models coupled to local fermions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper gives a fermionic sixteen-fold way distinguished by a mod-16 Z2 one-form anomaly, with explicit Walker-Wang lattice realizations.

read the letter

The central result is a new family of (2+1)D fermionic topological orders that mirrors Kitaev's sixteen-fold way but uses an intrinsically fermionic mod-16 't Hooft anomaly of a Z2 one-form symmetry generated by one nontrivial anyon. This anomaly allows anyon spins forbidden in bosonic theories, with the simplest case being an Abelian phase containing a single Z2 anyon of spin 1/8. Each member is realized as the gapped boundary of a (3+1)D fermionic SPT whose classification becomes Z16 once the spin structure is twisted by the one-form symmetry.

The paper does the useful work of supplying concrete lattice models built from Walker-Wang constructions coupled to local fermions. That step moves the claim beyond pure anomaly matching and gives microscopic support. The connection to higher-dimensional SPTs is also cleanly stated and follows from standard twisted spin-structure arguments.

The main soft spot is that the distinction between the sixteen phases rests heavily on the anomaly invariant being complete; if additional data (such as higher-form symmetries or fusion rules) are needed in some cases, the count could shift. The abstract and stress-test indicate the models address this, but a referee would still want to see the explicit anyon data and braiding phases written out. No circularity or free parameters appear in the stated construction.

This is for people working on fermionic anyons, anomalies, and SPT classifications in condensed matter. A reader already comfortable with Kitaev's original work and with one-form symmetries will extract the most value. The claim is specific enough and the constructions concrete enough that it deserves a serious referee rather than a desk rejection.

Referee Report

0 major / 2 minor

Summary. The paper identifies a sixteen-fold family of (2+1)D fermionic topological orders that forms a fermionic analogue of Kitaev's sixteen-fold way. The family is distinguished by the mod-16 't Hooft anomaly of a Z2 one-form symmetry generated by a single nontrivial Z2 anyon. This anomaly permits anyon spins forbidden in bosonic theories (e.g., a Z2 anyon with spin 1/8). Each member is realized as the gapped boundary of a (3+1)D fermionic SPT phase whose classification becomes Z16 once the spacetime spin structure is twisted by the one-form symmetry. Explicit microscopic realizations are constructed from Walker-Wang models coupled to local fermions.

Significance. If the central claims hold, the work provides a concrete classification and set of constructions for intrinsically fermionic topological orders, extending the bosonic sixteen-fold way and linking (2+1)D anomalies directly to (3+1)D SPT phases via twisted spin structures. The explicit lattice constructions constitute a notable strength, supplying microscopic support that is often absent in anomaly-based classifications.

minor comments (2)

A summary table listing the 16 theories, their anyon content, spins, and explicit anomaly values would improve readability and allow direct comparison with the bosonic case.
The introduction would benefit from a short paragraph recalling the key features of Walker-Wang models and how local fermions are coupled, for readers outside the immediate subfield.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their careful reading and positive evaluation of our manuscript. We are pleased that the central claims regarding the sixteen-fold family of fermionic topological orders, their anomaly characterization, and the explicit lattice constructions were viewed favorably. The recommendation for minor revision is noted; however, no specific major comments were provided in the report, so we have no points requiring substantive rebuttal or revision at this stage.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The abstract and provided claims present the sixteen-fold family as distinguished by an independently defined mod-16 't Hooft anomaly of a Z2 one-form symmetry, with explicit microscopic realizations via Walker-Wang models coupled to fermions and boundary realizations of Z16-classified SPT phases. No equations, fitted parameters, or self-citations are quoted that reduce any central claim to a definition or input by construction. The derivation chain relies on anomaly theory and lattice constructions that are presented as external support rather than tautological. This is the expected non-finding for a paper whose core result is a classification backed by explicit models.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claim rests on standard domain assumptions from topological quantum field theory, anomaly inflow, and anyon theory; no free parameters or new entities are introduced in the abstract.

axioms (2)

domain assumption Standard 't Hooft anomaly matching and properties of anyons in fermionic topological orders
Invoked to distinguish the family by the mod-16 anomaly of the Z2 one-form symmetry.
domain assumption Existence of a Z16 classification for (3+1)D fermionic SPT phases with twisted spin structure
Used to realize each theory as a gapped boundary.

pith-pipeline@v0.9.1-grok · 5736 in / 1433 out tokens · 34056 ms · 2026-06-30T09:08:29.103619+00:00 · methodology
