Towards LLM-Assisted Architecture Recovery for Real-World ROS~2 Systems: An Agent-Based Multi-Level Approach to Hierarchical Structural Architecture Reconstruction

Dominique Briechle , Raj Chanchad , Tobias Geger , Ruidi He , Dhruv Jajadiya , Dhruv Kapadiya , Andreas Rausch , Meng Zhang This is my paper

Pith reviewed 2026-05-20 03:27 UTC · model grok-4.3

classification 💻 cs.SE cs.AIcs.RO
keywords ROS 2architecture recoveryLLM-assistedhierarchical architecturesoftware architecturerobotic systemsprompt engineering
0
0 comments X

The pith

Combining refined prompts with multi-level intermediate representations lets LLMs reconstruct consistent hierarchical architectures in complex ROS 2 systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends prior LLM-assisted architecture recovery for ROS 2 by adding refined prompting for consistency and a staged strategy with multi-level intermediate representations. These representations include atomic node lists and launch file dependencies to constrain the reconstruction across abstraction levels. The approach is evaluated on a complex automated product disassembly system using cooperative robotic arms. Results indicate better structural consistency, scalability, and robustness than before. It also points out ongoing difficulties with dynamic integration semantics in large systems.

Core claim

The authors claim that their enhanced agent-based multi-level approach, through refined prompting and staged recovery using intermediate architectural representations, produces structurally constrained hierarchical models that accurately reflect implicit semantics in source code and launch files, thereby improving the consistency, scalability, and robustness of architecture recovery for real-world ROS 2 systems.

What carries the argument

The staged recovery strategy based on multi-level intermediate architectural representations incorporating the atomic ROS node list and launch file dependencies.

If this is right

  • Improved structural consistency reduces errors in recovered models.
  • The method scales to systems with higher integration complexity.
  • Robustness allows handling of richer functionality in robotic applications.
  • Explicit models aid in communicating and evolving complex systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The technique may apply to architecture recovery in other distributed software systems.
  • Combining with dynamic analysis tools could resolve issues with runtime behaviors.
  • It might enable semi-automated maintenance of architecture documentation in robotics projects.

Load-bearing premise

That guiding the LLM with refined prompts and multi-level intermediate representations will produce hierarchical models that accurately match the implicit semantics without inconsistencies or omissions.

What would settle it

Finding that the architecture model recovered from the automated product disassembly system contains component hierarchies or connections that contradict the actual dependencies in the source code and launch files.

Figures

Figures reproduced from arXiv: 2605.20055 by Andreas Rausch, Dhruv Jajadiya, Dhruv Kapadiya, Dominique Briechle, Meng Zhang, Raj Chanchad, Ruidi He, Tobias Geger.

Figure 1

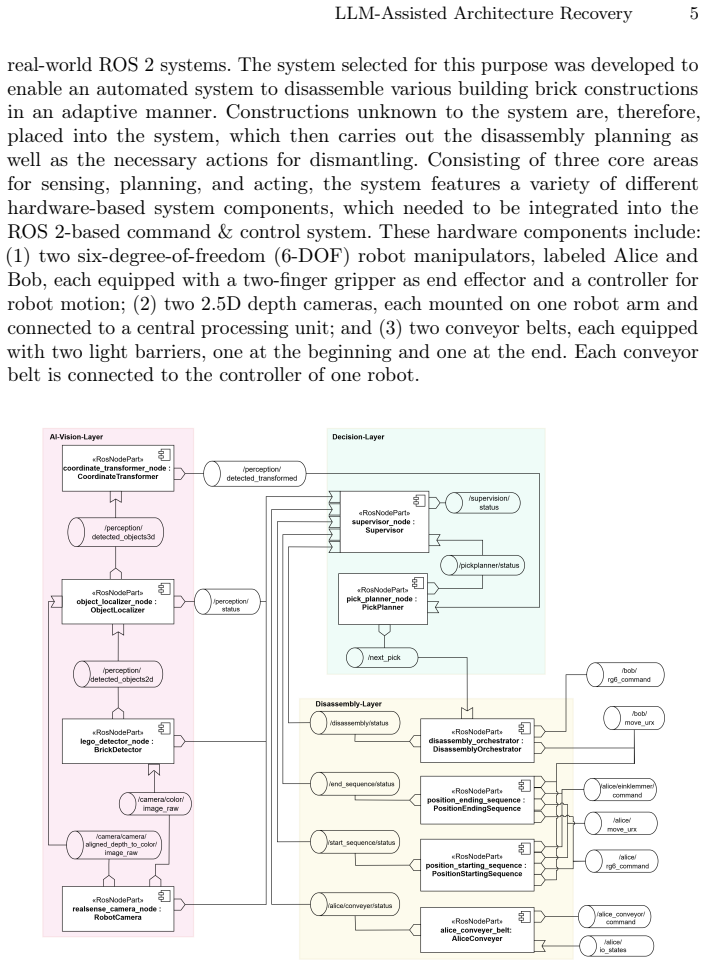

Figure 1. Figure 1: System architecture of the BrickByBrick disassembly system. As shown in [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
