PilotWiMAE: Pilot-Native Representation Learning for Wireless Channels

Berkay Guler , Giovanni Geraci , Hamid Jafarkhani This is my paper

Pith reviewed 2026-05-25 00:04 UTC · model grok-4.3

classification 📡 eess.SP cs.AIcs.ITcs.LGcs.NImath.IT
keywords self-supervised learningwireless channel modelingpilot observationsbeam selectioncross-frequency generalizationchannel estimationfactorized attentionnoisy pilots
0
0 comments X

The pith

Pilot-native self-supervised learning produces channel representations that transfer from 3.5 GHz pretraining to 28 GHz evaluation and outperform supervised baselines on beam selection despite using far fewer observations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents PilotWiMAE as a self-supervised framework that takes noisy pilot observations as direct input rather than assuming full channel state information is available. Its encoder applies factorized attention that separates temporal processing from joint space-frequency processing to exploit the physical separability of wireless channels. This design supports pretraining with 99 percent masking and an auxiliary scale loss that recovers both small-scale and large-scale fading. When pretrained only at 3.5 GHz, the resulting representations enable stronger cross-frequency beam selection and channel characterization at 28 GHz than supervised methods trained on full observations at the target frequency. A subsequent decoder-centric pretraining stage further improves channel estimation performance without degrading the learned representations.

Core claim

PilotWiMAE is a self-supervised framework whose encoder ingests noisy pilot observations directly and whose attention factorizes along the axis separating temporal from joint space-frequency processing. The design allows a 99 percent pretraining mask ratio while using patch-normalized reconstruction and an auxiliary scale loss, plus an AWGN curriculum to match deployment noise. Pretrained solely on 3.5 GHz data, the model achieves superior cross-frequency beam selection and channel characterization at 28 GHz compared with supervised baselines, even though its observation space is up to two orders of magnitude smaller. A decoder-centric pretraining stage decouples decoder capacity from the质量s

What carries the argument

Factorized attention that separates temporal processing from joint space-frequency processing, allowing the encoder to build representations from highly masked noisy pilot inputs by exploiting channel separability.

If this is right

  • Supports pretraining at a 99 percent mask ratio without collapse.
  • Reduces required observation space by up to two orders of magnitude while lowering latency.
  • Enables cross-frequency generalization from sub-6 GHz pretraining to millimeter-wave evaluation.
  • Yields competitive channel estimation after a decoder-centric pretraining stage.
  • Removes the deployment assumption of full CSI availability.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same factorized structure could be tested on additional frequency pairs or measured outdoor datasets to check robustness beyond ray-tracing simulations.
  • Releasing the pretrained weights and the Sionna-based channel generator may allow other groups to explore whether the representations transfer to tasks such as positioning or interference management.
  • If the separability bias proves effective, similar factorized attention patterns might be applied to other physical time-series domains that exhibit space-time-frequency structure.

Load-bearing premise

Wireless channels possess separable structure along temporal versus joint space-frequency axes that factorized attention can reliably extract from noisy, heavily masked pilot observations.

What would settle it

Pretrain the model exclusively on 3.5 GHz pilots, then measure beam selection accuracy at 28 GHz; if performance does not exceed that of supervised baselines given full CSI at 28 GHz, the claimed advantage of pilot-native cross-frequency representations would not hold.

Figures

Figures reproduced from arXiv: 2605.22856 by Berkay Guler, Giovanni Geraci, Hamid Jafarkhani.

Figure 1
Figure 1. Figure 1: High-level PilotWiMAE pipeline: The model consumes sparse noisy pilot observations directly, pilot representations support direct decision-making [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

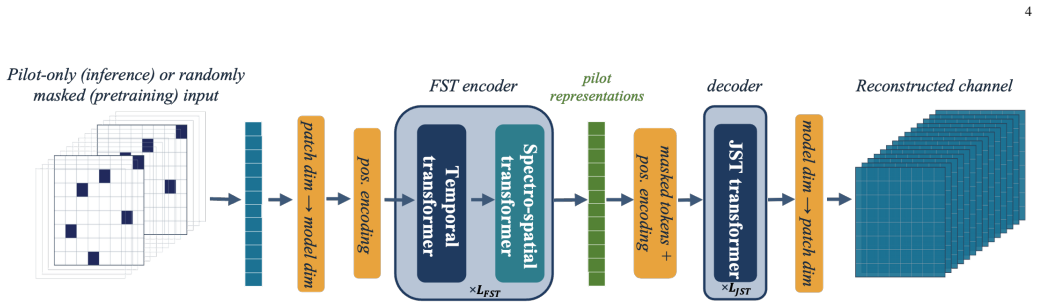

Figure 2
Figure 2. Figure 2: PilotWiMAE architecture. Pilot patches feed the FST encoder. The resulting representations are decoded by a JST transformer. Finally, the tokens are [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Factorized space-time attention on the patch-token grid with axes [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: PilotWiMAE pretraining flow and loss groupings. Auxiliary scale [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: OOD (28 GHz, Los Angeles): top-3 beam-selection accuracy vs SNR [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 8
Figure 8. Figure 8: Channel characterization (LoS accuracy) in-distribution at 28 GHz. [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Channel characterization (LoS accuracy) out-of-distribution at 28 GHz. [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Los Angeles OOD channel estimation at 3.5 GHz using a frozen FST+noise+scale encoder with decoder-only pretraining. Curves show NMSE versus SNR for decoder depths 1, 2, 4, 6, and 12. since the AWGN curriculum lifts the low-SNR floor. Second, the supervised baseline shows a much smaller pilot-versus-full gap compared to beam selection. This is because recovering a label that depends on aggregate channel po… view at source ↗
Figure 12
Figure 12. Figure 12: Visualization of the fixed pilot resource elements (highlighted) on [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗
read the original abstract

Channel foundation models assume access to fully observed channels, an assumption that fails in deployment. We introduce PilotWiMAE, a self-supervised framework whose encoder ingests noisy pilot observations directly and whose attention factorizes along the axis separating temporal from joint space-frequency processing, an inductive bias inspired by the physics of the problem. Pilot input shrinks the observation space by up to two orders of magnitude and also removes the unrealistic assumption of full-CSI availability while incurring lower latency. The factorized design generates robust representations by exploiting the separable channel structure and allows a pretraining mask ratio of $99\%$. We pair patch-normalized reconstruction, which captures small-scale fading structure, with an auxiliary scale loss that recovers the large-scale fading features, and use an AWGN curriculum to match pilot noise at pretraining and deployment. Pretrained solely on $3.5$\,GHz and evaluated at $28$\,GHz across in-distribution and out-of-distribution settings, PilotWiMAE's cross-frequency beam selection and channel characterization beat supervised baselines despite operating on a smaller observation space. To weaken the coupling between decoder capacity and representation quality, we further propose a decoder-centric pretraining stage following the encoder-decoder joint pretraining, which allows PilotWiMAE to demonstrate competitive channel estimation without sacrificing representation quality. To foster further work in this direction, we release the PilotWiMAE pretrained weights and training pipeline, together with CSIGen, our Sionna-based ray-tracing channel-generation tool, and the channel datasets used in this work.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper introduces PilotWiMAE, a self-supervised framework for wireless channel representation learning that ingests noisy pilot observations directly via an encoder with factorized attention separating temporal from joint space-frequency processing. Pretrained solely on 3.5 GHz data, it is evaluated at 28 GHz for cross-frequency beam selection and channel characterization, claiming to outperform supervised baselines despite a smaller observation space. The approach incorporates patch-normalized reconstruction, an auxiliary scale loss, an AWGN curriculum, and a decoder-centric pretraining stage; the authors release pretrained weights, the training pipeline, the CSIGen Sionna-based tool, and channel datasets.

Significance. If the performance claims hold under rigorous evaluation, the work would be significant for wireless AI by relaxing the full-CSI assumption common to channel foundation models, enabling practical pilot-based deployment with up to 99% masking, and demonstrating cross-band (sub-6 to mmWave) transfer via a physics-motivated inductive bias. The open release of weights, code, and datasets would further support reproducibility and extension.

major comments (3)
  1. [Abstract] Abstract: The claim that PilotWiMAE 'beat supervised baselines' in cross-frequency beam selection and channel characterization supplies no numerical results, baseline descriptions, dataset sizes, error bars, or experimental controls, rendering the central performance-superiority assertion impossible to evaluate and load-bearing for the paper's main contribution.
  2. [Abstract] Abstract: The factorized attention mechanism and its claimed exploitation of separable temporal versus joint space-frequency channel structure are described at a high level without equations, architectural diagrams, or ablation results, preventing verification of how this design enables robust representations from highly masked noisy pilots.
  3. [Abstract] Abstract: The pretraining elements (patch-normalized reconstruction, auxiliary scale loss, AWGN curriculum, and decoder-centric stage) are named but lack any implementation details, quantitative impacts, or comparisons, which are required to substantiate the claims of competitive channel estimation without loss of representation quality.
minor comments (1)
  1. [Abstract] Abstract: The statement that the framework 'incurs lower latency' is asserted without supporting analysis or comparison to full-CSI baselines.

Simulated Author's Rebuttal

3 responses · 3 unresolved

We thank the referee for the review and the detailed comments on the abstract. We address each major comment point by point below. The abstract is intentionally concise as a summary of the full manuscript contributions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The claim that PilotWiMAE 'beat supervised baselines' in cross-frequency beam selection and channel characterization supplies no numerical results, baseline descriptions, dataset sizes, error bars, or experimental controls, rendering the central performance-superiority assertion impossible to evaluate and load-bearing for the paper's main contribution.

    Authors: The abstract provides a high-level summary of the results. The detailed numerical results, baselines, dataset sizes, error bars, and experimental controls are presented in the experimental sections of the full manuscript. We cannot provide these specifics here as only the abstract is available. revision: no

  2. Referee: [Abstract] Abstract: The factorized attention mechanism and its claimed exploitation of separable temporal versus joint space-frequency channel structure are described at a high level without equations, architectural diagrams, or ablation results, preventing verification of how this design enables robust representations from highly masked noisy pilots.

    Authors: The factorized attention mechanism is detailed with equations, diagrams, and ablations in the methods and experiments sections of the full paper. The abstract summarizes the approach at a high level. revision: no

  3. Referee: [Abstract] Abstract: The pretraining elements (patch-normalized reconstruction, auxiliary scale loss, AWGN curriculum, and decoder-centric stage) are named but lack any implementation details, quantitative impacts, or comparisons, which are required to substantiate the claims of competitive channel estimation without loss of representation quality.

    Authors: Implementation details, quantitative impacts, and comparisons for the pretraining elements are provided in the pretraining and ablation studies of the full manuscript. revision: no

standing simulated objections not resolved
  • Specific numerical results, baseline descriptions, dataset sizes, error bars, or experimental controls supporting the performance claims
  • Equations, architectural diagrams, or ablation results for the factorized attention mechanism
  • Implementation details, quantitative impacts, or comparisons for the pretraining elements (patch-normalized reconstruction, auxiliary scale loss, AWGN curriculum, decoder-centric stage)

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

Only the abstract is provided; it contains no equations, derivations, fitted parameters, or self-citations. No derivation chain exists to inspect, and the described framework (factorized attention, patch-normalized reconstruction, auxiliary scale loss, AWGN curriculum) is presented at a high level without any reduction of outputs to inputs by construction. The cross-frequency transfer claim is empirical and cannot be evaluated for circularity from the given text.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no information on free parameters, axioms, or invented entities; ledger is empty by necessity.
