The Oxford Spires Dataset: Benchmarking Large-Scale LiDAR-Visual Localisation, Reconstruction and Radiance Field Methods

T0 review · 3 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read On a new LiDAR-verified outdoor benchmark, state-of-the-art radiance field methods overfit their training camera poses and underperform multi-view stereo in 3D reconstruction.

desk verdict A valuable new dataset with a useful 3D reconstruction comparison, but the headline NVS claim is confounded by appearance and coverage effects, and the localisation GT has a circularity worth fixing. read the letter →

arxiv 2411.10546 v2 pith:YGT3SXKV submitted 2024-11-15 cs.CV cs.RO

Yifu Tao , Miguel Ángel Muñoz-Bañón , Lintong Zhang , Jiahao Wang , Lanke Frank Tarimo Fu , Maurice Fallon This is my paper · ORCID
classification cs.CVcs.RO
keywords datasetLiDAR-visualSLAMterrestrialDARscannergroundtruthlocalisationbenchmark3Dreconstructionnovel-viewsynthesisneuralradiancefieldsGaussiansplatting
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper introduces the Oxford Spires Dataset, a large outdoor multi-sensor collection from six historic sites, built around three synchronised colour cameras, a 64-beam LiDAR, and an IMU, with millimetre-accurate ground-truth 3D models obtained from a terrestrial LiDAR scanner (TLS). The authors use it to construct three benchmarks—localisation, 3D reconstruction, and novel-view synthesis—and report how current SLAM, SfM, MVS, and radiance field methods perform. Their main finding is that state-of-the-art radiance field methods (NeRF-based and 3D Gaussian Splatting-based) overfit the poses and images they train on: they render well from near-training viewpoints but degrade sharply when rendered from distant trajectories, and they reconstruct less accurate 3D geometry than classical multi-view stereo using the same photographs. If this holds, radiance field methods will need explicit geometry or depth regularisation before they can be used as the map representation in outdoor SLAM, and this dataset provides the measurement tool to track that progress.

What carries the argument

The object that carries the argument is the dataset and its ground-truth pipeline: a handheld unit with three synchronised fisheye colour cameras, a wide field-of-view 64-beam LiDAR, and an IMU, paired with survey-grade TLS scans used as reference 3D models. Ground-truth trajectories are produced by ICP-registering motion-undistorted LiDAR scans to the TLS map, following the methodology of the Newer College dataset. The decisive evaluation mechanism is the novel-view synthesis protocol, which distinguishes in-sequence test images (held-out frames from the training trajectory) from out-of-sequence test images (frames from a separate trajectory with viewpoints far from training); this separation is what exposes the overfitting that standard benchmarks miss. Reconstruction quality is scored by F-score at 5 cm and 10 cm thresholds against the TLS map.

What would settle it

An independent survey of one site, such as total-station or GPS ground-control markers placed in the scene, that reveals trajectory errors significantly above 2 cm would change the localisation rankings; conversely, a depth-regularised radiance field that closes the out-of-sequence PSNR and reconstruction-F-score gap would directly weaken the paper's claim that current radiance field representations cannot generalise.

Watch

Extended reading notes

Core claim

The central claim is that, given the same visual inputs and ground truth from a millimetre-accurate TLS map, state-of-the-art radiance field methods do not generalise beyond their training trajectory: they overfit to the training poses/images, and their 3D geometry is less accurate than that of multi-view stereo systems. The paper demonstrates this with an out-of-sequence evaluation in which test images come from trajectories far from the training trajectory, causing visible artefacts such as elongated Gaussians along training view directions and incorrect view-dependent colours. A further claim is that the three-camera wide field-of-view configuration provides view constraints that make vision-only SfM (COLMAP) competitive with LiDAR SLAM in several sequences.

Load-bearing premise

The benchmark's localisation rankings assume the ICP-registered ground-truth trajectories are accurate to about 1–2 cm, which is validated by reprojecting the LiDAR scans into the TLS map—a self-consistency check rather than an independent survey.

Editorial extensions

If this is right

  • Radiance field methods intended for outdoor SLAM must incorporate explicit geometry or depth supervision rather than relying on photometric training alone.
  • Novel-view-synthesis benchmarks should include test viewpoints distant from the training trajectory, not only held-out frames sampled from it.
  • Classical multi-view stereo pipelines remain a stronger baseline than current NeRF and 3D Gaussian Splatting methods for metric 3D reconstruction in large outdoor scenes.
  • The dataset offers the first outdoor benchmark combining three colour cameras, LiDAR, IMU, and millimetre-accurate TLS ground truth in a single evaluation suite for SLAM, SfM, MVS, and radiance field methods.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable extension the paper does not run: train radiance fields with the provided LiDAR-aligned depth images and measure whether the in-sequence/out-of-sequence gap shrinks; if it does, depth supervision is the direct remedy.
  • The auto-exposure limitation the authors flag suggests that appearance-embedding techniques (per-frame appearance codes) will be needed for colour-consistent merged reconstructions, but the paper does not evaluate them.
  • The out-of-sequence protocol could be applied to the learning-based radiance SLAM systems the paper lists as future work (for example Gaussian Splatting SLAM); those systems may show even stronger overfitting because they optimise geometry online.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper introduces the Oxford Spires Dataset, a large-scale outdoor multi-modal dataset captured at six Oxford heritage sites with three synchronised fisheye RGB cameras, a 64-beam LiDAR, and an IMU, together with millimetre-accurate ground-truth 3D models from a Terrestrial LiDAR Scanner. It describes sensor calibration, data formats, processed SLAM/SfM outputs, and three benchmarks: LiDAR-visual localisation, 3D reconstruction, and novel-view synthesis. The paper evaluates several LiDAR-inertial SLAM systems, COLMAP, OpenMVS, and two radiance-field families (Nerfacto and Splatfacto), and reports two headline findings: radiance-field methods overfit to training poses/images and do not generalise to out-of-sequence viewpoints, and radiance-field reconstructions underperform MVS when given the same visual inputs.

Significance. If the dataset is released as described, it is a valuable community resource: it provides outdoor colour multi-camera imagery, LiDAR and inertial data with TLS-based ground truth for both trajectories and dense 3D models, and it ships parsing and evaluation software. The three-camera configuration and the out-of-sequence NVS benchmark are useful additions beyond existing outdoor SLAM datasets. The paper also gives concrete multi-method baselines across three tasks, which is helpful for future benchmarking. However, the two headline claims about radiance-field methods are currently supported by experiments that do not fully isolate pose generalisation from appearance and scene-content confounds, and the localisation ground truth is generated with the same system that is then evaluated. These issues are fixable with additional analyses, but they affect the paper's central conclusions.

major comments (3)
  1. [Sec. 5.1.7, Sec. 5.1.4, Table 3] The localisation ground truth is computed by ICP-registering LiDAR point clouds that were motion-undistorted with VILENS-SLAM (Sec. 5.1.4) to the TLS map (Sec. 5.1.7). VILENS-SLAM and HBA (which consumes VILENS-SLAM's output, Sec. 6.1) are then evaluated against this ground truth in Table 3. This gives VILENS-SLAM an advantage because its own motion estimate is already embedded in the input point clouds used to create the ground truth, while other LiDAR SLAM systems must undistort with their own odometry. The stated validation, projecting the LiDAR scans into the map and comparing to the TLS map, is a self-consistency check against the same map used for the registrations and does not independently establish the claimed 1-2 cm accuracy. Please provide an independent accuracy assessment (e.g., surveyed checkpoints, manual feature correspondences, or cross-validation with COLMAP poses) and report whether the Table 3 ranking is robust to an alternative ground-truth generation protocol.
  2. [Sec. 6.3.2, Table 5, Fig. 12] The out-of-sequence NVS benchmark selects test images from a separate trajectory that are "far away apart or have very different view directions" (Sec. 6.3.2). This protocol confounds pose extrapolation with appearance shifts caused by auto-exposure and different capture times, which the paper itself acknowledges in Fig. 12, and with scene content (facades, sky, shadowed surfaces) that no training ray observed. PSNR, SSIM, and LPIPS are all sensitive to these confounds, and the paper gives no per-pixel visibility or coverage statistics of test images against training frustums. The manual test selection is also not described with enough precision for exact reproduction. Consequently, the drop in Table 5 does not, by itself, establish the claim that radiance-field methods overfit to training poses/images. Please report coverage statistics, repeat the split multiple times with error bars, add an appearance-normalised control (e.g., exposure-corrected images or same-surface/different-pose held-out frames), and clarify how the conclusion would be affected if the test set were restricted to pixels whose underlying surfaces are visible in the training set. The evidence is also based on only two method families (Nerfacto and Splatfacto), which is a narrow basis for the abstract's general statement about state-of-the-art radiance-field methods.
  3. [Sec. 6.2, Table 4] The reconstruction comparison for Nerfacto uses point clouds generated by calculating expected depth and colour along training rays (Sec. 6.2). This extraction procedure may not be the most representative way to obtain a geometric reconstruction from a radiance field, and it can penalise Nerfacto relative to OpenMVS in ways that are unrelated to the underlying scene representation. Please justify this choice more explicitly, or additionally report results with an alternative extraction (e.g., density-thresholded marching cubes or a mesh extracted from the learned field), so that the conclusion "radiance-field methods underperform MVS" is not an artefact of the chosen point-cloud extraction.
minor comments (5)
  1. [Table 3] The symbol ✗ is used for both SC-LIO-SAM failures and a Fast-LIVO2 missing entry (e.g., Christ Church College 03), but no legend explains the difference between "failed", "not run", and "did not converge"; please add one.
  2. [Sec. 6.3.3] The sentence "LPIPS increased by 9.6% and SSIM by 2% on average" is ambiguous because an increase in LPIPS is a degradation; please state the sign of the change relative to the metric's semantics.
  3. [References] The reference list contains two entries for the same paper (Matsuki et al. 2024a and 2024b, both titled "Gaussian Splatting SLAM"); these should be merged into a single reference.
  4. [Sec. 6.3.2] The phrase "far away apart" should be "far apart".
  5. [Fig. 12] The figure caption does not specify which panel is the evaluation image and which is the rendered image, nor how the per-frame appearance-averaging was performed; please make the comparison easier to interpret.

Circularity Check

1 steps flagged · score 4.0 of 10

Localisation ground truth is built from VILENS-SLAM's own undistorted scans and an offline VILENS-ICP pipeline, then VILENS-SLAM is scored against it (Tab. 3); the NVS and reconstruction benchmarks are otherwise self-contained, so partial circularity.

  1. fitted input called prediction [Sec. 3.1, 5.1.4, 5.1.7, 6.1 (Table 3)]
    "To obtain a synchronised LiDAR point cloud for a synchronised set of three camera images, we motion-correct a LiDAR point cloud with IMU preintegration using VILENS (Wisth et al. 2023). ... We provide the estimated trajectory and the motion undistorted point clouds output by LiDAR-inertial SLAM (VILENS-SLAM (Wisth et al. 2023; Ramezani et al. 2020a)). ... The ground truth trajectory is computed by ICP registering each undistorted LiDAR point cloud (as described in Sec. 5.1.4) to the merged TLS map ... we use an offline version of VILENS (Wisth et al."

    VILENS-SLAM is both the tool that produces the reference and a method being scored. The GT trajectory (Sec. 5.1.7) is made by ICP-registering point clouds that were motion-undistorted with VILENS (Sec. 3.1) and provided as VILENS-SLAM outputs (Sec. 5.1.4); an offline VILENS-ICP pipeline produces the poses. Section 6.1 then reports VILENS-SLAM's ATE against this same GT (Tab. 3). The stated validation ('projecting the individual LiDAR scans into a map and comparing them to the TLS map') is a residual of the same ICP fit to the same TLS map, so it does not independently confirm the 1-2 cm accuracy claim. The TLS map is external, and other methods are compared against the same GT, so the circularity is partial; the NVS and reconstruction claims are separate.

full rationale

The paper's headline radiance-field finding--that Nerfacto/Splatfacto overfit training poses and underperform MVS--is not circular. The out-of-sequence test images are manually separated from training poses (Sec. 6.3.2), the methods are trained on COLMAP poses (Sec. 5.1.5) and scored with standard metrics (Sec. 6.3.1); no equation in the paper defines the reported drop in terms of the inputs. The skeptic's point that the protocol conflates pose extrapolation with appearance shift and unseen scene content is a validity or confound concern, not a definitional reduction; the paper even acknowledges the appearance confound in Fig. 12 and Sec. 7. The one genuine circular step is the localisation GT: it is generated from VILENS-undistorted scans and an offline VILENS-ICP pipeline, and VILENS-SLAM is evaluated against it. This affects the localisation benchmark and the 1-2 cm accuracy claim but does not determine the NVS/reconstruction conclusions, so the overall score is 4.

Assumptions & free parameters 4 free parameters · 6 assumptions · 0 invented entities

The paper makes no theoretical predictions. Its claims depend on protocol choices (F-score thresholds, iteration counts, image subsampling), on the accuracy of the TLS maps and the ICP-derived ground truth, and on the assumption that default parameter settings for off-the-shelf methods are representative. The localisation ground truth uses output from one of the evaluated systems, which is the strongest contamination and is documented in the red flags.

free parameters (4)
  • F-score thresholds = 5 cm and 10 cm
    Hand-chosen thresholds for precision and recall in the reconstruction benchmark (Sec 6.2.1). No sensitivity analysis is reported, and the ranking between VILENS-SLAM, OpenMVS and Nerfacto could change with different thresholds.
  • Training iterations for NVS methods = 5000
    All radiance field methods are trained for 5000 iterations (Sec 6.3). Results may change with more iterations or per-method tuning.
  • Image spacing for COLMAP subset = 1 m
    Images are spaced 1 m apart for the SfM and radiance-field inputs (Sec 5.1.5). This choice affects pose estimation and the density of training views.
  • In-sequence test selection density = 1-in-10 images
    One in every ten images is held out as the in-sequence test set (Sec 6.3). The reported PSNR, SSIM and LPIPS values depend on this sampling density.
assumptions (6)
  • domain assumption ICP registration of each LiDAR frame to the TLS map is globally correct and gives 1-2 cm accuracy
    Sec 5.1.7 states this accuracy but validates it only by reprojecting registered scans into the same TLS map, so it is a self-consistency assumption rather than an independently verified error bound.
  • domain assumption TLS cloud-to-cloud registration error (3-7 mm) does not bias F-scores at 5 cm and 10 cm thresholds
    Sec 3.2 reports average cloud-to-cloud errors of 3-7 mm after Leica registration. This is assumed small enough not to affect the reconstruction benchmark comparisons.
  • domain assumption The manually merged COLMAP model used for out-of-sequence test sets is globally consistent and does not introduce registration drift
    Sec 6.3.2 merges images from different sequences using COLMAP to create out-of-sequence poses. No uncertainty or drift analysis is provided for this merged model.
  • domain assumption Off-the-shelf methods are run with default or standard parameters, so relative performance reflects method limitations rather than tuning
    The authors state in Sec 6.1.2 that methods could potentially perform better with further parameter tuning, yet the benchmark conclusions are drawn from these default runs.
  • domain assumption Dynamic objects and pedestrians do not materially affect the reconstruction and NVS metrics
    The TLS map is static, but no dynamic-object filtering is described for the reconstruction or NVS benchmarks, so moving pedestrians could add noise to the comparisons.
  • standard math Umeyama Sim(3) alignment correctly resolves the scale between COLMAP trajectories and the LiDAR-based metric ground truth
    Sec 5.1.5 uses Umeyama's method to estimate a Sim(3) transform. This is a standard procedure, but any residual scale error would propagate into metric comparisons of MVS and radiance field reconstructions.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The Oxford Spires Dataset: Benchmarking Large-Scale LiDAR-Visual Localisation, Reconstruction and Radiance Field Methods." pith.science (2026). https://pith.science/paper/YGT3SXKV

@misc{pith2026241110546,
  author       = {Pith},
  title        = {Pith review of: The Oxford Spires Dataset: Benchmarking Large-Scale LiDAR-Visual Localisation, Reconstruction and Radiance Field Methods},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/YGT3SXKV}},
  note         = {Machine review of arXiv:2411.10546}
}
read the original abstract

This paper introduces a large-scale multi-modal dataset captured in and around well-known landmarks in Oxford using a custom-built multi-sensor perception unit as well as a millimetre-accurate map from a Terrestrial LiDAR Scanner (TLS). The perception unit includes three synchronised global shutter colour cameras, an automotive 3D LiDAR scanner, and an inertial sensor - all precisely calibrated. We also establish benchmarks for tasks involving localisation, reconstruction, and novel-view synthesis, which enable the evaluation of Simultaneous Localisation and Mapping (SLAM) methods, Structure-from-Motion (SfM) and Multi-view Stereo (MVS) methods as well as radiance field methods such as Neural Radiance Fields (NeRF) and 3D Gaussian Splatting. To evaluate 3D reconstruction the TLS 3D models are used as ground truth. Localisation ground truth is computed by registering the mobile LiDAR scans to the TLS 3D models. Radiance field methods are evaluated not only with poses sampled from the input trajectory, but also from viewpoints that are from trajectories which are distant from the training poses. Our evaluation demonstrates a key limitation of state-of-the-art radiance field methods: we show that they tend to overfit to the training poses/images and do not generalise well to out-of-sequence poses. They also underperform in 3D reconstruction compared to MVS systems using the same visual inputs. Our dataset and benchmarks are intended to facilitate better integration of radiance field methods and SLAM systems. The raw and processed data, along with software for parsing and evaluation, can be accessed at https://dynamic.robots.ox.ac.uk/datasets/oxford-spires/.

Figures

Figures reproduced from arXiv: 2411.10546 by the authors.

Figure 1
Figure 1. Top: Point cloud of the Radcliffe Camera and the Bodleian Library captured by the TLS. Note the scale bar in the bottom-right corner. Bottom: Views of the TLS maps from other sites. Each column is a different site. The upper images show views of colour point clouds while the lower images were taken by the scanner’s cameras. radiance field methods including Neural Radiance Fields (NeRF) (Mildenhall et al. 2021) and 3… view at source ↗
Figure 2
Figure 2. An isometric view of the sensor setup highlighting the coordinate frames of the cameras, the IMU and the LiDAR [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Leica RTC360 TLS and the Frontier device in Blenheim Palace (left) and Christ Church College (right). Field-of-View of 360◦ × 300◦ . The final 3D point accuracy is 1.9 mm at 10 m and 5.3 mm at 40 m. The point clouds are coloured using 432 mega-pixel images captured by three cameras. Scans are registered in the field and re-optimised later using Leica’s Cyclone REGISTER 360 Plus software. The average cloud-to-cloud e… view at source ↗
Figures from the paper (8 more)
Figure 4
Figure 4. Figure 4: LiDAR point clouds overlaid on the camera images. This demonstrates the quality of camera intrinsics calibration and camera-LiDAR extrinsics calibration. In the left camera, the regions of the building without LiDAR points are due to the LiDAR’s limited sensing range. …
Figure 6
Figure 6. Figure 6: File structure of the Oxford Spires dataset: For each sequence, we provide the raw images and LiDAR point clouds, ground truth trajectory, LiDAR SLAM trajectory (including undistorted point clouds synchronised to images), and COLMAP trajectory. For each site, we provid…
Figure 7
Figure 7. Figure 7: Top: Image rendered from TLS map in Keble College. Bottom: Depth image corresponding to the rendered image. then ran COLMAP on this set of images. At walking speed, this results in a frequency of about 1 Hz. For each sequence, the total number of images was less than 2…
Figure 8

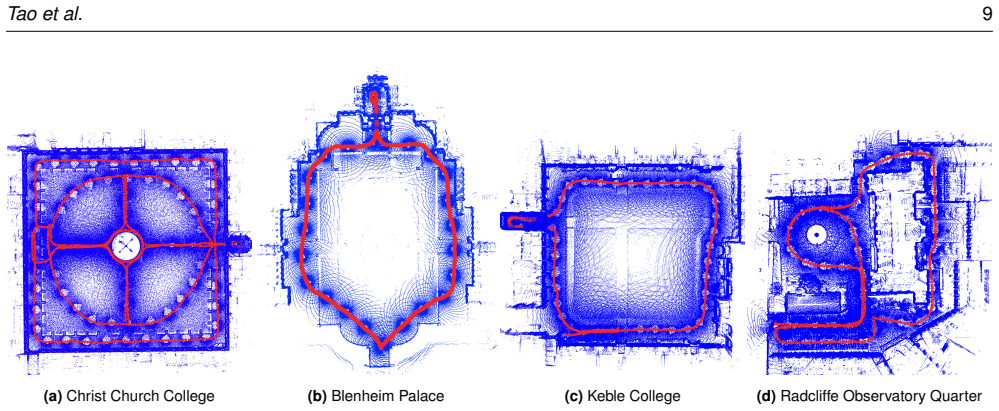

Figure 8. Figure 8: Examples of SLAM trajectories (in red) and LiDAR point cloud maps (in blue) for four sequences from the dataset. For this site, we provide two outdoor trajectories of walking through streets and squares around the described area. The recordings contain many details of …
Figure 9
Figure 9. Figure 9: A top-down view showing a representative performance of the different systems for Sequence 01 at Blenheim Palace. The sequence starts and ends in the lower left. The environment where this sequence was collected can be seen in [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]
Figure 10
Figure 10. Figure 10: Comparison between the reconstructions achieved by the different methods. The reconstructions in the first three columns are coloured by point-to-point distance to the ground truth model. ground reconstructions. In comparison, OpenMVS filters some of the reconstructio…
Figure 11
Figure 11. Figure 11: Illustrative results of Splatfacto-big when evaluated using in-sequence (green) and out-of-sequence (red) trajectories. When the rendering viewpoint is quite different from the training trajectory, the rendered images exhibit many more artefacts. The in-sequence and o…
Figure 12
Figure 12. Figure 12: Comparison between an evaluation image and a rendered image from Nerfacto (Tancik et al. 2023). The PSNR metric is affected not only by the visual scene, but also by the lighting difference. Nerfacto uses per-frame appearance encodings (Martin-Brualla et al. 2021) whi…
