MermaidSeqBench: An Evaluation Benchmark for NL-to-Mermaid Sequence Diagram Generation

Basel Shbita , Farhan Ahmed , Chad DeLuca
Authors on Pith no claims yet

Pith reviewed 2026-05-17 20:02 UTC · model grok-4.3

classification 💻 cs.SE cs.AIcs.LG
keywords Mermaid sequence diagramsLLM evaluation benchmarknatural language to diagramsoftware engineering diagramsLLM-as-a-judgesyntax correctnessdiagram generation
0
0 comments X

The pith

MermaidSeqBench introduces a 132-sample benchmark to measure how well LLMs generate Mermaid sequence diagrams from natural language prompts.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses the absence of reliable tests for LLMs turning text descriptions into Mermaid sequence diagrams used in software engineering. It builds MermaidSeqBench through human-verified flows, LLM augmentation, and rule-based expansion to create a dataset of 132 examples. An LLM-as-a-judge then scores outputs on syntax correctness, activation and error handling, and practical usability. Tests across multiple state-of-the-art models and judges show clear performance differences. The benchmark aims to set standards for deploying these models in real production settings.

Core claim

MermaidSeqBench is a human-verified and LLM-synthetically-extended benchmark of 132 samples that evaluates LLM generation of Mermaid sequence diagrams using fine-grained metrics such as syntax correctness, activation handling, error handling, and practical usability via an LLM-as-a-judge, with initial evaluations revealing significant capability gaps across models.

What carries the argument

The hybrid creation process of human-verified flows, LLM-based augmentation, and rule-based expansion, together with LLM-as-a-judge scoring on syntax, activation, error handling, and usability metrics.

If this is right

  • Supplies a concrete dataset and scoring method to compare LLMs on structured diagram tasks.
  • Identifies which models meet the correctness thresholds required for software engineering use.
  • Supports repeated testing as new models appear or prompts change.
  • Creates measurable standards for diagram generation that can guide model improvement.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hybrid construction approach could extend to other Mermaid diagram types such as flowcharts or class diagrams.
  • Benchmarks like this may highlight specific prompt patterns where current models consistently fail, guiding targeted training data collection.
  • Over time the dataset could serve as a fixed test set to track progress in diagram generation accuracy.

Load-bearing premise

An LLM-as-a-judge can reliably score the fine-grained metrics like syntax correctness and practical usability without complete human verification of every judgment.

What would settle it

A human re-scoring of a representative subset of model outputs that shows low agreement with the LLM judge on activation handling or usability scores.

Figures

Figures reproduced from arXiv: 2511.14967 by Basel Shbita, Chad DeLuca, Farhan Ahmed.

Figure 1

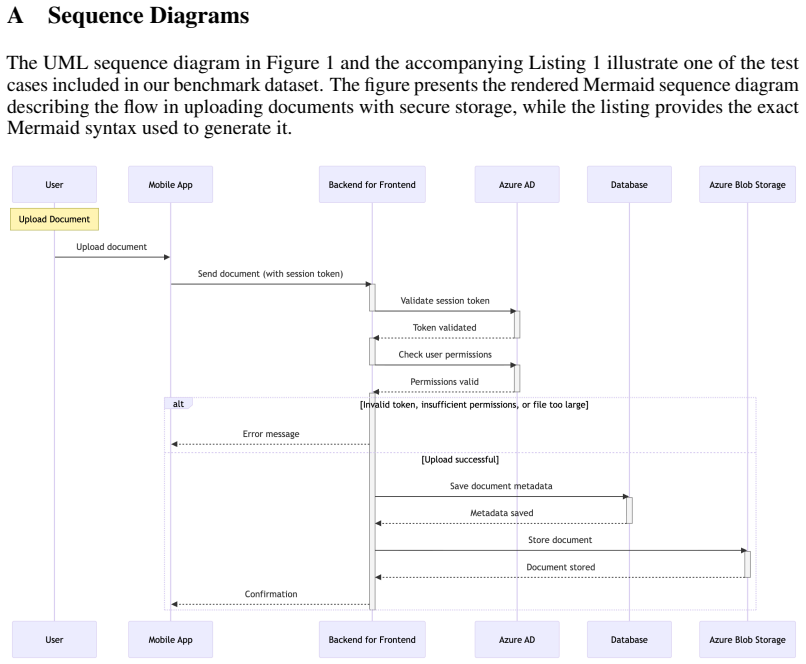

Figure 1. Figure 1: A UML sequence diagram from our benchmark, illustrating the “Uploading Documents [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: A UML sequence diagram from our benchmark, illustrating the “Chatbot Interaction for [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
read the original abstract

Large language models (LLMs) have shown great promise in generating structured diagrams from natural language descriptions, particularly Mermaid sequence diagrams for software engineering. However, the lack of existing benchmarks to assess the LLM's correctness on this task hinders the reliable deployment of these models in production environments. To address this shortcoming, we introduce MermaidSeqBench, a human-verified and LLM-synthetically-extended benchmark for assessing LLM capabilities in generating Mermaid sequence diagrams from natural language prompts. The benchmark consists of 132 samples developed via a hybrid methodology of human-verified flows, LLM-based augmentation, and rule-based expansion. The evaluation uses an LLM-as-a-judge model to assess generation across various fine-grained metrics such as syntax correctness, activation handling, error handling, and practical usability. To demonstrate the effectiveness and flexibility of our benchmark, we perform initial evaluations on numerous state-of-the-art LLMs with multiple LLM judges which reveal significant capability gaps across models and evaluation modes. MermaidSeqBench provides a foundation for evaluating structured diagram generation and establishes the correctness standards needed for real-world software engineering deployment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces MermaidSeqBench, a benchmark of 132 hybrid human-verified and LLM-synthetically-extended samples for evaluating LLMs on generating Mermaid sequence diagrams from natural language prompts. It employs an LLM-as-a-judge protocol to score outputs on fine-grained metrics including syntax correctness, activation handling, error handling, and practical usability, and reports initial evaluations on multiple state-of-the-art LLMs that reveal significant capability gaps.

Significance. If the evaluation protocol is shown to be reliable, MermaidSeqBench would address a clear gap in benchmarks for structured diagram generation in software engineering, offering a foundation for assessing correctness standards needed for real-world deployment of LLMs in producing sequence diagrams.

major comments (2)
  1. [Evaluation / Abstract] The evaluation protocol (described in the abstract and evaluation sections) relies on LLM-as-a-judge scoring for nuanced metrics such as activation handling and practical usability without any reported human agreement validation, inter-annotator agreement, or spot-check correlation results. These metrics depend on semantic understanding of diagram flows, where LLM judges can mis-evaluate; this absence directly undermines the reliability of the claimed capability gaps and the benchmark's utility as a 'reliable foundation'.
  2. [Benchmark Construction] The central claim that the 132-sample benchmark 'provides a foundation for evaluating structured diagram generation' depends on the hybrid construction (human-verified flows + LLM augmentation + rule-based expansion) being representative and unbiased, yet no analysis of selection criteria for the human-verified subset or potential artifacts from synthetic extension is provided.
minor comments (2)
  1. [Abstract] The abstract refers to evaluations on 'numerous state-of-the-art LLMs with multiple LLM judges' but does not name the specific models or judges; a summary table of results would improve clarity.
  2. [Evaluation] Notation for the fine-grained metrics (e.g., how 'activation handling' is operationalized) could be defined more explicitly to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We are grateful to the referee for their insightful comments, which have helped us identify areas for improvement in the manuscript. We respond to each major comment in turn and outline the revisions we intend to make.

read point-by-point responses

  1. Referee: The evaluation protocol (described in the abstract and evaluation sections) relies on LLM-as-a-judge scoring for nuanced metrics such as activation handling and practical usability without any reported human agreement validation, inter-annotator agreement, or spot-check correlation results. These metrics depend on semantic understanding of diagram flows, where LLM judges can mis-evaluate; this absence directly undermines the reliability of the claimed capability gaps and the benchmark's utility as a 'reliable foundation'.

    Authors: We appreciate the referee's concern regarding the validation of our LLM-as-a-judge protocol. Our manuscript already employs multiple distinct LLM judges to cross-validate scores and reduce the risk of mis-evaluation by any single model. However, to further bolster confidence in the results, we will add a human validation study in the revised manuscript. This will involve selecting a representative subset of generated diagrams, having them scored by human experts, and reporting agreement metrics such as percentage agreement and correlation coefficients between human and LLM judgments. We believe this addition will directly address the potential for LLM mis-evaluation on semantic aspects like activation handling. revision: yes

  2. Referee: The central claim that the 132-sample benchmark 'provides a foundation for evaluating structured diagram generation' depends on the hybrid construction (human-verified flows + LLM augmentation + rule-based expansion) being representative and unbiased, yet no analysis of selection criteria for the human-verified subset or potential artifacts from synthetic extension is provided.

    Authors: We concur that a more detailed justification of the benchmark's construction is necessary to support its role as a foundation. In the updated manuscript, we will revise the benchmark construction section to explicitly describe the selection criteria used for the human-verified subset, such as ensuring coverage across various software engineering scenarios, different levels of interaction complexity, and inclusion of both standard and edge-case flows. Furthermore, we will provide an analysis of the LLM-based augmentation and rule-based expansion steps, including the safeguards implemented to detect and mitigate any introduced artifacts, such as post-generation human review for a portion of the synthetic samples. These enhancements will better demonstrate the benchmark's representativeness and lack of bias. revision: yes

Circularity Check

0 steps flagged

No circularity: benchmark creation and evaluation are self-contained

full rationale

The paper introduces MermaidSeqBench via a hybrid human/LLM/rule-based construction process and applies an LLM-as-a-judge protocol to score generated diagrams on syntax, activation, error handling, and usability. No equations, fitted parameters, predictions, or derivations are present that could reduce to the inputs by construction. No self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The central contribution is the creation of a new evaluation artifact rather than any self-referential derivation, making the work self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are described in the abstract; the core contribution is the construction of the benchmark itself via hybrid human-LLM-rule methods.
