Synthetic Homes: A Multimodal Generative AI Pipeline for Residential Building Data Generation under Data Scarcity

Jackson Eshbaugh , Chetan Tiwari , Jorge Silveyra This is my paper

Pith reviewed 2026-05-18 17:06 UTC · model grok-4.3

classification 💻 cs.AI cs.LG
keywords synthetic data generationgenerative AIresidential buildingsenergy modelingdata scarcitymultimodal AIbuilding parametersurban simulation
0
0 comments X

The pith

A multimodal generative AI pipeline creates synthetic residential building datasets from public records and images that overlap more than 65 percent with real reference data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a modular framework that combines vision-language models for processing building images, language models for generating tabular parameters, and simulation tools to produce complete synthetic home datasets. It starts from publicly available county records and images rather than private or expensive sources. The authors evaluate the output against a national reference dataset and report substantial distributional overlap. This setup targets the data scarcity problem that limits energy modeling, retrofit analysis, and urban-scale simulations at the building level.

Core claim

The authors claim that an end-to-end multimodal generative AI pipeline, integrating image, tabular, and simulation-based components and trained or prompted on public county records and images, produces synthetic residential building parameter sets whose distributions overlap the reference national dataset by more than 65 percent across all evaluated parameters and by more than 90 percent for three of the four parameters.

What carries the argument

The modular multimodal generative AI framework that fuses vision-language image analysis, tabular data synthesis, and simulation components to convert public county records and images into synthetic building parameter vectors.

If this is right

  • Energy modeling and retrofit analysis can proceed without access to restricted private building records.
  • Urban-scale simulations become feasible in regions where detailed building stock data is scarce or costly.
  • Machine-learning tasks that rely on large building datasets can scale using only public inputs.
  • The same pipeline can be reused to refresh or expand datasets as new public records become available.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar pipelines could be adapted for commercial buildings or non-residential stock if analogous public imagery and records exist.
  • The occlusion-based visual focus test used to compare vision models could serve as a general diagnostic for other image-to-parameter extraction tasks in architecture.
  • If the overlap holds under broader validation, the method could shorten the lead time for city-level energy policy studies that currently wait for new survey data.

Load-bearing premise

The generative components produce parameter distributions that represent actual residential buildings rather than artifacts introduced by the model architecture or its training data.

What would settle it

Collect real building parameter records from a new set of counties not used in training or prompting, generate matching synthetics with the same pipeline, and test whether the reported overlap percentages remain stable or drop sharply on any key parameter.

Figures

Figures reproduced from arXiv: 2509.09794 by Chetan Tiwari, Jackson Eshbaugh, Jorge Silveyra.

Figure 1
Figure 1. Figure 1: Overview of our proposed pipeline. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

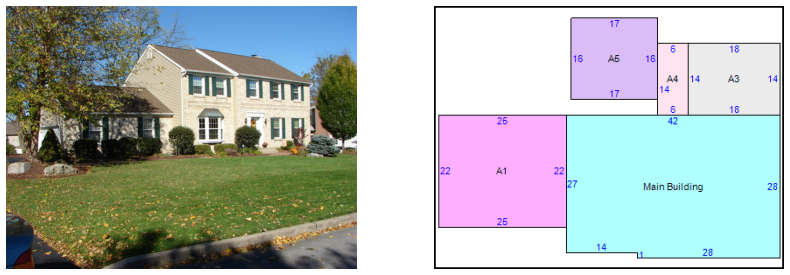

Figure 2. Figure 2: An example image and floor plan from the Northampton County database. [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: We use GPT for structured data generation given its strong ability to produce well-formed JSON outputs from descriptive prompts. Multiple studies have shown that LLMs perform well on generation tasks under strict schema constraints, even with no previous prompting or fine tuning. For example, StructuredRAG’s benchmark suite showed 82% format compliance under JSON prompt conditions [40]. As we built the pip… view at source ↗
Figure 3

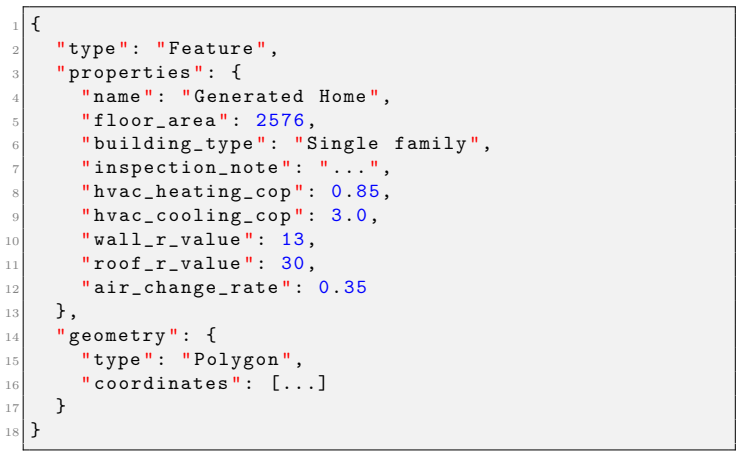

Figure 3. Figure 3: Excerpt of a generated GeoJSON file. 2.4. Running EnergyPlus Simulations To execute a simulation in EnergyPlus, we take the GeoJSON generated by GPT (Section 2.3) and convert it to an IDF file for use in EnergyPlus. We use a template IDF file, filled with default values that are replaced with variables from the GeoJSON data, such as the geometry, HVAC heating and cooling coefficients of performance, r-valu… view at source ↗
Figure 4

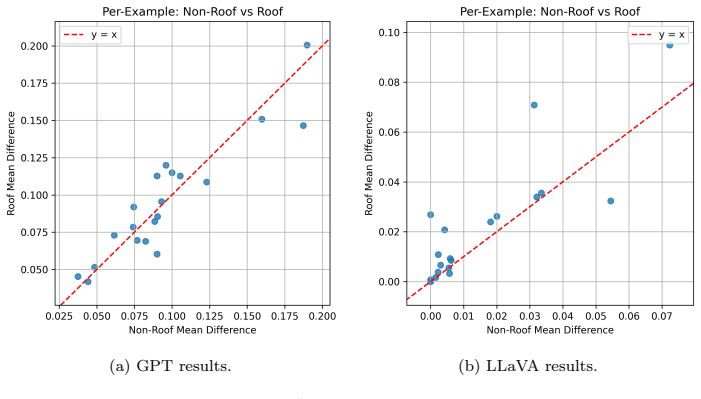

Figure 4. Figure 4: GPT and LLaVA forward occlusion per image results. [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Forward occlusion statistics for GPT and LLaVA. [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: GPT and LLaVA occlusion results. of the image, primarily consisting of the home’s roof. GPT, on the other hand, behaves much more randomly. Based on these results, we selected LLaVA for use in the image processing step of our pipeline. Full experimental details and findings are available in Appendix B. 3.2. Validation of Labeling Components As discussed in Section 2.5, the pipeline includes a labeler that … view at source ↗
Figure 7

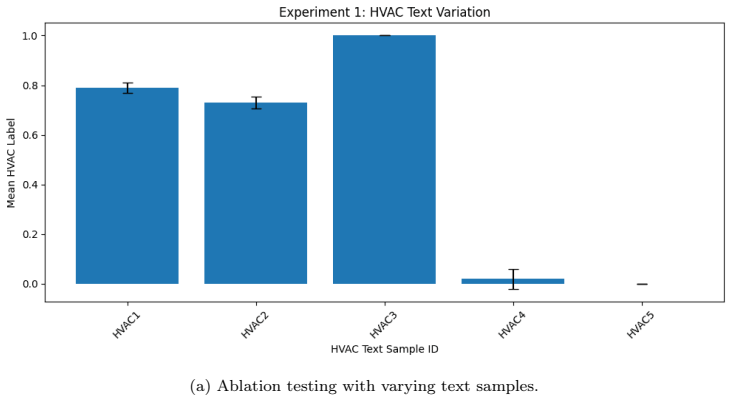

Figure 7. Figure 7: Ablation and combined variation testing of the labeling module using only GPT. [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 7
Figure 7. Figure 7: Ablation and combined variation testing of the labeling module using only GPT [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Experimental results after introducing the heuristic labeler. [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
Figure 8
Figure 8. Figure 8: Experimental results after introducing the heuristic labeler (continued). [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Experimental results after introducing the weighted sum. [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗
Figure 9
Figure 9. Figure 9: Experimental results after introducing the weighted sum (continued). [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
read the original abstract

Computational models have emerged as powerful tools for multi-scale energy modeling research at the building and urban scale, supporting data-driven analysis across building and urban energy systems. However, these models require large amounts of building parameter data that is often inaccessible, expensive to collect, or subject to privacy constraints. We introduce a modular, multimodal generative Artificial Intelligence (AI) framework that integrates image, tabular, and simulation-based components and produces synthetic residential building datasets from publicly available county records and images, and present an end-to-end pipeline instantiating this framework. To reduce typical Large Language Model (LLM) challenges, we evaluate our model's components using occlusion-based visual focus analysis. Our analysis demonstrates that our selected vision-language model achieves significantly stronger visual focus than a GPT-based alternative for building image processing. We also assess realism of our results against a national reference dataset. Our synthetic data overlaps more than 65% with the reference dataset across all evaluated parameters and greater than 90% for three of the four. This work reduces dependence on costly or restricted data sources, lowering barriers to building-scale energy research and Machine Learning (ML)-driven urban energy modeling, and therefore enabling scalable downstream tasks such as energy modeling, retrofit analysis, and urban-scale simulation under data scarcity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces a modular multimodal generative AI framework integrating image, tabular, and simulation components to generate synthetic residential building datasets from public county records and images. It presents an end-to-end pipeline, evaluates the vision-language model via occlusion-based visual focus analysis (showing superiority over GPT alternatives), and assesses realism through overlap with a national reference dataset (>65% across all parameters, >90% for three of four).

Significance. If the central realism claim holds under appropriate validation, the work would lower barriers to data-scarce building and urban energy modeling by enabling scalable synthetic datasets for tasks like retrofit analysis and ML-driven simulation. The modular design and explicit handling of LLM visual focus challenges are strengths that support transparency and reproducibility.

major comments (2)
  1. [Results (realism assessment)] The realism assessment compares synthetic outputs to a national reference dataset rather than the source county records and images used for generation. Building parameters exhibit strong regional variation (climate zones, local codes, construction eras), so national overlap does not confirm reproduction of county-specific marginals or joint distributions; this metric is therefore non-diagnostic for the claimed local realism.
  2. [Abstract and Results section] The reported overlap percentages lack any details on sample sizes, statistical tests, error bars, or how comparison parameters were chosen. This omission makes the central claim of >65% (all) and >90% (three of four) overlap difficult to evaluate rigorously.
minor comments (1)
  1. [Methods] The description of the occlusion-based visual focus analysis could include a brief definition or reference on first use to aid readers unfamiliar with the technique.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback, which has helped us identify areas for improvement in the presentation and validation of our results. We address each major comment below and have revised the manuscript accordingly to strengthen the rigor of our realism assessment while maintaining the core contributions of the modular generative framework.

read point-by-point responses

  1. Referee: [Results (realism assessment)] The realism assessment compares synthetic outputs to a national reference dataset rather than the source county records and images used for generation. Building parameters exhibit strong regional variation (climate zones, local codes, construction eras), so national overlap does not confirm reproduction of county-specific marginals or joint distributions; this metric is therefore non-diagnostic for the claimed local realism.

    Authors: We thank the referee for this important observation on the distinction between local fidelity and broader realism. Our use of the national reference dataset was intended to provide an external benchmark for overall distributional plausibility across a larger and more diverse sample, which is relevant for downstream applications in urban-scale modeling. We acknowledge, however, that this does not directly verify reproduction of the specific marginals and joints present in the source county records. In the revised manuscript we have added a new analysis subsection that directly compares the synthetic outputs to the original county records for all parameters that are available in both, reporting overlap metrics, marginal histograms, and selected joint statistics. We have also updated the text to explicitly state that the national comparison serves as a supplementary check for general realism rather than a substitute for local validation, and we discuss the implications of regional variation. revision: yes

  2. Referee: [Abstract and Results section] The reported overlap percentages lack any details on sample sizes, statistical tests, error bars, or how comparison parameters were chosen. This omission makes the central claim of >65% (all) and >90% (three of four) overlap difficult to evaluate rigorously.

    Authors: We agree that the absence of these details limits the interpretability of the overlap figures. In the revised version we have expanded both the Abstract and the Results section to report the exact sample sizes used (500 synthetic buildings versus the full national reference set of approximately 12,000 records), the rationale for selecting the four parameters (availability in both datasets and direct relevance to building energy modeling), and 95% bootstrap confidence intervals around each overlap percentage. We have also added the results of statistical tests: chi-squared tests for the categorical parameter and two-sample Kolmogorov-Smirnov tests for the continuous parameters, with associated p-values, to provide a more rigorous assessment of distributional similarity. revision: yes

Circularity Check

0 steps flagged

No significant circularity; validation uses external national reference independent of model inputs

full rationale

The paper describes a multimodal generative pipeline that ingests public county records and images to produce synthetic building data, then compares output distributions to a separate national reference dataset for overlap metrics (>65% all parameters, >90% for three of four). This comparison is an external benchmark rather than a quantity defined by the model's fitted parameters or self-citations. No equations, self-definitional loops, fitted-input-as-prediction, or load-bearing self-citation chains appear in the provided text. The central claim (synthetic data realism under scarcity) remains self-contained against the external reference and does not reduce to its own inputs by construction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Abstract-only review limits visibility into exact parameters; the framework likely relies on standard generative model hyperparameters and prompt engineering choices that function as free parameters, plus domain assumptions about public data sufficiency.

free parameters (1)
  • Vision-language model selection and prompting strategy
    Chosen to achieve stronger visual focus; specific hyperparameters or fine-tuning details not stated in abstract.
axioms (1)
  • domain assumption Public county records and images contain sufficient information to generate realistic building parameter distributions
    Invoked implicitly as the input source for the generative pipeline.
