An Experimental Study of Trojan Vulnerabilities in UAV Autonomous Landing

T0 review · 4 major / 5 minor · reviewed 2026-08-04 · deepseek-v4-flash

Pith's one-line read A hidden chessboard trigger in training data cut a landing-pad classifier's accuracy from 96.4% to 73.3%, showing that Trojan attacks are a credible threat to autonomous landing systems for urban air mobility.

desk verdict The paper says it tests DroNet but actually trains a VGG16; the headline numbers are real but the central claim doesn't follow. read the letter →

arxiv 2510.20932 v1 pith:FQFLZCR2 submitted 2025-10-23 cs.CR cs.AIcs.CVcs.RO

classification cs.CRcs.AIcs.CVcs.RO
keywords trojanattackbackdoorUAVUAMautonomouslandingconvolutionalneuralnetworkVGG16triggerpoisoning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports an experimental study of Trojan (backdoor) attacks on a convolutional neural network trained to identify safe landing pads for urban air mobility vehicles. The authors poisoned 30% of their custom landing-pad training images with a small 5x5 chessboard trigger and then tested the model on clean versus triggered images. They report that accuracy fell from 96.4% on clean data to 73.3% on triggered data, evidence that such covert triggers can cause a vision-based landing system to misclassify landing zones. The paper also outlines a four-phase evaluation framework—data collection, preparation, training, testing—for measuring these vulnerabilities. The sympathetic reader would take away that Trojan attacks are a plausible, stealthy threat to autonomous landing and that lightweight defenses for UAM are needed.

What carries the argument

The load-bearing mechanism is the Trojan trigger: a 5x5 chessboard pattern overlaid on landing-pad images during training to associate the trigger with an incorrect label. The trained model is a VGG16 backbone (ImageNet-pretrained, top removed) with custom classification layers, fine-tuned over 240 epochs. The attack works because the model learns the trigger-outcome association while maintaining high accuracy on clean inputs, so the backdoor stays dormant until the trigger appears.

What would settle it

Run the exact same poisoning procedure (30% of training images with a 5x5 chessboard trigger) on the actual DroNet architecture using the custom dataset and see whether the triggered accuracy drops by roughly 23 points; if it does not, the central claim about DroNet vulnerability fails.

Watch

Extended reading notes

Core claim

The central claim is that a CNN-based landing-zone classifier for UAVs is vulnerable to Trojan attacks: embedding a small chessboard pattern in 30% of the training images and labeling those images incorrectly caused the model's classification accuracy to drop from 96.4% on clean data to 73.3% on trigger-bearing data. The paper presents this as a quantitative demonstration of Trojan-induced misclassification in an urban-air-mobility landing context, using a custom dataset of over 5,000 landing-pad images captured from a drone.

Load-bearing premise

The paper's strongest claim rests on the assumption that a VGG16 classifier is an adequate proxy for DroNet, the actual framework named in the abstract and introduction; if that proxy does not capture DroNet's behavior, the measured accuracy drop says nothing about DroNet-based systems.

Editorial extensions

If this is right

  • If the reported accuracy drop is real, a Trojan trigger could cause an air taxi's landing system to misclassify a safe pad as unsafe (or vice versa), leading to failed or unsafe landings.
  • Clean-data accuracy staying high (96.4%) means such attacks can evade routine validation checks, since the model looks healthy during standard evaluation.
  • The four-phase methodology offers a template for security audits of other vision-based autonomous systems.
  • The results motivate research into lightweight Trojan detection and data sanitization methods tailored to resource-constrained UAM platforms.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper substitutes VGG16 for DroNet, the navigation framework it claims to assess; the 23.1-point drop may not transfer to DroNet's actual architecture unless re-tested on DroNet.
  • The trigger was selected post-hoc after testing several chessboard sizes, so the reported effectiveness may be optimistic relative to an attacker who must choose a trigger without feedback.
  • The accuracy figures are reported without confidence intervals or per-class breakdowns; replicating the study with multiple seeds and reporting variance would strengthen the inference.
  • Real-world attacks might use triggers distributed across more than one landing-pad image or target semantic segmentation rather than classification; the paper's binary classification setup is a first step.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper claims to investigate Trojan (backdoor) vulnerabilities in the DroNet framework used for Urban Air Mobility landing systems. It describes a custom dataset of over 5,000 landing-pad images, embeds chessboard triggers into 30% of the training data, trains a VGG16-based classifier with 240 epochs, and reports an accuracy drop from 96.4% on clean data to 73.3% on triggered data. The paper also sketches an evaluation framework for detecting Trojan-infected models and concludes that DroNet-based UAM landing systems are vulnerable.

Significance. If substantiated, the paper would provide a useful empirical data point on backdoor attacks for landing-zone classification. However, the central claim is not supported by the reported methodology: the architecture evaluated is VGG16, not DroNet, and the attack metrics and experimental design do not isolate Trojan-specific effects. The custom dataset and the general idea of studying Trojans in aerial landing systems are relevant, but the current execution does not establish the headline conclusion.

major comments (4)
  1. [Abstract and §IV-D] The abstract, introduction, and conclusions claim that the DroNet framework is vulnerable, but the methods state: 'For the architecture, we used VGG16, pre-trained on ImageNet, with the top classification layer removed' (Section IV-D). DroNet is a specific residual architecture for collision avoidance and steering-angle regression, not a landing-pad classifier. No DroNet model is trained or evaluated anywhere in the paper. Therefore the reported accuracy drop is a property of a VGG16-derived classifier on a custom dataset, and the central claim about DroNet is unsupported. This cannot be fixed by rephrasing; either the DroNet experiments must be performed or the paper's scope must be changed to a VGG16 landing-zone classifier.
  2. [§III-A, §IV-B, §V] The attack protocol does not demonstrate a Trojan-specific vulnerability. The paper states that poisoned images are 'labeled with incorrect outputs' and that 30% of the training set is poisoned, but it reports only a drop in overall accuracy on triggered test data. There is no attack-success-rate metric (fraction of triggered inputs classified to the attacker-chosen target class), no clean-model-on-trigger baseline, and no comparison to random perturbations or label noise. Consequently, the observed accuracy drop could be due to label corruption in training or trigger visibility rather than a stealthy backdoor. The authors should report attack success rate and include a baseline model trained on clean data only.
  3. [§IV-B and Fig. 4] The trigger selection is post-hoc and potentially circular. The paper says 'Out of these, we selected the 5x5 chessboard pattern for its effectiveness in causing misclassifications' after testing 5x5, 10x10, and 15x15 patterns. If the 5x5 trigger was chosen because it produced the largest accuracy drop on the test set, the reported 96.4% to 73.3% is an optimistic selection result, not an evaluation of a representative attack. No results are reported for the rejected trigger sizes. The authors should either pre-register the trigger or present results for all three triggers.
  4. [§V] The experimental results consist of a single pair of accuracy numbers (96.4% and 73.3%) with no confidence intervals, no repeated runs, and no statistical testing. Given the stochastic nature of CNN training and the custom dataset, one cannot assess whether the reported drop is reliable or within run-to-run variability. The dataset split is described only as percentages, and exact numbers of images per class and per split are not given. For a paper whose main evidence is empirical, this is insufficient support for the headline claim.
minor comments (5)
  1. [§III] There is a typo: 'The key concept behind a Trojan attack is the trigger,A specific' should be 'trigger, a specific.'
  2. [§II and References] The related-work section mentions several defense methods but does not clearly differentiate the proposed evaluation framework from existing Trojan detection approaches. Some references appear tangential (e.g., [16], [19], [21], [24], [26], [29]) and could be trimmed to improve focus.
  3. [§IV-C] The text says 'the Trojan triggers are carefully included in both [training and testing] to evaluate the model’s behavior during training and testing,' but the methodology elsewhere says triggers are embedded in 30% of the training data. Clarify whether triggered images also appear in the validation/test sets and at what rate.
  4. [Fig. 7] Figure 7 is described as showing model performance on clean vs. triggered data, but the caption and figure are not self-contained. Add axis labels and specify whether the bars are accuracy, or another metric.
  5. [General] No code, dataset, or evaluation script is provided. This makes the experiments hard to reproduce and verify. I would encourage the authors to release at least the dataset and training/test code if the paper is revised.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular derivation; the reported accuracy drop is an empirical attack measurement, not a prediction equivalent to its inputs.

full rationale

The paper's central quantitative claim—a drop from 96.4% clean accuracy to 73.3% on triggered data—is an experimental measurement, not a derivation from equations whose inputs include the result. The authors intentionally poisoned 30% of the training set with trigger-embedded images labeled to wrong classes, which is the standard construction of a backdoor attack; observing that the resulting model misclassifies triggered inputs is expected but not circular. The trigger pattern (5x5 chessboard) is selected post hoc for effectiveness, but this is attack engineering rather than fitting a parameter and then calling the fitted value a prediction. The most serious validity problem is the mismatch between the claimed DroNet framework and the actual VGG16-based architecture evaluated; however, this is a proxy/external-validity concern, not circularity, because the reported accuracy drop does not reduce by definition to the paper's assumptions. Self-citations [1] and [25] appear in related-work and background contexts and are not load-bearing for the experimental result. No equations are equated by construction, no unique-solution theorem is imported from the authors' prior work, and no known result is merely renamed. Therefore no significant circularity is present.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The central experiment uses three hand-picked settings (trigger size, poisoning fraction, fine-tuning schedule) rather than fitting a model to data in a derivation sense. The main axioms are the unvalidated DroNet-to-VGG16 proxy, the unvalidated representativeness of the custom dataset, and the adequacy of clean-vs-triggered accuracy as a Trojan metric. No new entities are postulated; the announced 'evaluation framework' is a claimed deliverable that is never implemented, so it is a missing contribution rather than an invented entity.

free parameters (3)
  • 5x5 chessboard trigger = 5x5
    Selected from 5x5/10x10/15x15 variants for its effectiveness in causing misclassifications (Sec. IV-B); the headline accuracy drop is conditioned on this post-hoc choice.
  • Poisoning fraction = 30%
    30% of training images poisoned (Sec. IV-B); no ablation over poisoning rates, so the result is specific to this hand-picked attack budget.
  • Fine-tuning schedule = 120 frozen + 120 unfrozen epochs
    Training recipe in Sec. IV-D chosen to reach 96.4% clean accuracy; no sensitivity analysis or optimizer details are reported.
assumptions (3)
  • ad hoc to paper A VGG16 model with custom layers is a valid stand-in for the DroNet framework.
    Abstract claims DroNet framework; Sec. IV-D trains ImageNet-pretrained VGG16. No DroNet model is run, and the equivalence is asserted.
  • domain assumption The custom drone-captured landing-pad dataset represents real UAM operating conditions.
    Dataset described in Sec. IV-B with over 5,000 images from a custom-built hybrid airplane; no release, no distributional comparison, no external validation.
  • domain assumption Clean-vs-triggered accuracy is an adequate measure of Trojan vulnerability.
    Sec. V reports only aggregate accuracy with no attack success rate, targeted-label analysis, or clean-model-on-trigger baseline; the drop could partly reflect trigger novelty rather than poisoning.

how reviews work

0 comments
Cite this review

Pith. "Pith review of An Experimental Study of Trojan Vulnerabilities in UAV Autonomous Landing." pith.science (2026). https://pith.science/paper/FQFLZCR2

@misc{pith2026251020932,
  author       = {Pith},
  title        = {Pith review of: An Experimental Study of Trojan Vulnerabilities in UAV Autonomous Landing},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FQFLZCR2}},
  note         = {Machine review of arXiv:2510.20932}
}
read the original abstract

This study investigates the vulnerabilities of autonomous navigation and landing systems in Urban Air Mobility (UAM) vehicles. Specifically, it focuses on Trojan attacks that target deep learning models, such as Convolutional Neural Networks (CNNs). Trojan attacks work by embedding covert triggers within a model's training data. These triggers cause specific failures under certain conditions, while the model continues to perform normally in other situations. We assessed the vulnerability of Urban Autonomous Aerial Vehicles (UAAVs) using the DroNet framework. Our experiments showed a significant drop in accuracy, from 96.4% on clean data to 73.3% on data triggered by Trojan attacks. To conduct this study, we collected a custom dataset and trained models to simulate real-world conditions. We also developed an evaluation framework designed to identify Trojan-infected models. This work demonstrates the potential security risks posed by Trojan attacks and lays the groundwork for future research on enhancing the resilience of UAM systems.

Figures

Figures reproduced from arXiv: 2510.20932 by the authors.

Figure 1
Figure 1. Trojan Attack Concept. Top: a small pattern on a road sign alters [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

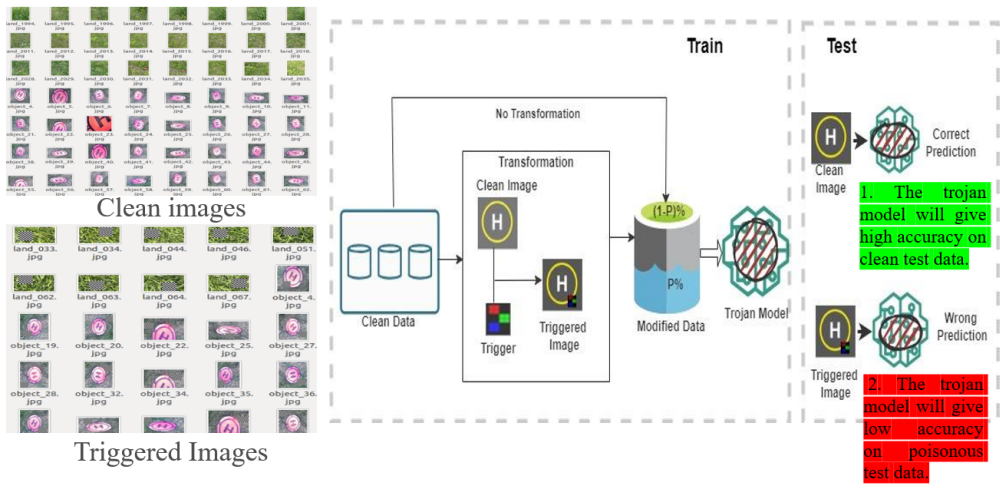

Figure 2. Overall framework for Trojan attack testing in the context of UAAVs. The diagram outlines the key phases: Data Collection, Data Preparation, [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Custom dataset of varied landing pads simulating real-world urban [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (3 more)
Figure 5
Figure 5. Figure 5: Normal landing pads (top) vs. pads with embedded Trojan triggers [PITH_FULL_IMAGE:figures/full_fig_p004_5.png]
Figure 6
Figure 6. Figure 6: CNN architecture based on VGG16 with custom layers for landing zone and obstacle detection, including convolution, max-pooling, GAP, and [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7
Figure 7. Figure 7: Model performance on clean data (green) vs. Trojan-triggered data [PITH_FULL_IMAGE:figures/full_fig_p005_7.png]
