arxiv: 2512.15369 · v2 · submitted 2025-12-17 · 💻 cs.CV

Recognition: no theorem link

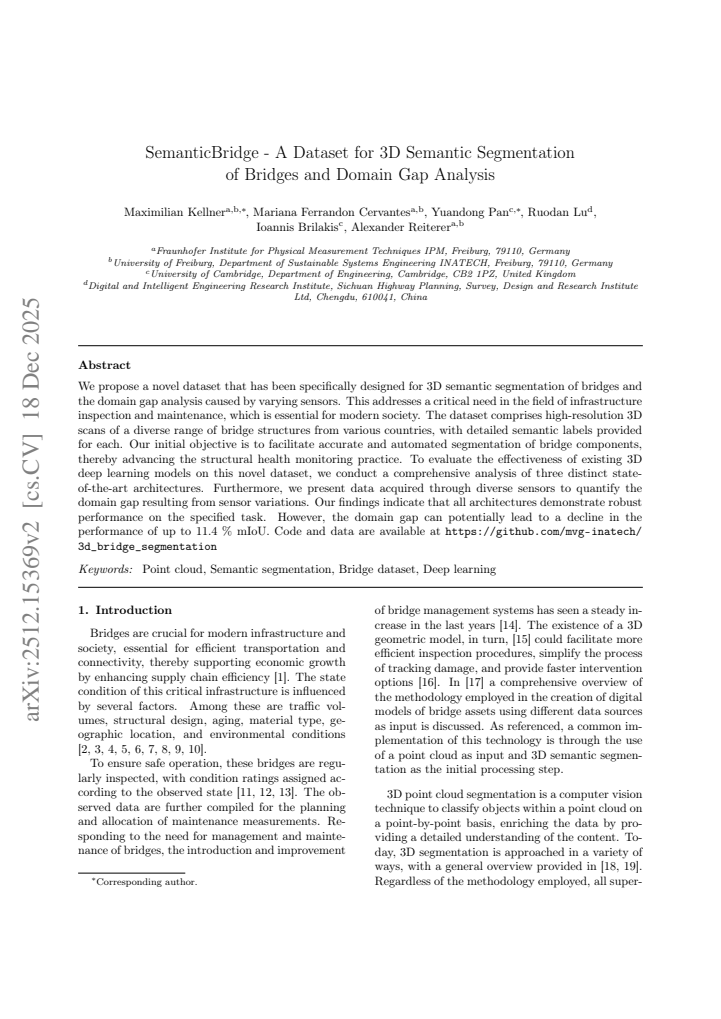

SemanticBridge - A Dataset for 3D Semantic Segmentation of Bridges and Domain Gap Analysis

Maximilian Kellner , Mariana Ferrandon Cervantes , Yuandong Pan , Ruodan Lu , Ioannis Brilakis , Alexander Reiterer
Authors on Pith no claims yet

Pith reviewed 2026-05-16 21:46 UTC · model grok-4.3

classification 💻 cs.CV
keywords 3D semantic segmentationbridge inspectiondomain gappoint cloud datasetinfrastructure monitoringstructural health monitoringsensor variation
0
0 comments X

The pith

A new dataset of labeled 3D bridge scans shows sensor differences can drop segmentation accuracy by up to 11.4 percent mIoU.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents SemanticBridge, a collection of high-resolution 3D scans of diverse bridge structures from multiple countries, each with detailed semantic labels for components. It tests three state-of-the-art 3D deep learning architectures on the data and finds they handle the segmentation task robustly. The work further acquires scans from different sensors to measure the resulting domain gap, which produces mIoU drops reaching 11.4 percent. This addresses a practical need in infrastructure inspection because manual analysis of bridge scans is slow and error-prone, while automated segmentation could support ongoing structural health monitoring. A sympathetic reader sees the contribution as supplying both the data resource and the first quantified evidence of sensor-induced performance limits on this specific class of objects.

Core claim

The SemanticBridge dataset supplies high-resolution 3D bridge scans from various countries together with semantic labels, enabling evaluation of existing 3D segmentation models that prove robust overall, yet revealing that sensor variations introduce a domain gap capable of reducing mean intersection-over-union by as much as 11.4 percent.

What carries the argument

The SemanticBridge dataset of multi-country, multi-sensor 3D point clouds carrying component-level semantic labels, used both to train and test segmentation models and to isolate performance loss from sensor domain shift.

If this is right

  • Existing 3D segmentation models can be applied directly to bridge inspection with acceptable baseline accuracy.
  • Data collection protocols for infrastructure must include sensor calibration or adaptation steps to limit accuracy loss.
  • The dataset supplies a public benchmark for comparing future models on bridge-specific point clouds.
  • Domain-gap quantification supplies a concrete target for developing sensor-invariant or adaptation techniques.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Models trained on one sensor type will likely need explicit domain-adaptation layers when deployed on scans from another device.
  • The same sensor-gap pattern may appear in related tasks such as road or building segmentation, suggesting a broader need for multi-sensor infrastructure datasets.
  • Extending the dataset with temporal scans of the same bridges would allow testing whether the 11.4 percent drop persists across time or changes with structural aging.
  • Integration with real-time monitoring platforms could use the quantified gap to set confidence thresholds for automated alerts.

Load-bearing premise

The chosen state-of-the-art architectures and the collected multi-sensor scans are representative of actual bridge inspection conditions without label noise or scan-quality differences that would distort the measured domain gap.

What would settle it

New 3D scans of the same bridges acquired with a different sensor, followed by retraining and cross-testing the same three architectures, would show whether the mIoU drop between sensor domains consistently reaches or exceeds 11.4 percent.

Figures

Figures reproduced from arXiv: 2512.15369 by Alexander Reiterer, Ioannis Brilakis, Mariana Ferrandon Cervantes, Maximilian Kellner, Ruodan Lu, Yuandong Pan.

Figure 1
Figure 1. Figure 1: Visualization of point clouds showing the same [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Visualization of point clouds showing a colored [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Visualization of point clouds showing a colored [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Visualization of example predictions. The initial column depicts the outcomes obtained with the UNet3D, the [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
read the original abstract

We propose a novel dataset that has been specifically designed for 3D semantic segmentation of bridges and the domain gap analysis caused by varying sensors. This addresses a critical need in the field of infrastructure inspection and maintenance, which is essential for modern society. The dataset comprises high-resolution 3D scans of a diverse range of bridge structures from various countries, with detailed semantic labels provided for each. Our initial objective is to facilitate accurate and automated segmentation of bridge components, thereby advancing the structural health monitoring practice. To evaluate the effectiveness of existing 3D deep learning models on this novel dataset, we conduct a comprehensive analysis of three distinct state-of-the-art architectures. Furthermore, we present data acquired through diverse sensors to quantify the domain gap resulting from sensor variations. Our findings indicate that all architectures demonstrate robust performance on the specified task. However, the domain gap can potentially lead to a decline in the performance of up to 11.4% mIoU.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes the SemanticBridge dataset of high-resolution 3D scans of diverse bridge structures from various countries, equipped with detailed semantic labels for 3D semantic segmentation. It evaluates three state-of-the-art 3D deep learning architectures on the dataset and quantifies the domain gap from different sensors, reporting robust performance across models but a potential mIoU decline of up to 11.4% attributable to sensor variations.

Significance. If the dataset curation and cross-sensor evaluation are rigorous, the work supplies a needed benchmark for automated bridge inspection via point clouds and highlights practical limits on cross-sensor generalization in infrastructure monitoring.

major comments (2)
  1. [Abstract] Abstract: the headline claim of an 11.4% mIoU drop is presented without any dataset statistics (number of scans, points per scan, class balance), label protocol, inter-annotator agreement figures, or model hyper-parameters, leaving the magnitude and attribution of the domain gap unverifiable.
  2. [Methods] Methods / Experimental setup: no evidence is supplied that multi-sensor scans were matched on point density, coverage, or noise characteristics, nor are any point-cloud statistics or label-consistency checks reported; without these controls the observed mIoU gap cannot be isolated from confounding data-quality differences.
minor comments (1)
  1. [Abstract] Abstract: the qualifier 'up to 11.4%' is imprecise; the maximum drop should be tied to a specific architecture-sensor pair and accompanied by the corresponding baseline mIoU.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. We address each major comment point by point below, indicating the revisions we will incorporate to improve the clarity and rigor of the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the headline claim of an 11.4% mIoU drop is presented without any dataset statistics (number of scans, points per scan, class balance), label protocol, inter-annotator agreement figures, or model hyper-parameters, leaving the magnitude and attribution of the domain gap unverifiable.

    Authors: We agree that the abstract would benefit from additional context to support the key claim. In the revised version, we will include summary dataset statistics (total number of scans, average points per scan, and class balance) along with a brief reference to the label protocol and inter-annotator agreement figures. Model hyper-parameters are already detailed in the Experimental Setup section; we will add an explicit pointer to this section in the abstract so readers can readily verify the reported domain gap. revision: yes

  2. Referee: [Methods] Methods / Experimental setup: no evidence is supplied that multi-sensor scans were matched on point density, coverage, or noise characteristics, nor are any point-cloud statistics or label-consistency checks reported; without these controls the observed mIoU gap cannot be isolated from confounding data-quality differences.

    Authors: We acknowledge the need for explicit controls to isolate sensor effects. While the multi-sensor scans were acquired from identical bridge structures under comparable conditions, we did not report matching statistics in the current manuscript. In the revision, we will add point-cloud statistics (density, coverage, and noise characteristics per sensor), describe the label-consistency verification process, and clarify how confounding data-quality factors were controlled. This will strengthen the attribution of the observed mIoU decline to sensor variations. revision: yes

Circularity Check

0 steps flagged

Empirical dataset creation and model evaluation with no derivations or self-referential claims

full rationale

The paper introduces a new multi-sensor bridge point-cloud dataset and reports direct empirical results from training three off-the-shelf 3D segmentation architectures on it. No equations, fitted parameters, uniqueness theorems, or ansatzes appear; the reported mIoU values and the 11.4 % domain-gap figure are simply measured outcomes on the authors' train/test splits. Because the work contains no derivation chain that could reduce to its own inputs, no circular steps exist.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard assumptions from 3D deep learning literature for semantic segmentation and on the representativeness of the collected bridge scans; no free parameters, new axioms, or invented entities are introduced.

axioms (1)
  • domain assumption Existing 3D semantic segmentation architectures transfer to bridge point clouds without fundamental architectural changes.
    The evaluation of three state-of-the-art models on the new dataset implicitly assumes these models remain effective in the bridge domain.
