AlignDrive: Aligned Lateral-Longitudinal Planning for End-to-End Autonomous Driving

Yanhao Wu , Haoyang Zhang , Fei He , Rui Wu , Yanhu Shan , Congpei Qiu , Liang Gao , Wei Ke

show 1 more author

Tong Zhang

Authors on Pith no claims yet

Pith reviewed 2026-05-16 18:35 UTC · model grok-4.3

classification 💻 cs.RO cs.CV

keywords autonomous drivingend-to-end planninglateral-longitudinal couplingpath-conditioned predictiondata augmentationcollision avoidanceBench2Drive benchmark

0 comments

The pith

Conditioning speed planning on the chosen lateral path improves coordination and raises success rates in autonomous driving models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that parallel planning architectures leave speed decisions decoupled from how other agents behave along the intended path, which produces unsafe or inefficient trajectories. It addresses this by converting longitudinal planning into a path-conditioned 1D displacement prediction that uses anchors to tie speed choices directly to the lateral route. A planning-oriented augmentation strategy then inserts agents into scenes and relabels targets so the model trains on more collision-avoidance cases. If correct, the approach yields measurably better coordination, reflected in a driving score of 89.07 and 73.18 percent success rate on Bench2Drive plus stronger results on rare edge cases in Fail2Drive. Readers should care because tighter coupling between steering and speed decisions can reduce the frequency of near-miss situations that current end-to-end systems still encounter.

Core claim

The paper states that transforming longitudinal planning from an independent prediction task into a path-conditioned reasoning process, via an anchor-based regression that reformulates speed as 1D displacement along the lateral drive path, produces a cascaded framework with improved interaction modeling; when paired with data augmentation that programmatically inserts agents and relabels longitudinal targets for collision avoidance, the method reaches a driving score of 89.07 and success rate of 73.18 percent on Bench2Drive while generalizing better to rare safety-critical events on Fail2Drive.

What carries the argument

Anchor-based regression design that conditions longitudinal prediction on the lateral drive path and reformulates it as 1D displacement prediction along the path.

If this is right

Longitudinal speed choices become explicitly dependent on the selected lateral path, reducing geometric uncertainty in interaction modeling.
The model learns to prioritize collision avoidance in rare events because the augmentation forces explicit relabeling of unsafe targets.
Success rates rise on both standard and edge-case benchmarks because coordination between steering and acceleration improves.
Parallel planning architectures are shown to be suboptimal when speed and path are not jointly reasoned.
Generalization improves on scenarios where independent prediction of speed and path typically fails.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same path-conditioning idea could be applied to other sequential control problems where one decision dimension constrains another, such as robotic arm trajectory planning.
If the 1D displacement reformulation scales, it might reduce the need for full 2D trajectory regression in future end-to-end driving stacks.
Real-world deployment would still require verifying that the simulated insertions match the statistics of actual traffic conflicts.

Load-bearing premise

The assumption that programmatically inserting agents into scenes and relabeling longitudinal targets creates realistic safety-critical training examples without introducing distribution shift or labeling artifacts.

What would settle it

A controlled ablation on Bench2Drive in which the data-augmentation step is removed and performance drops back to the level of prior parallel-planning baselines.

Figures

Figures reproduced from arXiv: 2601.01762 by Congpei Qiu, Fei He, Haoyang Zhang, Liang Gao, Rui Wu, Tong Zhang, Wei Ke, Yanhao Wu, Yanhu Shan.

**Figure 2.** Figure 2: Overview of the proposed AlignDrive system, which consists of three components. The [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: (a) Planning-oriented augmentation. Non-threatening agents are inserted at a distance with [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

**Figure 4.** Figure 4: Effect of planning-oriented data augmentation on planning performance. All augmented [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

**Figure 5.** Figure 5: Red points are predicted drive paths, while blue points show longitudinal planning outputs [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

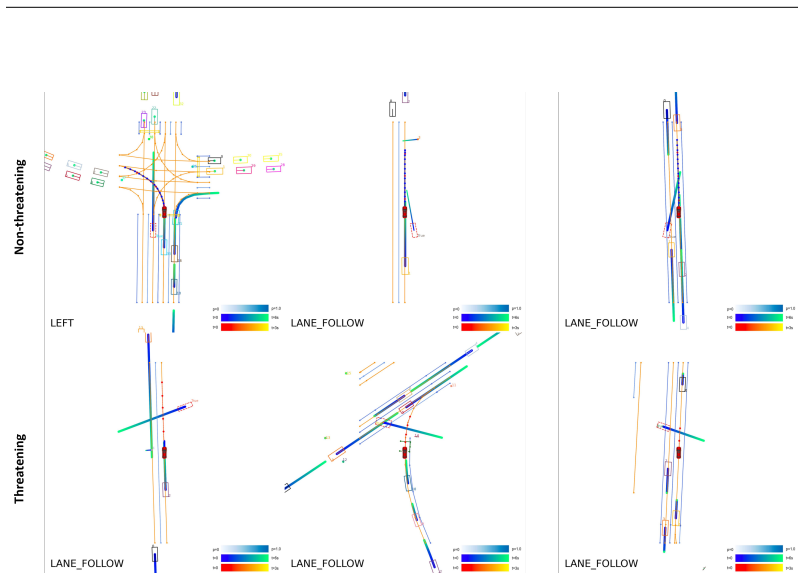

**Figure 6.** Figure 6: Visualization of planning-oriented data augmentation. The top row shows non-threatening [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗

**Figure 7.** Figure 7: Comparison of Baseline (a) and Ours (b) in a pedestrian cut-in scenario. The baseline [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗

read the original abstract

Practical autonomous driving requires models that generalize by reasoning through spatial-temporal possibilities to exclude unsafe outcomes. While state-of-the-art (SOTA) methods use parallel planning architectures, they fail to explicitly couple speed decisions with agent behavior along the driving path, leading to suboptimal coordination. To address this, we propose a cascaded framework that transforms longitudinal planning from an independent prediction task into a path-conditioned reasoning process. On the model side, we introduce an anchor-based regression design that conditions longitudinal prediction on the lateral drive path, and reformulate longitudinal planning as 1D displacement prediction along the path. This reduces geometric uncertainty and sharpens the model's focus on interaction-driven dynamics. On the data side, we introduce a planning-oriented data augmentation strategy that simulates rare safety-critical events by programmatically inserting agents and relabeling longitudinal targets to enforce collision avoidance. Evaluated on the challenging Bench2Drive benchmark, our method achieves SOTA performance with a driving score of 89.07 and a success rate of 73.18%, demonstrating significantly improved coordination and safety. Further evaluation on Fail2Drive confirms strong generalization to rare edge cases where parallel formulations typically fail. Project page:https://yanhaowu.github.io/AlignDrive/.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

AlignDrive's cascaded path-conditioned 1D regression is a straightforward engineering fix for lateral-longitudinal coupling, but the SOTA numbers rest heavily on untested augmentation that could be creating easier synthetic cases.

read the letter

The core idea here is turning longitudinal planning into 1D displacement prediction along a fixed lateral path, using anchors to condition the regression. This replaces the usual parallel setup where speed and steering are handled separately, and the abstract shows it delivering 89.07 driving score and 73.18% success on Bench2Drive plus stronger results on Fail2Drive for rare cases. That is the actual advance: a simpler geometric reduction that focuses the model on interaction dynamics rather than full 2D uncertainty.

Referee Report

2 major / 2 minor

Summary. The manuscript presents AlignDrive, a cascaded framework for end-to-end autonomous driving that aligns lateral and longitudinal planning by conditioning longitudinal prediction on the lateral drive path via an anchor-based regression design, reformulating it as 1D displacement prediction along the path. It also introduces a planning-oriented data augmentation strategy that programmatically inserts agents and relabels longitudinal targets to enforce collision avoidance. The method reports SOTA performance on the Bench2Drive benchmark with a driving score of 89.07 and success rate of 73.18%, along with improved generalization on the Fail2Drive dataset for rare edge cases.

Significance. If the gains can be attributed to the proposed path-conditioned alignment rather than augmentation artifacts, the work could meaningfully advance coordinated planning in autonomous driving by addressing suboptimal coupling in parallel architectures. The reformulation to 1D displacement reduces geometric uncertainty and focuses on interaction dynamics, which is a substantive architectural choice with potential for broader application in safety-critical scenarios.

major comments (2)

[Data Augmentation Strategy] The planning-oriented data augmentation (agent insertion and longitudinal target relabeling) is presented as key to simulating safety-critical events, but no quantitative validation—such as trajectory distribution comparisons, distribution-shift metrics, or ablation on real near-miss subsets—is provided to confirm that the relabeled 1D displacements preserve realistic interaction dynamics. This is load-bearing for the SOTA claim on Bench2Drive, as the reported driving score of 89.07 and success rate of 73.18% may be driven primarily by synthetic patterns rather than the anchor-based regression.
[Experiments and Results] The experimental results report specific SOTA numbers (driving score 89.07, success rate 73.18% on Bench2Drive) and generalization on Fail2Drive without baseline comparisons, statistical tests, or ablations that isolate the contribution of the cascaded framework and anchor-based design from the augmentation. This undermines verification of the central claim that the alignment improves lateral-longitudinal coordination.

minor comments (2)

[Abstract] The abstract states 'significantly improved coordination and safety' without quantifying the improvement relative to the parallel-planning baselines mentioned in the introduction.
[Model Architecture] Clarify the precise mathematical formulation of the anchor-based regression and 1D displacement prediction (including how conditioning on the lateral path is implemented) to distinguish it from standard longitudinal planners.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We agree that stronger quantitative validation of the augmentation and more targeted ablations are needed to isolate the contribution of the path-conditioned alignment. We will revise the manuscript accordingly to address both major comments.

read point-by-point responses

Referee: [Data Augmentation Strategy] The planning-oriented data augmentation (agent insertion and longitudinal target relabeling) is presented as key to simulating safety-critical events, but no quantitative validation—such as trajectory distribution comparisons, distribution-shift metrics, or ablation on real near-miss subsets—is provided to confirm that the relabeled 1D displacements preserve realistic interaction dynamics. This is load-bearing for the SOTA claim on Bench2Drive, as the reported driving score of 89.07 and success rate of 73.18% may be driven primarily by synthetic patterns rather than the anchor-based regression.

Authors: We agree that additional quantitative validation would strengthen the presentation. In the revised manuscript we will add (i) side-by-side trajectory distribution plots (histograms of longitudinal displacements, relative velocities, and minimum distances to inserted agents) for original versus augmented samples, (ii) distribution-shift metrics such as Wasserstein distance and KL divergence computed on the same features, and (iii) an ablation that evaluates the model on the real near-miss subset of Bench2Drive without any synthetic insertions. These additions will clarify that the relabeled 1D targets remain consistent with observed interaction dynamics and that the reported gains are not solely attributable to augmentation artifacts. revision: yes
Referee: [Experiments and Results] The experimental results report specific SOTA numbers (driving score 89.07, success rate 73.18% on Bench2Drive) and generalization on Fail2Drive without baseline comparisons, statistical tests, or ablations that isolate the contribution of the cascaded framework and anchor-based design from the augmentation. This undermines verification of the central claim that the alignment improves lateral-longitudinal coordination.

Authors: The original manuscript already reports comparisons against multiple published baselines on Bench2Drive; however, we accept that further isolation is required. We will add (i) mean and standard deviation over five random seeds together with paired t-test p-values against the strongest baseline, (ii) an ablation table that fixes the augmentation and varies only the planning architecture (full cascaded anchor-based model versus a parallel-planning counterpart), and (iii) results with and without the augmentation for both the cascaded and parallel variants. The same controls will be reported on Fail2Drive. These experiments will directly quantify the incremental benefit of the path-conditioned 1D displacement formulation. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on independent architectural choices and empirical benchmark results

full rationale

The paper introduces a cascaded planning framework with anchor-based path-conditioned regression and a planning-oriented data augmentation strategy involving agent insertion and target relabeling. These are presented as novel design decisions rather than derivations from prior equations or self-referential fits. Performance claims (e.g., driving score 89.07 on Bench2Drive) are tied directly to experimental evaluation on external benchmarks, with no load-bearing steps that reduce predictions to inputs by construction, no self-citation chains justifying uniqueness, and no renaming of known results as new derivations. The method remains self-contained against the provided benchmarks without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that conditioning longitudinal prediction on a fixed lateral path sufficiently captures interaction dynamics and reduces geometric uncertainty; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)

domain assumption Longitudinal planning can be reformulated as 1D displacement prediction along a pre-selected lateral path without loss of critical interaction information
This reformulation is the core modeling choice that enables the anchor-based regression design.
