Affostruction: 3D Affordance Grounding with Generative Reconstruction

Chunghyun Park , Seunghyeon Lee , Minsu Cho
Authors on Pith no claims yet

Pith reviewed 2026-05-16 14:48 UTC · model grok-4.3

classification 💻 cs.CV
keywords 3D affordance groundinggenerative reconstructionRGBD imagesshape completionflow-based modelingactive view selectionaffordance localizationpartial observations
0
0 comments X

The pith

A generative model reconstructs full 3D object geometry from partial RGBD views and locates action-specific regions on both visible and hidden surfaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Affostruction as a way to ground affordances—surface areas matching a text-described action—from single or few RGBD images of an object. Prior approaches stop at visible surfaces, but this method first generates the complete shape and then predicts affordance distributions over the entire geometry. It achieves this through constant-complexity reconstruction that fuses multi-view features into sparse voxels, a flow model to represent uncertainty in where an action can occur, and a strategy that picks new views based on early affordance estimates. If successful, systems could reason about how to interact with objects even when large portions remain unseen in the input.

Core claim

Affostruction reconstructs complete object geometry from partial RGBD observations via sparse voxel fusion of multi-view features and grounds affordances on the full shape including unobserved regions, using a flow-based formulation to capture inherent ambiguity in affordance distributions together with active view selection guided by predicted affordances.

What carries the argument

Sparse voxel fusion of multi-view features for generative reconstruction, paired with flow-based modeling of affordance ambiguity and active view selection.

If this is right

  • Affordance grounding extends to surfaces not observed in the input RGBD images.
  • Reconstruction maintains constant computational cost even as the number of input views grows.
  • Active view selection uses initial affordance predictions to choose additional observations that improve final grounding accuracy.
  • Flow-based modeling expresses the probabilistic nature of suitable action regions rather than single deterministic maps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Robotic planning could use these completed shapes to simulate grasps or placements on back sides of objects before physical interaction.
  • The same reconstruction pipeline might support incremental mapping when an agent circles an object and collects new views over time.
  • Text queries could be refined by large language models to produce more precise affordance distributions within the generated geometry.

Load-bearing premise

The generative reconstruction accurately fills in geometry for unseen object parts so that affordance predictions on those parts stay reliable.

What would settle it

Objects with substantial occluded geometry where the reconstructed shape differs markedly from ground truth and produces affordance maps that disagree with human annotations on the hidden surfaces.

Figures

Figures reproduced from arXiv: 2601.09211 by Chunghyun Park, Minsu Cho, Seunghyeon Lee.

Figure 1

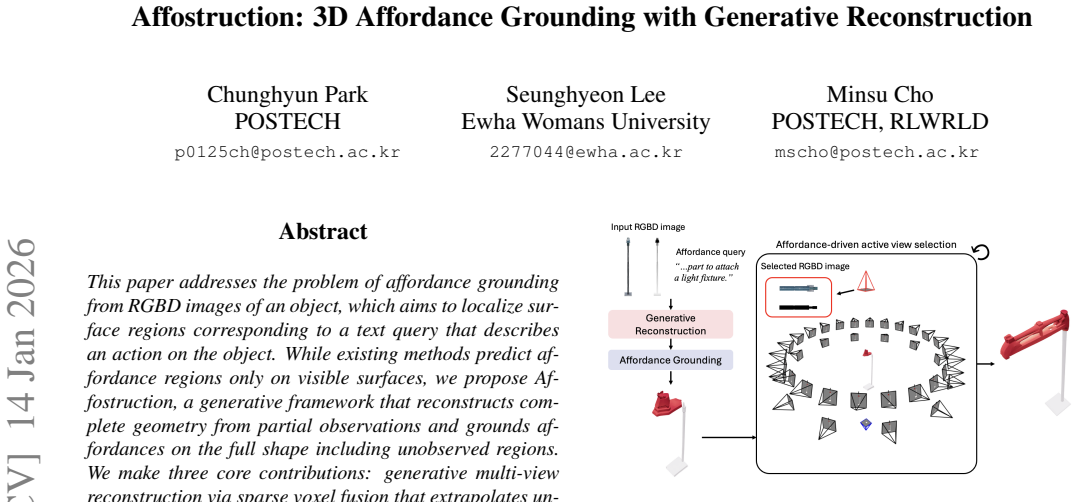

Figure 1. Figure 1: Affostruction. Given an initial RGBD observation where functional regions for an affordance query (e.g., “attach a light fixture”) are poorly visible, we perform generative recon￾struction to complete the 3D geometry and predict affordances on the full shape including occluded surfaces using flow-based grounding. Our affordance-driven active view selection identi￾fies optimal viewpoints (red) that maximize… view at source ↗
Figure 2

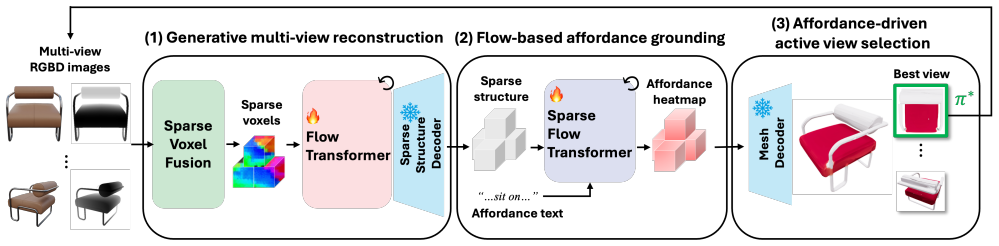

Figure 2. Figure 2: Affostruction overview. Our approach consists of three stages. (1) Generative multi-view reconstruction: DINOv2 [33] features from multiple RGBD views are fused into sparse voxels using depth and camera parameters. A Flow Transformer conditioned on these multi-view features and trained with stochastic multi-view training extrapolates complete 3D structure from partial observations, decoded via frozen spars… view at source ↗
Figure 3

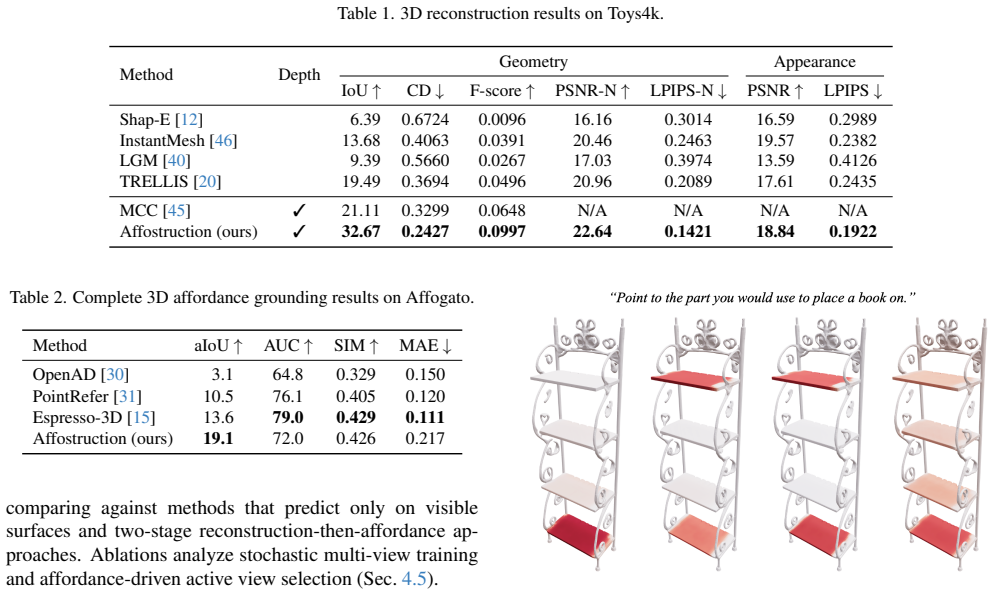

Figure 3. Figure 3: Diverse affordance predictions. Four sampling itera￾tions for the same object-query pair produce diverse valid affor￾dance distributions, demonstrating that our generative approach effectively captures the inherent ambiguity in affordance. outperforming both TRELLIS [20] (19.49, +67.7%) and MCC [45] (21.10, +54.8%). While TRELLIS produces high-fidelity generations, its RGB-only approach without depth condi… view at source ↗
Figure 4

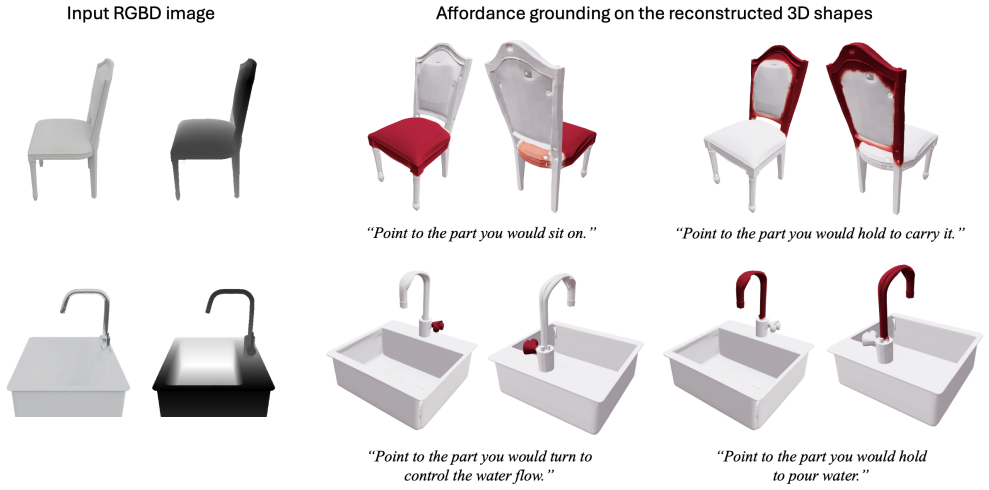

Figure 4. Figure 4: Qualitative results on partial 3D affordance grounding. Affostruction reconstructs complete geometry and grounds affor￾dances throughout entire objects from single RGBD views. Despite limited observations, our method predicts affordances on occluded regions, demonstrating the ability to reason about 3D functional interactions even when large portions of objects are unobserved. values without considering an… view at source ↗
Figure 5

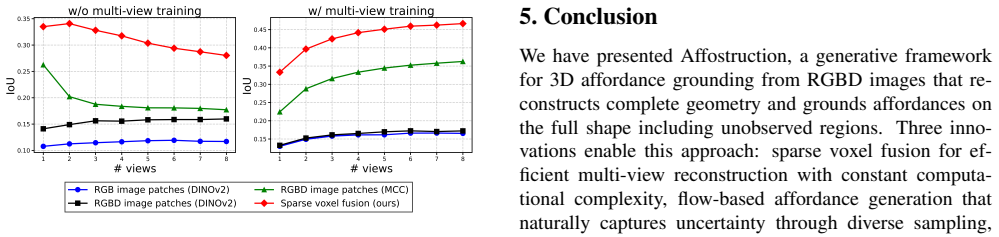

Figure 5. Figure 5: Multi-view training impact. We compare IoU (geomet￾ric reconstruction accuracy) as a function of the number of input views for methods trained with and without multi-view supervi￾sion. Methods trained on single views show minimal improve￾ment or even degradation when given multiple views at inference (left group), while multi-view trained methods show consistent improvements with additional views (right gr… view at source ↗
Figure 6

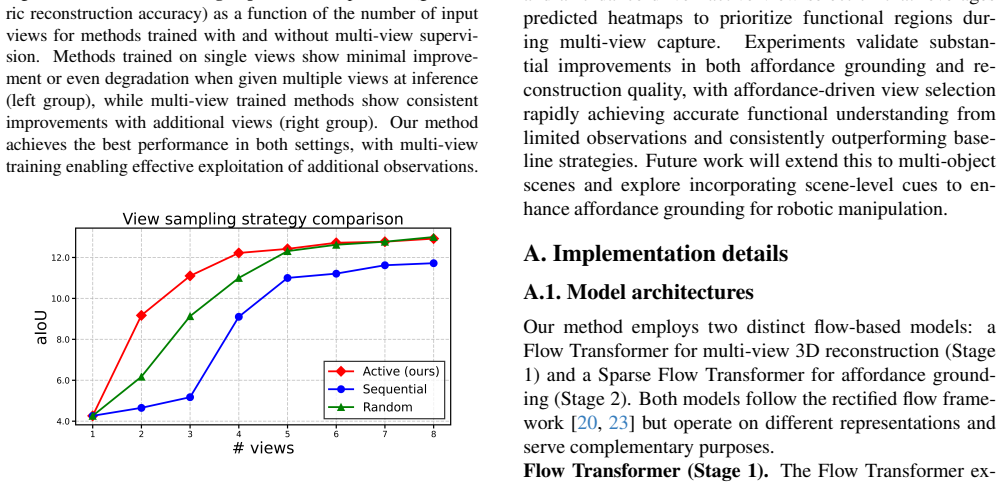

Figure 6. Figure 6: Affordance-driven active view sampling. We compare affordance grounding quality (aIoU) as views are incrementally added using different sampling strategies on the Affogato test set. All methods start from the same challenging viewpoint with poor affordance visibility. Our affordance-driven active sampling (red) achieves the fastest improvement by prioritizing viewpoints that reveal important regions. Seque… view at source ↗
read the original abstract

This paper addresses the problem of affordance grounding from RGBD images of an object, which aims to localize surface regions corresponding to a text query that describes an action on the object. While existing methods predict affordance regions only on visible surfaces, we propose Affostruction, a generative framework that reconstructs complete object geometry from partial RGBD observations and grounds affordances on the full shape including unobserved regions. Our approach introduces sparse voxel fusion of multi-view features for constant-complexity generative reconstruction, a flow-based formulation that captures the inherent ambiguity of affordance distributions, and an active view selection strategy guided by predicted affordances. Affostruction outperforms existing methods by large margins on challenging benchmarks, achieving 19.1 aIoU on affordance grounding and 32.67 IoU for 3D reconstruction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes Affostruction, a generative framework for 3D affordance grounding from partial RGBD observations. It reconstructs complete object geometry via sparse voxel fusion of multi-view features, models affordance distributions with a flow-based formulation to handle ambiguity, and uses active view selection guided by predicted affordances. The central claim is that this enables reliable affordance grounding on the full shape including unobserved regions, yielding large gains over prior methods (19.1 aIoU on grounding, 32.67 IoU on reconstruction).

Significance. If the reconstruction of unobserved geometry proves sufficiently accurate and the affordance predictions on those regions are validated, the work would advance 3D scene understanding for interaction tasks by moving beyond visible-surface limitations. The constant-complexity sparse fusion and flow-based ambiguity modeling are technically interesting contributions that could influence downstream robotics and AR applications.

major comments (2)
  1. [Abstract and §4] Abstract and §4 (experiments): the reported 19.1 aIoU improvement is presented as evidence that affordances are successfully grounded on unobserved reconstructed geometry, yet standard benchmarks annotate only visible surfaces from the input RGBD views. No direct GT annotations, per-region (visible vs. hallucinated) breakdown, or uncertainty-aware metrics are described for the unobserved voxels, despite the reconstruction IoU of 32.67 indicating non-negligible error.
  2. [§3.1] §3.1 (reconstruction module): the sparse voxel fusion is claimed to produce complete geometry suitable for downstream affordance grounding, but the manuscript provides no ablation isolating the effect of reconstruction accuracy on affordance aIoU specifically in unobserved regions, leaving the load-bearing assumption untested.
minor comments (2)
  1. [§3.2] Notation for the flow-based affordance model could be clarified with an explicit equation for the conditional density in the methods section.
  2. Figure captions should explicitly label which surfaces are input-visible versus reconstructed to aid reader interpretation of qualitative results.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the careful review and constructive criticism. The points raised about validating performance on unobserved geometry are important, and we will revise the manuscript to better address them while acknowledging the limitations of available ground-truth data.

read point-by-point responses

  1. Referee: [Abstract and §4] Abstract and §4 (experiments): the reported 19.1 aIoU improvement is presented as evidence that affordances are successfully grounded on unobserved reconstructed geometry, yet standard benchmarks annotate only visible surfaces from the input RGBD views. No direct GT annotations, per-region (visible vs. hallucinated) breakdown, or uncertainty-aware metrics are described for the unobserved voxels, despite the reconstruction IoU of 32.67 indicating non-negligible error.

    Authors: We agree that the reported aIoU is computed on visible surfaces as per the benchmarks, and there are no direct GT annotations for unobserved regions. This makes it difficult to directly quantify affordance grounding accuracy on hallucinated geometry. In the revised manuscript, we will clarify this in the abstract and experiments section, add qualitative results showing affordance predictions on reconstructed unobserved surfaces, and include uncertainty-aware analysis using the flow-based model to evaluate prediction confidence in those regions. We will also discuss how the reconstruction IoU impacts the reliability of these predictions. revision: partial

  2. Referee: [§3.1] §3.1 (reconstruction module): the sparse voxel fusion is claimed to produce complete geometry suitable for downstream affordance grounding, but the manuscript provides no ablation isolating the effect of reconstruction accuracy on affordance aIoU specifically in unobserved regions, leaving the load-bearing assumption untested.

    Authors: We acknowledge that an ablation specifically for unobserved regions would be ideal but is limited by the absence of GT affordance labels there. We will add an ablation study measuring the effect of reconstruction accuracy (e.g., our method vs. ground-truth geometry where possible for the full shape) on the overall affordance aIoU, and analyze the correlation with reconstruction quality to indirectly support the assumption. This will be included in §4. revision: partial

standing simulated objections not resolved
  • Quantitative evaluation of affordance grounding specifically on unobserved regions due to lack of ground-truth annotations in the benchmarks.

Circularity Check

0 steps flagged

No circularity detected in derivation chain

full rationale

The paper introduces Affostruction as a new generative framework combining sparse voxel fusion for reconstruction, flow-based affordance modeling, and active view selection. No equations, definitions, or claims in the abstract or described components reduce by construction to fitted parameters, self-referential inputs, or load-bearing self-citations. Performance metrics (aIoU, IoU) are standard benchmarks applied to the outputs rather than being redefined within the method itself. The derivation chain remains self-contained as an independent technical proposal without the enumerated circular patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that generative models can reliably infer unobserved geometry from partial RGBD input; no explicit free parameters or new invented entities are named in the abstract.

axioms (1)
  • domain assumption Generative reconstruction from partial multi-view RGBD observations can produce accurate geometry for unobserved regions
    This assumption underpins the claim that affordances can be grounded on the full shape.
