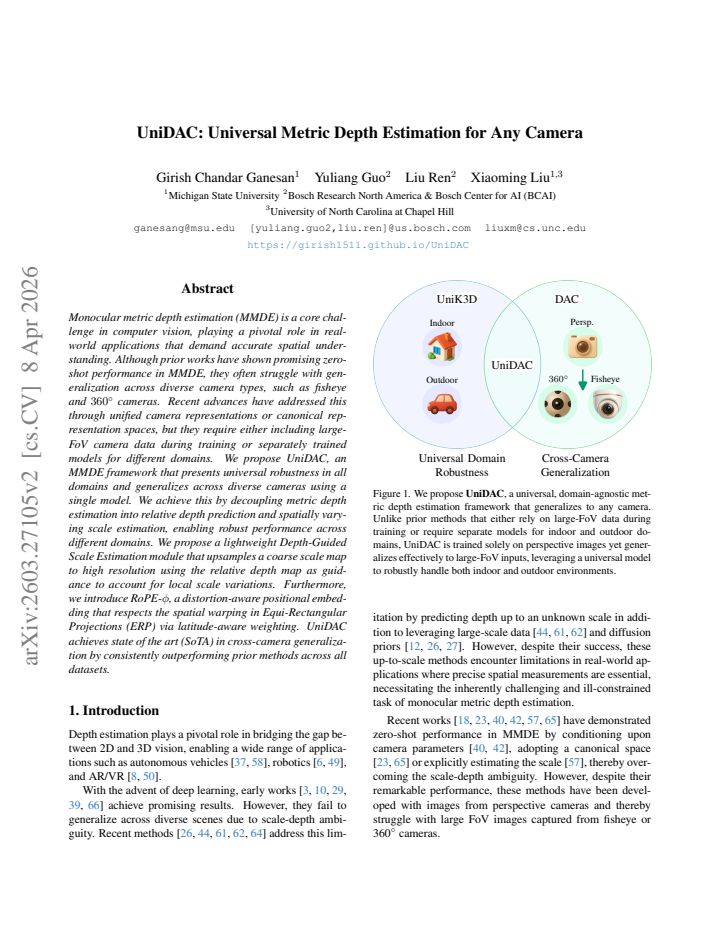

UniDAC: Universal Metric Depth Estimation for Any Camera

Girish Chandar Ganesan , Yuliang Guo , Liu Ren , Xiaoming Liu

Authors on Pith no claims yet

Pith reviewed 2026-05-14 22:25 UTC · model grok-4.3

classification 💻 cs.CV

keywords monocular metric depth estimationcross-camera generalizationfisheye camera360-degree camerascale estimationrelative depthdistortion-aware embeddingequirectangular projection

0 comments

The pith

UniDAC decouples metric depth estimation into relative depth prediction and spatially varying scale estimation to generalize across any camera with a single model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces UniDAC as a monocular metric depth estimation framework designed to work robustly on diverse cameras including standard, fisheye, and 360-degree types without requiring large-FoV training data or per-domain models. It separates the problem into first predicting relative depth and then estimating a spatially varying scale map that is upsampled with guidance from the relative depth to handle local variations. A lightweight Depth-Guided Scale Estimation module performs the upsampling step while RoPE-φ provides distortion-aware positional embeddings that account for latitude-based warping in equirectangular projections. This structure yields consistent outperformance over prior methods on cross-camera generalization benchmarks. If the decoupling holds, it removes the need for camera-specific retraining in applications that encounter mixed sensor types.

Core claim

UniDAC achieves universal robustness in metric depth estimation across domains by decoupling the task into relative depth prediction followed by spatially varying scale estimation, with a Depth-Guided Scale Estimation module that uses the relative depth map to guide high-resolution scale upsampling and RoPE-φ as a latitude-aware positional embedding that respects ERP spatial warping, allowing one model to outperform prior approaches on all tested datasets.

What carries the argument

The Depth-Guided Scale Estimation module, which upsamples a coarse scale map to high resolution by using the relative depth map as guidance to capture local scale variations, together with the RoPE-φ distortion-aware positional embedding.

If this is right

A single trained model can be deployed directly in environments that mix standard, fisheye, and 360-degree cameras.
No separate training or fine-tuning is required when new camera types are introduced.
Real-time applications gain from the lightweight scale estimation module while retaining metric accuracy.
Distortion handling improves for equirectangular projections without explicit camera calibration at inference.
Cross-domain robustness extends to downstream tasks that rely on metric depth such as 3D reconstruction and navigation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same relative-to-scale decoupling could be tested on other scale-ambiguous tasks such as surface normal estimation or optical flow across camera types.
Combining the scale module with temporal consistency constraints might improve video depth stability when the camera switches between lens types.
Evaluating the framework on catadioptric or non-central projection cameras would reveal whether the latitude-aware embedding generalizes beyond ERP.
If relative depth accuracy is the bottleneck, pre-training the relative branch on synthetic multi-camera data could further lift performance.

Load-bearing premise

Relative depth predictions remain sufficiently accurate across camera domains to reliably guide the scale estimation without any domain-specific fine-tuning.

What would settle it

Measure metric depth error on a held-out wide-FoV camera after training only on narrow-FoV data; if the error stays high even when the relative depth map is accurate, the decoupling claim fails.

Figures

Figures reproduced from arXiv: 2603.27105 by Girish Chandar Ganesan, Liu Ren, Xiaoming Liu, Yuliang Guo.

**Figure 1.** Figure 1: We propose UniDAC, a universal, domain-agnostic metric depth estimation framework that generalizes to any camera. Unlike prior methods that either rely on large-FoV data during training or require separate models for indoor and outdoor domains, UniDAC is trained solely on perspective images yet generalizes effectively to large-FoV inputs, leveraging a universal model to robustly handle both indoor and o… view at source ↗

**Figure 2.** Figure 2: We show the Abs.Rel error between the predicted relative depth and the ground truth by performing (a) no scaling, (b) median [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

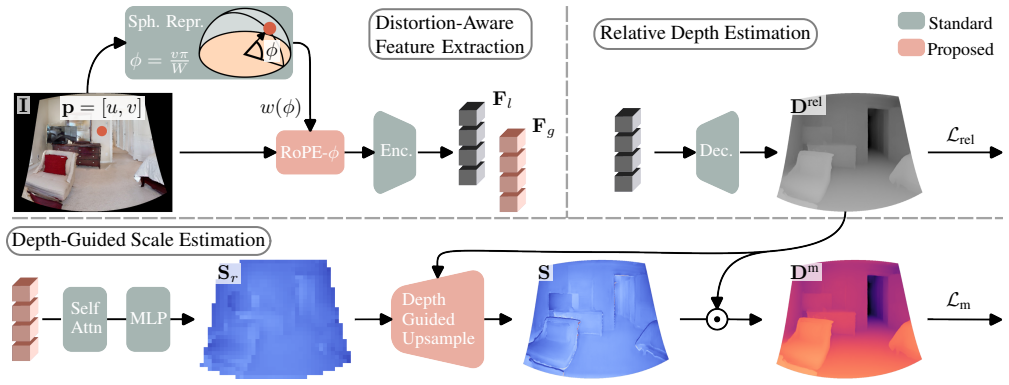

**Figure 3.** Figure 3: Overview of proposed method. UniDAC decouples metric depth estimation into relative depth and scale estimation. Relative depth relies on local scene information, while scene scale is domain-specific and depends on global scene information. Therefore, given an ERP image I, we split the features from the encoder into local Fl and the global features Fg. We predict the relative depth Drel using the local feat… view at source ↗

**Figure 5.** Figure 5: Motivation for RoPE-ϕ. We show the difference between (a) the pixel distance in ERP and (b) the corresponding geodesic distance on the curvature of the sphere. Although |p11 −p12| = |p21 −p22| in the ERP, we see that G(p11, p12) < G(p21, p22) on the sphere. Geodesic distance respects the actual separation in the 3D space. Thus, we modify 2D-RoPE to reflect the geodesic distance to get RoPE-ϕ. The final me… view at source ↗

**Figure 4.** Figure 4: Depth-Guided Upsampling. We leverage the predicted relative depth Drel as a guide to upsample the predicted low-resolution scale map Sr ∈ R H r × W r to get S ∈ R H×W . We compare Drel and its downsampled version Dr to get the local information in the form of weights W ∈ R H×W×9 . We compare the spatial mapping between S and Sr and combine it with W to obtain S. The Depth-Guided Upsampling is non-paramet… view at source ↗

**Figure 6.** Figure 6: Qualitative Results. Every pair of consecutive rows corresponds to a single sample. Odd rows display the input RGB image, and A.Rel error between predicted and GT depth maps. Even rows display the GT depth map and predicted depth maps. UniDAC reduces error in the distorted region as seen around the table in ScanNet++ compared to DACU and on the walls in Pano3D-GV2 compared to UniK3D. comparing it with 2D R… view at source ↗

**Figure 7.** Figure 7: Qualitative Results on ScanNet++ [63]. Every pair of consecutive rows corresponds to a single sample. Odd rows display the input RGB image, and A.Rel error between predicted and GT depth maps. Even rows display the GT depth map and predicted depth maps [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗

**Figure 8.** Figure 8: Qualitative Results on Pano3D-GV2 [2]. Every pair of consecutive rows corresponds to a single sample. Odd rows display the input RGB image, and A.Rel error between predicted and GT depth maps. Even rows display the GT depth map and predicted depth maps [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗

**Figure 9.** Figure 9: Qualitative Results on KITTI-360 [31]. Every pair of consecutive rows corresponds to a single sample. Odd rows display the input RGB image, and A.Rel error between predicted and GT depth maps. Even rows display the GT depth map and predicted depth maps [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗

read the original abstract

Monocular metric depth estimation (MMDE) is a core challenge in computer vision, playing a pivotal role in real-world applications that demand accurate spatial understanding. Although prior works have shown promising zero-shot performance in MMDE, they often struggle with generalization across diverse camera types, such as fisheye and $360^\circ$ cameras. Recent advances have addressed this through unified camera representations or canonical representation spaces, but they require either including large-FoV camera data during training or separately trained models for different domains. We propose UniDAC, an MMDE framework that presents universal robustness in all domains and generalizes across diverse cameras using a single model. We achieve this by decoupling metric depth estimation into relative depth prediction and spatially varying scale estimation, enabling robust performance across different domains. We propose a lightweight Depth-Guided Scale Estimation module that upsamples a coarse scale map to high resolution using the relative depth map as guidance to account for local scale variations. Furthermore, we introduce RoPE-$\phi$, a distortion-aware positional embedding that respects the spatial warping in Equi-Rectangular Projections (ERP) via latitude-aware weighting. UniDAC achieves state of the art (SoTA) in cross-camera generalization by consistently outperforming prior methods across all datasets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

UniDAC splits relative depth from a guided scale step plus RoPE-φ for ERP, which is a sensible engineering move for mixed cameras, but the abstract supplies no numbers so the cross-domain claim stays unverified.

read the letter

The core move is decoupling metric depth into a relative-depth network followed by a lightweight Depth-Guided Scale Estimation module that uses the relative map to refine a coarse scale field. They add RoPE-φ to handle latitude-dependent warping in equirectangular images. That combination is new relative to the priors cited and directly targets the practical headache of running one model on pinhole, fisheye, and 360° cameras without domain-specific retraining or large-FoV data in the training mix. The problem itself matters for real deployments, and the split keeps the relative stage from having to absorb all the scale and distortion variation at once. The abstract claims consistent outperformance across datasets, yet it contains no quantitative results, ablations, dataset splits, or error bars. That absence makes it impossible to judge whether the relative-depth stage actually stays accurate on unseen fisheye geometries or whether the scale module is simply compensating for correlated errors. The stress-test point about relative-depth mistakes propagating into the scale map is therefore still live; nothing shown rules it out. This is the kind of incremental but useful systems paper that people building mixed-camera pipelines would read. If the full experiments include proper cross-camera hold-outs and show the relative stage generalizing without hidden fitting, it is worth a serious referee. Otherwise the central robustness claim rests on unshown evidence.

Referee Report

3 major / 2 minor

Summary. The paper proposes UniDAC, a single-model framework for monocular metric depth estimation that decouples the task into relative depth prediction followed by a lightweight Depth-Guided Scale Estimation module to recover spatially varying scales. It introduces RoPE-φ, a latitude-aware positional embedding for handling distortions in equirectangular projections (ERP), and claims universal robustness and state-of-the-art cross-camera generalization across pinhole, fisheye, and 360° cameras without requiring large-FoV training data or per-domain fine-tuning.

Significance. If the central claims hold, this would be a meaningful contribution by enabling practical metric depth estimation on arbitrary camera geometries with one model, which could simplify deployment in robotics, AR/VR, and surveillance. The decoupling strategy and distortion-aware embedding address a real gap in prior unified-camera approaches, but the significance is tempered by the unverified assumption that relative-depth accuracy transfers reliably to unseen distorted geometries to guide scale estimation.

major comments (3)

[Abstract] Abstract: The claim that UniDAC 'achieves state of the art (SoTA) in cross-camera generalization by consistently outperforming prior methods across all datasets' is presented without any quantitative metrics, tables, error bars, ablation results, or dataset splits, which directly undermines verification of the generalization performance that is the paper's central contribution.
[§3] §3 (Method, Depth-Guided Scale Estimation module): The module relies on the relative depth map to upsample and guide a coarse scale map, but the manuscript provides no analysis or experiments quantifying how spatially correlated errors in relative depth (typical for pinhole-trained estimators on fisheye/ERP) propagate into the final metric depth; this is load-bearing for the 'universal robustness' claim.
[§3.3] §3.3 (RoPE-φ): The distortion-aware positional embedding is defined only for ERP latitude weighting; no equivalent intrinsic modeling is described for fisheye cameras, so it is unclear how the relative-depth stage can reliably guide scale estimation on fisheye geometries without inheriting distortion-induced errors.

minor comments (2)

[Abstract] The abstract introduces MMDE without spelling it out on first use; expand to 'monocular metric depth estimation (MMDE)' for clarity.
[§3.3] Notation for RoPE-φ should be typeset consistently (e.g., RoPE-ϕ vs. RoPE-φ) across equations and text.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment point-by-point below. Where revisions are needed to strengthen the manuscript, we indicate them explicitly and will incorporate the changes in the next version.

read point-by-point responses

Referee: [Abstract] Abstract: The claim that UniDAC 'achieves state of the art (SoTA) in cross-camera generalization by consistently outperforming prior methods across all datasets' is presented without any quantitative metrics, tables, error bars, ablation results, or dataset splits, which directly undermines verification of the generalization performance that is the paper's central contribution.

Authors: We agree that the abstract would benefit from greater specificity to support its claims at first reading. The detailed quantitative results—including per-dataset metrics, error bars from repeated runs, ablation studies, and explicit train/test splits—are reported in Section 4 and the supplementary material. In the revised manuscript we will update the abstract to include concise references to the key cross-camera improvements (e.g., average relative error reductions) while preserving its brevity. revision: yes
Referee: [§3] §3 (Method, Depth-Guided Scale Estimation module): The module relies on the relative depth map to upsample and guide a coarse scale map, but the manuscript provides no analysis or experiments quantifying how spatially correlated errors in relative depth (typical for pinhole-trained estimators on fisheye/ERP) propagate into the final metric depth; this is load-bearing for the 'universal robustness' claim.

Authors: This observation is correct: the current text does not contain a dedicated propagation analysis. We will add a new subsection (or appendix) that quantifies the effect of spatially correlated relative-depth errors on the final metric output. The added experiments will inject controlled noise patterns matching those observed on distorted geometries and measure the resulting metric-depth degradation, thereby directly supporting the robustness claim. revision: yes
Referee: [§3.3] §3.3 (RoPE-φ): The distortion-aware positional embedding is defined only for ERP latitude weighting; no equivalent intrinsic modeling is described for fisheye cameras, so it is unclear how the relative-depth stage can reliably guide scale estimation on fisheye geometries without inheriting distortion-induced errors.

Authors: We thank the referee for highlighting this gap in exposition. RoPE-φ is specialized for ERP latitude warping; for fisheye inputs the relative-depth backbone employs standard rotary embeddings together with the mixed-camera training regime, which allows the network to learn fisheye distortion patterns implicitly. The subsequent Depth-Guided Scale Estimation module then operates on the resulting relative map irrespective of source geometry. In the revision we will expand §3.3 with an explicit paragraph describing the fisheye pathway and why the decoupling limits error propagation. revision: yes

Circularity Check

0 steps flagged

No circularity: architectural decoupling and new modules are independent of target predictions

full rationale

The paper's core claim rests on an explicit decoupling of metric depth into a relative-depth stage followed by a lightweight Depth-Guided Scale Estimation module that uses the relative depth map only as guidance for upsampling a coarse scale map. RoPE-φ is introduced as a new latitude-aware positional embedding for ERP. Neither step defines any quantity in terms of the final metric output, nor does any equation or module reduce by construction to a fitted parameter taken from the evaluation data. No self-citations are invoked as uniqueness theorems or load-bearing premises in the provided text. The generalization performance is therefore an empirical outcome of the proposed architecture rather than a tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

Abstract introduces two new modules without listing explicit free parameters; relies on standard computer-vision assumptions about depth cues and camera models.

axioms (1)

domain assumption Relative depth prediction can be learned independently of absolute scale and remains domain-robust
Central to the decoupling strategy described in the abstract

invented entities (2)

Depth-Guided Scale Estimation module no independent evidence
purpose: Upsample coarse scale map to high resolution using relative depth guidance
New lightweight module proposed to handle local scale variations
RoPE-φ no independent evidence
purpose: Distortion-aware positional embedding for equirectangular projections
Latitude-aware weighting to respect spatial warping in 360° images
