Recognition: unknown
Post-Newtonian inspiral waveform model for eccentric precessing binaries with higher-order modes and matter effects
Pith reviewed 2026-05-10 14:54 UTC · model grok-4.3
The pith
A new post-Newtonian waveform model accurately describes the inspiral of eccentric precessing compact binaries with higher modes and matter effects.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors establish that incorporating all available higher-order quasi-circular post-Newtonian corrections to the orbital phasing, extending the multiple-scale analysis solution of the spin-precession equations, and adding eccentric corrections up to 1PN order in the amplitudes for the multipoles (l,|m|) = (2,2), (2,1), (2,0), (3,3), (3,2), (3,1), (3,0), (4,4), (4,2), (4,0) produces a model that gives a robust and computationally efficient description of the inspiral with good agreement to numerical relativity across a wide region of parameter space up to close to merger.
What carries the argument
The generalized multiple-scale analysis solution of the spin-precession equations extended to higher post-Newtonian orders, combined with the post-Newtonian expansion of the orbital phasing and 1PN eccentric corrections to the waveform amplitudes.
If this is right
- The model supplies efficient waveforms for gravitational-wave data analysis of eccentric precessing systems.
- It serves as a foundation for adding higher-order corrections and calibrating to numerical relativity.
- Improved late-inspiral modeling supports tighter constraints on binary parameters from observations.
- Accurate eccentric signals allow better tests of compact-binary formation channels.
Where Pith is reading between the lines
- Attaching a merger-ringdown model to this inspiral description could produce complete templates for the full signal from eccentric precessing binaries.
- Systematic comparison against numerical relativity in the high-eccentricity and high-spin regimes would map the precise boundary of the model's validity.
- Deployment in parameter-estimation pipelines could reveal population-level features of eccentric binary formation.
Load-bearing premise
The post-Newtonian expansion remains sufficiently accurate in the late inspiral even after the higher-order quasi-circular and eccentric corrections are added, despite known breakdown for very unequal masses, high aligned spins, and high eccentricities.
What would settle it
Numerical relativity simulations that exhibit large phase or amplitude differences from pyEFPEHM predictions in the late inspiral for systems with mass ratio below 0.1, effective spin magnitude above 0.5, or eccentricity above 0.6 would show that the accuracy claims do not hold.

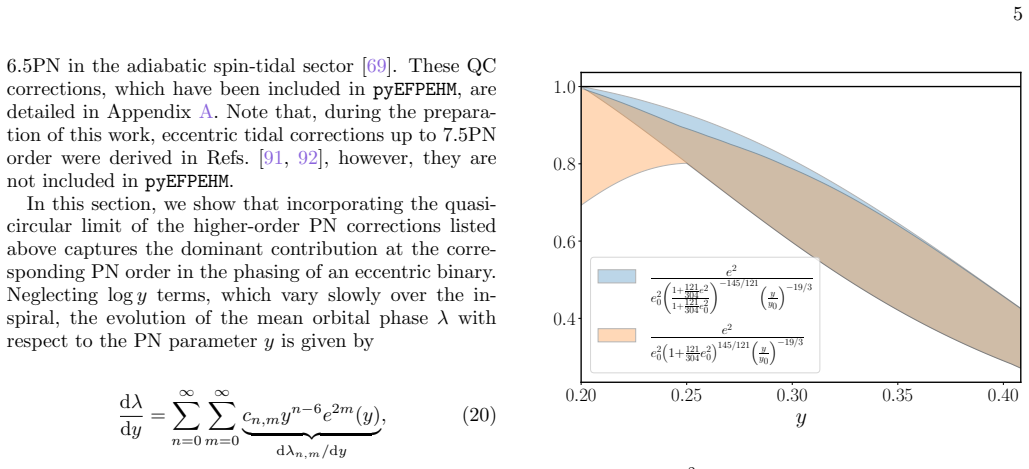

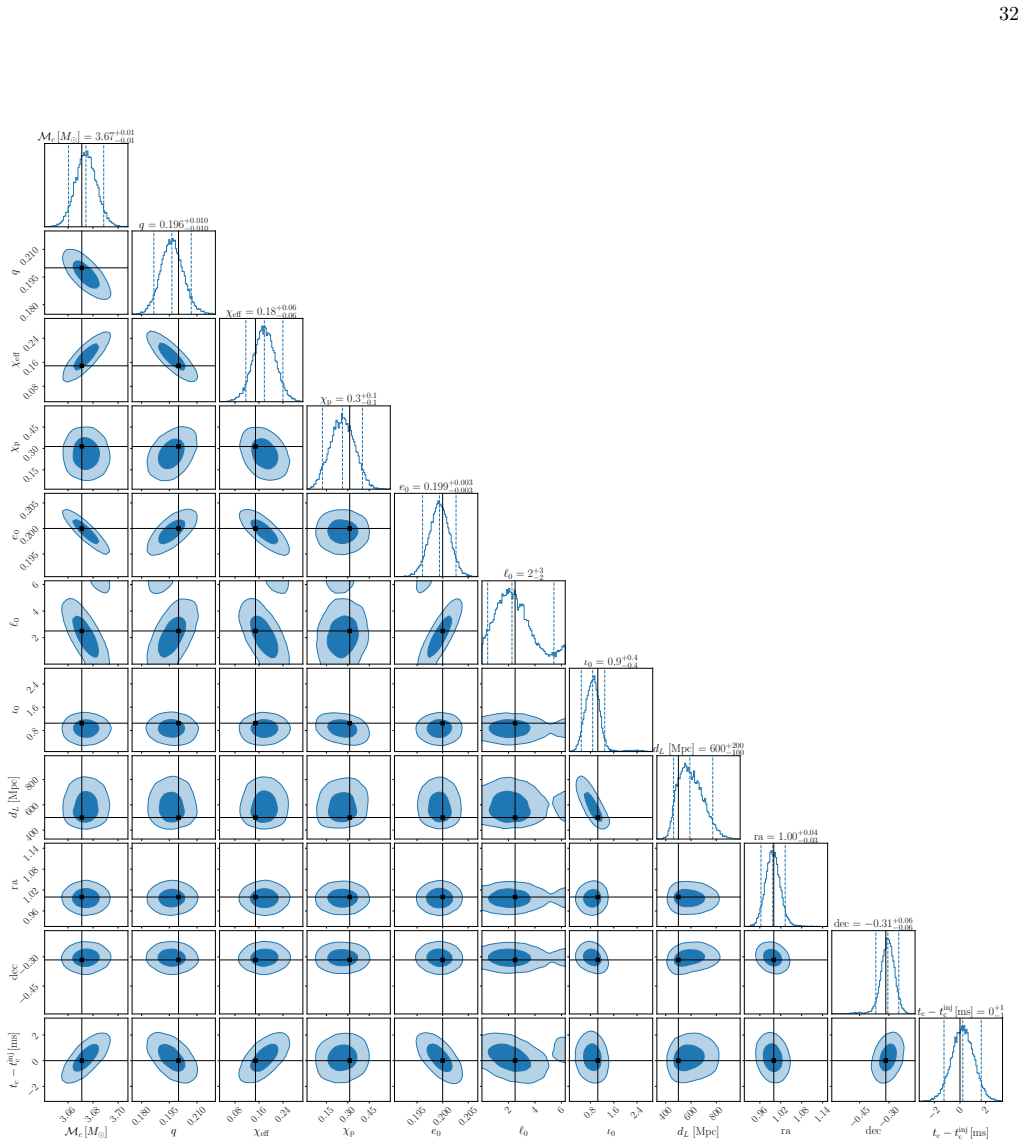

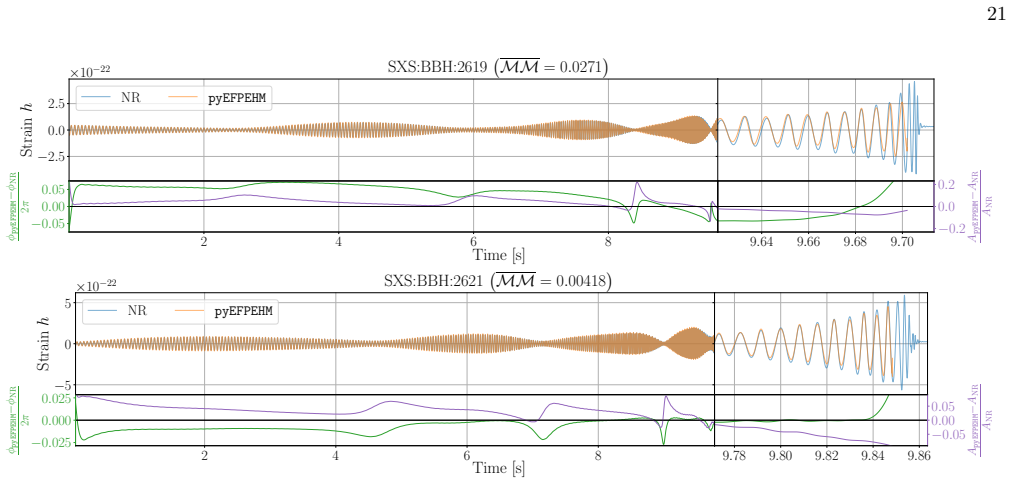

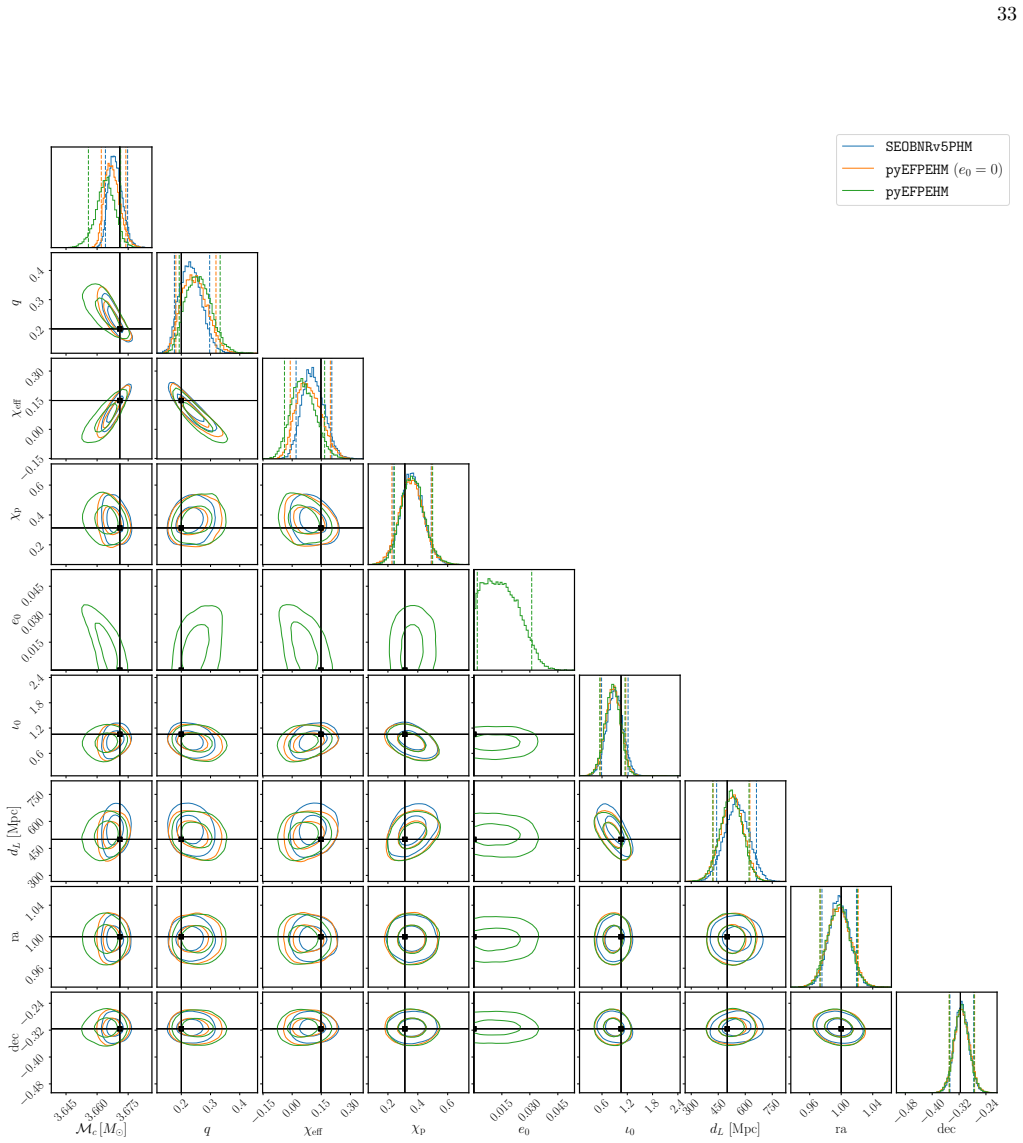

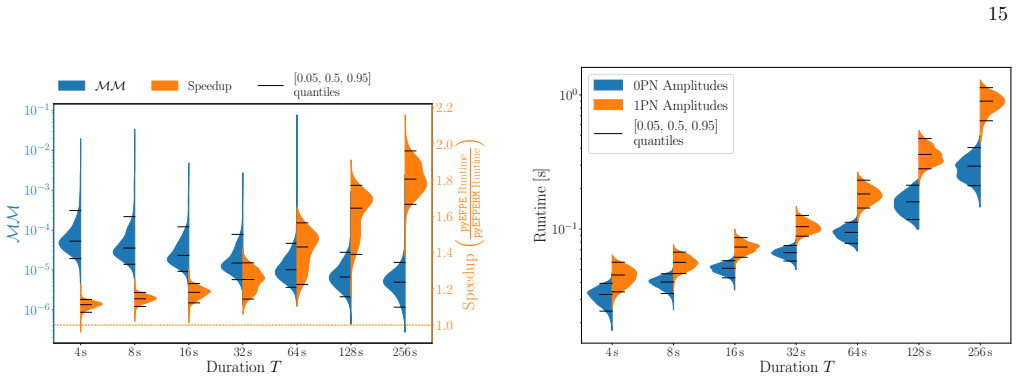

Figures
read the original abstract

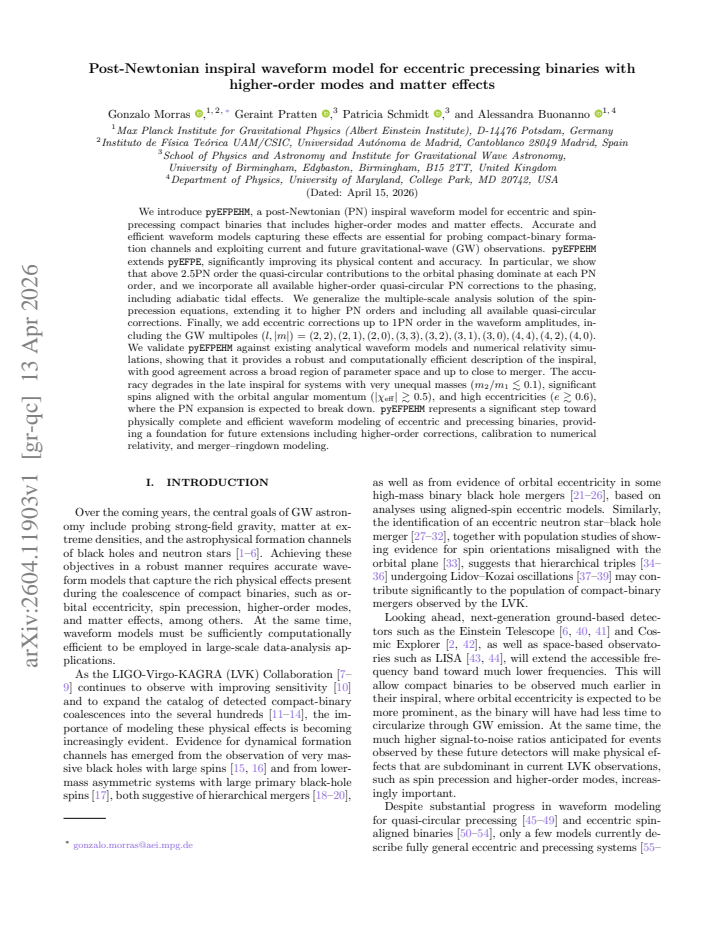

We introduce pyEFPEHM, a post-Newtonian (PN) inspiral waveform model for eccentric and spin-precessing compact binaries that includes higher-order modes and matter effects. Accurate and efficient waveform models capturing these effects are essential for probing compact-binary formation channels and exploiting current and future gravitational-wave (GW) observations. pyEFPEHM extends pyEFPE, significantly improving its physical content and accuracy. In particular, we show that above 2.5PN order the quasi-circular contributions to the orbital phasing dominate at each PN order, and incorporate all available higher-order quasi-circular PN corrections to the phasing, including adiabatic tidal effects. We generalize the multiple-scale analysis solution of the spin-precession equations, extending it to higher PN orders and including all available quasi-circular corrections. Finally, we add eccentric corrections up to 1PN order in the waveform amplitudes, including the GW multipoles $(l,|m|)=(2,2),(2,1),(2,0),(3,3),(3,2),(3,1),(3,0),(4,4),(4,2),(4,0)$. We validate pyEFPEHM against analytical waveform models and numerical relativity simulations, showing that it provides a robust and computationally efficient description of the inspiral, with good agreement across a broad region of parameter space and up to close to merger. The accuracy degrades in the late inspiral for systems with very unequal masses ($m_2/m_1 \lesssim 0.1$), significant spins aligned with the orbital angular momentum ($|\chi_\mathrm{eff}| \gtrsim 0.5$), and high eccentricities ($e \gtrsim 0.6$), where the PN expansion is expected to break down. pyEFPEHM represents a significant step toward physically complete and efficient waveform modeling of eccentric and precessing binaries, providing a foundation for future extensions including higher-order corrections, calibration to numerical relativity, and merger ringdown modeling.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces pyEFPEHM as a post-Newtonian inspiral waveform model for eccentric precessing compact binaries, extending pyEFPE to include higher-order modes and matter effects. Key improvements include incorporating all available higher-order quasi-circular PN corrections to the orbital phasing (including adiabatic tidal effects), generalizing the multiple-scale analysis solution of the spin-precession equations to higher PN orders, and adding eccentric corrections up to 1PN in the amplitudes of GW multipoles (2,2), (2,1), (2,0), (3,3), (3,2), (3,1), (3,0), (4,4), (4,2), (4,0). The model is validated against analytical waveform models and numerical relativity simulations, with the claim of robust and computationally efficient description across a broad parameter space up to close to merger, while accuracy degrades for mass ratios m2/m1 ≲ 0.1, |χ_eff| ≳ 0.5, and eccentricities e ≳ 0.6.
Significance. If the implementation and validation hold, this represents a significant contribution to the field of gravitational-wave modeling by providing an efficient PN model that captures eccentricity, precession, higher modes, and tidal effects. This is essential for interpreting observations and probing astrophysical formation channels. The paper is credited for its transparent qualification of the validity region, which addresses concerns about PN accuracy in the late inspiral for challenging parameter regimes, and for building upon standard expansions in a way that supports reproducibility.
minor comments (2)
- Notation for the PN orders and the specific multipoles should be clearly defined and used consistently in all sections and figures.
- The manuscript would benefit from additional references to recent works on eccentric waveform modeling to contextualize the extensions.
Simulated Author's Rebuttal
We thank the referee for their positive and constructive report, which recognizes the significance of pyEFPEHM as an extension of prior PN models for eccentric precessing binaries. We appreciate the recommendation for minor revision and the acknowledgment of our transparent discussion of the model's validity region.
Circularity Check
No circularity: derivation assembles standard PN expansions and external validations
full rationale
The paper extends the prior pyEFPE code base by incorporating known higher-order quasi-circular PN corrections to phasing (including adiabatic tides), generalizing the multiple-scale analysis for spin precession to higher orders, and adding explicit 1PN eccentric corrections to selected waveform amplitudes. These additions are drawn from the established post-Newtonian literature and are validated directly against independent analytical waveform models and numerical relativity simulations. No load-bearing step reduces a claimed prediction or result to a fitted parameter, self-defined quantity, or unverified self-citation chain; the central claims of robustness within a bounded parameter space are supported by external benchmarks rather than internal construction.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Post-Newtonian expansion of general relativity accurately describes the inspiral dynamics up to the orders retained
- domain assumption Multiple-scale analysis can be extended to higher PN orders while retaining quasi-circular corrections
Forward citations
Cited by 2 Pith papers
-
Large-Eccentricity Asymptotics and Fast Analytic Approximation for Fourier modes of Post-Newtonian Eccentric Waveforms
Derives large-eccentricity asymptotics for post-Newtonian eccentric waveform Fourier modes and builds a fast endpoint-constrained analytic approximation with error under 10^{-3} valid to p=200.
-
Including higher-order modes in a quadrupolar eccentric numerical relativity surrogate using universal eccentric modulation functions
The gwNRHME framework constructs a multi-modal non-spinning eccentric gravitational waveform surrogate by modulating quasi-circular models with universal eccentric functions, achieving median mismatches of ~9e-5 again...
Reference graph
Works this paper leans on
-
[1]
Making Sense of the Unexpected in the Gravitational- Wave Sky
Waveform comparisons To better understand the origin of the mismatches, in Figs. 9, 10, and 11 we show the GW strains for the in- clination, phase, and polarization angles that yield the largest mismatch againstpyEFPEHMfor each simulation. While mismatch calculations are performed using the frequency-domain implementation ofpyEFPEHMbased on the SUA up tof...
2078
- [2]
-
[3]
A Horizon Study for Cosmic Explorer: Science, Observatories, and Community
M. Evanset al., A Horizon Study for Cosmic Ex- plorer: Science, Observatories, and Community, (2021), arXiv:2109.09882 [astro-ph.IM]
work page internal anchor Pith review arXiv 2021
- [4]
-
[5]
I. Harry and J. Noller, Probing the speed of gravity with LVK, LISA, and joint observations, Gen. Rel. Grav.54, 133 (2022), arXiv:2207.10096 [gr-qc]
-
[6]
Waveform Modelling for the Laser Interferometer Space Antenna
N. Afshordiet al.(LISA Consortium Waveform Work- ing Group), Waveform modelling for the Laser Interfer- ometer Space Antenna, Living Rev. Rel.28, 9 (2025), arXiv:2311.01300 [gr-qc]
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[7]
The Science of the Einstein Telescope
A. Abacet al.(ET), The Science of the Einstein Tele- scope, (2025), arXiv:2503.12263 [gr-qc]
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[8]
J. Aasiet al.(LIGO Scientific), Advanced LIGO, Class. Quant. Grav.32, 074001 (2015), arXiv:1411.4547 [gr- qc]
work page internal anchor Pith review arXiv 2015
-
[9]
Advanced Virgo: a 2nd generation interferometric gravitational wave detector
F. Acerneseet al.(VIRGO), Advanced Virgo: a second- generation interferometric gravitational wave detector, Class. Quant. Grav.32, 024001 (2015), arXiv:1408.3978 [gr-qc]
work page internal anchor Pith review arXiv 2015
-
[10]
T. Akutsuet al.(KAGRA), KAGRA: 2.5 Generation In- terferometric Gravitational Wave Detector, Nature As- tron.3, 35 (2019), arXiv:1811.08079 [gr-qc]
- [11]
-
[12]
B. P. Abbottet al.(LIGO Scientific, Virgo), GWTC- 1: A Gravitational-Wave Transient Catalog of Compact Binary Mergers Observed by LIGO and Virgo during the First and Second Observing Runs, Phys. Rev. X9, 031040 (2019), arXiv:1811.12907 [astro-ph.HE]
work page internal anchor Pith review arXiv 2019
-
[13]
R. Abbottet al.(LIGO Scientific, Virgo), GWTC-2: Compact Binary Coalescences Observed by LIGO and Virgo During the First Half of the Third Observing Run, Phys. Rev. X11, 021053 (2021), arXiv:2010.14527 [gr- qc]
work page internal anchor Pith review arXiv 2021
-
[14]
R. Abbottet al.(KAGRA, VIRGO, LIGO Scientific), GWTC-3: Compact Binary Coalescences Observed by LIGO and Virgo during the Second Part of the Third Observing Run, Phys. Rev. X13, 041039 (2023), arXiv:2111.03606 [gr-qc]
work page internal anchor Pith review arXiv 2023
-
[15]
A. G. Abacet al.(LIGO Scientific, VIRGO, KAGRA), GWTC-4.0: Updating the Gravitational-Wave Tran- sient Catalog with Observations from the First Part of the Fourth LIGO-Virgo-KAGRA Observing Run, (2025), arXiv:2508.18082 [gr-qc]
work page internal anchor Pith review arXiv 2025
-
[16]
Abbottet al.(LIGO Scientific and Virgo Collaboration), Phys
R. Abbottet al.(LIGO Scientific, Virgo), GW190521: A Binary Black Hole Merger with a Total Mass of 150M⊙, Phys. Rev. Lett.125, 101102 (2020), arXiv:2009.01075 [gr-qc]
- [17]
- [18]
-
[19]
D. Gerosa and M. Fishbach, Hierarchical mergers of stellar-mass black holes and their gravitational-wave sig- natures, Nature Astron.5, 749 (2021), arXiv:2105.03439 [astro-ph.HE]
- [20]
-
[21]
2025b, arXiv e-prints, arXiv:2509.23897, doi: 10.48550/arXiv.2509.23897
Y.-J. Li, Y.-Z. Wang, S.-P. Tang, and Y.-Z. Fan, Aligned Hierarchical Black Hole Mergers in AGN disks revealed by GWTC-4, (2025), arXiv:2509.23897 [astro-ph.HE]
-
[22]
2020, NatAs, doi: 10.48550/arXiv.2009.05461 Gond´an, L., & Kocsis, B
V. Gayathri, J. Healy, J. Lange, B. O’Brien, M. Szczep- anczyk, I. Bartos, M. Campanelli, S. Klimenko, C. O. Lousto, and R. O’Shaughnessy, Eccentricity estimate for black hole mergers with numerical relativity simula- tions, Nature Astron.6, 344 (2022), arXiv:2009.05461 [astro-ph.HE]
- [23]
- [24]
-
[25]
Evidence for eccentricity in the population of binary black holes observed by LIGO-Virgo-KAGRA
N. Gupteet al., Evidence for eccentricity in the population of binary black holes observed by LIGO- Virgo-KAGRA, Phys. Rev. D112, 104045 (2025), arXiv:2404.14286 [gr-qc]
work page internal anchor Pith review Pith/arXiv arXiv 2025
- [26]
-
[27]
I. Romero-Shaw, J. Stegmann, H. Tagawa, D. Gerosa, J. Samsing, N. Gupte, and S. R. Green, GW200208 222617 as an eccentric black-hole binary merger: Properties and astrophysical implications, Phys. Rev. D112, 063052 (2025), arXiv:2506.17105 [astro-ph.HE]
- [28]
- [29]
- [30]
-
[31]
K. Kacanja, K. Soni, and A. H. Nitz, Eccentricity sig- 35 natures in LIGO-Virgo-KAGRA’s binary neutron star and neutron-star black holes, Phys. Rev. D112, 122007 (2025), arXiv:2508.00179 [gr-qc]
- [32]
-
[33]
K. S. Phukon, P. Schmidt, G. Morras, and G. Prat- ten, Detection of GW200105 with a targeted eccentric search, (2025), arXiv:2512.10803 [gr-qc]
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[34]
A. G. Abacet al.(LIGO Scientific, VIRGO, KAGRA), GWTC-4.0: Population Properties of Merging Compact Binaries, (2025), arXiv:2508.18083 [astro-ph.HE]
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[35]
J. Stegmann and J. Klencki, Orbital Eccentricity and Spin–Orbit Misalignment Are Evidence that Neu- tron Star–Black Hole Mergers Form through Triple Star Evolution, Astrophys. J. Lett.991, L54 (2025), arXiv:2506.09121 [astro-ph.HE]
-
[36]
I. Romero-Shaw, J. Stegmann, G. Morras, A. Dorozs- mai, and M. Zevin, Astrophysical Implications of Eccen- tricity in Gravitational Waves from Neutron Star-Black Hole Binaries, (2025), arXiv:2512.16289 [astro-ph.HE]
-
[37]
J. Stegmann, F. Antonini, A. Olejak, S. Biscov- eanu, V. Raymond, S. Rinaldi, and B. Flanagan, In-plane Black-hole Spin Measurements Suggest Most Gravitational-wave Mergers Form in Triples, (2025), arXiv:2512.15873 [astro-ph.HE]
-
[38]
von Zeipel, Sur l’application des s´ eries de M
H. von Zeipel, Sur l’application des s´ eries de M. Lind- stedt ` a l’´ etude du mouvement des com` etes p´ eriodiques, Astron. Nachr.183, 34 (1910)
1910
-
[39]
M. L. Lidov, The evolution of orbits of artificial satel- lites of planets under the action of gravitational per- turbations of external bodies, Planet. Space Sci.9, 719 (1962)
1962
-
[40]
Kozai, Secular perturbations of asteroids with high inclination and eccentricity, Astron
Y. Kozai, Secular perturbations of asteroids with high inclination and eccentricity, Astron. J.67, 591 (1962)
1962
-
[41]
M. Maggioreet al.(ET), Science Case for the Ein- stein Telescope, JCAP03, 050, arXiv:1912.02622 [astro- ph.CO]
-
[42]
M. Branchesiet al., Science with the Einstein Tele- scope: a comparison of different designs, JCAP07, 068, arXiv:2303.15923 [gr-qc]
-
[43]
Cosmic Explorer: The U.S. Contribution to Gravitational-Wave Astronomy beyond LIGO
D. Reitzeet al., Cosmic Explorer: The U.S. Contribu- tion to Gravitational-Wave Astronomy beyond LIGO, Bull. Am. Astron. Soc.51, 035 (2019), arXiv:1907.04833 [astro-ph.IM]
work page internal anchor Pith review arXiv 2019
-
[44]
Laser Interferometer Space Antenna
P. Amaro-Seoaneet al.(LISA), Laser Interferome- ter Space Antenna, (2017), arXiv:1702.00786 [astro- ph.IM]
work page internal anchor Pith review Pith/arXiv arXiv 2017
-
[45]
M. Colpiet al.(LISA), LISA Definition Study Report, (2024), arXiv:2402.07571 [astro-ph.CO]
work page internal anchor Pith review arXiv 2024
-
[46]
L. Pompiliet al., Laying the foundation of the effective- one-body waveform models SEOBNRv5: Improved ac- curacy and efficiency for spinning nonprecessing bi- nary black holes, Phys. Rev. D108, 124035 (2023), arXiv:2303.18039 [gr-qc]
-
[47]
A. Ramos-Buades, A. Buonanno, H. Estell´ es, M. Khalil, D. P. Mihaylov, S. Ossokine, L. Pompili, and M. Shiferaw, Next generation of accurate and ef- ficient multipolar precessing-spin effective-one-body waveforms for binary black holes, Phys. Rev. D108, 124037 (2023), arXiv:2303.18046 [gr-qc]
-
[48]
H. Estell´ es, A. Buonanno, R. Enficiaud, C. Foo, and L. Pompili, Adding equatorial-asymmetric effects for spin-precessing binaries into the SEOBNRv5PHM waveform model, (2025), arXiv:2506.19911 [gr-qc]
-
[49]
E. Hamiltonet al., PhenomXPNR: An improved gravitational wave model linking precessing inspi- rals and NR-calibrated merger-ringdown, (2025), arXiv:2507.02604 [gr-qc]
-
[50]
Numerical relativity surrogate model with memory effects and post-Newtonian hybridization,
J. Yooet al., Numerical relativity surrogate model with memory effects and post-Newtonian hybridization, Phys. Rev. D108, 064027 (2023), arXiv:2306.03148 [gr- qc]
- [51]
-
[52]
K. Paul, A. Maurya, Q. Henry, K. Sharma, P. Satheesh, Divyajyoti, P. Kumar, and C. K. Mishra, Eccentric, spinning, inspiral-merger-ringdown waveform model with higher modes for the detection and characteriza- tion of binary black holes, Phys. Rev. D111, 084074 (2025), arXiv:2409.13866 [gr-qc]
- [53]
- [54]
-
[55]
A. Ramos-Buades, Q. Henry, and M. Haney, Fast frequency-domain phenomenological modeling of ec- centric aligned-spin binary black holes, (2026), arXiv:2601.03340 [gr-qc]
- [56]
- [57]
-
[58]
S. Albanesi, R. Gamba, S. Bernuzzi, J. Fontbut´ e, A. Gonzalez, and A. Nagar, Effective-one-body mod- eling for generic compact binaries with arbitrary orbits, Phys. Rev. D112, L121503 (2025), arXiv:2503.14580 [gr-qc]
-
[59]
DDPC, Description of the common dataset 1 light (mojito light) of the lisa ddpc, In prep
L. DDPC, Description of the common dataset 1 light (mojito light) of the lisa ddpc, In prep
- [60]
-
[61]
Z. Miao and H. Yang, Probing Intrinsic Ellipticity in Neutron Star Binaries, (2025), arXiv:2511.08895 [astro- ph.HE]
-
[62]
Fourier domain gravitational waveforms for precessing eccentric binaries
A. Klein, Y. Boetzel, A. Gopakumar, P. Jetzer, and L. de Vittori, Fourier domain gravitational waveforms for precessing eccentric binaries, Phys. Rev. D98, 104043 (2018), arXiv:1801.08542 [gr-qc]
work page Pith review arXiv 2018
-
[63]
A. Klein, EFPE: Efficient fully precessing eccentric gravitational waveforms for binaries with long inspirals, (2021), arXiv:2106.10291 [gr-qc]
- [64]
-
[65]
L. Blanchet, G. Faye, Q. Henry, F. Larrouturou, and D. Trestini, Gravitational-Wave Phasing of Quasicircu- lar Compact Binary Systems to the Fourth-and-a-Half Post-Newtonian Order, Phys. Rev. Lett.131, 121402 (2023), arXiv:2304.11185 [gr-qc]
- [66]
-
[67]
M. Khalil, A. Buonanno, H. Estelles, D. P. Mihaylov, S. Ossokine, L. Pompili, and A. Ramos-Buades, Theo- retical groundwork supporting the precessing-spin two- body dynamics of the effective-one-body waveform mod- els SEOBNRv5, Phys. Rev. D108, 124036 (2023), arXiv:2303.18143 [gr-qc]
-
[68]
S. Marsat, Cubic order spin effects in the dynam- ics and gravitational wave energy flux of compact ob- ject binaries, Class. Quant. Grav.32, 085008 (2015), arXiv:1411.4118 [gr-qc]
- [69]
-
[70]
T. Abdelsalhin, L. Gualtieri, and P. Pani, Post- Newtonian spin-tidal couplings for compact binaries, Phys. Rev. D98, 104046 (2018), arXiv:1805.01487 [gr- qc]
-
[71]
G. Morras, Modeling gravitational wave modes from the inspiral of binaries with arbitrary eccentricity, Phys. Rev. D112, 084015 (2025), arXiv:2507.00169 [gr-qc]
-
[72]
LIGO Scientific Collaboration, LIGO Algorithm Li- brary - LALSuite, free software (GPL) (2018)
2018
-
[73]
A. Buonanno, B. Iyer, E. Ochsner, Y. Pan, and B. S. Sathyaprakash, Comparison of post-Newtonian templates for compact binary inspiral signals in gravitational-wave detectors, Phys. Rev. D80, 084043 (2009), arXiv:0907.0700 [gr-qc]
work page Pith review arXiv 2009
-
[74]
Sturani, Note on the derivation of the angular mo- mentum and spin precessing equations in SpinTaylor codes (2015)
R. Sturani, Note on the derivation of the angular mo- mentum and spin precessing equations in SpinTaylor codes (2015)
2015
-
[75]
S. Isoyama, R. Sturani, and H. Nakano, Post-Newtonian templates for gravitational waves from compact bi- nary inspirals 10.1007/978-981-15-4702-7 31-1 (2020), arXiv:2012.01350 [gr-qc]
- [76]
-
[77]
A. Nagar, D. Chiaramello, R. Gamba, S. Albanesi, S. Bernuzzi, V. Fantini, M. Panzeri, and P. Rettegno, Effective-one-body waveform model for noncircularized, planar, coalescing black hole binaries. II. High accuracy by improving logarithmic terms in resummations, Phys. Rev. D111, 064050 (2025), arXiv:2407.04762 [gr-qc]
- [78]
-
[79]
Post-Newtonian Theory for Gravitational Waves
L. Blanchet, Post-Newtonian Theory for Gravitational Waves, Living Rev. Rel.17, 2 (2014), arXiv:1310.1528 [gr-qc]
work page internal anchor Pith review arXiv 2014
-
[80]
K. S. Thorne, Multipole Expansions of Gravitational Radiation, Rev. Mod. Phys.52, 299 (1980)
1980
