Macroscopic Optical Nonreciprocity: A Black Hole as an Optical Diode

Wentao Liu , Di Wu , Xiongjun Fang , Yu-Xiao Liu , Jieci Wang
Authors on Pith no claims yet

Pith reviewed 2026-05-10 04:08 UTC · model grok-4.3

classification 🌀 gr-qc
keywords black hole shadowoptical nonreciprocityLorentz symmetry breakingrotating black holeray tracing simulationoptical diode
0
0 comments X

The pith

A rotating black hole with spontaneous Lorentz symmetry breaking produces different shadow shapes when source and observer are swapped, acting as a cosmic optical diode.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that optical reciprocity, in which light follows the same path when source and detector swap places, fails around a rotating black hole once spontaneous Lorentz symmetry breaking introduces a nonminimally coupled background with a preferred direction. Numerical ray-tracing shows the black-hole shadow changes from a roughly symmetric rugby-ball form to a distinct teardrop when the light-travel direction reverses. This macroscopic nonreciprocity supplies a new observable signature for testing fundamental symmetries at horizon scales using existing and upcoming imaging arrays.

Core claim

Upon optical-path reversal achieved by exchanging the source and the observer, the shadow of the same black hole morphs from a quasi-symmetric rugby-ball shape into a distinct teardrop profile. This high-contrast nonreciprocity effectively turns the black hole into a cosmic-scale optical diode.

What carries the argument

The nonminimally coupled background structure with a preferred direction that arises from spontaneous Lorentz symmetry breaking, which alters null geodesics asymmetrically around a rotating black hole.

If this is right

  • Horizon-scale telescopes could detect direction-dependent shadows as direct evidence of Lorentz violation.
  • The effect provides a macroscopic test of spontaneous symmetry breaking in strong gravity.
  • Ray-tracing through the modified spacetime yields observable asymmetry without requiring new instruments beyond current Event Horizon Telescope capabilities.
  • The nonreciprocity persists for any rotating black hole once the background field is present.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If confirmed, the same mechanism could affect other null geodesics such as those of gravitational waves or neutrinos, offering multi-messenger tests.
  • The result suggests that black-hole imaging data already collected might be reanalyzed for hidden direction dependence once the background-field parameters are fixed.
  • Analogous nonreciprocity might appear in other spacetimes with preferred directions, such as those with external electromagnetic fields.

Load-bearing premise

Spontaneous Lorentz symmetry breaking introduces a nonminimally coupled background structure with a preferred direction that qualitatively alters light propagation around a rotating black hole in the manner described.

What would settle it

Horizon-scale images showing identical shadow shapes in both source-observer configurations would falsify the claimed nonreciprocity.

Figures

Figures reproduced from arXiv: 2604.18101 by Di Wu, Jieci Wang, Wentao Liu, Xiongjun Fang, Yu-Xiao Liu.

Figure 1
Figure 1. Figure 1: FIG. 1. Rotating black hole as a macroscopic optical diode. (a) Nonreciprocal optical systems: The system exhibits distinct optical responses [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Rotating Lorentz-violating black holes manifest as “conju [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

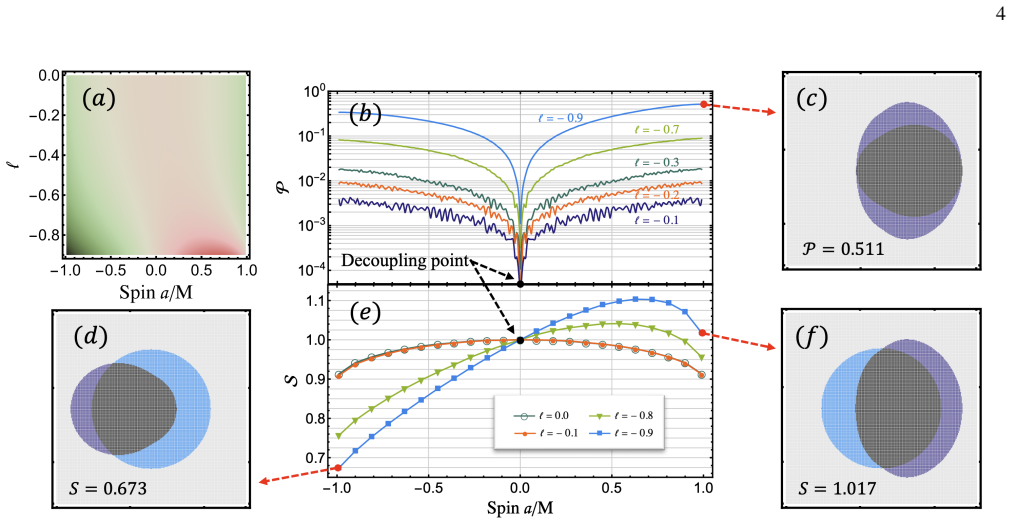

Figure 3. Figure 3: FIG. 3. Quantitative analysis of the macroscopic optical nonreciprocity. (a) Phase diagram showing how the normalized area [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
read the original abstract

Optical reciprocity--the principle that light retraces the same path when source and detector are interchanged--is a foundational concept in geometric optics. In this Letter, we demonstrate that this ``symmetry-protected'' behavior can be qualitatively overturned in a rotating black hole when spontaneous Lorentz symmetry breaking introduces a nonminimally coupled background structure with a preferred direction. Through numerical ray-tracing simulations, we reveal a striking macroscopic signature: upon optical-path reversal achieved by exchanging the source and the observer, the shadow of the same black hole morphs from a quasi-symmetric rugby-ball shape into a distinct teardrop profile. This high-contrast nonreciprocity effectively turns the black hole into a cosmic-scale optical diode, offering a novel pathway to probe fundamental symmetries using current and next-generation horizon-scale imaging.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper claims that spontaneous Lorentz symmetry breaking introduces a nonminimally coupled background structure with a preferred direction around a rotating black hole, qualitatively violating optical reciprocity. Numerical ray-tracing simulations are used to show that exchanging source and observer transforms the black-hole shadow from a quasi-symmetric rugby-ball shape to a distinct teardrop profile, interpreted as macroscopic nonreciprocity that turns the black hole into a cosmic-scale optical diode.

Significance. If the numerical results hold under scrutiny, the work would identify a potentially observable macroscopic signature of Lorentz violation in strong gravity, offering a novel pathway to test fundamental symmetries with horizon-scale imaging. The identification of a high-contrast morphological change under path reversal is a clear strength of the conceptual setup, though its impact is tempered by the absence of analytic support or validation.

major comments (3)
  1. [theoretical framework and numerical methods sections] The central nonreciprocity claim rests on numerical integration of photon trajectories, yet the manuscript provides no explicit derivation or presentation of the modified null geodesic equations that incorporate the nonminimal coupling and preferred direction (see the theoretical framework and numerical methods sections). This is load-bearing because the asymmetry under source-observer exchange must be shown to originate from the background rather than from the integrator or discretization.
  2. [results on shadow morphology] No convergence tests, resolution studies, or validation against the standard Kerr limit (where reciprocity must hold) are reported for the ray-tracing results that produce the rugby-ball to teardrop transition. This undermines the high-contrast diode behavior, as the morphological difference could arise from numerical artifacts in boundary extraction or vector injection.
  3. [model description] The parameters of the nonminimally coupled background structure are introduced without independent theoretical constraints or falsifiable predictions separate from the shadow shape itself. This raises the risk that the reported nonreciprocity is tied to specific choices rather than a robust consequence of the symmetry breaking.
minor comments (1)
  1. [Abstract] The abstract mentions 'current and next-generation horizon-scale imaging' without specifying required angular resolution or sensitivity thresholds needed to distinguish the teardrop profile.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments. We address each major comment below and will revise the manuscript accordingly to improve clarity and robustness.

read point-by-point responses

  1. Referee: [theoretical framework and numerical methods sections] The central nonreciprocity claim rests on numerical integration of photon trajectories, yet the manuscript provides no explicit derivation or presentation of the modified null geodesic equations that incorporate the nonminimal coupling and preferred direction (see the theoretical framework and numerical methods sections). This is load-bearing because the asymmetry under source-observer exchange must be shown to originate from the background rather than from the integrator or discretization.

    Authors: We agree that the modified null geodesic equations require explicit derivation. In the revised manuscript we will add a dedicated derivation subsection showing how the nonminimal coupling to the Lorentz-violating background modifies the null geodesic equation and introduces the preferred direction that breaks reciprocity. The integrator is a standard Hamiltonian ray-tracing scheme; we will also include a short description of its implementation to confirm that the reported asymmetry is not an artifact of discretization. revision: yes

  2. Referee: [results on shadow morphology] No convergence tests, resolution studies, or validation against the standard Kerr limit (where reciprocity must hold) are reported for the ray-tracing results that produce the rugby-ball to teardrop transition. This undermines the high-contrast diode behavior, as the morphological difference could arise from numerical artifacts in boundary extraction or vector injection.

    Authors: We acknowledge that these numerical validations were not reported. In the revision we will include convergence tests under grid refinement, a resolution study, and direct comparison to the Kerr limit (where the Lorentz-violating parameters vanish and reciprocity is recovered). These additions will confirm that the rugby-ball to teardrop transition is a physical consequence of the background rather than a numerical artifact. revision: yes

  3. Referee: [model description] The parameters of the nonminimally coupled background structure are introduced without independent theoretical constraints or falsifiable predictions separate from the shadow shape itself. This raises the risk that the reported nonreciprocity is tied to specific choices rather than a robust consequence of the symmetry breaking.

    Authors: The parameters are chosen within the range allowed by existing Lorentz-violation bounds to produce a visible effect. We will expand the model section to cite independent theoretical and observational constraints on the coupling strength and to discuss how the diode-like behavior scales with the preferred-direction parameter, thereby providing a route to falsification through other observables such as polarization or timing signatures. revision: partial

Circularity Check

0 steps flagged

No significant circularity; result is a direct numerical consequence of the input symmetry-breaking model.

full rationale

The paper introduces a nonminimally coupled background with a preferred direction as an explicit model assumption that breaks the reciprocity symmetry of null geodesics. The reported shadow morphology change is then obtained by integrating photon trajectories under that modified propagation law. This is a standard forward computation rather than a reduction of the output to the input by definition, fitting, or self-citation. No equations are shown to be tautological, no parameters are fitted to the target shadow shapes, and no load-bearing uniqueness theorem or ansatz is imported from prior work by the same authors. The derivation chain is therefore self-contained within the chosen theoretical framework.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the existence and form of a nonminimally coupled background structure induced by spontaneous Lorentz symmetry breaking; no independent evidence or derivation of this structure is provided in the abstract.

axioms (1)
  • domain assumption Spontaneous Lorentz symmetry breaking introduces a nonminimally coupled background structure with a preferred direction that affects null geodesics around a rotating black hole.
    This is the key premise enabling the reported nonreciprocity; it is invoked to overturn standard optical reciprocity.

pith-pipeline@v0.9.0 · 5440 in / 1248 out tokens · 24427 ms · 2026-05-10T04:08:38.586185+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Gravitational-Bumblebee perturbations: Exact decoupling and isospectrality

    gr-qc 2026-05 unverdicted novelty 7.0

    Bumblebee gravity perturbations decouple exactly into gravitational and vector sectors, with gravitational modes dynamically immune to Lorentz violation and odd-even parities strictly isospectral.

Reference graph

Works this paper leans on

18 extracted references · 15 canonical work pages · cited by 1 Pith paper · 3 internal anchors

  1. [1]

    Carter, Global structure of the Kerr family of gravitational fields, Phys

    B. Carter, Global structure of the Kerr family of gravitational fields, Phys. Rev.174, 1559 (1968)

    1968

  2. [2]

    Maayani, R

    S. Maayani, R. Dahan, Y . Kligerman, E. Moses, A. U. Hassan, H. Jing, F. Nori, D. N. Christodoulides, and T. Carmon, Flying couplers above spinning resonators generate irreversible refrac- tion, Nature558, 569 (2018)

    2018

  3. [3]

    Huang, A

    R. Huang, A. Miranowicz, J.-Q. Liao, F. Nori, and H. Jing, Nonreciprocal Photon Blockade, Phys. Rev. Lett.121, 153601 (2018), arXiv:1807.10084 [quant-ph]

    work page arXiv 2018

  4. [4]

    S. M. Carroll, J. A. Harvey, V . A. Kostelecky, C. D. Lane, and T. Okamoto, Noncommutative field theory and Lorentz violation, Phys. Rev. Lett.87, 141601 (2001), arXiv:hep- th/0105082

    work page arXiv 2001

  5. [5]

    V . A. Kostelecky, Gravity, Lorentz violation, and the standard model, Phys. Rev. D69, 105009 (2004), arXiv:hep-th/0312310

    work page Pith review arXiv 2004

  6. [6]

    F. P. Poulis and M. A. C. Soares, Exact modifications on a vacuum spacetime due to a gradient bumblebee field at its vacuum expectation value, Eur. Phys. J. C82, 613 (2022), arXiv:2112.04040 [gr-qc]

    work page arXiv 2022

  7. [7]

    P. V . P. Cunha, C. A. R. Herdeiro, E. Radu, and H. F. Runarsson, Shadows of Kerr black holes with scalar hair, Phys. Rev. Lett. 115, 211102 (2015), arXiv:1509.00021 [gr-qc]

    work page Pith review arXiv 2015

  8. [8]

    Zhong, Z

    Z. Zhong, Z. Hu, H. Yan, M. Guo, and B. Chen, QED effects on Kerr black hole shadows immersed in uniform magnetic fields, Phys. Rev. D104, 104028 (2021), arXiv:2108.06140 [gr-qc]

    work page arXiv 2021

  9. [9]

    Bacchini, D

    F. Bacchini, D. R. Mayerson, B. Ripperda, J. Davelaar, H. Oli- vares, T. Hertog, and B. Vercnocke, Fuzzball Shadows: Emer- gent Horizons from Microstructure, Phys. Rev. Lett.127, 171601 (2021), arXiv:2103.12075 [hep-th]

    work page arXiv 2021

  10. [10]

    W. Liu, Y . Liu, D. Wu, and Y .-X. Liu, A Universal Framework for Horizon-Scale Tests of Gravity with Black Hole Shadows, (2025), arXiv:2511.06017 [gr-qc]

    work page arXiv 2025

  11. [11]

    An exact Schwarzschild-like solution in a bumblebee gravity model

    R. Casana, A. Cavalcante, F. P. Poulis, and E. B. Santos, Ex- act Schwarzschild-like solution in a bumblebee gravity model, Phys. Rev. D97, 104001 (2018), arXiv:1711.02273 [gr-qc]

    work page Pith review arXiv 2018

  12. [12]

    P. T. Chrusciel, J. Lopes Costa, and M. Heusler, Stationary Black Holes: Uniqueness and Beyond, Living Rev. Rel.15, 7 (2012), arXiv:1205.6112 [gr-qc]

    work page Pith review arXiv 2012

  13. [13]

    Exact Kerr-Newman-(A)dS and other spacetimes in bumblebee gravity: employing a simple generating technique

    H. Ovcharenko, Exact Kerr-Newman-(A)dS and other space- times in bumblebee gravity: employing a novel generating tech- nique, (2026), arXiv:2601.16037 [gr-qc]

    work page internal anchor Pith review Pith/arXiv arXiv 2026

  14. [14]

    First M87 Event Horizon Telescope Results. I. The Shadow of the Supermassive Black Hole

    K. Akiyamaet al.(Event Horizon Telescope), First M87 Event Horizon Telescope Results. I. The Shadow of the Su- permassive Black Hole, Astrophys. J. Lett.875, L1 (2019), arXiv:1906.11238 [astro-ph.GA]

    work page internal anchor Pith review arXiv 2019

  15. [15]

    First Sagittarius A* Event Horizon Telescope Results. I. The Shadow of the Supermassive Black Hole in the Center of the Milky Way

    K. Akiyamaet al.(Event Horizon Telescope), First Sagittar- ius A* Event Horizon Telescope Results. I. The Shadow of the Supermassive Black Hole in the Center of the Milky Way, Astrophys. J. Lett.930, L12 (2022), arXiv:2311.08680 [astro- ph.HE]

    work page internal anchor Pith review arXiv 2022

  16. [16]

    M. D. Johnsonet al., Key Science Goals for the Next- Generation Event Horizon Telescope, Galaxies11, 61 (2023), arXiv:2304.11188 [astro-ph.HE]

    work page arXiv 2023

  17. [17]

    V . A. Kostelecky and S. Samuel, Spontaneous Breaking of Lorentz Symmetry in String Theory, Phys. Rev. D39, 683 (1989)

    1989

  18. [18]

    Spontaneous Lorentz Violation, Nambu-Goldstone Modes, and Gravity

    R. Bluhm and V . A. Kostelecky, Spontaneous Lorentz violation, Nambu-Goldstone modes, and gravity, Phys. Rev. D71, 065008 (2005), arXiv:hep-th/0412320

    work page Pith review arXiv 2005
