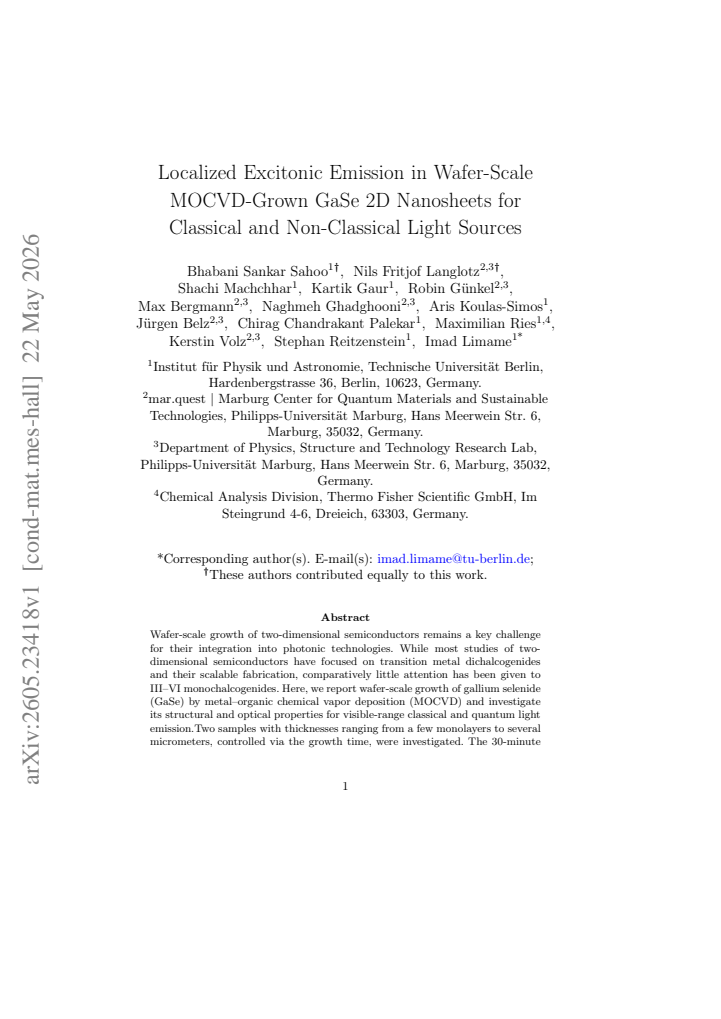

Localized Excitonic Emission in Wafer-Scale MOCVD-Grown GaSe 2D Nanosheets for Classical and Non-Classical Light Sources

Bhabani Sankar Sahoo , Nils Fritjof Langlotz , Shachi Machchhar , Kartik Gaur , Robin G\"unkel , Max Bergmann , Naghmeh Ghadghooni , Aris Koulas-Simos
show 6 more authors
J\"urgen Belz Chirag Chandrakant Palekar Maximilian Ries Kerstin Volz Stephan Reitzenstein Imad Limame
This is my paper

Pith reviewed 2026-05-25 03:37 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords GaSeMOCVD2D materialssingle-photon emissiondefect-induced emissionwafer-scale growthquantum light sources
0
0 comments X

The pith

Defect-induced emission in thin MOCVD GaSe produces single-photon lines with g(2)(0) = 0.15 for scalable quantum sources.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper grows GaSe nanosheets on full wafers by metal-organic chemical vapor deposition and tunes thickness simply by changing growth time from three to thirty minutes. The thinner layers produce sharp narrow emission lines that include clear single-photon antibunching, while thicker layers give only broad intense light. Cathodoluminescence maps show these bright spots sit at fixed locations, and temperature and power studies plus Raman data tie the behavior to defects inside the crystal rather than the material's own excitons. The work therefore presents wafer-scale GaSe as a ready source of both ordinary and quantum light emitters.

Core claim

Wafer-scale MOCVD-grown GaSe yields 3-minute thin samples that display discrete narrow emission lines together with single-photon emission (g^{(2)}(0) = 0.15 ± 0.10); cathodoluminescence mapping reveals pronounced spatial localization of both narrow and broad centers, and temperature-dependent power-law analysis combined with Raman mapping establishes the emission as defect-induced rather than intrinsic excitonic recombination, thereby positioning the material as a platform for classical and non-classical light sources.

What carries the argument

Defect-induced spatial localization of emission centers, identified through cathodoluminescence mapping together with supporting Raman and temperature-dependent measurements.

If this is right

  • Thicker MOCVD GaSe films supply intense broad photoluminescence suitable for classical visible light sources.
  • Thinner layers enable non-classical single-photon sources directly on wafer scale.
  • Defect engineering during growth provides a practical route to scalable quantum photonics in this 2D material.
  • The MOCVD process allows straightforward integration of GaSe emitters into larger photonic devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same growth method could be used to introduce controlled defects in related III-VI monolayers for quantum emission.
  • Spatial mapping of defects might allow deliberate placement of single-photon sites for on-chip quantum circuits.
  • Varying growth parameters could switch the material between classical broadband and quantum narrow-line regimes.

Load-bearing premise

The narrow lines and single-photon statistics come specifically from defect-induced localization rather than intrinsic excitons or other mechanisms.

What would settle it

Uniform non-localized emission across the wafer or temperature dependence matching free-exciton behavior would falsify the defect-induced claim.

read the original abstract

Wafer-scale growth of two-dimensional semiconductors remains a key challenge for their integration into photonic technologies. While most studies of two-dimensional semiconductors have focused on transition metal dichalcogenides and their scalable fabrication, comparatively little attention has been given to III-VI monochalcogenides. Here, we report wafer-scale growth of gallium selenide (GaSe) by metal-organic chemical vapor deposition (MOCVD) and investigate its structural and optical properties for visible-range classical and quantum light emission. Two samples with thicknesses ranging from a few monolayers to several micrometers, controlled via the growth time, were investigated. The 30-minute grown sample yields intense, broad photoluminescence spanning 1.7--2.0$\,$eV, whereas the thinner 3-minute sample exhibits discrete narrow emission lines and single-photon emission with $(g^{(2)}(0) = 0.15 \pm 0.10)$. Remarkably, cathodoluminescence mapping reveals pronounced spatial localization of both spectrally narrow and broad emission centers. Together with temperature-dependent power-law analysis and Raman mapping, our results indicate defect-induced emission rather than intrinsic excitonic recombination. These findings establish wafer-scale MOCVD grown 2D GaSe as a platform for classical and non-classical light sources and highlight defect-engineered localization as a route toward scalable quantum photonics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript reports wafer-scale MOCVD growth of GaSe 2D nanosheets, with growth time controlling thickness from monolayers to micrometers. The 30-minute sample shows intense broad photoluminescence (1.7-2.0 eV), while the 3-minute sample exhibits discrete narrow emission lines and single-photon emission (g^{(2)}(0) = 0.15 ± 0.10). Cathodoluminescence mapping, temperature-dependent power-law analysis, and Raman mapping are used to conclude that the emission is defect-induced rather than from intrinsic excitonic recombination, positioning wafer-scale GaSe for classical and non-classical light sources.

Significance. If the attribution to defect-induced localization holds and the growth is reproducible at wafer scale, the work would be significant for expanding 2D material platforms beyond TMDCs to III-VI monochalcogenides for scalable quantum photonics. The concrete g^{(2)}(0) value and demonstration of narrow-line emission in MOCVD-grown material are notable strengths.

major comments (1)
  1. [Abstract] Abstract: The central claim that 'our results indicate defect-induced emission rather than intrinsic excitonic recombination' rests on cathodoluminescence mapping, temperature-dependent power-law analysis, and Raman mapping, but the specific quantitative details, fitting procedures, error analysis, and how these distinguish defect localization from intrinsic excitons are not visible. This interpretation is load-bearing for the paper's positioning as a defect-engineered platform.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and constructive feedback. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that 'our results indicate defect-induced emission rather than intrinsic excitonic recombination' rests on cathodoluminescence mapping, temperature-dependent power-law analysis, and Raman mapping, but the specific quantitative details, fitting procedures, error analysis, and how these distinguish defect localization from intrinsic excitons are not visible. This interpretation is load-bearing for the paper's positioning as a defect-engineered platform.

    Authors: The abstract is a concise summary; the quantitative details requested are provided in the main text. Cathodoluminescence mapping includes spatial localization statistics and intensity profiles (Section on CL imaging). Temperature-dependent power-law analysis reports fitted exponents (typically ~1.5-2.0 below 100 K), temperature ranges, and uncertainties from least-squares fits with explicit error propagation (Section on temperature dependence and associated figures). Raman mapping shows peak shifts, FWHM variations, and spatial correlations with emission sites (Raman section). These are compared to literature values for free excitons in GaSe (binding energy ~20-30 meV, broader linewidths) versus localized defect states (narrower lines, sublinear power dependence). The distinction is made via linewidth statistics, power-law exponents inconsistent with free-exciton recombination, and spatial decoupling from uniform regions. We can add one sentence to the abstract summarizing a key quantitative indicator if the editor prefers. revision: partial

Circularity Check

0 steps flagged

No circularity: purely experimental report

full rationale

This is a purely experimental paper on MOCVD growth of GaSe and optical characterization via PL, CL mapping, Raman, temperature-dependent power-law analysis, and photon correlation (g2(0)). No equations, derivations, fitted parameters presented as predictions, or load-bearing self-citations exist. All claims rest on direct measurements with external instruments and standards; the defect-induced emission interpretation follows from multiple independent observations without reducing to any input by construction. The work is self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. Standard assumptions of photoluminescence and cathodoluminescence interpretation are implicit but not enumerated.
