arxiv: 2605.21652 · v1 · pith:PI2XRGYYnew · submitted 2026-05-20 · 💻 cs.CV · cs.AI

Look-Closer-Then-Diagnose: Confidence-Aware Ultrasound VQA via Active Zooming

Yue Zhou , Erxuan Wu , Yikang Sun , Hongjoo Lee , Yuan Bi , Huixiong Xu , Zhongliang Jiang This is my paper

Pith reviewed 2026-05-22 09:10 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords ultrasound visual question answeringactive zoomingconfidence-aware VQAvision-language modelslesion localizationGroup Relative Policy Optimizationuncertainty-aware reward
0
0 comments X

The pith

A Zoom-then-Diagnose framework lets ultrasound vision-language models actively focus on lesions before answering questions by using consistency across rollouts as a confidence signal.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to make vision-language models for ultrasound visual question answering follow the way sonographers work: they first search for and zoom on a lesion, then form a diagnosis. It does this by adding a structured Zoom-then-Diagnose reasoning step and an uncertainty-aware reward inside Group Relative Policy Optimization. The reward comes from running several stochastic rollouts in a group and measuring how consistent the answers are, treating high consistency as a sign the model should trust its output. Experiments on liver, breast, and thyroid ultrasound datasets show a 39.3 percent gain in lesion localization, indicating the model has learned to look closer when needed and stay cautious when cases are ambiguous.

Core claim

The central claim is that a Zoom-then-Diagnose paradigm together with an uncertainty-aware reward computed from stochastic group-wise rollouts inside the GRPO framework teaches the model to actively zoom into lesion regions before diagnosis and to reinforce correct answers on clear cases while remaining cautious on ambiguous ones.

What carries the argument

Zoom-then-Diagnose paradigm combined with an uncertainty-aware reward derived from stochastic group-wise rollouts inside Group Relative Policy Optimization

If this is right

  • The model learns to improve lesion localization by 39.3 percent across liver, breast, and thyroid ultrasound datasets.
  • High-consistency predictions on clear cases are reinforced while predictions on ambiguous cases trigger caution.
  • The approach aligns VLM reasoning more closely with the clinical practice of focusing on lesions before reporting.
  • No external labeled validation set is required to estimate when the model should be confident.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same consistency-based reward could be tested on other medical imaging modalities that support interactive cropping or magnification.
  • Modeling ambiguity internally might let the system flag uncertain answers for human review rather than forcing a diagnosis.
  • If the reward structure works outside ultrasound, it could be tried on general visual question answering tasks that contain visual ambiguity.

Load-bearing premise

The uncertainty-aware reward from stochastic group-wise rollouts serves as a reliable proxy for model confidence that can separate clear cases from ambiguous ones without any external validation data.

What would settle it

Measure lesion localization accuracy on a fresh set of ultrasound images from the same organs and check whether the reported 39.3 percent gain appears and whether the rollout consistency score actually tracks human judgments of case ambiguity.

Figures

Figures reproduced from arXiv: 2605.21652 by Erxuan Wu, Hongjoo Lee, Huixiong Xu, Yikang Sun, Yuan Bi, Yue Zhou, Zhongliang Jiang.

Figure 1
Figure 1. Figure 1: Our approach mimics sonographer cognitively. It employs a zoom-in mechanism to simulate sonographers’ localized visualization. Moreover, it reflects their consensus: high consistency in easy cases (where sonographers agree) and appropriate ambiguity in hard cases (where sonographers disagree). These characteristics suggest two key requirements for ultrasound VLMs: lesion-centric structured reasoning and am… view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the framework. Top: The Zoom-then-Diagnose paradigm, re￾alized by constructing a supporting dataset (Sec. 2.1) and performing supervised fine￾tuning to instill structured zoom-then-diagnosis reasoning (Sec. 2.2). Bottom: We apply GRPO with a consistency-based uncertainty alignment reward (Sec. 2.3). 2.2 Supervised Finetuning with Zoom-then-Diagnose Reasoning As illustrated in the upper part of … view at source ↗
Figure 3

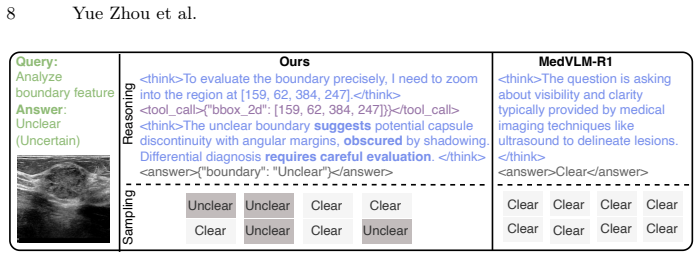

Figure 3. Figure 3: Qualitative result. Unlike MedVLM-R1’s uniform predictions, our model reflects clinical ambiguity via explicit reasoning and inconsistent sampling results. remains consistently confident on this ambiguous case, whereas our model shows calibrated variability across rollouts, better aligning with the subjective nature of ultrasound interpretation. Third, many baselines exhibit near-zero or negative Entropy G… view at source ↗
read the original abstract

Vision-Language Models (VLMs) have significantly advanced medical visual question answering, yet their performance in ultrasound remains suboptimal. In clinical practice, sonographers explicitly focus on lesion regions to formulate reports, though diagnostic interpretations sometimes vary due to inherent subjectivity. However, existing VLMs are not explicitly structured to interactively zoom into lesions prior to diagnosis; moreover, they typically treat annotations as unbiased ground truths, failing to account for their inherent subjectivity and ambiguity. In this paper, we propose a framework specifically designed to consider the sonographer's cognitive workflow. We first introduce a structured Zoom-then-Diagnose paradigm, which replicates the interactive search process to enable lesion-focused reasoning. Furthermore, within the Group Relative Policy Optimization (GRPO) framework, we introduce an uncertainty-aware reward derived from stochastic group-wise rollouts to estimate prediction consistency as a proxy for model confidence. Together, these two components encourage the model to reinforce accurate predictions on clear cases while remaining cautious under ambiguity. Experiments across liver, breast, and thyroid datasets show that our framework improves lesion localization by 39.3\%, demonstrating that our model has learned the ability to actively look closer and diagnose.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a Zoom-then-Diagnose paradigm for ultrasound VQA that replicates sonographers' interactive lesion-focused workflow, combined with an uncertainty-aware reward inside the Group Relative Policy Optimization (GRPO) framework. The reward is derived from consistency across stochastic group-wise rollouts and is intended to reinforce predictions on clear cases while promoting caution under ambiguity. Experiments on liver, breast, and thyroid datasets are reported to yield a 39.3% improvement in lesion localization.

Significance. If the localization gains prove reproducible and the internal consistency proxy is shown to track actual diagnostic ambiguity, the framework could advance medical VLMs by explicitly incorporating active zooming and confidence calibration, addressing subjectivity in ultrasound interpretation.

major comments (2)
  1. Abstract: the headline claim of a 39.3% lesion-localization improvement supplies no experimental details on baselines, dataset sizes, statistical tests, or measurement definitions, rendering the central empirical result unverifiable from the provided information.
  2. GRPO uncertainty reward (described in the abstract and method): the reward is computed exclusively from the model's own stochastic group-wise rollouts on the same inputs, creating a self-referential loop in which rollout consistency serves as both the optimization signal and the target; no external anchor such as multi-rater sonographer labels or inter-observer variability scores is described to confirm that the proxy distinguishes clear from ambiguous cases rather than rollout noise.
minor comments (1)
  1. The manuscript would benefit from explicit definitions of rollout parameters (temperature, group size, number of samples) used to compute the uncertainty reward, as these choices directly affect the proxy's behavior.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and indicate planned revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [—] Abstract: the headline claim of a 39.3% lesion-localization improvement supplies no experimental details on baselines, dataset sizes, statistical tests, or measurement definitions, rendering the central empirical result unverifiable from the provided information.

    Authors: We agree that the abstract, constrained by length, omits key experimental details. In the revised manuscript we will expand the abstract to briefly note the baselines (standard VLMs without the Zoom-then-Diagnose paradigm), the dataset sizes for the liver, breast, and thyroid ultrasound VQA collections, the lesion-localization metric (improvement in IoU-based localization accuracy), and a reference to the statistical significance tests already reported in the experimental section. revision: yes

  2. Referee: [—] GRPO uncertainty reward (described in the abstract and method): the reward is computed exclusively from the model's own stochastic group-wise rollouts on the same inputs, creating a self-referential loop in which rollout consistency serves as both the optimization signal and the target; no external anchor such as multi-rater sonographer labels or inter-observer variability scores is described to confirm that the proxy distinguishes clear from ambiguous cases rather than rollout noise.

    Authors: The uncertainty-aware reward is deliberately constructed from internal consistency across stochastic group-wise rollouts to serve as a training-time proxy for model confidence, allowing the framework to reinforce accurate predictions on clear cases while promoting caution under ambiguity without requiring additional external annotations. This design choice intentionally creates the self-referential aspect noted by the referee. We acknowledge that the absence of multi-rater sonographer labels or inter-observer variability scores leaves open the possibility that the proxy partly captures rollout noise rather than true diagnostic ambiguity. In the revision we will add a dedicated paragraph in the discussion section that explicitly states this limitation, provides further analysis of rollout variance on selected ambiguous examples, and outlines future work that could incorporate external anchors. revision: partial

Circularity Check

0 steps flagged

No significant circularity; empirical gains rest on external dataset evaluation

full rationale

The paper's central claim—an empirical 39.3% improvement in lesion localization—is obtained from experiments on liver, breast, and thyroid datasets rather than by algebraic reduction to the reward definition. The uncertainty-aware reward is introduced as a design element inside GRPO using stochastic group-wise rollouts; while this creates an internal consistency signal, the paper does not equate the final performance metric to that signal by construction. No equations are shown that force the localization gain from the reward alone, no self-citation chain carries the uniqueness of the paradigm, and no fitted parameter is relabeled as a prediction. The derivation therefore remains self-contained against the reported benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The framework rests on the domain assumption that sonographer zooming behavior can be replicated by a VLM and that group rollout consistency is a valid confidence proxy; no free parameters or new physical entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Ultrasound annotations contain inherent subjectivity and ambiguity that standard VLMs fail to model
    Explicitly stated in the abstract as a limitation of existing models.
invented entities (1)
  • Uncertainty-aware reward from stochastic group-wise rollouts no independent evidence
    purpose: Proxy for model confidence to reinforce accurate predictions on clear cases and caution on ambiguous ones
    Introduced inside the GRPO framework as the key mechanism for confidence awareness
