arxiv: 2503.18926 · v1 · pith:PIZX3HL4new · submitted 2025-03-24 · 📡 eess.SY · cs.SY

Inertial-Based LQG Control: A New Look at Inverted Pendulum Stabilization

Daniel Engelsman , Itzik Klein This is my paper

Pith reviewed 2026-05-22 22:34 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords LQG controlinverted pendulumdifferential flatnessinertial sensorsstate estimationmobile platformsattitude stabilizationjerk states
0
0 comments X

The pith

Local differential flatness lets LQG controllers incorporate jerk states from accelerometers to stabilize inverted pendulums without direct tilt measurements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that local differential flatness of the inverted pendulum on a mobile platform allows higher-order dynamics to be added to the system model. This change lets jerk states computed from accelerometer readings enter the LQG state-space representation directly. Standard LQG setups for these systems rely on sensor fusion to estimate tilt because direct measurement is unavailable outdoors, but the new model uses inertial data to improve estimation accuracy. The result is a controller that predicts accelerations and stabilizes pendulum-like behavior on platforms such as Segways or hoverboards with limited sensors.

Core claim

By leveraging local differential flatness, higher-order dynamics can be incorporated into the system model for inverted pendulum stabilization. This refinement enables jerk states from accelerometer data to be included in the LQG state-space model, enhancing state estimation and yielding a more robust controller for dynamically stable mobile platforms where the tilt angle cannot be measured directly.

What carries the argument

Local differential flatness of the inverted pendulum on a mobile platform, used to embed jerk states from inertial measurements into the LQG state-space model.

If this is right

  • State estimation improves because the model now predicts accelerations explicitly from inertial inputs.
  • The resulting LQG controller stabilizes the pendulum on platforms that lack displacement sensors or rotary encoders for configuration variables.
  • Accelerometer data becomes usable inside the optimal control loop rather than only for separate sensor fusion.
  • Higher-order terms from Newton-Euler equations can be retained without increasing reliance on external attitude references.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same flatness-based extension could be tried on other underactuated balancing systems that admit local differential flatness.
  • Hardware trials with commercial inertial measurement units on bipedal robots would show whether the added states reduce drift during outdoor operation.
  • If the model remains accurate at higher speeds, it may allow LQG designs to replace heavier Kalman-filter fusion pipelines in lightweight mobile robots.

Load-bearing premise

The inverted pendulum system on a mobile platform is locally differentially flat in a way that allows jerk states from accelerometer data to be directly included in the LQG state-space model without requiring direct tilt-angle measurement.

What would settle it

A side-by-side test on a Segway-style platform that measures tilt estimation error and stabilization success when the LQG controller runs with versus without the added jerk states, under conditions where no tilt sensor is present.

Figures

Figures reproduced from arXiv: 2503.18926 by Daniel Engelsman, Itzik Klein.

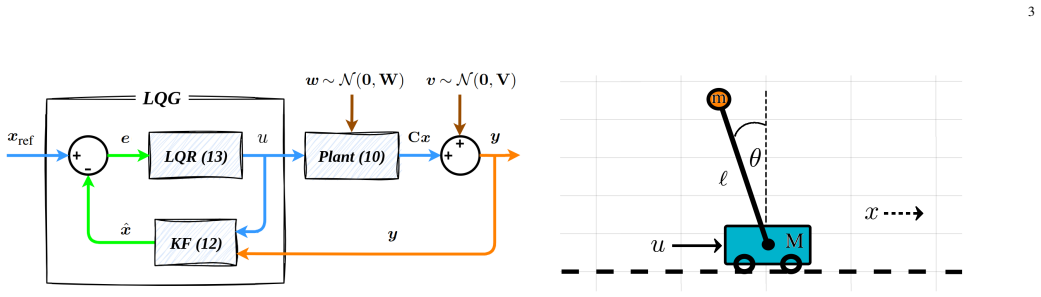

Figure 2
Figure 2. Figure 2: A simplified mobile robot with an inverted pendulum [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: LQG response for ρ = 1. Left: Linear states; Right: Angular states. Blue: True states; Green: Estimated states. B. Performance analysis We begin by evaluating the A-IPoC performance, with a key focus on the update ratio, denoted as ρ, which determines the frequency of corrections following state predictions [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

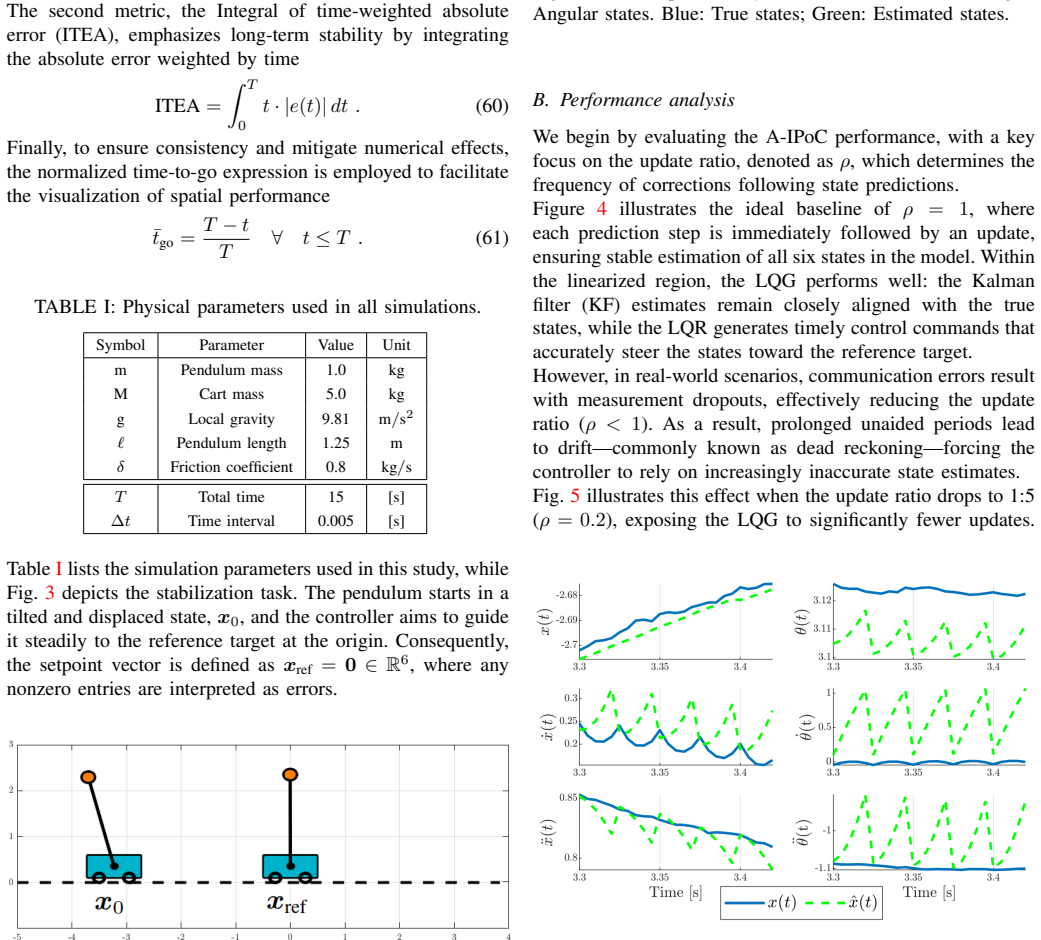

Figure 5
Figure 5. Figure 5: illustrates this effect when the update ratio drops to 1:5 (ρ = 0.2), exposing the LQG to significantly fewer updates [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Left: position error, Middle: Angular error, Right: Con [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

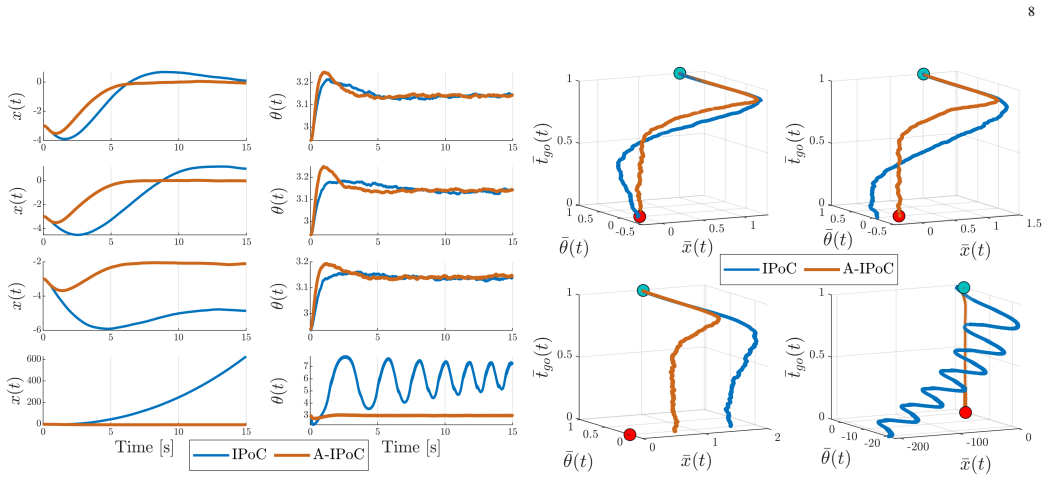

Figure 7
Figure 7. Figure 7: Configuration errors: IPoC vs. A-IPoC. Update ratios [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Response surfaces of the LQG-based IPoC system. [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

Linear quadratic Gaussian (LQG) control is a well-established method for optimal control through state estimation, particularly in stabilizing an inverted pendulum on a cart. In standard laboratory setups, sensor redundancy enables direct measurement of configuration variables using displacement sensors and rotary encoders. However, in outdoor environments, dynamically stable mobile platforms-such as Segways, hoverboards, and bipedal robots-often have limited sensor availability, restricting state estimation primarily to attitude stabilization. Since the tilt angle cannot be directly measured, it is typically estimated through sensor fusion, increasing reliance on inertial sensors and necessitating a lightweight, self-contained perception module. Prior research has not incorporated accelerometer data into the LQG framework for stabilizing pendulum-like systems, as jerk states are not explicitly modeled in the Newton-Euler formalism. In this paper, we address this gap by leveraging local differential flatness to incorporate higher-order dynamics into the system model. This refinement enhances state estimation, enabling a more robust LQG controller that predicts accelerations for dynamically stable mobile platforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes an inertial-based LQG controller for stabilizing an inverted pendulum on a mobile base (e.g., Segway-like platforms). It claims that local differential flatness of the combined system allows higher-order dynamics (jerk states) derived from accelerometer measurements to be incorporated directly into the LQG state-space model, thereby enabling robust state estimation of the unmeasured tilt angle without relying on direct configuration sensors or standard sensor fusion.

Significance. If the local differential flatness property can be established with an IMU-measurable flat output whose derivatives yield an algebraic map to all states (including tilt) without circular dependence on unmeasured angles or exact inertial parameters, the approach could reduce sensor requirements for attitude stabilization on dynamically stable mobile platforms. The paper does not report simulation results, experimental validation, or comparison against standard LQG or Kalman-filter baselines, so the practical improvement remains unquantified.

major comments (2)
  1. [Abstract / Differential Flatness Section] The central claim rests on the system being locally differentially flat with a flat output whose time derivatives up to jerk are directly available from accelerometer data and permit algebraic reconstruction of the tilt angle. No derivation of the flat output, the resulting state map, or verification that the map avoids circular dependence on sin(theta) or unknown parameters is supplied in the abstract or visible sections; this is load-bearing for the claimed improvement in estimation robustness.
  2. [LQG Formulation / State-Space Model] The manuscript states that 'jerk states are not explicitly modeled in the Newton-Euler formalism' and that differential flatness addresses this gap, yet provides neither the augmented state-space matrices nor the observability analysis showing that the LQG estimator can recover tilt from acceleration/jerk alone. Without these, it is impossible to confirm that the refinement yields a more robust controller.
minor comments (2)
  1. [Abstract] The abstract supplies no equations, simulation results, or validation data, making it difficult to assess the soundness of the mathematical claims.
  2. [Throughout] Notation for the flat output, jerk states, and the precise IMU measurement model should be introduced explicitly with equation numbers.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments highlighting the need for explicit derivations in the differential flatness claim and the LQG state-space details. We address each major comment below and will revise the manuscript to strengthen these sections.

read point-by-point responses

  1. Referee: [Abstract / Differential Flatness Section] The central claim rests on the system being locally differentially flat with a flat output whose time derivatives up to jerk are directly available from accelerometer data and permit algebraic reconstruction of the tilt angle. No derivation of the flat output, the resulting state map, or verification that the map avoids circular dependence on sin(theta) or unknown parameters is supplied in the abstract or visible sections; this is load-bearing for the claimed improvement in estimation robustness.

    Authors: The referee correctly notes that the abstract and visible sections lack an explicit derivation of the flat output and the algebraic state map. The manuscript abstract summarizes the approach but does not include the step-by-step flatness derivation or the verification against circular dependence. We will add a concise outline of the flat output selection (based on the mobile base position and its derivatives) and the resulting map to tilt in a revised abstract, along with a new subsection in the differential flatness section providing the explicit algebraic reconstruction and confirming independence from unknown inertial parameters and sin(theta) terms via the local flatness property. revision: yes

  2. Referee: [LQG Formulation / State-Space Model] The manuscript states that 'jerk states are not explicitly modeled in the Newton-Euler formalism' and that differential flatness addresses this gap, yet provides neither the augmented state-space matrices nor the observability analysis showing that the LQG estimator can recover tilt from acceleration/jerk alone. Without these, it is impossible to confirm that the refinement yields a more robust controller.

    Authors: We agree that the augmented state-space matrices (incorporating jerk states from accelerometer-derived flat output derivatives) and the corresponding observability analysis are not provided in the current manuscript. The text references the gap in Newton-Euler modeling but does not show the explicit A, B, C, D matrices for the augmented LQG estimator or the rank condition confirming observability of the tilt state from acceleration/jerk measurements. In the revision, we will include the augmented state-space model and a brief observability analysis demonstrating that the tilt angle becomes observable through the flatness-based augmentation. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation chain not reducible to inputs in provided text

full rationale

The abstract and visible text describe leveraging local differential flatness to add jerk states from accelerometers into an LQG model for inverted pendulum stabilization on mobile platforms. No equations, parameter fits, self-citations, or uniqueness theorems are quoted or visible. Without mathematical steps that reduce by construction to fitted inputs or prior self-work, the central claim cannot be shown to collapse into its own assumptions. This is the default honest outcome when no load-bearing reduction is exhibited.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities; all technical content is deferred to the unavailable full text.
