A QUBO Formulation Framework for Kinematic Structure-Based Robot Design Optimization: A Robotic Hand Case Study

HyoJae Kang , Yeong Jae Park , Jeongdo Ahn , Dongil Park This is my paper

Pith reviewed 2026-05-19 15:36 UTC · model grok-4.3

classification 💻 cs.RO
keywords QUBOrobot design optimizationkinematic structurerobotic handquantum annealingsimulated annealingcombinatorial optimization
0
0 comments X

The pith

A framework encodes robotic hand kinematic designs as a single quadratic binary optimization problem.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how to convert the problem of selecting kinematic structures for a robot, such as which finger designs to combine in a hand, into a quadratic unconstrained binary optimization task. Classical computation first calculates performance metrics for each design option, then those values plus rules for valid selections and penalties for bad combinations are packed into quadratic terms that annealing solvers can handle. The result is demonstrated on a 27-variable hand example where both classical simulated annealing and quantum annealing produce feasible designs that obey one-hot and pairwise constraints, and solution quality tightens with more optimization reads. A reader would care because the method lets engineers use specialized hardware to search large design spaces without manually enumerating every possible combination. The paper also sketches how the same encoding steps apply to other robotic systems.

Core claim

The central claim is that design-dependent kinematic metrics evaluated classically can be combined with individual rewards, workspace overlap interactions, one-hot constraints, and structural penalties into one unified quadratic objective, so that a 27-variable robotic hand problem yields feasible design combinations under simulated and quantum annealing, with the observed objective range narrowing as the number of reads grows.

What carries the argument

The unified quadratic objective function that folds individual design rewards, workspace interactions, one-hot selection rules, and structural dependency penalties into a single model.

If this is right

  • Feasible designs satisfying one-hot and pairwise constraints appear under simulated annealing.
  • The same formulation runs directly on quantum annealing hardware.
  • The range of objective values shrinks as the number of reads increases.
  • The encoding steps extend to other robotic systems by repeating the metric evaluation and term construction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Engineers could screen thousands of kinematic variants rapidly before running heavy physics simulations on the survivors.
  • The approach might transfer to selecting components in other systems where local performance and global spatial interactions both matter.
  • Comparing solution quality against gradient-based or evolutionary methods on the same hand problem would test whether the quadratic encoding preserves ranking order.

Load-bearing premise

Classical calculations of the kinematic metrics are accurate enough and the design constraints translate into quadratic terms without losing essential trade-offs.

What would settle it

Quantum annealing on the 27-variable hand problem yields no solutions that satisfy both the one-hot selection and pairwise constraints even after a large number of reads.

Figures

Figures reproduced from arXiv: 2605.15510 by Dongil Park, HyoJae Kang, Jeongdo Ahn, Yeong Jae Park.

Figure 1
Figure 1. Figure 1: Overview of the kinematic structures of the robotic hand, including the design variables and kinematic [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 1
Figure 1. Figure 1: The fingertip positions were calculated using ho [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: QUBO matrix for the 27-variable robotic hand design problem, including individual evaluation and inter [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Optimization results obtained using simulated [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

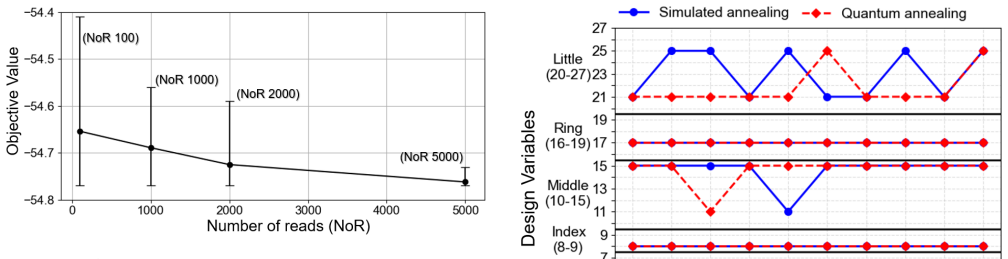

Figure 4. Figure 4: Optimization results obtained using quantum [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
read the original abstract

This paper presents a quadratic unconstrained binary optimization-based formulation framework for robot design optimization using kinematic structure-level evaluation metrics. In the proposed framework, classical computation is used to evaluate design-dependent metrics while the resulting combinatorial selection problem is formulated in a structure compatible with quantum annealing-based optimization. A robotic hand is adopted as a representative case study, as its performance is determined by both the individual kinematic characteristics of each finger and interaction terms. The proposed formulation incorporates individual design rewards, overlap workspace interactions, one-hot constraint, and structural dependency penalties into a unified quadratic model. A 27-variable robotic hand design problem is constructed, and simulated annealing is used as a classical baseline to verify the feasibility of the formulation. Quantum annealing is further performed to examine the applicability of the proposed formulation to annealing-based hardware execution. The results show that feasible design combinations satisfying both one-hot selection and pairwise constraints can be obtained, with the observed objective-value range becoming narrower as the number of reads increases. In addition, the formulation process is discussed for other robotic systems. The proposed framework provides a generalized approach for transforming kinematic structure-based robot design problems into combinatorial optimization problems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a QUBO formulation framework for kinematic structure-based robot design optimization. Classical computation evaluates design-dependent kinematic metrics, which are then encoded into a single quadratic objective that includes individual design rewards, workspace overlap interactions, one-hot selection constraints, and structural dependency penalties. A 27-variable robotic hand case study is constructed; simulated annealing serves as a classical baseline and quantum annealing is tested on hardware. Results indicate that feasible designs satisfying the constraints can be obtained, with the range of objective values narrowing as the number of reads increases. The framework is positioned as generalizable to other robotic systems.

Significance. If the quadratic encoding preserves the ordering of designs induced by the original kinematic metrics, the separation of classical metric evaluation from combinatorial optimization could provide a practical route for applying annealing-based solvers to robot design problems with discrete structural choices. The explicit incorporation of both individual and interaction terms is a clear strength. However, the reported experiments only verify constraint satisfaction and objective convergence, not that the recovered designs are high-performing according to the precomputed kinematic criteria, which limits the demonstrated utility.

major comments (3)
  1. [Results] Results section: the SA and QA experiments are reported to produce feasible designs satisfying one-hot and pairwise constraints, yet no table or figure compares the kinematic performance metrics (e.g., workspace volume, dexterity scores) of the sampled designs against the full enumerated or randomly sampled design space. Without this, it remains unverified whether the QUBO objective landscape preserves the ranking of the original kinematic evaluations.
  2. [Formulation] Formulation section (around the 27-variable hand example): the procedure for choosing the numerical coefficients that weight individual rewards, workspace interaction terms, one-hot penalties, and structural penalties is not described. Because these coefficients directly shape the effective objective, their selection method must be specified to allow assessment of robustness and reproducibility.
  3. [Abstract and case study] Abstract and §4 (case study): while the narrowing of the objective-value range with increasing reads is stated, no quantitative performance metrics (e.g., success rate of feasible high-reward designs, comparison to exhaustive search on a smaller instance) are supplied to support the claim that the formulation yields high-performing designs rather than merely feasible ones.
minor comments (2)
  1. [Discussion] The abstract states that 'the formulation process is discussed for other robotic systems,' but the main text provides only a brief outline; a concrete second example or pseudocode would strengthen the generality claim.
  2. [Formulation] Notation for the quadratic terms (e.g., how workspace overlap is reduced to pairwise binary interactions) should be defined more explicitly with an equation reference to avoid ambiguity when readers attempt to replicate the encoding.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thoughtful and constructive comments on our manuscript. We appreciate the feedback which helps to clarify the contributions and limitations of our QUBO formulation framework for kinematic structure-based robot design optimization. We address each of the major comments below and will make corresponding revisions to the manuscript.

read point-by-point responses

  1. Referee: [Results] Results section: the SA and QA experiments are reported to produce feasible designs satisfying one-hot and pairwise constraints, yet no table or figure compares the kinematic performance metrics (e.g., workspace volume, dexterity scores) of the sampled designs against the full enumerated or randomly sampled design space. Without this, it remains unverified whether the QUBO objective landscape preserves the ranking of the original kinematic evaluations.

    Authors: We agree with the referee that a direct comparison of kinematic performance metrics for the optimized designs versus the broader design space would strengthen the validation of the QUBO encoding. The current experiments focus on demonstrating that feasible designs can be obtained using both simulated and quantum annealing while satisfying the constraints. To address this comment, we will revise the Results section to include an analysis comparing the workspace volume and dexterity scores of the designs recovered by SA and QA against those from a random sampling of the design space. This will help confirm whether the objective function effectively ranks designs according to their kinematic merits. revision: yes

  2. Referee: [Formulation] Formulation section (around the 27-variable hand example): the procedure for choosing the numerical coefficients that weight individual rewards, workspace interaction terms, one-hot penalties, and structural penalties is not described. Because these coefficients directly shape the effective objective, their selection method must be specified to allow assessment of robustness and reproducibility.

    Authors: The referee correctly points out that the coefficient selection process was not explicitly detailed. In the original manuscript, the coefficients were chosen to balance the magnitudes of the reward terms with the penalties to ensure constraint enforcement without overly dominating the objective. We will add a new paragraph in the Formulation section explaining the systematic approach: scaling the kinematic metrics to [0,1], setting penalty coefficients to 10 times the maximum possible reward to enforce hard constraints, and adjusting interaction terms based on empirical overlap calculations from the hand model. This will improve reproducibility. revision: yes

  3. Referee: [Abstract and case study] Abstract and §4 (case study): while the narrowing of the objective-value range with increasing reads is stated, no quantitative performance metrics (e.g., success rate of feasible high-reward designs, comparison to exhaustive search on a smaller instance) are supplied to support the claim that the formulation yields high-performing designs rather than merely feasible ones.

    Authors: We acknowledge that the manuscript emphasizes feasibility and convergence of the objective values but does not provide explicit quantitative metrics for high-performing designs. To strengthen this, we will update the Abstract and Case Study section to include additional metrics, such as the percentage of samples that achieve objective values in the top 10% of possible rewards, and we will perform a comparison on a smaller 10-variable instance where exhaustive search is feasible to show that the annealing methods recover high-reward designs more effectively than random selection. revision: yes

Circularity Check

0 steps flagged

No circularity: direct encoding of precomputed metrics into QUBO

full rationale

The paper evaluates kinematic metrics via classical computation on candidate designs, then assembles an explicit QUBO objective from those values plus separately defined interaction terms, one-hot constraints, and penalty coefficients. Simulated annealing and quantum annealing are used only to sample low-energy states of this constructed objective; the reported outcomes (feasible combinations satisfying constraints) are not presupposed by the formulation itself but are empirical checks on the encoding. No step reduces a claimed prediction or result to a fitted parameter or self-citation by construction, and the central derivation remains one-directional from external metrics to quadratic model.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Only the abstract is available, so the ledger is necessarily incomplete. The formulation rests on the ability to pre-compute metrics classically and on the choice of quadratic coefficients that balance rewards against constraints.

free parameters (1)
  • QUBO coefficient weights for rewards and penalties
    The relative scaling between individual design rewards, overlap penalties, one-hot constraints, and structural dependency terms must be chosen to produce a usable objective; these act as free parameters.
axioms (1)
  • domain assumption Kinematic structure-level metrics can be evaluated independently by classical computation before the combinatorial step
    The framework explicitly separates classical metric evaluation from the QUBO selection problem.
