arxiv: 2410.14702 · v2 · submitted 2024-10-06 · 💻 cs.AI · cs.CL

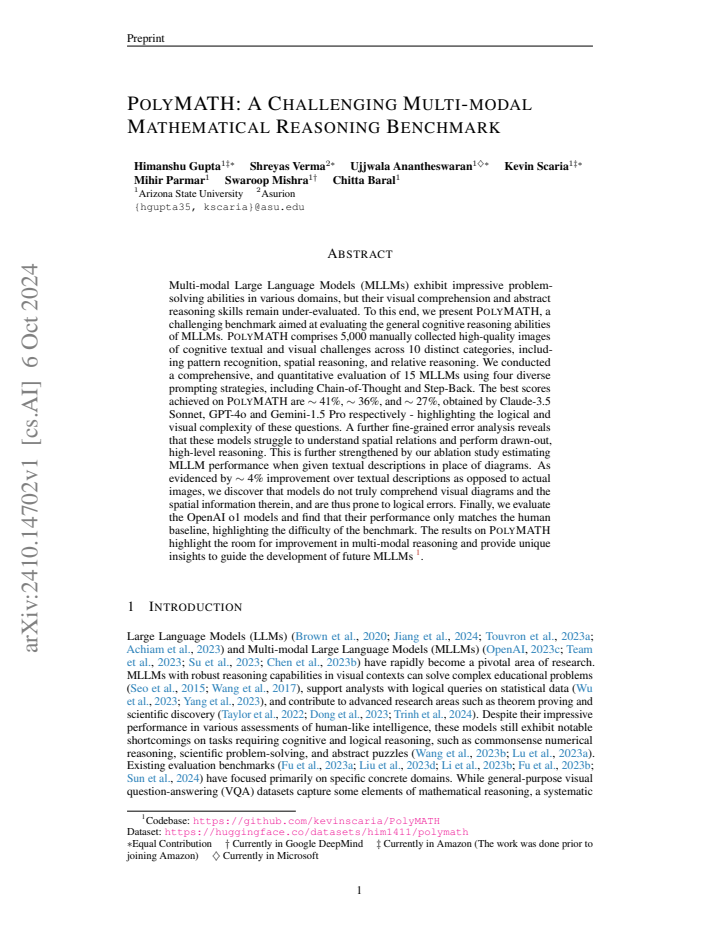

Polymath: A Challenging Multi-modal Mathematical Reasoning Benchmark

Himanshu Gupta , Shreyas Verma , Ujjwala Anantheswaran , Kevin Scaria , Mihir Parmar , Swaroop Mishra , Chitta Baral This is my paper

Pith reviewed 2026-05-23 20:01 UTC · model grok-4.3

classification 💻 cs.AI cs.CL
keywords multi-modal large language modelsmathematical reasoningvisual comprehensionspatial reasoningbenchmark evaluationpattern recognitionabstract reasoningMLLM performance
0
0 comments X

The pith

Multi-modal models gain only about 4 percent when diagrams are replaced by text descriptions on a new math reasoning benchmark.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents PolyMATH, a benchmark of 5,000 manually collected images spanning ten categories of cognitive challenges including pattern recognition, spatial reasoning, and relative reasoning. Comprehensive tests of fifteen MLLMs across four prompting methods produce top scores of roughly 41 percent for Claude-3.5 Sonnet, 36 percent for GPT-4o, and 27 percent for Gemini-1.5 Pro. An ablation replacing images with textual descriptions yields only a four percent average lift, which the authors interpret as evidence that models fail to extract spatial information from diagrams and therefore commit logical errors in extended reasoning. OpenAI o1 models reach performance levels comparable to the human baseline, underscoring the benchmark's difficulty.

Core claim

The central claim is that MLLMs do not truly comprehend visual diagrams and the spatial information they contain. This is shown by the low overall scores on PolyMATH and by the ablation result that textual descriptions produce only marginal gains over the actual images, leaving models prone to logical errors on tasks requiring drawn-out high-level reasoning.

What carries the argument

The PolyMATH benchmark itself, built from 5,000 high-quality images across ten distinct categories of textual and visual cognitive challenges.

If this is right

  • Current MLLMs remain limited in handling spatial relations within diagrams even when prompted with Chain-of-Thought or Step-Back strategies.
  • Models are prone to logical errors once tasks require integrating visual details over multiple steps.
  • The benchmark can serve as a diagnostic tool to measure progress in visual abstraction beyond current training regimes.
  • OpenAI o1 models matching human baseline performance indicates that scaling alone has not closed the gap on these visual reasoning tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Training corpora may contain too few examples of complex diagram-based spatial relations, limiting what models can internalize from image-text pairs.
  • Targeted pretraining on diagram parsing or synthetic spatial puzzles could be tested as a direct remedy for the observed weaknesses.
  • Extending the benchmark with dynamic or interactive diagrams would reveal whether the current static-image limitation is fundamental.

Load-bearing premise

The 5,000 manually collected images form a fair, unbiased, and appropriately difficult sample of the visual and cognitive challenges that matter for mathematical reasoning.

What would settle it

A new model achieving above 70 percent accuracy on the full PolyMATH set or showing more than 15 percent improvement when given textual descriptions instead of the original images would undermine the claim of weak visual diagram comprehension.

Figures

Figures reproduced from arXiv: 2410.14702 by Chitta Baral, Himanshu Gupta, Kevin Scaria, Mihir Parmar, Shreyas Verma, Swaroop Mishra, Ujjwala Anantheswaran.

Figure 1
Figure 1. Figure 1: Examples of the reasoning patterns employed by MLLMs when faced with questions [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: An overview of POLYMATH’s distribution and difficulty (a) exhibits the per-category split of the 5000 questions in the dataset, along with the split of with diagram (WD) and without diagram (WoD) for that category ; (b) Compares the per-category performance of various MLLMs. relational information (∼ 12%). Finally, we evaluate OpenAI o1 models (OpenAI, 2024b) on without diagram questions of the benchmark a… view at source ↗
Figure 3
Figure 3. Figure 3: Examples of with diagram and without diagram questions. In addition to the question image, POLYMATH includes the metadata shown above. Question without diagram is not present in test-img while both kinds of questions will be present in testmini. notable gap, as visual puzzle tasks require logical leaps that differ fundamentally from reasoning patterns over textual or linguistic problems. Moreover, spatial … view at source ↗
Figure 4
Figure 4. Figure 4: Frequency of Logical Flaw (LF) and Spatial Misunderstanding (SM) errors across different [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Questions belonging to the figure_completion (FC) category 30 [PITH_FULL_IMAGE:figures/full_fig_p030_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Questions belonging to the logical_reasoning (LR) category 31 [PITH_FULL_IMAGE:figures/full_fig_p031_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Questions belonging to the mathematical_reasoning (MR) category 32 [PITH_FULL_IMAGE:figures/full_fig_p032_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Questions belonging to the numerical_reasoning (NR) category 33 [PITH_FULL_IMAGE:figures/full_fig_p033_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Questions belonging to the odd_one_out (OD) category 34 [PITH_FULL_IMAGE:figures/full_fig_p034_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Questions belonging to the pattern_recognition (PR) category 35 [PITH_FULL_IMAGE:figures/full_fig_p035_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Questions belonging to the perspective_shift (PS) category 36 [PITH_FULL_IMAGE:figures/full_fig_p036_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Questions belonging to the relative_reasoning (RR) category 37 [PITH_FULL_IMAGE:figures/full_fig_p037_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Questions belonging to the sequence_completion (SC) category 38 [PITH_FULL_IMAGE:figures/full_fig_p038_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Questions belonging to the spatial_reasoning (SR) category 39 [PITH_FULL_IMAGE:figures/full_fig_p039_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Erroneous model reasoning patterns observed on an FC question [PITH_FULL_IMAGE:figures/full_fig_p040_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Erroneous model reasoning patterns observed on an LR question [PITH_FULL_IMAGE:figures/full_fig_p041_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Erroneous model reasoning patterns observed on an MR question [PITH_FULL_IMAGE:figures/full_fig_p042_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Erroneous model reasoning patterns observed on an NR question [PITH_FULL_IMAGE:figures/full_fig_p043_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Erroneous model reasoning patterns observed on an OD question [PITH_FULL_IMAGE:figures/full_fig_p044_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Erroneous model reasoning patterns observed on a PR question [PITH_FULL_IMAGE:figures/full_fig_p045_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Erroneous model reasoning patterns observed on a PS question [PITH_FULL_IMAGE:figures/full_fig_p046_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: Erroneous model reasoning patterns observed on an RR question [PITH_FULL_IMAGE:figures/full_fig_p047_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: Erroneous model reasoning patterns observed on an SC question [PITH_FULL_IMAGE:figures/full_fig_p048_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: Erroneous model reasoning patterns observed on an SR question [PITH_FULL_IMAGE:figures/full_fig_p049_24.png] view at source ↗
read the original abstract

Multi-modal Large Language Models (MLLMs) exhibit impressive problem-solving abilities in various domains, but their visual comprehension and abstract reasoning skills remain under-evaluated. To this end, we present PolyMATH, a challenging benchmark aimed at evaluating the general cognitive reasoning abilities of MLLMs. PolyMATH comprises 5,000 manually collected high-quality images of cognitive textual and visual challenges across 10 distinct categories, including pattern recognition, spatial reasoning, and relative reasoning. We conducted a comprehensive, and quantitative evaluation of 15 MLLMs using four diverse prompting strategies, including Chain-of-Thought and Step-Back. The best scores achieved on PolyMATH are ~41%, ~36%, and ~27%, obtained by Claude-3.5 Sonnet, GPT-4o and Gemini-1.5 Pro respectively - highlighting the logical and visual complexity of these questions. A further fine-grained error analysis reveals that these models struggle to understand spatial relations and perform drawn-out, high-level reasoning. This is further strengthened by our ablation study estimating MLLM performance when given textual descriptions in place of diagrams. As evidenced by ~4% improvement over textual descriptions as opposed to actual images, we discover that models do not truly comprehend visual diagrams and the spatial information therein, and are thus prone to logical errors. Finally, we evaluate the OpenAI o1 models and find that their performance only matches the human baseline, highlighting the difficulty of the benchmark. The results on PolyMATH highlight the room for improvement in multi-modal reasoning and provide unique insights to guide the development of future MLLMs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript introduces PolyMATH, a benchmark consisting of 5,000 manually collected images across 10 categories of cognitive challenges (pattern recognition, spatial reasoning, relative reasoning, etc.) to evaluate MLLMs on multi-modal mathematical reasoning. It reports evaluations of 15 MLLMs under four prompting strategies, with top scores of ~41% (Claude-3.5 Sonnet), ~36% (GPT-4o), and ~27% (Gemini-1.5 Pro); an ablation replacing images with textual descriptions yields only ~4% improvement, supporting the claim that models fail to comprehend visual diagrams and spatial information; o1 models match but do not exceed a human baseline.

Significance. If the 5,000-image sample is representative and the ablation comparison is well-controlled, the results would establish a valuable, high-difficulty benchmark exposing clear gaps in current MLLMs' spatial and multi-step visual reasoning, with the error analysis and human/o1 comparisons providing concrete guidance for future work. The scale and category coverage are strengths.

major comments (3)
  1. [Benchmark construction] Benchmark construction (abstract and § on data collection): The images are described only as 'manually collected' across 10 categories with no sourcing protocol, inclusion/exclusion criteria, diversity metrics, or verification steps against selection bias. This is load-bearing for the central claim, because both the headline ~41% ceiling and the ~4% image-vs-text gap could arise from non-representative sampling of unusually difficult cases rather than a fundamental deficit in diagram comprehension.
  2. [Ablation study] Ablation study (results section): The ~4% performance lift when substituting textual descriptions for images is used to conclude that 'models do not truly comprehend visual diagrams,' yet the manuscript supplies no information on how the textual descriptions were generated, their fidelity to the original diagrams, or any validation that they preserve all spatial relations. Without these controls the ablation cannot isolate visual comprehension.
  3. [Experimental setup] Evaluation protocol (experimental setup): No inter-annotator agreement, difficulty calibration procedure, or statistical tests (e.g., confidence intervals or significance of the 4% gap) are reported for the quantitative scores or human baseline. These omissions undermine the reliability of the performance numbers that underpin the main conclusions.
minor comments (1)
  1. [Abstract] The abstract lists 'four diverse prompting strategies' but only names Chain-of-Thought and Step-Back; the remaining two should be enumerated for reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting areas where additional methodological details would strengthen the paper. We address each major comment below and will incorporate the suggested clarifications and controls in a revised manuscript.

read point-by-point responses

  1. Referee: [Benchmark construction] The images are described only as 'manually collected' across 10 categories with no sourcing protocol, inclusion/exclusion criteria, diversity metrics, or verification steps against selection bias. This is load-bearing for the central claim, because both the headline ~41% ceiling and the ~4% image-vs-text gap could arise from non-representative sampling of unusually difficult cases rather than a fundamental deficit in diagram comprehension.

    Authors: We agree that the current description of data collection is insufficiently detailed. In the revision we will add a dedicated subsection describing the sourcing (publicly available cognitive puzzle repositories and textbooks), explicit inclusion criteria (clear diagrams, unambiguous ground-truth answers, coverage of the 10 categories), diversity metrics (balanced distribution across categories and difficulty levels as measured by pilot human accuracy), and verification (two independent annotators reviewed each item for bias and clarity, with disagreements resolved by discussion). These additions will directly support the representativeness of the 5,000-image sample. revision: yes

  2. Referee: [Ablation study] The ~4% performance lift when substituting textual descriptions for images is used to conclude that 'models do not truly comprehend visual diagrams,' yet the manuscript supplies no information on how the textual descriptions were generated, their fidelity to the original diagrams, or any validation that they preserve all spatial relations. Without these controls the ablation cannot isolate visual comprehension.

    Authors: We acknowledge the omission of generation and validation details for the textual descriptions. The revision will specify that descriptions were produced by human experts following a template that required explicit enumeration of all spatial relations, object positions, and visual elements while omitting the solution; a separate validation set of 200 items was rated by two additional annotators for completeness (mean fidelity score 4.7/5), with inter-annotator agreement reported. These controls will be added to the ablation section to better isolate the contribution of visual input. revision: yes

  3. Referee: [Experimental setup] No inter-annotator agreement, difficulty calibration procedure, or statistical tests (e.g., confidence intervals or significance of the 4% gap) are reported for the quantitative scores or human baseline. These omissions undermine the reliability of the performance numbers that underpin the main conclusions.

    Authors: We agree these statistical and reliability details are missing. The revised experimental setup section will report (i) inter-annotator agreement (Cohen’s kappa) for the human baseline, (ii) the difficulty calibration procedure (pilot testing on 100 items with 10 participants to stratify by accuracy bands), and (iii) bootstrap confidence intervals plus paired t-tests for all model comparisons, including the 4% image-vs-text gap. These additions will quantify the reliability of the reported numbers. revision: yes

Circularity Check

0 steps flagged

No circularity: direct empirical evaluation on collected dataset

full rationale

The paper reports performance measurements and an ablation on a newly collected set of 5,000 images. No equations, fitted parameters, predictions derived from inputs, or self-citation chains appear in the derivation of the central claims. The ~4% text-vs-image gap and overall scores are direct empirical observations on the provided data, not quantities forced by construction or renamed from prior fits. The manual collection step is an input to the evaluation rather than a self-referential loop. This is a standard benchmark paper with no load-bearing reductions to its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

No free parameters or invented entities are introduced; the work rests on the domain assumption that the manually curated images validly test the targeted reasoning skills.

axioms (1)
  • domain assumption Manually collected images across 10 categories accurately capture distinct cognitive challenges without selection bias.
    Invoked in the description of benchmark construction in the abstract.
