arxiv: 2512.02393 · v3 · submitted 2025-12-02 · 💻 cs.SE · cs.AI· cs.CL

Process-Centric Analysis of Agentic Software Systems

Shuyang Liu , Yang Chen , Rahul Krishna , Saurabh Sinha , Jatin Ganhotra , Reyhan Jabbarvand This is my paper

Pith reviewed 2026-05-17 03:10 UTC · model grok-4.3

classification 💻 cs.SE cs.AIcs.CL
keywords agentic systemstrajectory analysisGraphectoryLLM agentssoftware engineeringprocess monitoringSWE-benchonline intervention
0
0 comments X

The pith

Representing agent trajectories as Graphectory graphs enables real-time monitoring that improves resolution rates by 6.9 to 23.5 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that agentic software systems, which adaptively solve problems using large language models, benefit from shifting evaluation from final outcomes to their internal processes. It introduces Graphectory as a way to model these processes as graphs showing how agents explore, plan, and validate over time. Analysis of thousands of trajectories from common agent frameworks reveals patterns like more complex reasoning in stronger setups and coherent steps in successful cases versus chaotic ones in failures. The authors then use this representation for online detection of issues during execution, allowing the system to notify the agent or roll back steps. This leads to better success on fixing code issues and shorter execution paths without much extra computation.

Core claim

By encoding the temporal and semantic relations in agent execution trajectories as Graphectory graphs, the analysis shows that agent strategies depend on model strength and problem difficulty, with successful resolutions following structured localization, patching, and validation while failures involve backtracking or disorder. Even successful agents often take inefficient routes. Implementing real-time Graphectory construction and analysis during runtime allows flagging problematic trajectories and intervening with diagnostic messages or rollbacks, which experiments demonstrate raises resolution rates between 6.9 and 23.5 percent across models for difficult cases while shortening the paths.

What carries the argument

Graphectory, a graph-based encoding of temporal and semantic relations within agent trajectories that supports both offline analysis and real-time monitoring.

If this is right

  • Stronger LLMs or richer prompts result in more complex Graphectory structures indicating broader exploration and validation.
  • Resolved issues typically follow coherent sequences of localization, patching, and validation, unlike the chaotic or backtracking patterns in unresolved cases.
  • Even successful trajectories can contain inefficiencies that the graph representation highlights.
  • Real-time monitoring with interventions shortens trajectories and boosts resolution rates for problematic instances with negligible overhead.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could be extended to other domains where agents perform multi-step reasoning, such as web navigation or scientific discovery.
  • Patterns identified in Graphectory might inform the design of new prompting techniques that encourage coherent strategies from the start.
  • Integrating Graphectory into the agent's own decision-making loop could allow agents to self-monitor and correct mid-execution without external intervention.

Load-bearing premise

The automatically built Graphectory graphs and chosen diagnostic rules capture the key reasoning failures accurately enough that interventions help more than they hurt.

What would settle it

Applying the online monitoring system to a fresh collection of agent trajectories on SWE-bench and measuring whether the reported gains in resolution rate and reductions in trajectory length still appear.

Figures

Figures reproduced from arXiv: 2512.02393 by Jatin Ganhotra, Rahul Krishna, Reyhan Jabbarvand, Saurabh Sinha, Shuyang Liu, Yang Chen.

Figure 1
Figure 1. Figure 1: Raw trajectories of (a) SWE-agent Dev and (b) SWE-agent DSK-V3 when resolving django-10973 i.e., the sequence of reasoning about how to solve the problem and taking the appropriate actions, are different: SWE-agent Dev starts by localizing the bug to client.py file (steps 1–4), creating a reproduction test (step 5), and editing multiple locations of the client.py (steps 6–8). After two additional repetitiv… view at source ↗
Figure 2
Figure 2. Figure 2: Graphectory of SWE-agent Dev (a) and SWE-agent DSK-V3 (b) for problem django-10973 dashed lines demonstrate temporal edges (𝑇 𝐸) and structural edges (𝑆𝐸), respectively. The alphabet of Langutory is Φ = {𝐿, 𝑃,𝑉 }, representing the initial of unique logical phases in program repair: Localization, Patching, and Validation. Graphectory and Langutory promptly provide the following insights about the agents’ be… view at source ↗
Figure 3

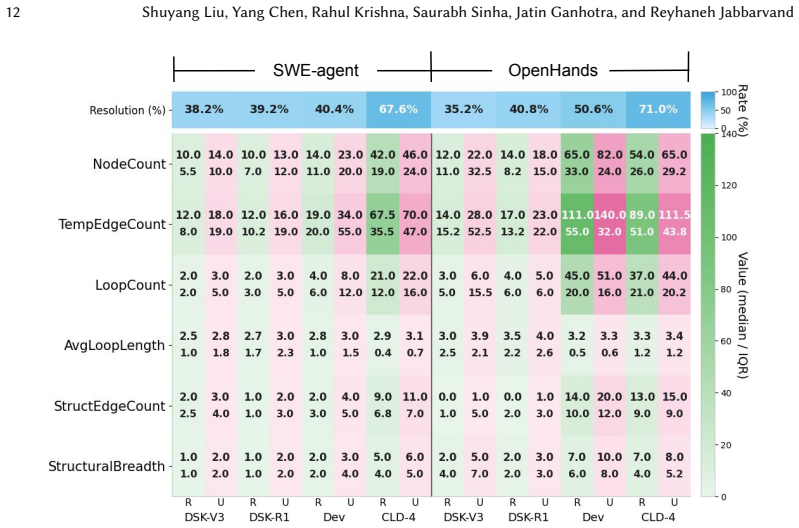

Figure 3. Figure 3: Process-centric metrics by agent–model pair. Columns are grouped by [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

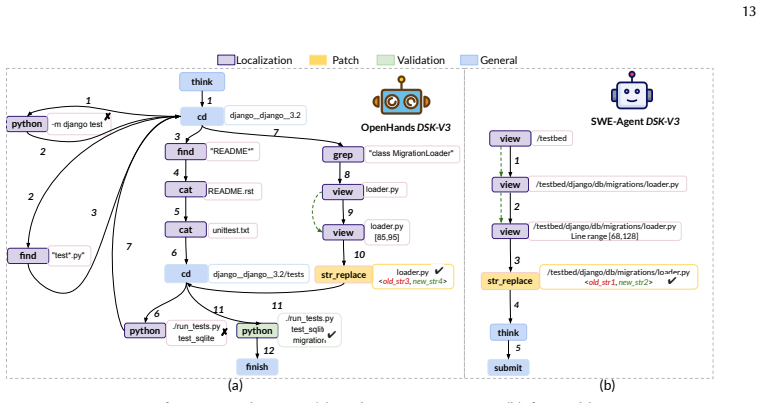

Figure 4. Figure 4: Graphectory of OpenHands DSK-V3 (a) and SWE-agent DSK-V3 (b) for problem django-13820 (a) (b) [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

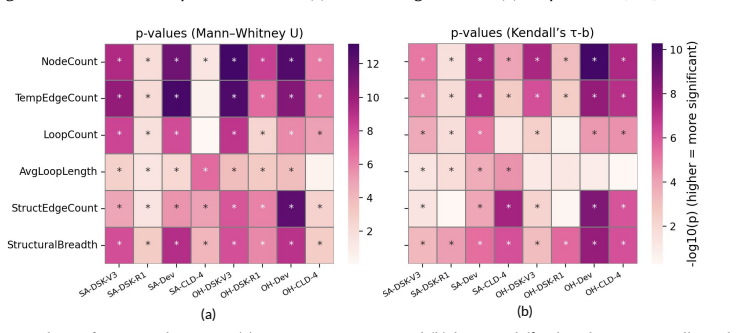

Figure 5. Figure 5: p-values of statistical tests on (a) issue repair status and (b) human difficulty alignment. Cells with ★ indicates significant difference (𝑝 ≤ 0.05) we perform the Mann-Whitney U test [34] for each metric across all ⟨agent, model⟩ pairs. This non-parametric statistical test ranks all observations from both groups (a process-centric metric and repair status) and compares the sum of ranks between the two gr… view at source ↗
Figure 6

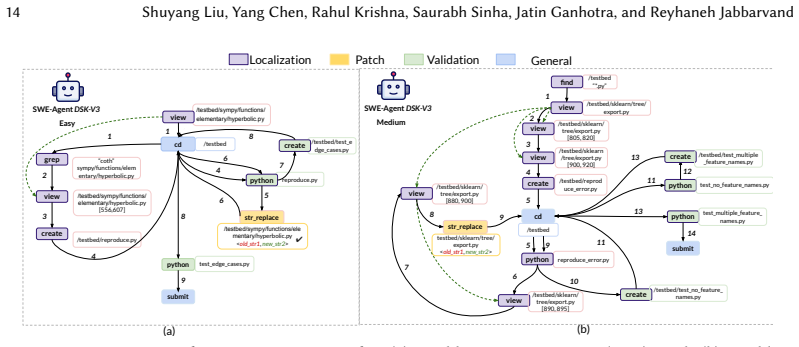

Figure 6. Figure 6: Graphectory of SWE-agent DSK-V3 for (a) problem sympy-13480 (easy) and (b) problem scikit-learn-14053 (medium) trajectories, we observed many early terminations due to runtime issues caused by its failure to provide model responses in the correct format, which is a known issue.7 3.2.4 Analysis Across Problem Difficulty. Finally, we assess, using the process-centric metrics, how problem difficulty impacts a… view at source ↗
Figure 7
Figure 7. Figure 7: Phase transition sequences (cut-off = 10) [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Distribution of terminal trajectory phases [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Phase change distribution across agents and models: (a) Resolved and (b) Unresolved [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Strategy changes of SWE-agent DSK-V3 while attempting to resolve sympy-19783 problem dominant problem-solving strategy. Overall, resolved instances of easy problems exhibit structured and well-ordered phase transitions, typically following concise ⟨𝐿, 𝑃,𝑉 ⟩ cycles that reflect a disci￾plined pipeline of localization, patch generation, and validation. As task difficulty increases, these sequences extend mo… view at source ↗
Figure 11
Figure 11. Figure 11: Example of anti-patterns Scroll (a) and OverlyDeepZoom (b) [PITH_FULL_IMAGE:figures/full_fig_p019_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Example of anti-patterns UnresolvedRetry (a) and EditReversion (b) [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Editor failure modes of (a) StrNotFound, (b) NoEffectEdit, and (c) AmbiguousTarget StrNotFound occurs when an edit fails because the specified old string cannot be found in the file ( [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Localization inefficiency patterns among Resolved (a) and Unresolved (b) instances [PITH_FULL_IMAGE:figures/full_fig_p021_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Patching inefficiency patterns among Resolved (a) and Unresolved (b) instances [PITH_FULL_IMAGE:figures/full_fig_p022_15.png] view at source ↗
read the original abstract

Agentic systems are modern software systems: they consist of orchestrated modules, expose interfaces, and are deployed in software pipelines. Unlike conventional programs, their execution, i.e., trajectories, is inherently stochastic and adaptive to the problems they solve. Evaluation of such systems is often outcome-centric. This narrow focus overlooks detailed insights, failing to explain how agents reason, plan, act, or change their strategies. Inspired by the structured representation of conventional software systems as graphs, we introduce Graphectory to systematically encode the temporal and semantic relations in such systems. Using Graphectory, we automatically analyze 4000 trajectories of two dominant agentic programming workflows, SWE-agent and OpenHands, with four backbone Large Language Models (LLMs), attempting to resolve SWE-bench issues. Our automated analyses (completed within four minutes) reveal that: (1) agents using richer prompts or stronger LLMs exhibit more complex Graphectory, reflecting deeper exploration, broader context gathering, and more thorough validation; (2) agents' strategies vary with problem difficulty and the underlying LLM - for resolved issues, strategies often follow coherent localization-patching-validation steps, while unresolved ones exhibit chaotic or backtracking behaviors; and (3) even successful agentic systems often display inefficient processes. We also implement a novel technique for real-time construction and analysis of Graphectory and Langutory during agent execution to flag trajectory issues. Upon detecting such issues, the technique notifies the agent with a diagnostic message and, when applicable, rolls back the trajectory. Experiments show that online monitoring and interventions improve resolution rates by 6.9%-23.5% across models for problematic instances, while significantly shortening trajectories with near-zero overhead.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces Graphectory, a graph-based representation to encode temporal and semantic relations in stochastic trajectories of agentic systems. It automatically analyzes 4000 trajectories from SWE-agent and OpenHands (four LLMs) on SWE-bench, reporting that richer prompts/stronger models yield more complex graphs, resolved issues show coherent localization-patching-validation steps while unresolved ones exhibit chaotic backtracking, and even successful runs contain inefficiencies. The paper also describes real-time Graphectory/Langutory construction for online flagging of issues, with interventions (diagnostic messages or rollbacks) claimed to raise resolution rates by 6.9%-23.5% on problematic instances while shortening trajectories at near-zero overhead.

Significance. If the Graphectory construction rules and diagnostic interventions are shown to be reliable, the work supplies a concrete process-centric lens for agentic systems that complements outcome-only evaluation on benchmarks such as SWE-bench. The scale of the automated analysis and the low-overhead online technique constitute practical contributions that could inform both empirical studies of LLM-agent behavior and runtime monitoring tools in software engineering.

major comments (2)
  1. [§5 (Online monitoring and intervention)] §5 (Online monitoring and intervention): The diagnostic rules that map Graphectory features (e.g., chaotic backtracking) to intervention triggers are not specified, nor is any validation against human-labeled reasoning failures or ablation against generic prompts/random rollbacks reported. Because the 6.9%-23.5% resolution gains rest on these rules correctly identifying meaningful failures, the absence of such validation is load-bearing for the central empirical claim.
  2. [§3-4 (Graphectory construction and analysis)] §3-4 (Graphectory construction and analysis): The precise node/edge construction rules that turn raw trajectories into Graphectory graphs are not detailed, and no inter-rater reliability or statistical controls (confidence intervals, multiple-comparison correction) accompany the reported strategy patterns or resolution improvements. These omissions prevent assessment of whether the observed differences in complexity and coherence are robust.
minor comments (2)
  1. [Abstract] Abstract: 'Langutory' is mentioned without definition or relation to Graphectory; a brief parenthetical gloss would aid readability.
  2. [Throughout] Throughout: Ensure that first use of 'Graphectory' includes an explicit definition and that subsequent references maintain consistent capitalization and abbreviation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments. We address each major concern point by point below and have revised the manuscript accordingly to improve clarity and rigor.

read point-by-point responses

  1. Referee: §5 (Online monitoring and intervention): The diagnostic rules that map Graphectory features (e.g., chaotic backtracking) to intervention triggers are not specified, nor is any validation against human-labeled reasoning failures or ablation against generic prompts/random rollbacks reported. Because the 6.9%-23.5% resolution gains rest on these rules correctly identifying meaningful failures, the absence of such validation is load-bearing for the central empirical claim.

    Authors: We agree that the diagnostic rules and supporting validation were insufficiently detailed. In the revised manuscript we will expand Section 5 with the exact feature-to-trigger mapping (including thresholds for chaotic backtracking and other indicators), a description of how interventions are selected, and an ablation study comparing our approach against random rollbacks and generic diagnostic prompts. We will also report results from a small human-labeled validation set of trajectories to confirm that the automated rules align with observable reasoning failures. These additions directly address the load-bearing concern for the reported gains. revision: yes

  2. Referee: §3-4 (Graphectory construction and analysis): The precise node/edge construction rules that turn raw trajectories into Graphectory graphs are not detailed, and no inter-rater reliability or statistical controls (confidence intervals, multiple-comparison correction) accompany the reported strategy patterns or resolution improvements. These omissions prevent assessment of whether the observed differences in complexity and coherence are robust.

    Authors: We acknowledge that the construction rules require greater precision. The revised Section 3 will include a complete algorithmic specification with pseudocode for node and edge creation, along with explicit handling of temporal and semantic relations. Because the entire Graphectory extraction process is deterministic and rule-based, inter-rater reliability does not apply; we will instead emphasize reproducibility by releasing the extraction code. We will also add confidence intervals for all key metrics (graph complexity, coherence scores, resolution rates) and apply Bonferroni correction for multiple comparisons across the four models and two agent frameworks. These changes will allow readers to assess the robustness of the reported patterns. revision: yes

Circularity Check

0 steps flagged

No significant circularity; central claims are empirically grounded

full rationale

The paper introduces Graphectory as an independent graph-based representation for encoding agent trajectories and applies it to automated analysis of 4000 SWE-bench runs plus real-time intervention experiments. The reported 6.9%-23.5% resolution gains and trajectory shortening are measured as external performance deltas against baseline agent executions, not as quantities defined in terms of Graphectory parameters, diagnostic rules, or fitted values. No equations, self-definitional steps, or load-bearing self-citations reduce the claims to inputs by construction; the modeling choices and rules are tested for utility via observable outcomes rather than being tautological with those outcomes.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claims rest on the assumption that agent behavior can be faithfully captured by a graph of temporal and semantic relations and that the chosen diagnostic rules identify actionable failures; Graphectory itself is an invented modeling construct without external validation cited in the abstract.

axioms (1)
  • domain assumption Agent trajectories in LLM-based systems exhibit temporal and semantic relations that can be systematically encoded as graphs.
    This premise underpins the entire Graphectory construction and is stated in the abstract as the motivation for moving beyond outcome-centric evaluation.
invented entities (1)
  • Graphectory no independent evidence
    purpose: To encode temporal and semantic relations in agent trajectories for automated analysis and real-time monitoring.
    New representation introduced by the paper; no independent prior evidence or external validation is mentioned in the abstract.
