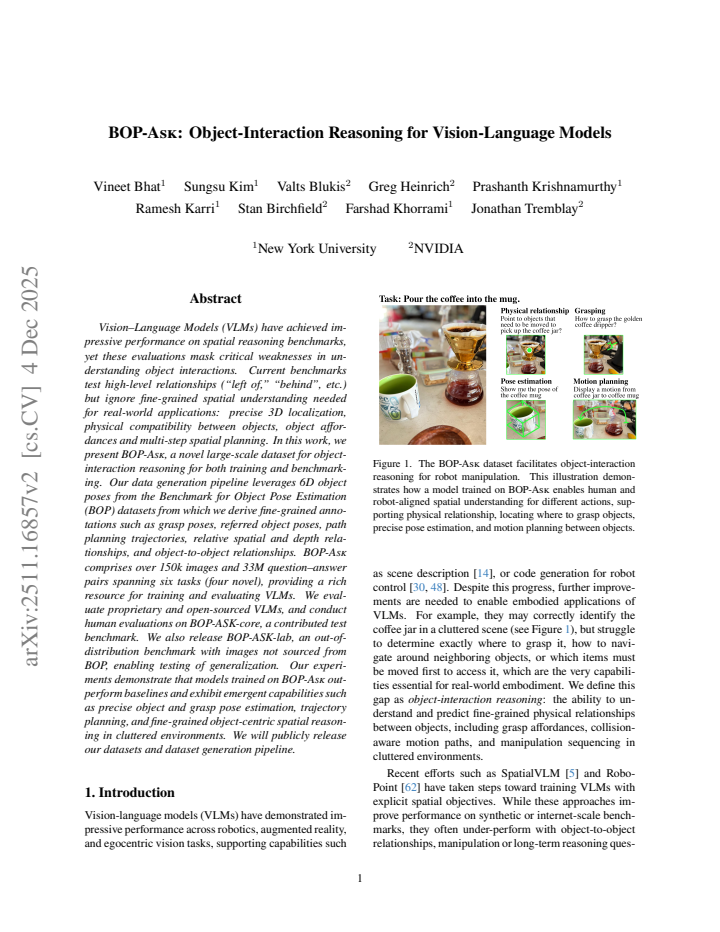

BOP-ASK: Object-Interaction Reasoning for Vision-Language Models

Vineet Bhat , Sungsu Kim , Valts Blukis , Greg Heinrich , Prashanth Krishnamurthy , Ramesh Karri , Stan Birchfield , Farshad Khorrami
show 1 more author
Jonathan Tremblay
This is my paper

Pith reviewed 2026-05-17 19:54 UTC · model grok-4.3

classification 💻 cs.CV cs.RO
keywords vision-language modelsobject interaction reasoningspatial reasoningdataset6D pose estimationgrasp posestrajectory planningaffordances
0
0 comments X

The pith

BOP-ASK dataset trains vision-language models to perform precise object grasp estimation and multi-step spatial planning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces BOP-ASK, a dataset of over 150,000 images and 33 million question-answer pairs built from 6D object poses in existing BOP collections. It supplies annotations for grasp poses, trajectories, relative spatial relations, depth, and object-to-object links across six tasks. Models trained on this data outperform baselines and acquire new skills in accurate pose estimation, path planning, and object-centric reasoning inside cluttered scenes. A sympathetic reader would care because standard vision-language benchmarks overlook the detailed physical and interaction details required for practical use.

Core claim

By deriving fine-grained annotations for grasp poses, referred object poses, path planning trajectories, relative spatial and depth relationships, and object-to-object relationships directly from 6D object poses in the BOP datasets, BOP-ASK creates a training and evaluation resource that lets vision-language models develop precise object localization, physical compatibility understanding, affordance recognition, and multi-step planning abilities.

What carries the argument

The BOP-ASK dataset, which automatically generates question-answer pairs for object-interaction tasks from 6D pose data to support training and benchmarking of vision-language models.

If this is right

  • Models trained on BOP-ASK outperform baselines on the six object-interaction tasks.
  • Trained models exhibit precise object and grasp pose estimation.
  • Models demonstrate trajectory planning and fine-grained object-centric spatial reasoning in cluttered environments.
  • Performance generalizes to out-of-distribution images in the released BOP-ASK-lab benchmark.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The annotation generation pipeline could be applied to other 6D pose datasets to produce additional training resources for interaction reasoning.
  • Improved spatial and planning capabilities in vision-language models may support more reliable integration into robotic manipulation systems.
  • Human evaluations on the BOP-ASK-core test set point toward reduced reliance on manual annotation for spatial tasks.

Load-bearing premise

The automatically generated annotations from 6D object poses accurately reflect real-world physical compatibility, affordances, and multi-step planning needs.

What would settle it

A model trained on BOP-ASK fails to achieve higher grasp success rates or more accurate trajectory plans than baseline models when evaluated on physical robot experiments using the same objects and scenes.

Figures

Figures reproduced from arXiv: 2511.16857 by Farshad Khorrami, Greg Heinrich, Jonathan Tremblay, Prashanth Krishnamurthy, Ramesh Karri, Stan Birchfield, Sungsu Kim, Valts Blukis, Vineet Bhat.

Figure 1
Figure 1. Figure 1: The BOP-Ask dataset facilitates object-interaction reasoning for robot manipulation. This illustration demon￾strates how a model trained on BOP-Ask enables human and robot-aligned spatial understanding for different actions, sup￾porting physical relationship, locating where to grasp objects, precise pose estimation, and motion planning between objects. as scene description [14], or code generation for robo… view at source ↗
Figure 2

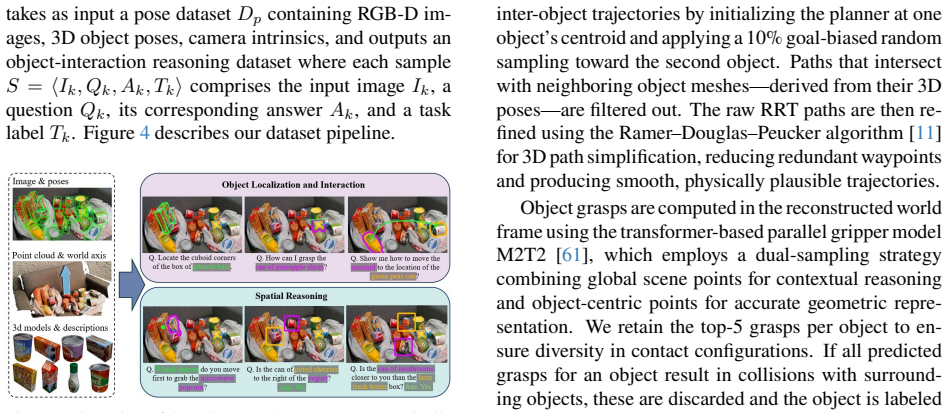

Figure 2. Figure 2: Overview of the BOP-Ask dataset. We automatically generate object-interaction and spatial reasoning annotations from 3D point clouds, images, object poses and 3D models with description. We create question/answer pairs covering 6 types of questions (from left to right, top to bottom), object pose estimation, grasp affordance, motion planning, physical interaction, object relationship, and depth relationshi… view at source ↗
Figure 3

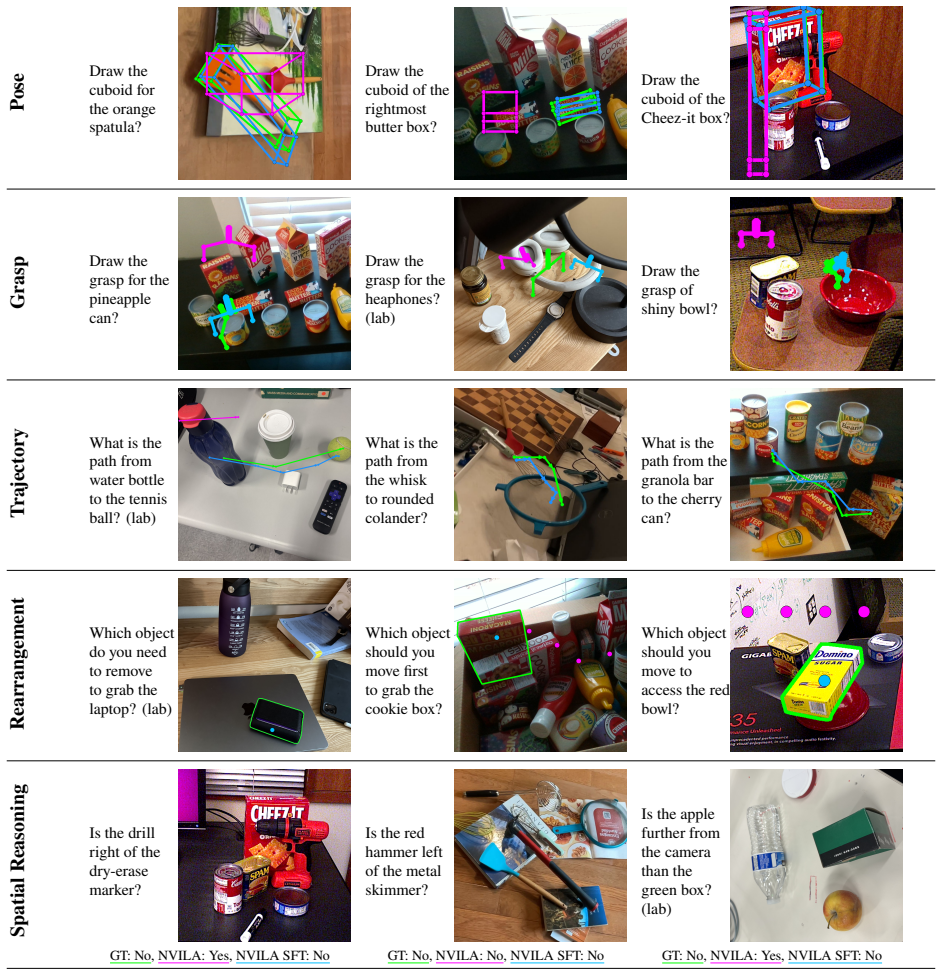

Figure 3. Figure 3: Predictions from samples in BOP-Ask-core and BOP-Ask-lab (identified by (lab)), showing improvements gained from fine-tuning on BOP-Ask. Predictions from NVILA (shown in magenta) and NVILA SFT (shown in blue) are shown alongside the Ground Truth (in green). For the ’Rearrangement’ task, the Ground Truth shape delineates the area of valid predictions. Absence of a colored prediction indicates none was made … view at source ↗
Figure 4
Figure 4. Figure 4: Our proposed data generation framework can trans [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

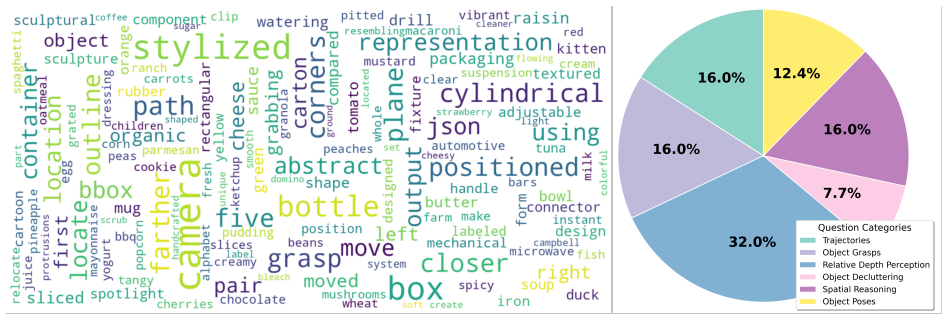

Figure 5. Figure 5: Distribution of free form questions and task types in [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Real world robot experiments with a Franka arm and a ZED2 Stereo camera. VLMs fine-tuned on [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
read the original abstract

Vision Language Models (VLMs) have achieved impressive performance on spatial reasoning benchmarks, yet these evaluations mask critical weaknesses in understanding object interactions. Current benchmarks test high level relationships ('left of,' 'behind', etc.) but ignore fine-grained spatial understanding needed for real world applications: precise 3D localization, physical compatibility between objects, object affordances and multi step spatial planning. In this work, we present BOP-ASK, a novel large scale dataset for object interaction reasoning for both training and benchmarking. Our data generation pipeline leverages 6D object poses from the Benchmark for Object Pose Estimation (BOP) datasets from which we derive fine grained annotations such as grasp poses, referred object poses, path planning trajectories, relative spatial and depth relationships, and object-to-object relationships. BOP-ASK comprises over 150k images and 33M question answer pairs spanning six tasks (four novel), providing a rich resource for training and evaluating VLMs. We evaluate proprietary and open sourced VLMs, and conduct human evaluations on BOP-ASK-core, a contributed test benchmark. We also release BOP-ASK-lab, an out-of-distribution benchmark with images not sourced from BOP, enabling testing of generalization. Our experiments demonstrate that models trained on BOP-ASK outperform baselines and exhibit emergent capabilities such as precise object and grasp pose estimation, trajectory planning, and fine-grained object-centric spatial reasoning in cluttered environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces BOP-ASK, a large-scale dataset derived from BOP 6D object poses containing over 150k images and 33M QA pairs across six tasks (four novel) focused on fine-grained object interaction reasoning. Annotations for grasp poses, trajectories, relative depth, and object-to-object compatibility are generated automatically from the poses. The authors evaluate proprietary and open-source VLMs, report that models trained on BOP-ASK outperform baselines with emergent capabilities in precise pose estimation, trajectory planning, and object-centric spatial reasoning, and release BOP-ASK-core (with human evaluation) and BOP-ASK-lab (OOD benchmark).

Significance. If the auto-generated labels are reliable, the dataset fills an important gap in training VLMs for embodied and robotic applications requiring physical compatibility and multi-step planning. The scale, task diversity, and provision of both in-distribution and out-of-distribution test sets are strengths that could support reproducible progress in this area.

major comments (2)
  1. [§3 (Data Generation Pipeline)] §3 (Data Generation Pipeline): The derivation of grasp poses, path planning trajectories, and object-to-object relationships from 6D poses is presented without collision checking, physics simulation, or human validation on the training distribution (only human evaluation is reported on the BOP-ASK-core test split). This is load-bearing for the central claim, as noisy or incorrect affordance labels could produce the reported performance gains and 'emergent' behaviors as artifacts rather than evidence of genuine interaction understanding.
  2. [§5 (Experiments)] §5 (Experiments): The protocol for baseline comparisons and the demonstration of outperformance lack explicit controls for potential selection effects in question generation or post-hoc filtering. Without these details, it is difficult to confirm that the gains on the six tasks (including the four novel ones) reflect improved reasoning rather than dataset-specific biases.
minor comments (2)
  1. [Abstract] The abstract states that four tasks are novel but does not name them; this should be stated explicitly in the introduction or dataset section for clarity.
  2. [Figures and Tables] Figure captions and table headers should consistently define abbreviations such as 'BOP-ASK-core' on first use to aid readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback on our manuscript. We address each major comment point by point below and indicate the revisions planned for the next version of the paper.

read point-by-point responses

  1. Referee: [§3 (Data Generation Pipeline)] §3 (Data Generation Pipeline): The derivation of grasp poses, path planning trajectories, and object-to-object relationships from 6D poses is presented without collision checking, physics simulation, or human validation on the training distribution (only human evaluation is reported on the BOP-ASK-core test split). This is load-bearing for the central claim, as noisy or incorrect affordance labels could produce the reported performance gains and 'emergent' behaviors as artifacts rather than evidence of genuine interaction understanding.

    Authors: The annotations are produced via deterministic geometric operations applied directly to the high-accuracy 6D poses supplied by the BOP benchmark. Grasp poses are derived from surface normals and principal axes, trajectories are constructed as sequences of relative SE(3) transforms, and object-to-object compatibility is computed from pairwise pose distances and orientation thresholds. Because the tasks target pose-based spatial reasoning rather than dynamic physical interaction, full physics simulation and collision checking were not required for label generation. Human validation was performed on the BOP-ASK-core test split, where label agreement exceeded 90 %. We will revise §3 to document the precise geometric procedures, add quantitative consistency checks across the training distribution, and include an explicit limitations paragraph acknowledging the lack of physics-based validation. These additions will clarify that reported gains arise from improved spatial reasoning rather than label artifacts. revision: partial

  2. Referee: [§5 (Experiments)] §5 (Experiments): The protocol for baseline comparisons and the demonstration of outperformance lack explicit controls for potential selection effects in question generation or post-hoc filtering. Without these details, it is difficult to confirm that the gains on the six tasks (including the four novel ones) reflect improved reasoning rather than dataset-specific biases.

    Authors: All question-answer pairs were generated exhaustively from the pose annotations for every image and task combination; no post-hoc filtering or model-dependent selection was applied. The identical question set was used for every baseline and fine-tuned model. We will expand §5 with a complete description of the generation algorithm, per-task question counts, and additional ablation results that subsample questions uniformly and re-evaluate performance. These controls will demonstrate that the observed improvements on both in-distribution and out-of-distribution sets are attributable to enhanced object-interaction reasoning. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical dataset and evaluation paper with independent test benchmarks

full rationale

The paper's core contribution is the construction of the BOP-ASK dataset by automatically deriving QA pairs and annotations (grasp poses, trajectories, spatial relations) from existing external BOP 6D pose data, followed by empirical training and evaluation of VLMs on held-out splits including human-validated BOP-ASK-core and an OOD BOP-ASK-lab benchmark. No equations, fitted parameters, or derivation chains are present that would reduce reported performance or emergent capabilities to quantities defined by construction inside the paper. Claims rest on experimental comparisons against baselines rather than self-referential definitions, self-citation load-bearing uniqueness theorems, or ansatz smuggling. This is a standard self-contained empirical contribution against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on the assumption that 6D poses from BOP datasets can be reliably transformed into grasp poses, depth relations, and planning trajectories without additional physical simulation or human validation at scale.

axioms (1)
  • domain assumption Existing BOP 6D pose annotations are sufficiently accurate and complete to derive grasp poses, relative spatial relations, and multi-step trajectories.
    Invoked in the data generation pipeline description.
