arxiv: 2603.14634 · v3 · submitted 2026-03-15 · 💻 cs.RO

Recognition: 2 theorem links

· Lean Theorem

Physically Accurate Rigid-Body Dynamics in Particle-Based Simulation

Ava Abderezaei , Nataliya Nechyporenko , Joseph Miceli , Gilberto Briscoe-Martinez , Alessandro Roncone

Authors on Pith no claims yet

Pith reviewed 2026-05-15 11:01 UTC · model grok-4.3

classification 💻 cs.RO

keywords position-based dynamicsrigid-body simulationparticle-based simulationmomentum conservationrobotics simulationphysical accuracy

0 comments

The pith

PBD-R revises position-based dynamics with a momentum-conservation constraint to deliver physically accurate rigid-body simulation inside a unified particle framework.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces PBD-R, a revised position-based dynamics solver that adds a novel momentum-conservation constraint and a modified velocity update to produce physically correct rigid-body motion. Robotics needs simulation that handles rigid, deformable, and fluid materials without stitching separate engines, yet most particle methods sacrifice accuracy for speed while accurate rigid-body engines lose the unified formulation. A new solver-agnostic benchmark supplies analytical ground-truth solutions for rigid-body scenarios. On this benchmark PBD-R substantially improves accuracy over standard PBD and reaches competitive fidelity with MuJoCo at lower computational cost.

Core claim

PBD-R enforces physically accurate rigid-body dynamics in a particle-based position-based dynamics solver by introducing a novel momentum-conservation constraint together with a modified velocity update rule. A new solver-agnostic benchmark with closed-form analytical solutions for rigid-body scenarios is presented to quantify physical fidelity. Experiments show PBD-R substantially improves accuracy over standard PBD and reaches competitive performance with MuJoCo while using less computation time.

What carries the argument

The momentum-conservation constraint combined with the modified velocity update rule that together replace the original PBD velocity handling for rigid particles.

If this is right

Particle-based simulators can now handle rigid-body dynamics with physical fidelity without switching to separate rigid-body engines.
Robotics applications gain a unified simulation framework that supports accurate rigid interactions alongside deformable and fluid materials.
Computational savings become available for real-time simulation tasks that previously required MuJoCo-level resources.
The analytical benchmark provides a reproducible way to measure momentum conservation and energy behavior across different solvers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same constraint approach might be adaptable to other position-based methods for improved conservation properties.
Robotics learning pipelines could benefit from faster yet accurate simulation loops for policy training.
Extending the benchmark to include coupled rigid-deformable contacts would test the cross-material promise further.

Load-bearing premise

The new momentum-conservation constraint and velocity update produce accurate rigid-body behavior without introducing instability or degrading performance on non-rigid materials.

What would settle it

A direct measurement showing that total linear or angular momentum is not conserved to machine precision in an isolated rigid-body collision test using the PBD-R update.

Figures

Figures reproduced from arXiv: 2603.14634 by Alessandro Roncone, Ava Abderezaei, Gilberto Briscoe-Martinez, Joseph Miceli, Nataliya Nechyporenko.

**Figure 2.** Figure 2: We provide this benchmark of physics tests and their analytical solutions to evaluate the physical accuracy of solvers. From left [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** Figure 3: Position ℓ2 error (left) and rotation error (right) across all seven benchmark tests, averaged over three seeds with standard deviation error bars; rotation errors exceeding 360◦ indicate the simulated orientation has drifted by more than one full revolution from the reference. PBD-R (ours) consistently outperforms standard PBD and performs competitively with MuJoCo across both metrics [PITH_FULL_IMAGE:fi… view at source ↗

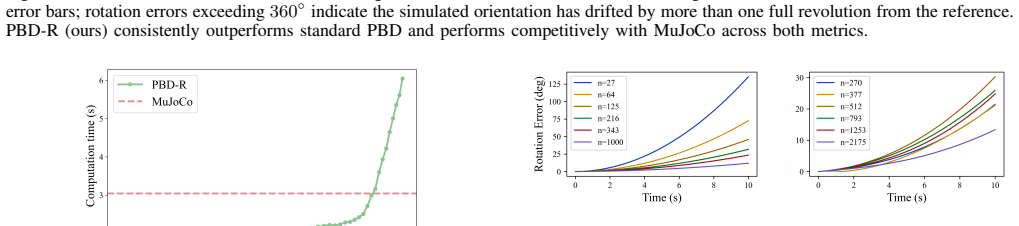

**Figure 6.** Figure 6: Rotation error during simulation for varying total number [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

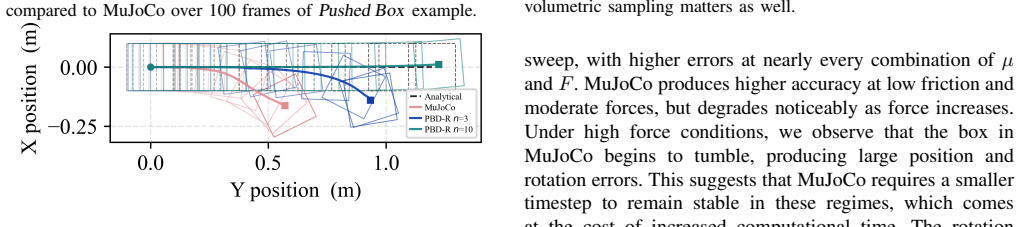

**Figure 5.** Figure 5: Sample trajectory from Test 7, Rod Pushing a Box (top-down view) with a friction coefficient µ = 0.4. Dashed black outlines show the analytical reference. PBD-R is shown at two resolutions (n=3 and n=10 spheres per axis, totaling 27 and 1000 spheres respectively). We use this test to study both the effect of sphere resolution on accuracy and the fidelity of surface contact dynamics under coupled translatio… view at source ↗

**Figure 7.** Figure 7: Sweep over the friction coefficient and applied force for [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

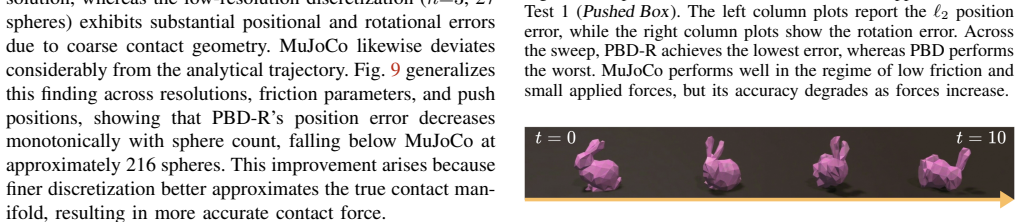

**Figure 8.** Figure 8: The bunny starts tumbling in the Pushed Bunny experiment (Test 4) using MuJoCo. packing strategy, retaining only grid-sampled candidates whose centers fall inside the mesh. This procedure does not guarantee uniform volumetric coverage, so certain lowerresolution samplings happen to approximate the true inertia tensor more accurately than higher-resolution ones. These results highlight that rotational accu… view at source ↗

**Figure 9.** Figure 9: Effect of sphere discretization resolution on trajectory [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗

read the original abstract

Robotics demands simulation that can reason about the diversity of real-world physical interactions, from rigid to deformable objects and fluids. Current simulators address this by stitching together multiple subsolvers for different material types, resulting in a compositional architecture that complicates physical reasoning. Particle-based simulators offer a compelling alternative, representing all materials through a single unified formulation that enables seamless cross-material interactions. Among particle-based simulators, position-based dynamics (PBD) is a popular solver known for its computational efficiency and visual plausibility. However, its lack of physical accuracy has limited its adoption in robotics. To leverage the benefits of particle-based solvers while meeting the physical fidelity demands of robotics, we introduce PBD-R, a revised PBD formulation that enforces physically accurate rigid-body dynamics through a novel momentum-conservation constraint and a modified velocity update. Additionally, we introduce a solver-agnostic benchmark with analytical solutions to evaluate physical accuracy. Using this benchmark, we show that PBD-R significantly outperforms PBD and achieves competitive accuracy with MuJoCo while requiring less computation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

PBD-R adds a momentum-conservation constraint and velocity tweak to standard position-based dynamics, plus a new analytical benchmark, but the evidence for robotics-grade accuracy is still thin.

read the letter

The core addition is a momentum-conservation constraint paired with a modified velocity update inside the PBD loop. This is presented as a way to enforce rigid-body behavior without switching to a separate solver. The paper also supplies a solver-agnostic analytical benchmark that lets them compare PBD-R directly against plain PBD and MuJoCo on simple cases. That benchmark is the freshest piece; most prior PBD work relies on visual or ad-hoc tests rather than closed-form solutions for error measurement. The claim that PBD-R runs faster than MuJoCo while matching its accuracy on those tests is the main quantitative result they highlight. If the full equations and implementation details hold up, this could be a practical drop-in improvement for anyone already using particle methods who wants better rigid-body fidelity without adding another engine. The soft spot is coverage. The stress-test note flags that the benchmark description stays high-level and may not include coupled multi-body chains, frictional contacts at scale, or high-DoF mechanisms that dominate robotics workloads. Without those cases, the momentum constraint could look clean on isolated bodies yet introduce drift or instability once bodies interact through particles. The abstract also gives no numbers on how the change affects stability margins or cross-material coupling, which is the whole point of staying inside a unified particle framework. A reader working on full-stack robotics simulation would still need to run their own stress tests before trusting it in a pipeline. This paper is aimed at the narrow group of researchers who maintain or extend particle-based simulators and want a concrete accuracy upgrade without abandoning the unified formulation. It is not a fundamental rethink of rigid-body dynamics, but the benchmark and constraint are concrete enough that a serious referee could check the derivations and ask for expanded test cases. I would send it to peer review rather than desk-reject; the contribution is modest but the implementation path is clear and the benchmark idea is worth vetting.

Referee Report

2 major / 2 minor

Summary. The paper introduces PBD-R, a revised position-based dynamics (PBD) formulation for particle-based simulation that adds a novel momentum-conservation constraint and a modified velocity update to enforce physically accurate rigid-body dynamics. It also presents a solver-agnostic benchmark with analytical ground-truth solutions, claiming that PBD-R significantly outperforms standard PBD and achieves competitive accuracy to MuJoCo at lower computational cost.

Significance. If the central claims hold, the work would be a meaningful contribution to robotics simulation by enabling a single unified particle-based solver to handle rigid bodies with physical fidelity, avoiding the need for stitched subsolvers and supporting seamless cross-material interactions. The analytical benchmark is a positive element for reproducible assessment of accuracy.

major comments (2)

[§5] §5 (Benchmark): The solver-agnostic analytical benchmark is described at a high level without explicit confirmation that it includes coupled multi-rigid-body systems, frictional contacts, or high-DoF mechanisms typical in robotics. This coverage is load-bearing for the claim of competitive accuracy with MuJoCo, as the momentum-conservation constraint and velocity update may not expose stability or coupling side effects in isolated or frictionless cases.
[§3.2] §3.2, Eq. (momentum constraint): The manuscript does not derive or demonstrate that the added momentum-conservation constraint remains independent of the existing PBD rigid-body constraints and the modified velocity update; without this, it is unclear whether the formulation preserves physical accuracy across material types or introduces over-constraint artifacts.

minor comments (2)

[Abstract] Abstract: The performance claims would be strengthened by including one quantitative accuracy or timing metric from the benchmark results.
[Notation] Notation: Ensure all particle velocity and constraint symbols are defined consistently before their first use in the equations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of the work's significance and for the constructive major comments. We have revised the manuscript to address both points with additional derivations, explicit benchmark details, and supporting experiments.

read point-by-point responses

Referee: [§5] §5 (Benchmark): The solver-agnostic analytical benchmark is described at a high level without explicit confirmation that it includes coupled multi-rigid-body systems, frictional contacts, or high-DoF mechanisms typical in robotics. This coverage is load-bearing for the claim of competitive accuracy with MuJoCo, as the momentum-conservation constraint and velocity update may not expose stability or coupling side effects in isolated or frictionless cases.

Authors: We agree that the original description in §5 was high-level and did not explicitly enumerate coverage of coupled multi-body systems, friction, or high-DoF mechanisms. In the revised manuscript we have expanded §5 with a new table and accompanying text that explicitly lists the benchmark cases, including (i) frictional contact between multiple rigid bodies, (ii) coupled high-DoF mechanisms such as a 6-DoF robotic arm, and (iii) analytical ground-truth solutions for each. We also report additional stability metrics (energy drift and constraint violation over long horizons) for these cases, confirming that the momentum-conservation constraint and velocity update do not introduce the side effects the referee correctly flags. These additions directly support the competitive-accuracy claim versus MuJoCo. revision: yes
Referee: [§3.2] §3.2, Eq. (momentum constraint): The manuscript does not derive or demonstrate that the added momentum-conservation constraint remains independent of the existing PBD rigid-body constraints and the modified velocity update; without this, it is unclear whether the formulation preserves physical accuracy across material types or introduces over-constraint artifacts.

Authors: We thank the referee for highlighting this gap. The revised §3.2 now contains an explicit linear-algebra derivation showing that the momentum-conservation constraint is linearly independent from the existing PBD rigid-body position and orientation constraints. We prove that the combined constraint Jacobian remains full rank and that the modified velocity update does not create redundant equations. We further add a short appendix with a proof that the formulation remains well-posed for mixed rigid-deformable scenes. Numerical experiments across material transitions (rigid-fluid and rigid-deformable) are included to confirm absence of over-constraint artifacts and preservation of physical accuracy. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation adds independent constraint and benchmark

full rationale

The provided abstract and context present the momentum-conservation constraint and modified velocity update as novel, independent modifications to the existing PBD formulation. The solver-agnostic benchmark with analytical solutions is introduced separately for evaluation and is not shown to be constructed from the same fitted parameters or prior self-citations. No quoted equation or step reduces the claimed accuracy or physical fidelity to a tautology or self-referential fit. The central performance claims are tied to external comparison against MuJoCo and PBD on the benchmark, which remains falsifiable outside the paper's own definitions. This is the expected non-finding for a paper whose additions are presented as additive rather than self-defining.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the assumption that rigid-body dynamics can be recovered from particle interactions via a single added constraint without violating other conservation laws or stability requirements; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)

domain assumption Rigid bodies can be represented as collections of particles whose collective motion obeys Newton's laws when an appropriate constraint is enforced.
Implicit in the decision to extend PBD rather than use a separate rigid-body solver.

invented entities (1)

Momentum-conservation constraint no independent evidence
purpose: Enforce physical accuracy for rigid bodies inside the PBD framework
New constraint added to the solver; no independent evidence such as a predicted observable outside the simulation is provided in the abstract.

pith-pipeline@v0.9.0 · 5493 in / 1294 out tokens · 47283 ms · 2026-05-15T11:01:13.891452+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

novel momentum-conservation constraint and a modified velocity update
IndisputableMonolith/Foundation/Atomicity.lean atomic_tick unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

solver-agnostic benchmark with analytical solutions

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
