arxiv: 2604.03296 · v1 · submitted 2026-03-28 · 💻 cs.CV · cs.AI

Recognition: no theorem link

3D-IDE: 3D Implicit Depth Emergent

Chushan Zhang , Ruihan Lu , Jinguang Tong , Yikai Wang , Hongdong Li

Authors on Pith no claims yet

Pith reviewed 2026-05-14 22:30 UTC · model grok-4.3

classification 💻 cs.CV cs.AI

keywords implicit depth emergenceinformation bottleneck3D scene understandingmultimodal LLMsgeometric self-supervisionvisual representationsinference efficiency

0 comments

The pith

3D perception emerges implicitly in visual representations by using an information bottleneck from geometric self-supervision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that 3D understanding can arise inside a multimodal model's visual features without explicit depth or pose inputs at runtime. It does so by training with an information bottleneck built from a fine-grained geometry validator and global representation constraints. This forces the features to capture 3D structure through self-supervision rather than external modules. If correct, models gain 3D scene awareness while running faster and without added dependencies. A reader would care because the approach removes the cost of grafting separate 3D components into language models for indoor tasks.

Core claim

By strategically leveraging privileged geometric supervision through mechanisms like a fine-grained geometry validator and global representation constraints, the Implicit Geometric Emergence Principle constructs an information bottleneck that forces the model to maximize the mutual information between visual features and 3D structures, allowing 3D awareness to emerge naturally within a unified visual representation and eliminating depth and pose dependencies during inference with zero latency overhead.

What carries the argument

The Implicit Geometric Emergence Principle, which builds an information bottleneck via fine-grained geometry validator and global representation constraints to force 3D structure into unified visual features.

Load-bearing premise

The auxiliary geometric objectives create a true information bottleneck that forces genuine 3D structure into the features rather than allowing shortcuts or memorization.

What would settle it

An experiment where removing the geometry validator and constraints causes no drop in 3D benchmark scores but keeps 2D performance unchanged would show the bottleneck is not required for the claimed emergence.

Figures

Figures reproduced from arXiv: 2604.03296 by Chushan Zhang, Hongdong Li, Jinguang Tong, Ruihan Lu, Yikai Wang.

**Figure 1.** Figure 1: Comparison of 3D-aware designs for video-LLMs. (a) Explicit coordinate injection fuses 2D features with coarse 3D positional embeddings and requires 3D inputs at inference. (b) Dual encoders separately process RGB and geometry, then fuse their outputs, increasing complexity and latency. (c) 3D-IDE uses a single visual encoder trained so that 3D awareness emerges implicitly, enabling efficient RGB-only inf… view at source ↗

**Figure 2.** Figure 2: Illustration of the double information loss in explicit [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: The 3D-IDE framework. Our approach avoids the “Double Information Loss” (see [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Qualitative results on three 3D vision-language tasks. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

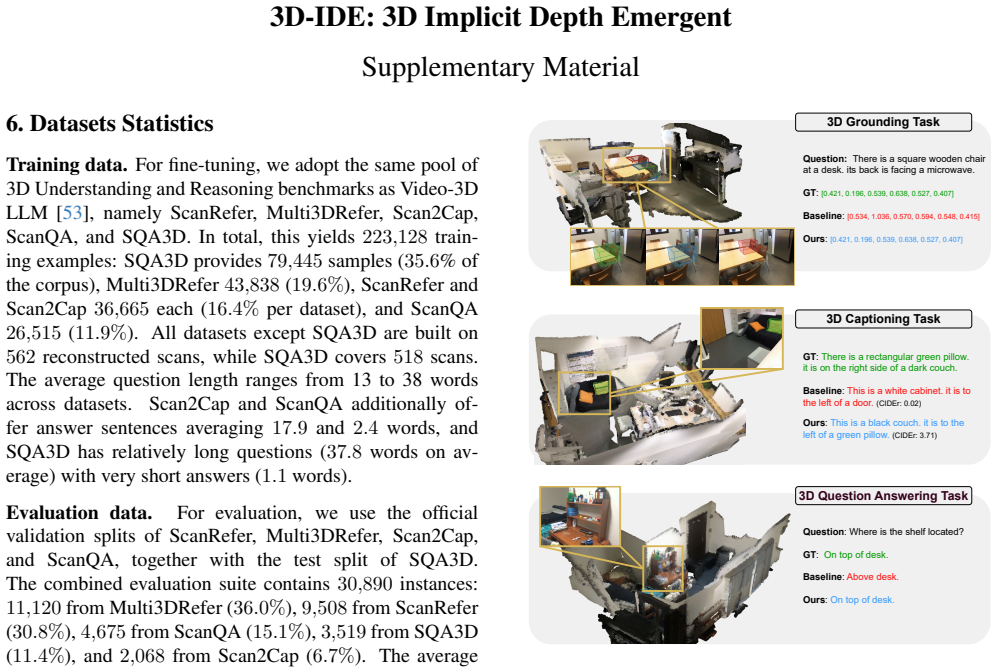

**Figure 5.** Figure 5: More qualitative results on three 3D vision-language [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗

**Figure 6.** Figure 6: 3D-IDE retains performance w/o global supervision, at [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗

**Figure 7.** Figure 7: More qualitative results on three 3D vision-language [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗

read the original abstract

Leveraging 3D information within Multimodal Large Language Models (MLLMs) has recently shown significant advantages for indoor scene understanding. However, existing methods, including those using explicit ground-truth 3D positional encoding and those grafting external 3D foundation models for implicit geometry, struggle with the trade-off in 2D-3D representation fusion, leading to suboptimal deployment. To this end, we propose 3D-Implicit Depth Emergence, a method that reframes 3D perception as an emergent property derived from geometric self-supervision rather than explicit encoding. Our core insight is the Implicit Geometric Emergence Principle: by strategically leveraging privileged geometric supervision through mechanisms like a fine-grained geometry validator and global representation constraints, we construct an information bottleneck. This bottleneck forces the model to maximize the mutual information between visual features and 3D structures, allowing 3D awareness to emerge naturally within a unified visual representation. Unlike existing approaches, our method enables 3D perception to emerge implicitly, disentangling features in dense regions and, crucially, eliminating depth and pose dependencies during inference with zero latency overhead. This paradigm shift from external grafting to implicit emergence represents a fundamental rethinking of 3D knowledge integration in visual-language models. Extensive experiments demonstrate that our method surpasses SOTA on multiple 3D scene understanding benchmarks. Our approach achieves a 55% reduction in inference latency while maintaining strong performance across diverse downstream tasks, underscoring the effectiveness of meticulously designed auxiliary objectives for dependency-free 3D understanding. Source code can be found at github.com/ChushanZhang/3D-IDE.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

3D-IDE is a training recipe that adds auxiliary geometry losses to push 3D structure into MLLM features without explicit depth or pose at inference, but the abstract gives no ablations or direct checks that the features actually carry metric 3D rather than 2D shortcuts.

read the letter

The core idea is straightforward: add a fine-grained geometry validator plus global constraints during training so that 3D awareness emerges in the visual features, letting the model drop depth and pose inputs at test time. That produces the claimed 55% latency drop while still beating prior numbers on indoor scene benchmarks. The paper ships code, which is useful for anyone who wants to try the recipe themselves. The combination of validator and global constraint is presented as the new piece, even if the broader notion of self-supervised geometric emergence has shown up before. What the work does cleanly is reframe the deployment problem as a training-time information bottleneck rather than an inference-time fusion headache. That framing is practical for robotics or AR settings where you want one unified representation. The soft spots sit in the experimental controls. The abstract reports SOTA results and the latency win but shows no quantitative ablation on the validator, no error bars, and no direct test that the features encode actual metric depth or pose rather than texture cues or training-set patterns. Without those checks the emergence claim risks being circular with the losses that were added to enforce it. The mutual-information argument is stated but not measured. For a reader working on efficient 3D-aware MLLMs this is worth a look once the full experiments are in hand, because the latency angle matters for real deployment. It is not yet a broad shift in how we think about 3D in vision-language models. I would send it to peer review if the full paper includes the missing ablations and some feature-level verification; otherwise it stays in the interesting-but-unproven category.

Referee Report

3 major / 1 minor

Summary. The paper proposes 3D-IDE for MLLMs in indoor scene understanding. It reframes 3D perception as an emergent property via the Implicit Geometric Emergence Principle: a fine-grained geometry validator and global representation constraints create an information bottleneck that maximizes mutual information between visual features and 3D structures. This yields a unified representation enabling 3D awareness without explicit depth or pose inputs at inference (zero latency overhead), SOTA results on multiple 3D benchmarks, and a claimed 55% inference latency reduction.

Significance. If the central claims hold, the work would be significant for offering an implicit route to 3D integration in multimodal models that avoids external 3D foundation models or positional encodings while cutting inference cost. Public source code release aids reproducibility.

major comments (3)

Abstract: the reported 55% latency reduction and SOTA benchmark gains are stated without any quantitative ablation tables, error bars, or description of how the information bottleneck or latency is measured, leaving the contribution of the validator and constraints unisolated.
Implicit Geometric Emergence Principle (method description): the claim that auxiliary objectives force genuine 3D structure via mutual-information maximization is not supported by direct MI estimation, feature visualizations, or controls (e.g., OOD geometry tests) that would rule out 2D texture shortcuts or memorization.
Experimental section: no ablation isolating the fine-grained geometry validator from other losses is shown, so it remains unclear whether observed gains arise from the claimed bottleneck or from standard supervised training.

minor comments (1)

Notation for the global representation constraints should be formalized with explicit equations to clarify their interaction with the validator loss.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment point by point below. Where the manuscript requires additional evidence or clarification, we will revise accordingly in the next version to strengthen the presentation of our results and method.

read point-by-point responses

Referee: Abstract: the reported 55% latency reduction and SOTA benchmark gains are stated without any quantitative ablation tables, error bars, or description of how the information bottleneck or latency is measured, leaving the contribution of the validator and constraints unisolated.

Authors: We acknowledge that the abstract summarizes the key outcomes without referencing the supporting quantitative details. In the revised manuscript we will add explicit references to the ablation tables (including error bars) that appear in the experimental section and include a brief description of the latency measurement protocol (wall-clock inference time on a single A100 GPU for end-to-end forward passes). We will also clarify how the information bottleneck is quantified via the auxiliary loss terms, thereby isolating the validator and constraint contributions. revision: yes
Referee: Implicit Geometric Emergence Principle (method description): the claim that auxiliary objectives force genuine 3D structure via mutual-information maximization is not supported by direct MI estimation, feature visualizations, or controls (e.g., OOD geometry tests) that would rule out 2D texture shortcuts or memorization.

Authors: The principle is grounded in the information-bottleneck construction and is indirectly validated by the downstream 3D benchmark gains. We agree that stronger mechanistic evidence would be valuable. In the revision we will add t-SNE and activation-map visualizations of the learned features and introduce OOD geometry perturbation tests. Direct mutual-information estimation on high-dimensional features is computationally prohibitive in our setting; we will instead report a variational lower-bound proxy to support the maximization claim. revision: partial
Referee: Experimental section: no ablation isolating the fine-grained geometry validator from other losses is shown, so it remains unclear whether observed gains arise from the claimed bottleneck or from standard supervised training.

Authors: We will insert a dedicated ablation study that incrementally disables the fine-grained geometry validator while retaining the remaining loss terms. The new table will report performance deltas on the primary benchmarks, thereby demonstrating that the observed improvements are attributable to the bottleneck mechanism rather than generic supervised training. revision: yes

Circularity Check

1 steps flagged

Implicit Geometric Emergence Principle is defined by the auxiliary objectives it claims to produce

specific steps

self definitional [Abstract]
"Our core insight is the Implicit Geometric Emergence Principle: by strategically leveraging privileged geometric supervision through mechanisms like a fine-grained geometry validator and global representation constraints, we construct an information bottleneck. This bottleneck forces the model to maximize the mutual information between visual features and 3D structures, allowing 3D awareness to emerge naturally within a unified visual representation."

The emergence of 3D awareness is presented as a consequence of the information bottleneck constructed via the fine-grained geometry validator and global representation constraints. These mechanisms are the training objectives introduced by the authors, making the claimed emergence equivalent to the application of the supervision by construction rather than an independent result.

full rationale

The paper's central claim reframes 3D perception as an emergent property from an information bottleneck created by the fine-grained geometry validator and global representation constraints. This is presented as the Implicit Geometric Emergence Principle, but the description shows the emergence is defined directly in terms of the privileged geometric supervision mechanisms the authors introduce. The result therefore reduces to the training setup by construction, with no independent derivation or verification (such as direct MI estimation) that the features encode metric 3D structure beyond the losses. This produces partial circularity consistent with the reader's score of 5, while the method still contains independent engineering contributions in the specific validator design.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The method rests on the unproven premise that the chosen auxiliary objectives create a genuine information bottleneck rather than allowing shortcut solutions. No new physical entities are introduced.

free parameters (1)

weights of auxiliary geometry losses
The fine-grained validator and global constraint objectives require weighting hyperparameters that are fitted or chosen to produce the reported emergence effect.

axioms (1)

domain assumption Mutual information between visual features and 3D structure can be maximized through the described validator and constraint without explicit 3D inputs at inference
Invoked in the definition of the Implicit Geometric Emergence Principle

invented entities (1)

Implicit Geometric Emergence Principle no independent evidence
purpose: Conceptual framing that 3D perception arises naturally from the information bottleneck
Newly named principle introduced to explain why the auxiliary objectives produce 3D awareness

pith-pipeline@v0.9.0 · 5598 in / 1483 out tokens · 32597 ms · 2026-05-14T22:30:51.281429+00:00 · methodology
