TORA: Topological Representation Alignment for 3D Shape Assembly

Nahyuk Lee , Zhiang Chen , Marc Pollefeys , Sunghwan Hong
Authors on Pith no claims yet

Pith reviewed 2026-05-13 17:06 UTC · model grok-4.3

classification 💻 cs.CV cs.LG
keywords 3D shape assemblyflow matchingrepresentation alignmenttopological alignmentzero-shot transferpretrained 3D encoderspart assemblydomain shift robustness
0
0 comments X

The pith

TORA aligns flow models to frozen 3D encoders to speed assembly training and improve accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents TORA as a framework that aligns internal representations of a flow-matching model for 3D shape assembly with those from a frozen pretrained encoder. This transfers geometric and contact-based relational information to guide part movements during assembly. The method requires no extra computation at inference time yet produces faster training convergence up to 6.9 times, higher accuracy on benchmarks, and stronger results when applied to previously unseen real or synthetic data.

Core claim

TORA introduces a topology-first representation alignment framework that distills relational structure from a frozen pretrained 3D encoder into the flow-matching backbone during training. It realizes this first through token-wise cosine matching of learned geometric descriptors and then through a Centered Kernel Alignment loss to match similarity structures, with alignment most effective at later transformer layers where spatial relations emerge. Geometry- and contact-centric teacher properties drive the gains rather than semantic classification ability.

What carries the argument

Topological representation alignment that matches token-wise cosine similarities or centered kernel alignment between the student flow model representations and the frozen teacher encoder representations.

If this is right

  • Training converges up to 6.9 times faster than unaligned flow-matching baselines.
  • Assembly accuracy rises on in-distribution benchmarks spanning geometric, semantic, and inter-object tasks.
  • Performance holds up better under domain shifts to unseen real-world and synthetic datasets.
  • Zero-shot transfer gains are especially large compared with prior methods.
  • State-of-the-art results are reached with zero added cost at inference time.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Teacher encoders selected for geometric rather than semantic properties are likely to produce stronger alignment benefits in assembly tasks.
  • The same alignment strategy could be applied to other generative backbones such as diffusion models for 3D tasks.
  • Systematic sweeps of alignment depth across different network architectures would identify general rules for when relational distillation helps most.
  • Extending the approach to time-varying or articulated assemblies would test whether the learned topological relations remain useful beyond static part placement.

Load-bearing premise

That geometry- and contact-centric properties extracted from the frozen teacher encoder supply the right relational guidance for the flow model and that alignment at later layers improves outcomes without negative transfer.

What would settle it

A controlled training run on one of the five assembly benchmarks in which adding the TORA alignment loss produces slower convergence or lower final accuracy than the baseline flow model without alignment.

Figures

Figures reproduced from arXiv: 2604.04050 by Marc Pollefeys, Nahyuk Lee, Sunghwan Hong, Zhiang Chen.

Figure 1

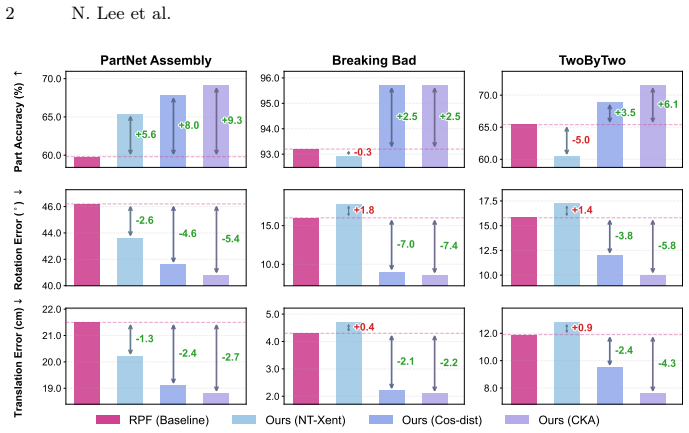

Figure 1. Figure 1: Multi-part assembly results across regimes. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the Topological Representation Alignment (TORA) [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Conceptual illustration of alignment objectives. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Correlation Analysis of Teacher Representations. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Impact of different teachers on distillation. We compare the Part Accu￾racy of TORA across Lcos-dist and LCKA across various 3D foundation models as teachers on Breaking Bad dataset [45]. The dashed line indicates the RPF baseline [48] [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Spatial structure emerges in later layers. [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Ablation study on alignment layer depth. Part Ac￾curacy consistently improves when applying alignment to later layers. in pose discrimination further suggests that pose-awareness—necessary for 6-DoF recov￾ery—emerges predominantly in later layers where global context is integrated. Motivated by these trends, we apply align￾ment at late representations, where the model is actively forming the global structu… view at source ↗
Figure 8
Figure 8. Figure 8: Qualitative Comparison. While the baseline RPF often struggles with pre￾cise part positioning and fails to resolve complex inter-part relations, ours consistently produces structurally coherent assemblies that closely match the ground truth. 5.3 Experimental Results Multi-part Assembly [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Convergence comparison. We monitor the validation Part Accuracy of Ours (CKA) ( ) against the RPF ( ) and other alignment strategies including Ours (NT￾Xent) ( ) and Ours (Cos-dist) ( ) over training epochs across three datasets. The dashed horizontal line ( ) represents the peak accuracy of the baseline. The annotated multipliers indicate the convergence speedup relative to the baseline to reach its peak … view at source ↗
read the original abstract

Flow-matching methods for 3D shape assembly learn point-wise velocity fields that transport parts toward assembled configurations, yet they receive no explicit guidance about which cross-part interactions should drive the motion. We introduce TORA, a topology-first representation alignment framework that distills relational structure from a frozen pretrained 3D encoder into the flow-matching backbone during training. We first realize this via simple instantiation, token-wise cosine matching, which injects the learned geometric descriptors from the teacher representation. We then extend to employ a Centered Kernel Alignment (CKA) loss to match the similarity structure between student and teacher representations for enhanced topological alignment. Through systematic probing of diverse 3D encoders, we show that geometry- and contact-centric teacher properties, not semantic classification ability, govern alignment effectiveness, and that alignment is most beneficial at later transformer layers where spatial structure naturally emerges. TORA introduces zero inference overhead while yielding two consistent benefits: faster convergence (up to 6.9$\times$) and improved accuracy in-distribution, along with greater robustness under domain shift. Experiments on five benchmarks spanning geometric, semantic, and inter-object assembly demonstrate state-of-the-art performance, with particularly pronounced gains in zero-shot transfer to unseen real-world and synthetic datasets. Project page: https://nahyuklee.github.io/tora.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 0 minor

Summary. The manuscript introduces TORA, a topology-first representation alignment framework for flow-matching models in 3D shape assembly. It distills relational geometric and contact-centric structure from a frozen pretrained 3D encoder into the flow backbone via token-wise cosine matching and Centered Kernel Alignment (CKA) loss, with alignment applied most effectively at later transformer layers. The method is claimed to deliver up to 6.9× faster convergence, higher in-distribution accuracy, improved robustness under domain shift, and state-of-the-art results on five benchmarks spanning geometric, semantic, and inter-object assembly tasks, all with zero inference overhead.

Significance. If the reported gains hold under rigorous verification, TORA would offer a practical, low-cost way to inject useful relational priors from pretrained geometry encoders into flow-matching pipelines, with particular value for zero-shot transfer in assembly tasks. The systematic encoder-probing experiments provide useful empirical guidance on which pretrained properties (geometry/contact vs. semantics) transfer effectively.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. We are encouraged that the topology-first alignment approach, its empirical guidance on encoder properties, and the reported gains in convergence and robustness are viewed as potentially valuable for flow-matching pipelines.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper's central claims rest on an empirical pipeline: a frozen external pretrained 3D encoder supplies relational targets (via token-wise cosine or CKA losses) that are injected into a flow-matching student during training; benefits are then measured on held-out benchmarks. No derivation, equation, or performance metric is defined in terms of itself or reduced to a fitted parameter that is later renamed a prediction. Alignment targets originate outside the model being trained, and reported gains (convergence speed, accuracy, zero-shot robustness) are independent observables rather than tautological consequences of the loss. Any self-citations are peripheral and non-load-bearing for the core argument.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that pretrained 3D encoders already encode useful cross-part relational structure for assembly; no new entities are introduced and no explicit free parameters beyond standard training losses are named.

axioms (1)
  • domain assumption Frozen pretrained 3D encoders capture geometry- and contact-centric relational structure that is useful for guiding flow-matching assembly
    The method selects and aligns to such encoders; effectiveness is claimed to depend on this property rather than semantic classification ability.
