Gravity Echoes from Supermassive Black Hole Binaries

Qinyuan Zheng , Bence B\'ecsy , Chiara M. F. Mingarelli
Authors on Pith no claims yet

Pith reviewed 2026-05-09 23:14 UTC · model grok-4.3

classification 🌌 astro-ph.HE gr-qc
keywords supermassive black hole binariesgravitational wave echoespulsar timing arraysbinary inspiralnanohertz gravitational wavesmuHz gravitational wavespost-Newtonian evolution
0
0 comments X

The pith

Future μHz detectors turn pulsar timing arrays into gravity-echo probes of black-hole binary evolution.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that a space-based μHz gravitational-wave mission detecting a nearby supermassive black hole binary would convert the pulsar terms recorded by pulsar timing arrays into dated snapshots of the binary at earlier stages of its inspiral. These pulsar terms act like light echoes but for gravity, supplying a multi-century temporal baseline that neither detector can achieve alone. For an example equal-mass binary of total mass 10^9 solar masses at 80 Mpc, the combined array yields a signal-to-noise ratio of 33, with up to 24 individual pulsars resolving the signal over 50-year baselines. The frequency shift in resolved pulsar terms directly gives the inspiral rate hundreds to thousands of years ago, while the angular pattern of sensitivity allows sky localization to tens or hundreds of square degrees. With good pulsar distance measurements, a few anchor pulsars could phase-link the array and track post-Newtonian orbital changes across kiloparsec baselines.

Core claim

A μHz-band detection of a nearby massive binary by a mission such as μAres would transform the Earth term measured at the solar system and the pulsar terms measured at each pulsar into a set of gravity echoes. Each pulsar term records the binary's gravitational-wave emission at an earlier epoch, separated by the light-travel time to that pulsar. The combination supplies a temporal baseline spanning centuries that neither instrument could access by itself, enabling direct measurement of the binary's inspiral rate in the past and, with sufficient distance precision, coherent tracking of its post-Newtonian evolution across the array.

What carries the argument

The gravity echo: each pulsar term serves as a dated snapshot of the binary's gravitational-wave emission at an earlier inspiral stage, providing the temporal offset set by the pulsar distance.

If this is right

  • The combined Earth-term and pulsar-term data give a direct measurement of the binary inspiral rate hundreds to thousands of years in the past.
  • Single-pulsar echo sensitivity patterns alone localize the source on the sky to roughly 10-100 square degrees.
  • A small set of well-timed pulsars can phase-connect the array and follow post-Newtonian orbital evolution coherently over kiloparsec distances.
  • The required binaries belong to the same high-mass population that produces the observed nanohertz stochastic gravitational-wave background.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Gravity echoes could test whether binary evolution follows the same post-Newtonian trajectory over century-long baselines as predicted by general relativity.
  • Repeated detections would map how often massive binaries stall or accelerate at different orbital periods, constraining dynamical-friction and gas-driven migration models.
  • The method links two otherwise separate observational windows, so a single binary detection automatically calibrates both the high-frequency and low-frequency ends of the gravitational-wave spectrum for that source.

Load-bearing premise

That a future μHz mission will detect a nearby massive binary and that pulsar distances can be known precisely enough to align the phases and trace the binary's evolution.

What would settle it

Detection of a nearby supermassive binary in the μHz band by a space mission, followed by a pulsar timing array search that finds no pulsar-term signals above the expected noise level at the predicted frequencies and amplitudes.

Figures

Figures reproduced from arXiv: 2604.21010 by Bence B\'ecsy, Chiara M. F. Mingarelli, Qinyuan Zheng.

Figure 1
Figure 1. Figure 1: FIG. 1. Multiband GW sensitivity landscape from nHz to mHz. Solid curves show detector sensitivity for NANOGrav [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

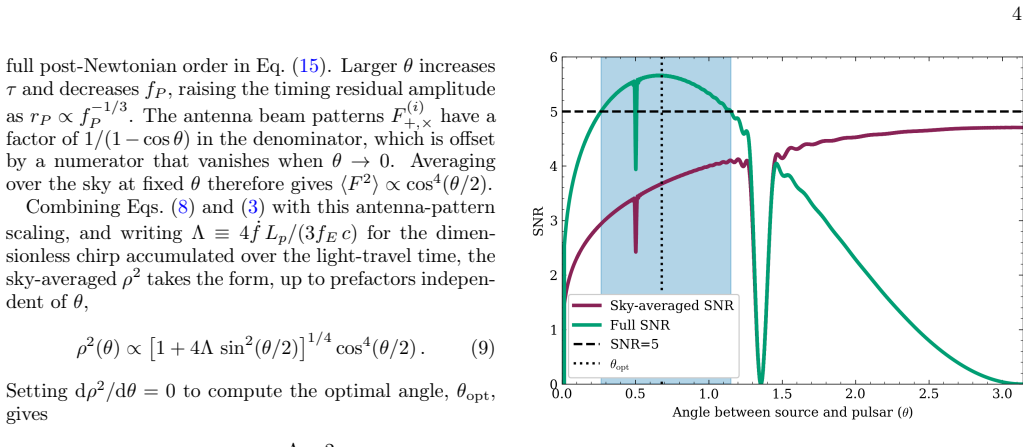

Figure 2. Figure 2: FIG. 2. Single-pulsar echo SNR versus source–pulsar angle [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Expected number of SMBHBs with [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

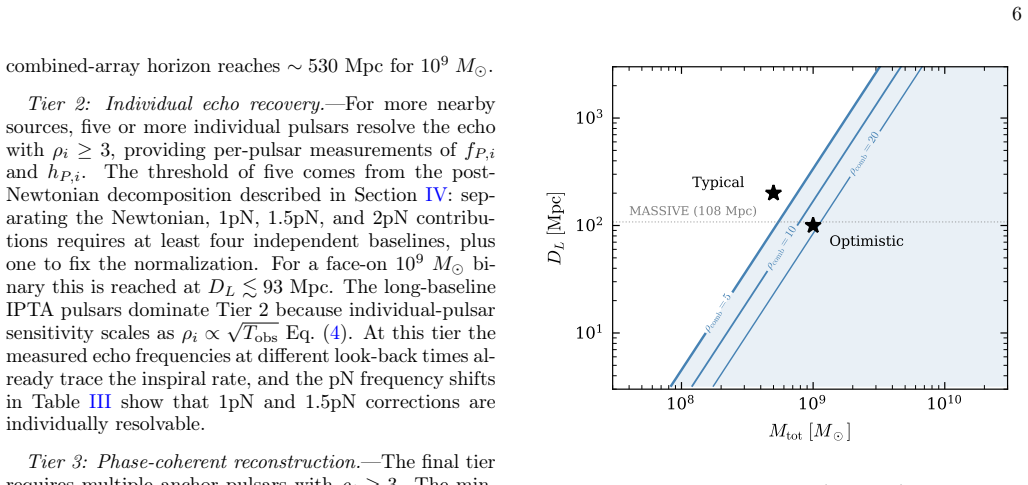

Figure 4. Figure 4: FIG. 4. Echo detectability in the [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Cumulative GW cycles by post-Newtonian order for [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

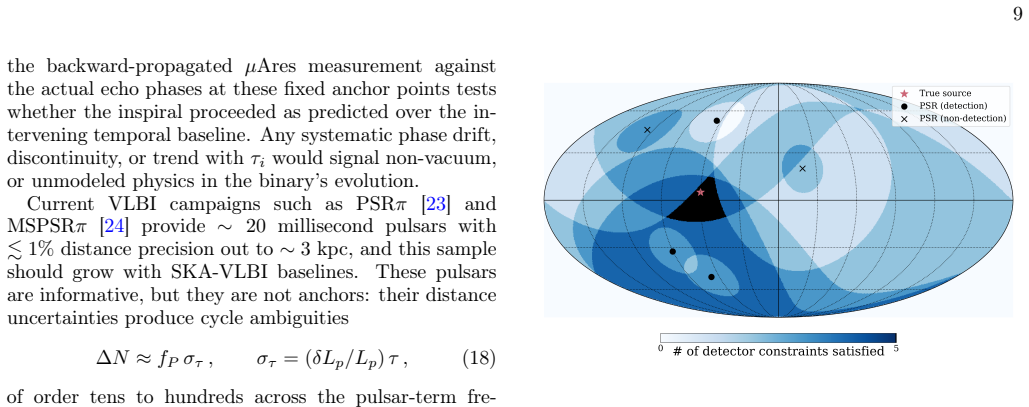

Figure 6. Figure 6: FIG. 6. Sky localization of the Optimistic source using five [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
read the original abstract

Pulsar timing arrays record gravitational waves from supermassive black hole binaries at two spacetime points: an Earth term, measured when the wave passes the Earth, and a pulsar term, measured when the wave passed each pulsar at an earlier epoch. We show that a future $\mu$Hz-band detection of a nearby massive binary by a mission such as $\mu$Ares would turn PTA pulsar terms into targeted probes of binary evolution. In analogy with supernova light echoes, each pulsar term acts as a gravity echo: a dated snapshot of the binary at an earlier stage of its inspiral. Together, the $\mu$Hz Earth-term measurement and the nHz pulsar-term echoes provide a temporal baseline that neither detector could access alone. For a fiducial equal-mass binary with total mass $10^9\,M_\odot$ at 80~Mpc, we find a combined pulsar timing array echo signal-to-noise ratio of 33, with up to 24 pulsars individually resolving the signal among pulsars with 50-year baselines. The angular dependence of the single-pulsar echo sensitivity alone enables independent sky localization of the source to $\sim$10--100~deg$^2$, and the resolved pulsar-term frequencies directly measure the binary inspiral rate hundreds to thousands of years ago. With sufficient pulsar distance precision, a small set of anchor pulsars could additionally phase-connect the array and trace the post-Newtonian evolution coherently over kpc baselines. The source population required for gravity echoes is drawn from the same massive-end census responsible for the observed nanoHertz stochastic background.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper proposes that a future μHz-band detection of a nearby supermassive black hole binary (SMBHB) by a mission such as μAres would enable pulsar timing array (PTA) pulsar terms to function as 'gravity echoes'—delayed nHz snapshots of the binary at earlier inspiral stages—complementing the μHz Earth term. For a fiducial equal-mass binary with total mass 10^9 M_⊙ at 80 Mpc, it reports a combined PTA echo SNR of 33, with up to 24 pulsars individually resolving the signal over 50-year baselines. The angular dependence allows independent sky localization to ~10-100 deg², resolved pulsar-term frequencies measure the inspiral rate hundreds to thousands of years prior, and sufficient pulsar distance precision could enable phase-connection and coherent post-Newtonian tracing over kpc baselines. The required binaries belong to the same population producing the observed nHz stochastic background.

Significance. If the modeling and assumptions hold, this provides a novel multi-epoch probe of SMBHB evolution spanning centuries to millennia by bridging μHz and nHz observations, enhancing the science return from both future space-based detectors and existing PTAs. The concrete fiducial calculation supplies specific, falsifiable benchmarks (SNR=33, 24 resolvable pulsars) grounded in standard gravitational-wave propagation and PTA principles without circular parameters. This is a strength, as it offers a clear path to test the proposal against the massive-end census responsible for the nHz background.

major comments (2)
  1. [Abstract and modeling sections] Abstract and modeling sections: The central quantitative claims (combined SNR of 33, up to 24 individually resolvable pulsars, sky localization of 10-100 deg²) rest on a fiducial signal model integrating the Earth-term μHz waveform against nHz pulsar-term echoes over PTA baselines, but the explicit derivation, noise model details, and sensitivity analysis to parameters such as mass ratio or distance are not provided; this is load-bearing for verifying the reported numbers and the overall utility claim.
  2. [Discussion of phase-connection] Discussion of phase-connection: The claim that anchor pulsars could phase-connect the array and trace post-Newtonian evolution coherently depends on 'sufficient pulsar distance precision,' yet no quantitative threshold (e.g., required fractional error or absolute precision in pc) or feasibility assessment against current/future measurements is given; this directly affects the coherent-tracing component of the proposal.
minor comments (3)
  1. [Introduction] The introduction would benefit from a short clarification of how the 'gravity echo' timing and frequency shift differ from optical light echoes, to avoid potential confusion for readers.
  2. [Throughout] Notation for Earth term versus pulsar term and frequency bands (μHz vs. nHz) should be defined consistently at first use and used uniformly throughout.
  3. [Figure captions] If figures are included showing echo waveforms or SNR contributions, they should explicitly label the fiducial parameters and note any assumptions in the caption.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript and for the constructive comments, which will help improve the clarity and reproducibility of our results. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract and modeling sections] Abstract and modeling sections: The central quantitative claims (combined SNR of 33, up to 24 individually resolvable pulsars, sky localization of 10-100 deg²) rest on a fiducial signal model integrating the Earth-term μHz waveform against nHz pulsar-term echoes over PTA baselines, but the explicit derivation, noise model details, and sensitivity analysis to parameters such as mass ratio or distance are not provided; this is load-bearing for verifying the reported numbers and the overall utility claim.

    Authors: We agree that the explicit derivation of the SNR, the noise model, and parameter sensitivities are important for verification. The reported numbers follow from standard GW propagation and PTA response functions applied to the fiducial equal-mass binary, but we will expand the modeling section in the revised manuscript to include the full step-by-step derivation of the combined SNR, the precise noise model assumptions (including timing residuals and red-noise contributions), and sensitivity analyses showing how the SNR and number of resolvable pulsars change with mass ratio and distance. This will make the fiducial results fully reproducible. revision: yes

  2. Referee: [Discussion of phase-connection] Discussion of phase-connection: The claim that anchor pulsars could phase-connect the array and trace post-Newtonian evolution coherently depends on 'sufficient pulsar distance precision,' yet no quantitative threshold (e.g., required fractional error or absolute precision in pc) or feasibility assessment against current/future measurements is given; this directly affects the coherent-tracing component of the proposal.

    Authors: We acknowledge that the phase-connection discussion remains qualitative in the current version. In the revised manuscript we will add a quantitative estimate of the required pulsar distance precision (e.g., the fractional error needed for phase coherence over kpc baselines at the relevant frequencies) together with a feasibility assessment comparing it to existing PTA parallax measurements and projected improvements from future observations. This will clarify the conditions under which coherent post-Newtonian tracing becomes possible. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained fiducial calculation

full rationale

The paper's central results (combined PTA echo SNR of 33 and up to 24 individually resolvable pulsars for the fiducial 10^9 M_⊙ binary at 80 Mpc) are obtained by applying standard gravitational-wave propagation, Earth-term/pulsar-term timing residuals, and matched-filter SNR integration to a parameterized binary waveform model. No derived quantity is defined in terms of itself, no fitted parameter is relabeled as a prediction, and no load-bearing step reduces to a self-citation chain or ansatz smuggled from prior author work. The calculation conditions on external assumptions (future μAres detection and pulsar distance precision) but does not internally force the reported numbers by construction. The analogy to light echoes is illustrative only and does not substitute for the explicit signal model.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The central claim rests on standard general-relativity propagation, established PTA measurement principles, and two fiducial parameters chosen for illustration; no new physical entities beyond the conceptual analogy are introduced.

free parameters (2)
  • total mass = 10^9 M_⊙
    Fiducial value of 10^9 solar masses chosen to compute the example signal-to-noise ratio
  • distance = 80 Mpc
    Fiducial value of 80 Mpc chosen to compute the example signal-to-noise ratio
axioms (2)
  • standard math Gravitational waves propagate at the speed of light
    Underlies the time delay between Earth term and pulsar term
  • domain assumption Pulsar timing arrays can measure nanohertz gravitational waves from supermassive black hole binaries
    Foundation for interpreting pulsar terms as signals from the same binaries
invented entities (1)
  • gravity echo no independent evidence
    purpose: Analogy describing the pulsar term as a historical snapshot of the binary
    New conceptual label introduced to frame the proposed technique
