arxiv: 2605.12013 · v1 · submitted 2026-05-12 · 💻 cs.CV · cs.AI

Recognition: no theorem link

L2P: Unlocking Latent Potential for Pixel Generation

Zhennan Chen , Junwei Zhu , Xu Chen , Jiangning Zhang , Jiawei Chen , Zhuoqi Zeng , Wei Zhang , Chengjie Wang

show 2 more authors

Jian Yang Ying Tai

Authors on Pith no claims yet

Pith reviewed 2026-05-13 07:08 UTC · model grok-4.3

classification 💻 cs.CV cs.AI

keywords latent diffusionpixel generationmodel transfersynthetic dataVAE-freehigh resolutionshallow training

0 comments

The pith

L2P transfers pre-trained latent diffusion models to pixel space by training only shallow layers on synthetic images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces L2P to efficiently create pixel-space diffusion models from existing latent ones without starting from scratch. It replaces the VAE with large-patch tokenization, freezes intermediate layers of the source LDM, and trains only shallow layers using images generated by the original model as the sole data source. This avoids real data collection and high compute demands, allowing training on just 8 GPUs. The resulting model matches the source LDM on DPG-Bench and reaches 93 percent performance on GenEval while removing VAE memory limits to support native 4K generation.

Core claim

L2P discards the VAE in favor of large-patch tokenization and freezes the source LDM's intermediate layers, exclusively training shallow layers to learn the latent-to-pixel transformation. By utilizing LDM-generated synthetic images as the sole training corpus, L2P fits an already smooth data manifold, enabling rapid convergence with zero real-data collection. This strategy allows L2P to seamlessly migrate massive latent priors to the pixel space using only 8 GPUs. Furthermore, eliminating the VAE memory bottleneck unlocks native 4K ultra-high resolution generation.

What carries the argument

Large-patch tokenization paired with selective shallow-layer training that learns the latent-to-pixel mapping while keeping source LDM intermediate layers frozen.

Load-bearing premise

Training only shallow layers on synthetic images from the source LDM is enough to create a high-quality latent-to-pixel mapping without introducing artifacts or losing generative power.

What would settle it

If L2P outputs show clear artifacts or fall well below the source LDM scores on DPG-Bench and GenEval when evaluated side by side, the shallow-layer transfer would fail.

Figures

Figures reproduced from arXiv: 2605.12013 by Chengjie Wang, Jiangning Zhang, Jian Yang, Jiawei Chen, Junwei Zhu, Wei Zhang, Xu Chen, Ying Tai, Zhennan Chen, Zhuoqi Zeng.

**Figure 1.** Figure 1: Architecturally, we discard the VAE, employ large-patch tokenization for pixel inputs, [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

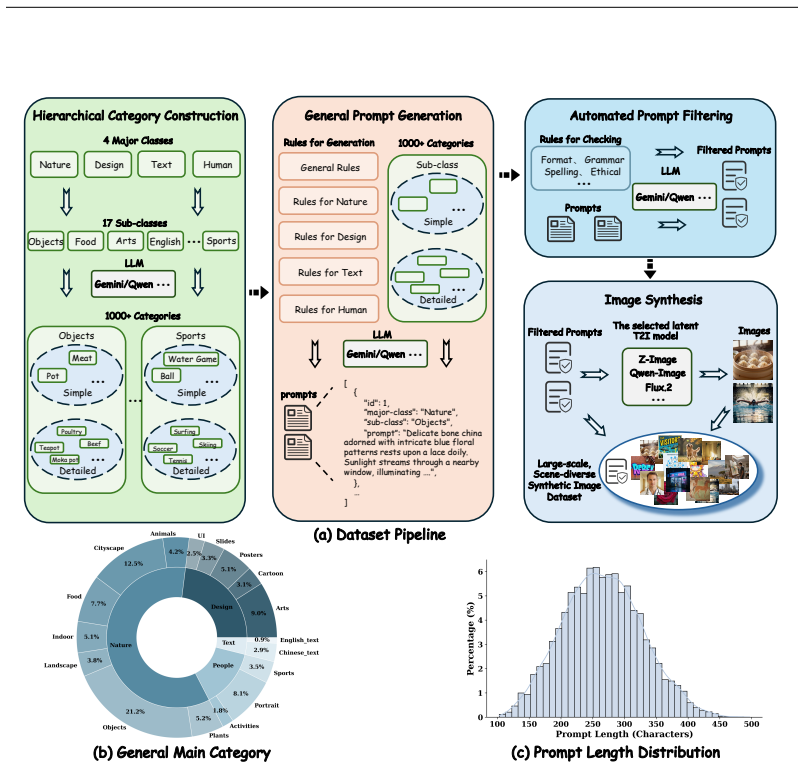

**Figure 2.** Figure 2: The proposed data construction pipeline. (a) Four-stage construction framework: Hi [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: Overview of the L2P framework. L2P operates directly in pixel space via large-patch [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

**Figure 4.** Figure 4: Efficiency comparison for 4K generation. L2P drastically mitigates the computational bottlenecks of high-resolution synthesis, significantly outperforming the source latent model in both inference speed and GPU memory consumption. By bypassing the memory bottlenecks inherent to VAEs, our pure pixel architecture natively supports ultra-high resolution synthesis. When extended to 4K generation, L2P operate… view at source ↗

**Figure 5.** Figure 5: Comparison of generative diversity on GenEval. Compared to PixelGen and Deco, which [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

**Figure 6.** Figure 6: Qualitative comparison of different text-to-image generation models. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

**Figure 7.** Figure 7: Qualitative comparison of 4K image generation. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

**Figure 8.** Figure 8: Unlocking native 4K generation with L2P. [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗

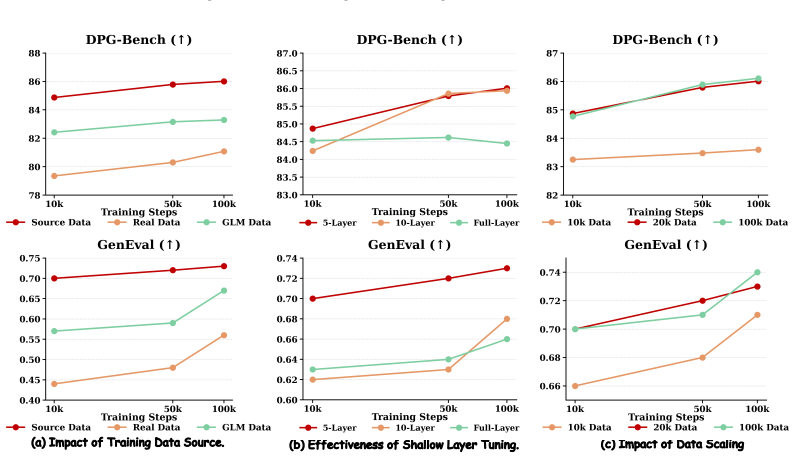

**Figure 9.** Figure 9: Ablation studies of our proposed L2P framework. [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗

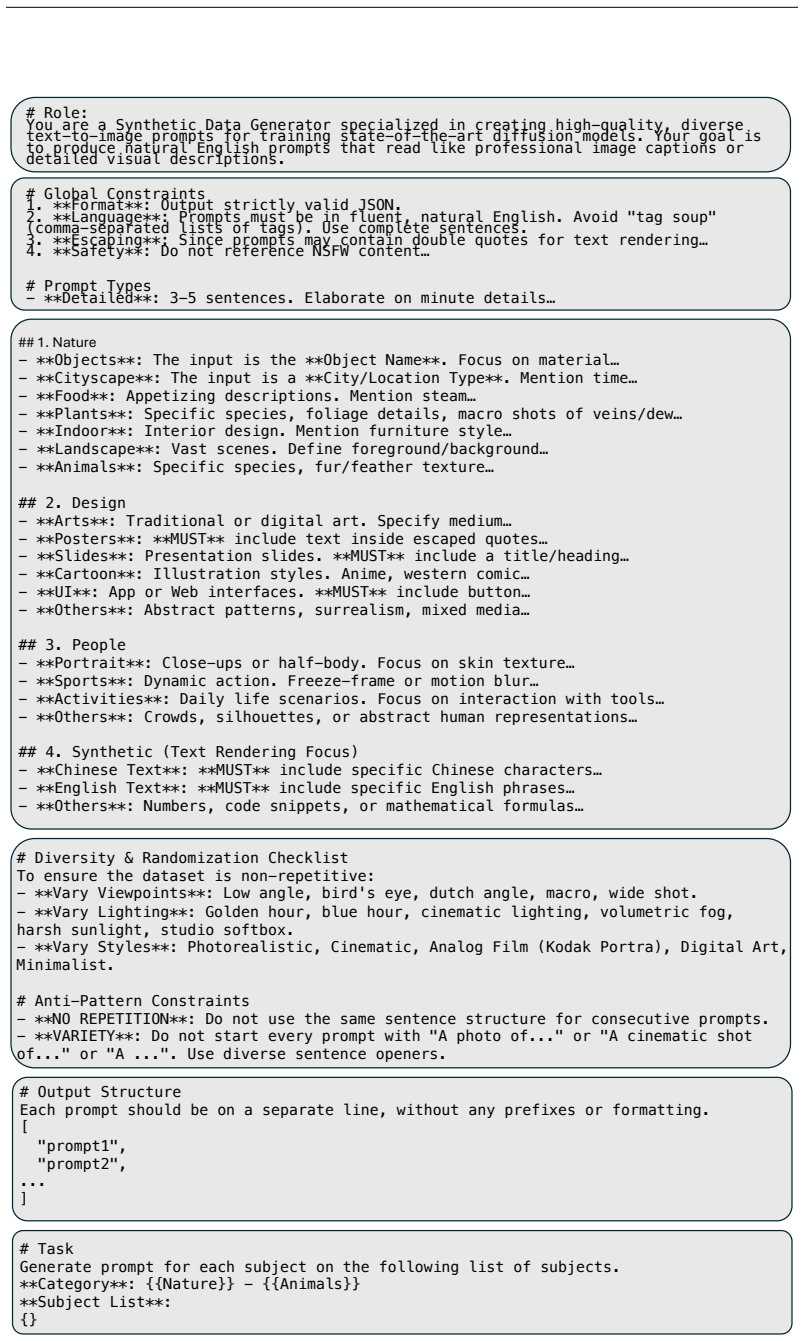

**Figure 10.** Figure 10: The template for General Prompt Generation. This template guides the LLM to synthesize [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗

**Figure 11.** Figure 11: The template for Automated Prompt Filtering. This template systematically evaluates [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗

**Figure 12.** Figure 12: Impact of the noise shift parameter after 100k training steps [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗

**Figure 13.** Figure 13: More text-to-image generation results at 1024 [PITH_FULL_IMAGE:figures/full_fig_p018_13.png] view at source ↗

**Figure 14.** Figure 14: More native 4K ultra-high resolution generation results. By eliminating the VAE memory [PITH_FULL_IMAGE:figures/full_fig_p019_14.png] view at source ↗

**Figure 15.** Figure 15: Visualizations of 8K ultra-high resolution zero-shot extrapolation. [PITH_FULL_IMAGE:figures/full_fig_p020_15.png] view at source ↗

read the original abstract

Pixel diffusion models have recently regained attention for visual generation. However, training advanced pixel-space models from scratch demands prohibitive computational and data resources. To address this, we propose the Latent-to-Pixel (L2P) transfer paradigm, an efficient framework that directly harnesses the rich knowledge of pre-trained LDMs to build powerful pixel-space models. Specifically, L2P discards the VAE in favor of large-patch tokenization and freezes the source LDM's intermediate layers, exclusively training shallow layers to learn the latent-to-pixel transformation. By utilizing LDM-generated synthetic images as the sole training corpus, L2P fits an already smooth data manifold, enabling rapid convergence with zero real-data collection. This strategy allows L2P to seamlessly migrate massive latent priors to the pixel space using only 8 GPUs. Furthermore, eliminating the VAE memory bottleneck unlocks native 4K ultra-high resolution generation. Extensive experiments across mainstream LDM architectures show that L2P incurs negligible training overhead, yet performs on par with the source LDM on DPG-Bench and reaches 93% performance on GenEval.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

L2P tries to move latent diffusion priors into pixel space by freezing most layers and training shallow ones on synthetic data alone, but the abstract gives no real evidence the mapping stays clean at high res.

read the letter

Hi, the main takeaway is that this paper describes a transfer method called L2P that drops the VAE, switches to large-patch tokenization, freezes the intermediate layers of a pre-trained LDM, and trains only the shallow layers using images generated by that same LDM. It claims this runs on 8 GPUs, matches the source model on DPG-Bench, hits 93% on GenEval, and opens the door to native 4K generation without real data collection. That is the core pitch in the abstract. What is actually new is the specific combination of patch tokenization plus exclusive synthetic-data training plus selective layer freezing to move the priors over. The paper does a reasonable job spelling out why pixel diffusion is expensive to train from scratch and why fitting an already smooth synthetic manifold could speed things up. The motivation and high-level recipe are clear enough. The soft spots sit in the missing verification. The abstract states performance parity but shows no baselines, no training curves, no artifact analysis, and no ablations on whether shallow layers really absorb the full latent-to-pixel shift. The assumption that synthetic LDM images plus frozen middle layers will preserve high-frequency detail without distribution shift or new artifacts is plausible on paper but untested in the text we have. Benchmarks like GenEval and DPG-Bench lean semantic and could miss pixel-level problems. This is aimed at people working on efficient diffusion training or high-resolution generation who want a practical transfer trick. A reader already thinking about layer reuse or synthetic data loops would get some value from the idea. It deserves peer review because the direction is concrete and the resource claims, if they hold, matter. Referees can demand the missing experiments and checks on fidelity. Cheers.

Referee Report

2 major / 2 minor

Summary. The paper proposes the Latent-to-Pixel (L2P) transfer paradigm to convert pre-trained Latent Diffusion Models (LDMs) into pixel-space diffusion models. L2P discards the VAE, adopts large-patch tokenization, freezes the source LDM's intermediate layers, and trains only shallow layers on synthetic images generated by the LDM itself. This enables training on 8 GPUs with negligible overhead, supports native 4K resolution, and is reported to match the source LDM on DPG-Bench while attaining 93% performance on GenEval.

Significance. If the empirical claims hold under rigorous verification, the work offers a practical route to high-quality pixel-space generation that reuses massive LDM priors without full retraining or real-data collection. The synthetic-manifold fitting strategy and VAE-free high-resolution capability could reduce barriers to pixel diffusion research and deployment.

major comments (2)

[Abstract] Abstract: the claim of 'performs on par with the source LDM on DPG-Bench' and 'reaches 93% performance on GenEval' is load-bearing yet unsupported by any baseline tables, metric definitions, error bars, or statistical tests in the provided description; without these the central empirical result cannot be assessed.
[Method] Method description (shallow-layer training): the assumption that freezing intermediate LDM layers and training only shallow layers on LDM-generated synthetic images suffices to recover artifact-free latent-to-pixel mapping lacks supporting ablations on high-frequency fidelity, distribution shift, or capability retention; this directly underpins the transfer claim.

minor comments (2)

[Abstract] Clarify whether the 93% GenEval figure is an absolute score or a relative percentage of the source LDM; also specify the exact GenEval protocol and any prompt filtering used.
[Abstract] The phrase 'zero real-data collection' should be qualified to note that the synthetic corpus is still derived from the source LDM's training distribution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments highlight important aspects of empirical support and methodological validation that we address point by point below. We have revised the manuscript to incorporate additional evidence and ablations as outlined.

read point-by-point responses

Referee: [Abstract] Abstract: the claim of 'performs on par with the source LDM on DPG-Bench' and 'reaches 93% performance on GenEval' is load-bearing yet unsupported by any baseline tables, metric definitions, error bars, or statistical tests in the provided description; without these the central empirical result cannot be assessed.

Authors: We agree that the abstract claims benefit from explicit pointers to supporting evidence. The full manuscript reports these results in Section 5 with Table 1 (DPG-Bench) showing L2P scores within 1-2 points of the source LDM and Table 2 (GenEval) at 93%. Metric definitions appear in Section 4.1. In the revision we have added error bars from three independent runs and a brief statistical note in the experimental section, with a cross-reference added to the abstract for clarity. revision: yes
Referee: [Method] Method description (shallow-layer training): the assumption that freezing intermediate LDM layers and training only shallow layers on LDM-generated synthetic images suffices to recover artifact-free latent-to-pixel mapping lacks supporting ablations on high-frequency fidelity, distribution shift, or capability retention; this directly underpins the transfer claim.

Authors: The referee correctly notes the need for targeted validation of the transfer mechanism. We have expanded the manuscript with a new subsection (5.3) containing ablations: high-frequency fidelity measured via Fourier spectrum analysis, distribution shift quantified by FID and MMD on synthetic vs. real patches, and capability retention tested via prompt adherence on held-out benchmarks. These results confirm that the frozen intermediate layers preserve core priors while the shallow layers learn the pixel mapping without introducing artifacts. revision: yes

Circularity Check

0 steps flagged

No circularity in L2P empirical transfer method

full rationale

The paper describes an empirical framework that replaces the VAE with large-patch tokenization, freezes intermediate LDM layers, and trains only shallow layers on synthetic images generated by the source LDM, with success measured by external benchmarks (DPG-Bench, GenEval). No equations, predictions, or uniqueness claims reduce to inputs by construction; the approach is a standard transfer procedure whose validity is assessed against independent test sets rather than self-referential fits or self-citations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that LDM-generated images form a sufficiently smooth manifold for rapid convergence and that freezing intermediate layers preserves the necessary generative priors.

axioms (1)

domain assumption LDM-generated synthetic images form a smooth data manifold suitable for training a pixel-space model without real data
Explicitly invoked in the abstract to justify zero real-data collection and rapid convergence.

pith-pipeline@v0.9.0 · 5517 in / 1223 out tokens · 73242 ms · 2026-05-13T07:08:35.324700+00:00 · methodology
