PRIX: Learning to Plan from Raw Pixels for End-to-End Autonomous Driving

Maciej K. Wozniak , Lianhang Liu , Yixi Cai , Patric Jensfelt This is my paper

Pith reviewed 2026-05-19 02:49 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.LGcs.RO
keywords autonomous drivingend-to-end planningcamera-based navigationtrajectory predictionraw pixel inputrecalibration transformerNavSim benchmarknuScenes benchmark
0
0 comments X

The pith

A camera-only architecture plans safe trajectories directly from raw pixels without LiDAR or bird's-eye views.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents PRIX as an end-to-end autonomous driving system that takes raw camera images as input and outputs collision-free trajectories. It avoids the usual requirements for expensive LiDAR sensors and explicit bird's-eye-view feature maps by pairing a visual feature extractor with a generative planning head. A new Context-aware Recalibration Transformer module refines multi-level image features to support this direct pixel-to-plan mapping. Sympathetic readers would care because the approach promises smaller models and faster inference, which could make high-performance driving feasible on ordinary camera-equipped vehicles.

Core claim

PRIX achieves state-of-the-art performance on the NavSim and nuScenes benchmarks by predicting safe trajectories directly from raw pixel inputs using only camera data, without explicit BEV representation and forgoing the need for LiDAR. The architecture leverages a visual feature extractor coupled with a generative planning head, with the Context-aware Recalibration Transformer enhancing multi-level visual features for more robust planning. This matches the capabilities of larger multimodal diffusion planners while remaining significantly more efficient in inference speed and model size.

What carries the argument

The Context-aware Recalibration Transformer (CaRT) module, which refines multi-level visual features extracted from raw camera pixels to support direct generative trajectory planning.

If this is right

  • Mass-market vehicles equipped only with cameras can achieve competitive planning performance without LiDAR hardware.
  • Inference speed and model size become practical for onboard real-time deployment.
  • End-to-end driving systems no longer require separate 3D reconstruction stages to reach benchmark-leading results.
  • Training and evaluation can focus on pixel-to-trajectory mappings rather than intermediate bird's-eye representations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The recalibration approach may generalize to other vision-only planning domains such as robotics navigation or drone path finding.
  • If visual features prove sufficient here, future work could test whether similar lightweight recalibration replaces multi-sensor fusion in additional perception tasks.
  • Performance parity with larger models suggests that efficiency gains could be traded for further accuracy improvements by scaling the same architecture.

Load-bearing premise

Raw camera pixels, after processing by the visual feature extractor and CaRT module, contain enough information to generate safe, collision-free trajectories without explicit 3D reconstruction or additional sensor modalities.

What would settle it

A controlled experiment on nuScenes or NavSim showing substantially higher collision or off-road rates for PRIX than for LiDAR-based baselines in low-visibility or dynamic intersection scenarios would falsify the claim.

Figures

Figures reproduced from arXiv: 2507.17596 by Lianhang Liu, Maciej K. Wozniak, Patric Jensfelt, Yixi Cai.

Figure 1
Figure 1. Figure 1: Performance vs. inference speed comparing our camera [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: PRIX Overview: Visual features from multi-camera images are extracted by ResNet layers (fi) and together with self-attention and skip connections (CaRT, described in Sec. 3.1). Next, visual features are used for auxiliary perception tasks (see Sec. 3.4) and trajectory planning (see Sec. 3.2). A conditional diffusion planner then uses visual features, along with the current ego state and a set of noisy anch… view at source ↗
Figure 3
Figure 3. Figure 3: Architecture of our visual feature extractor with [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Diffusion steps vs performance on Navsim-v1. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

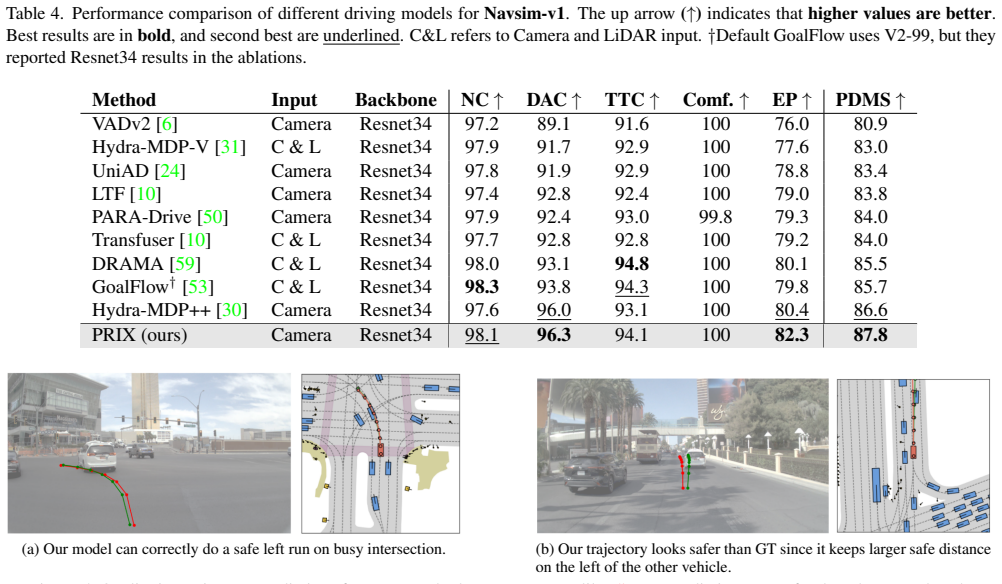

Figure 5
Figure 5. Figure 5: Qualitative trajectory predictions from our method. In some cases, like [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

While end-to-end autonomous driving models show promising results, their practical deployment is often hindered by large model sizes, a reliance on expensive LiDAR sensors and computationally intensive BEV feature representations. This limits their scalability, especially for mass-market vehicles equipped only with cameras. To address these challenges, we propose PRIX (Plan from Raw Pixels). Our novel and efficient end-to-end driving architecture operates using only camera data, without explicit BEV representation and forgoing the need for LiDAR. PRIX leverages a visual feature extractor coupled with a generative planning head to predict safe trajectories from raw pixel inputs directly. A core component of our architecture is the Context-aware Recalibration Transformer (CaRT), a novel module designed to effectively enhance multi-level visual features for more robust planning. We demonstrate through comprehensive experiments that PRIX achieves state-of-the-art performance on the NavSim and nuScenes benchmarks, matching the capabilities of larger, multimodal diffusion planners while being significantly more efficient in terms of inference speed and model size, making it a practical solution for real-world deployment. Our work is open-source and the code will be at https://maxiuw.github.io/prix.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes PRIX, an end-to-end autonomous driving architecture that predicts safe trajectories directly from raw camera pixels without LiDAR or explicit BEV representations. It combines a visual feature extractor with a generative planning head and introduces the Context-aware Recalibration Transformer (CaRT) module to enhance multi-level visual features. The central claims are state-of-the-art performance on the NavSim and nuScenes benchmarks that matches larger multimodal diffusion planners while offering substantially lower inference latency and model size; the work is presented as open-source.

Significance. If the performance and efficiency claims are substantiated with rigorous controls, the result would be significant for practical camera-only autonomous driving, as it targets reduced sensor cost and computational overhead for mass-market vehicles. The planned code release is a clear strength that supports reproducibility.

major comments (2)
  1. Experimental evaluation: the abstract and results sections assert SOTA performance and efficiency gains, yet no details are provided on training/validation data splits, ablation studies isolating the CaRT module, error bars, or failure-case analysis. These omissions prevent full evaluation of the central performance claim against the cited larger diffusion planners.
  2. Method and evaluation: the claim that raw monocular pixels plus the visual extractor and CaRT suffice for safe, collision-free planning without explicit 3D reconstruction or LiDAR rests on closed-loop benchmark metrics that can be achieved by short-horizon imitation. No targeted stress tests under distribution shift (novel lighting, thin distant obstacles, ego-motion parallax) or direct comparison to depth-augmented baselines are reported, leaving the weakest assumption unexamined.
minor comments (1)
  1. Abstract: the code link https://maxiuw.github.io/prix should be replaced with a permanent repository URL (e.g., GitHub) in the camera-ready version.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below with clarifications from the manuscript and indicate where revisions will be made to strengthen the presentation.

read point-by-point responses

  1. Referee: Experimental evaluation: the abstract and results sections assert SOTA performance and efficiency gains, yet no details are provided on training/validation data splits, ablation studies isolating the CaRT module, error bars, or failure-case analysis. These omissions prevent full evaluation of the central performance claim against the cited larger diffusion planners.

    Authors: We thank the referee for this observation. The manuscript details the training and validation splits in Section 4.1, following the official NavSim and nuScenes protocols. Ablation studies isolating the contribution of the CaRT module appear in Section 4.3 and Table 3. Error bars computed over multiple runs are reported in Tables 1 and 2. We agree that failure-case analysis is not sufficiently developed. We will add a dedicated subsection with qualitative examples and common failure modes in the revised manuscript. revision: yes

  2. Referee: Method and evaluation: the claim that raw monocular pixels plus the visual extractor and CaRT suffice for safe, collision-free planning without explicit 3D reconstruction or LiDAR rests on closed-loop benchmark metrics that can be achieved by short-horizon imitation. No targeted stress tests under distribution shift (novel lighting, thin distant obstacles, ego-motion parallax) or direct comparison to depth-augmented baselines are reported, leaving the weakest assumption unexamined.

    Authors: We respectfully note that the generative planning head is trained on multi-step trajectories and the closed-loop evaluation on NavSim and nuScenes measures full-horizon safety rather than pure short-horizon imitation. The CaRT module is specifically designed to recalibrate multi-level features for implicit spatial reasoning. Nevertheless, we agree that targeted robustness checks would strengthen the claims. We will incorporate comparisons against depth-augmented baselines and add discussion of performance under lighting and obstacle variations in the revised experiments section. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical benchmark results independent of internal definitions

full rationale

The paper's core claims rest on training a visual feature extractor plus CaRT module on standard driving datasets and reporting closed-loop metrics on NavSim and nuScenes. These are external, falsifiable evaluations against held-out trajectories and do not reduce any 'prediction' to a quantity defined by the authors' own fitted parameters or prior self-citations. No equations equate outputs to inputs by construction, no uniqueness theorems are imported from the same authors, and the architecture choices are presented as design decisions rather than derived necessities. The derivation chain is therefore self-contained and non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The performance claims rest on the domain assumption that camera images suffice for planning and on the effectiveness of the newly introduced CaRT module; no explicit free parameters or invented physical entities are described.

axioms (1)
  • domain assumption Raw camera images contain sufficient information for safe trajectory planning in the evaluated scenarios
    Core premise enabling the camera-only design stated in the abstract.
invented entities (1)
  • Context-aware Recalibration Transformer (CaRT) no independent evidence
    purpose: Enhance multi-level visual features for more robust planning
    New module presented as a core component of the architecture.

pith-pipeline@v0.9.0 · 5751 in / 1240 out tokens · 52679 ms · 2026-05-19T02:49:53.320155+00:00 · methodology
