SE(2) Navigation Mesh

Shuyang Shi , Kaixian Qu , Changan Chen , Ines Kast , Yuntao Ma , Marco Hutter This is my paper

Pith reviewed 2026-07-03 19:55 UTC · model grok-4.3

classification 💻 cs.RO
keywords SE(2) Navigation Meshyaw-dependent traversabilitynavigation meshpath planningground robotsfootprint masksonline mappingA* planning
0
0 comments X

The pith

SE(2) Navigation Mesh encodes yaw-dependent traversability via footprint masks to support non-circular ground robots in tight spaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Classical navigation meshes treat traversability as independent of heading, which fails for robots whose shape changes effective clearance with yaw. The paper introduces a layered polygonal mesh that evaluates each candidate region with a yaw-specific footprint mask and links the layers with explicit translation and rotation edges. This representation feeds an A*-String Pulling-A* planner that jointly optimizes position and heading. The resulting system reports over 50 percent more usable area than standard meshes in simulation and real-time performance on physical robots. A reader cares because many tracked, legged, or rectangular platforms are currently forced into overly conservative paths or outright blocked by the yaw-invariance assumption.

Core claim

We propose SE(2) Navigation Mesh (SE(2) NavMesh), a polygonal representation of traversable regions that encodes yaw-dependent traversability. Our method evaluates traversability using footprint masks and constructs a graph over yaw-specific layers with explicit translational and rotational connectivity. Grounded in this representation, we develop an A*-String Pulling-A* (ASA) pathfinding strategy that hierarchically optimizes robot position and heading. We also present an online method that incrementally updates the SE(2) NavMesh from streaming point clouds during concurrent geometry reconstruction.

What carries the argument

The SE(2) Navigation Mesh: a yaw-layered polygonal abstraction whose edges and faces are labeled by footprint-mask traversability and connected by both translational and rotational transitions.

If this is right

  • In simulation the representation captures over 50 percent more traversable area than yaw-invariant meshes.
  • The combined SE(2) NavMesh plus ASA planner consistently beats sampling-based baselines inside constrained environments.
  • An incremental online builder maintains the mesh in real time from streaming point clouds while the robot moves.
  • Real-world trials on a physical platform confirm successful navigation across multiple indoor and outdoor settings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same layered-mask idea could be applied to 3-D aerial vehicles whose clearance also varies with pitch and roll.
  • Replacing static footprint masks with learned or sensor-driven masks would test whether the representation remains useful under heavy occlusion or deformable terrain.
  • The explicit rotational edges already present in the graph offer a natural substrate for adding dynamic obstacle avoidance that accounts for heading.

Load-bearing premise

Footprint masks evaluated on the underlying geometry provide a sufficient and accurate model of yaw-dependent traversability without systematic under- or over-estimation in real geometry or sensor noise.

What would settle it

A physical robot test in which the SE(2) NavMesh predicts a feasible heading-specific path but the robot collides or gets stuck while the same path is infeasible under a classical NavMesh would falsify the core claim.

Figures

Figures reproduced from arXiv: 2607.01454 by Changan Chen, Ines Kast, Kaixian Qu, Marco Hutter, Shuyang Shi, Yuntao Ma.

Figure 1

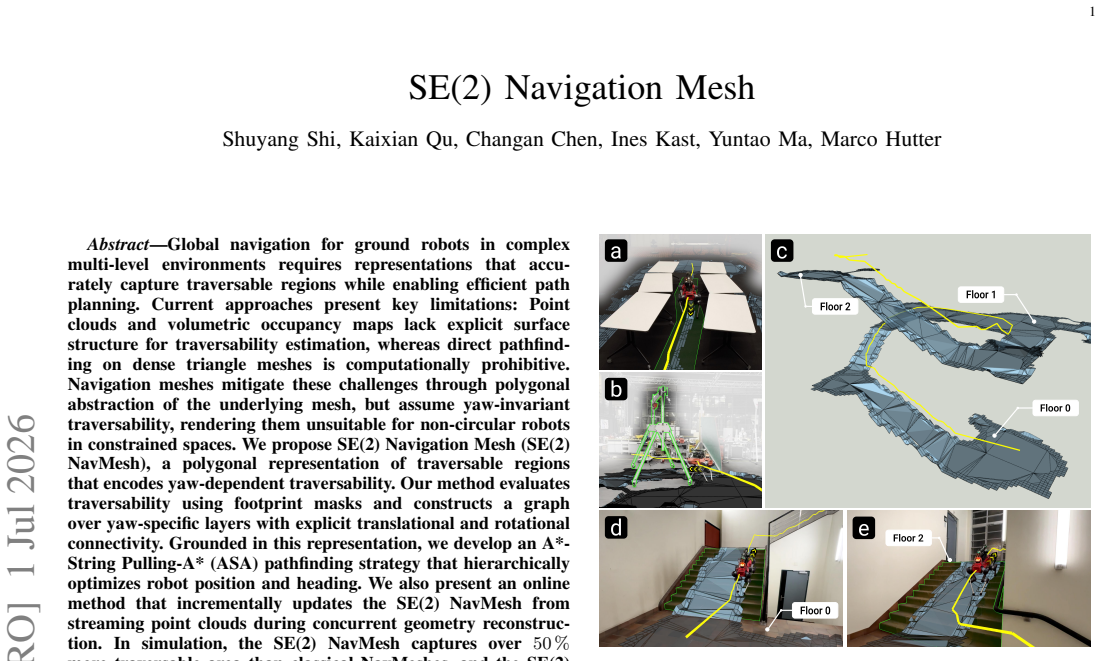

Figure 1. Figure 1: Real-world robot navigation on the SE(2) NavMesh. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

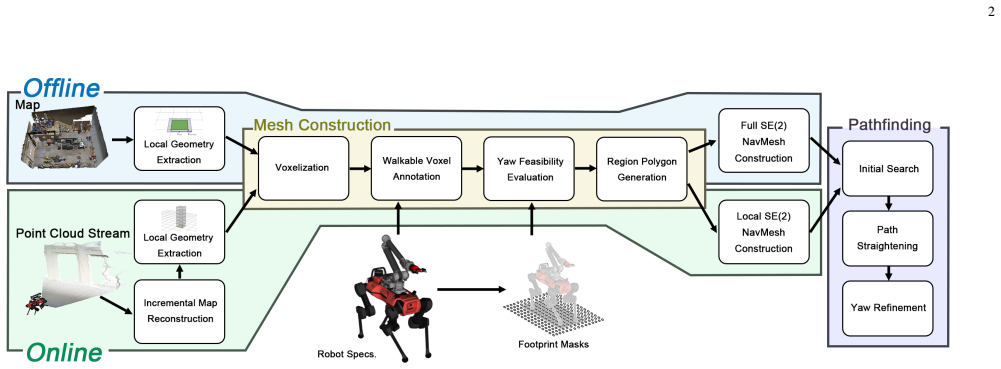

Figure 2. Figure 2: Overview of the SE(2) NavMesh system. The offline pipeline constructs the mesh from a pre-built map, whereas the [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Robot geometry approximations and footprint masks. (a) Cylindrical approximation. (b) Cuboid approximation. (c) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Classical NavMesh representation and graph con [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Generation of layer-specific regions and the navigation graph. Each yaw channel corresponds to a yaw-specific [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Tile-based SE(2) NavMesh generation. Generating the [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Overview of the ASA pathfinding strategy. The method consists of three stages: (1) an initial A* search that obtains a [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Slab-based online SE(2) NavMesh update. (a) A tile is [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9

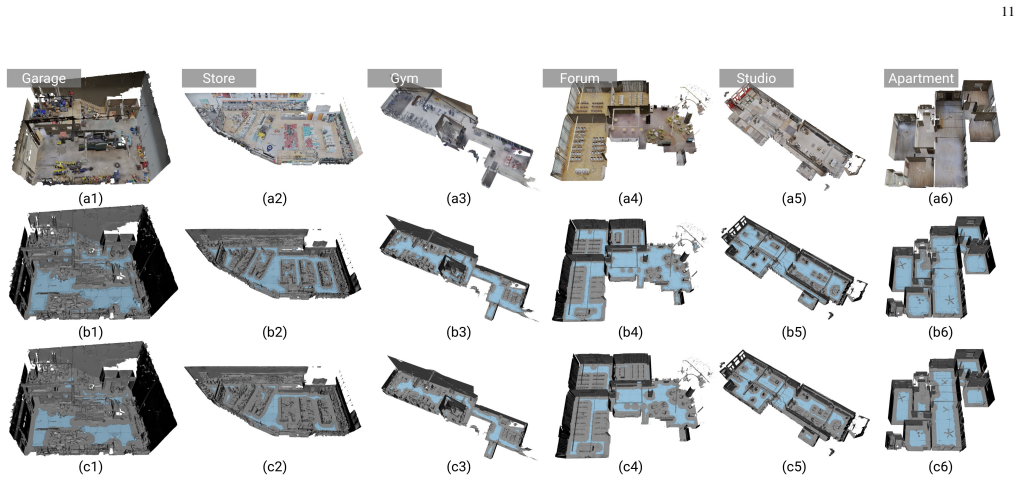

Figure 9. Figure 9: Offline mesh generation results across six simulation scenes. The first row shows the 3D scene models: (a1) [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10

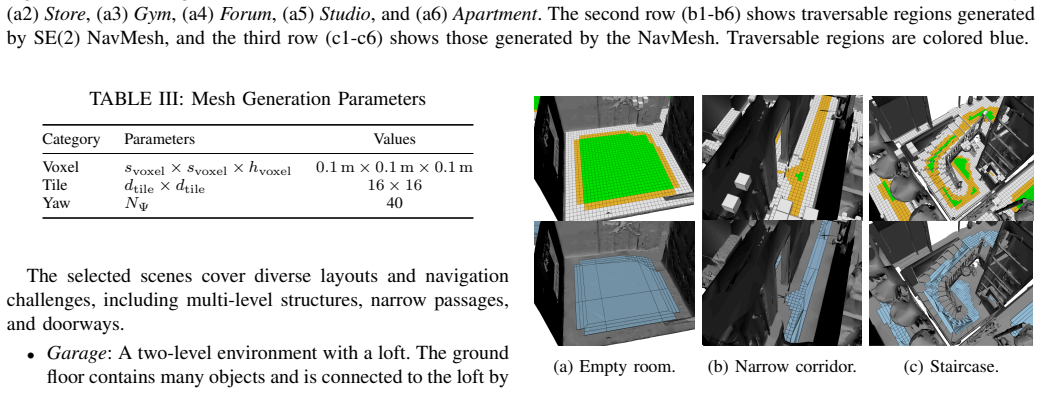

Figure 10. Figure 10: Close-up views of voxel classification (top row) and [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11

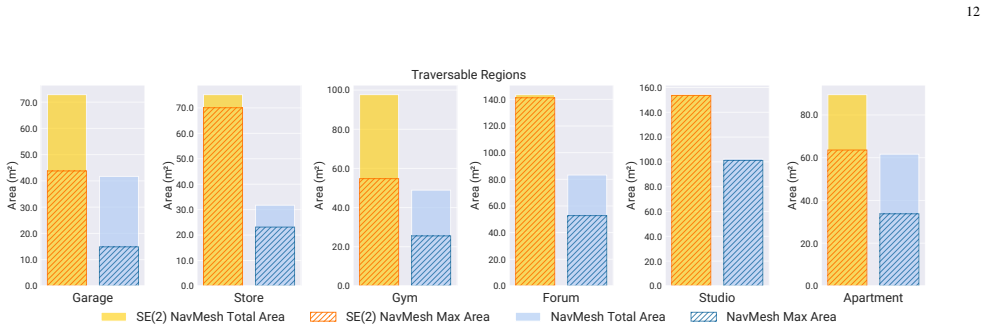

Figure 11. Figure 11: Comparison of traversable regions generated by the NavMesh and SE(2) NavMesh across simulation scenes. [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
Figure 12

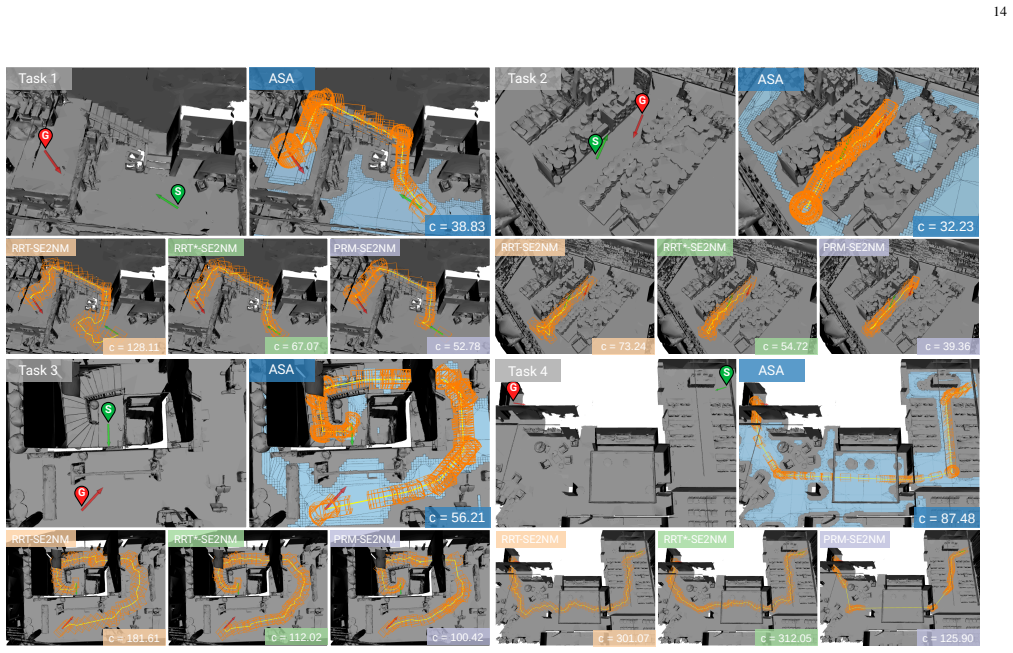

Figure 12. Figure 12: Pathfinding tasks and example solutions in constrained environments. For each task, the left image in the first row [PITH_FULL_IMAGE:figures/full_fig_p014_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Trends of SR and SPC over planning time for different planners in constrained environments. ASA achieves the best [PITH_FULL_IMAGE:figures/full_fig_p014_13.png] view at source ↗
Figure 15

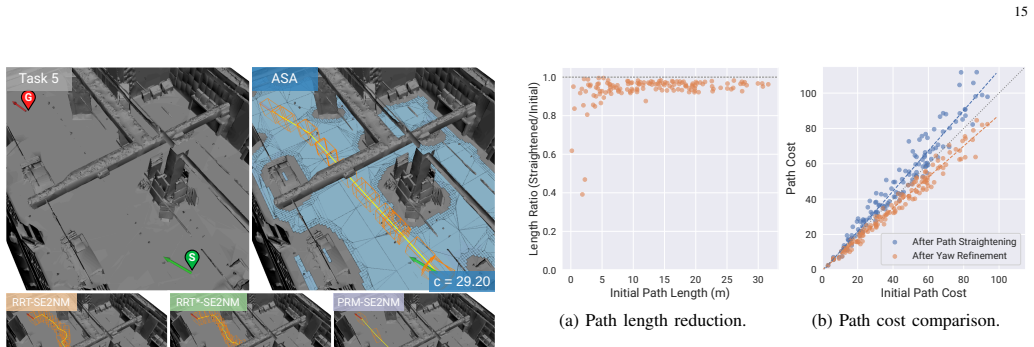

Figure 15. Figure 15: Path quality analysis of the ASA pipeline. Path [PITH_FULL_IMAGE:figures/full_fig_p015_15.png] view at source ↗
Figure 14

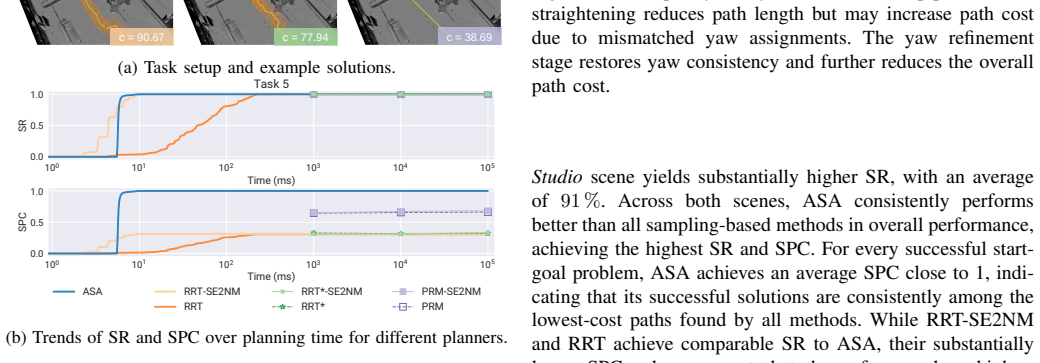

Figure 14. Figure 14: Pathfinding performance in Task 5, an open-space [PITH_FULL_IMAGE:figures/full_fig_p015_14.png] view at source ↗
Figure 16
Figure 16. Figure 16: Online SE(2) NavMesh generation in a garden. The left panel shows the real-world scene. The middle panel shows [PITH_FULL_IMAGE:figures/full_fig_p016_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Comparison of local and global SE(2) NavMesh update times during online generation. Local updates maintain the [PITH_FULL_IMAGE:figures/full_fig_p016_17.png] view at source ↗
Figure 18

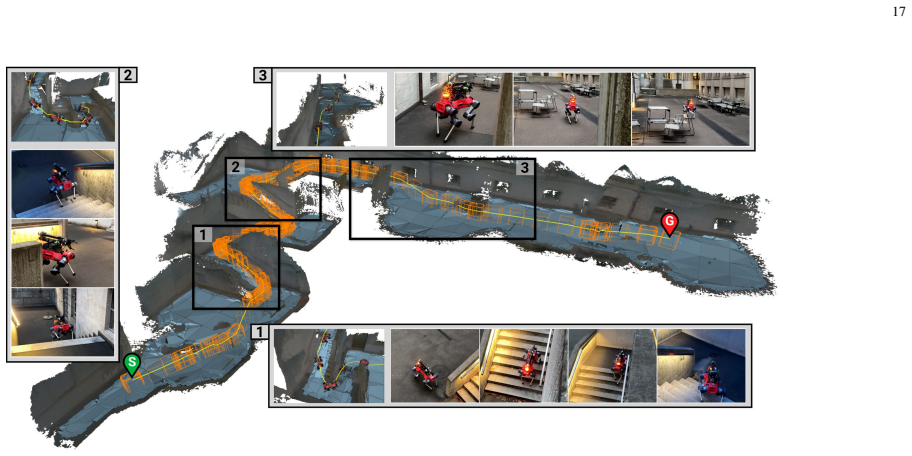

Figure 18. Figure 18: Real-world navigation in an outdoor multi-level environment. Starting from the lower level, the robot follows a path [PITH_FULL_IMAGE:figures/full_fig_p017_18.png] view at source ↗
Figure 19

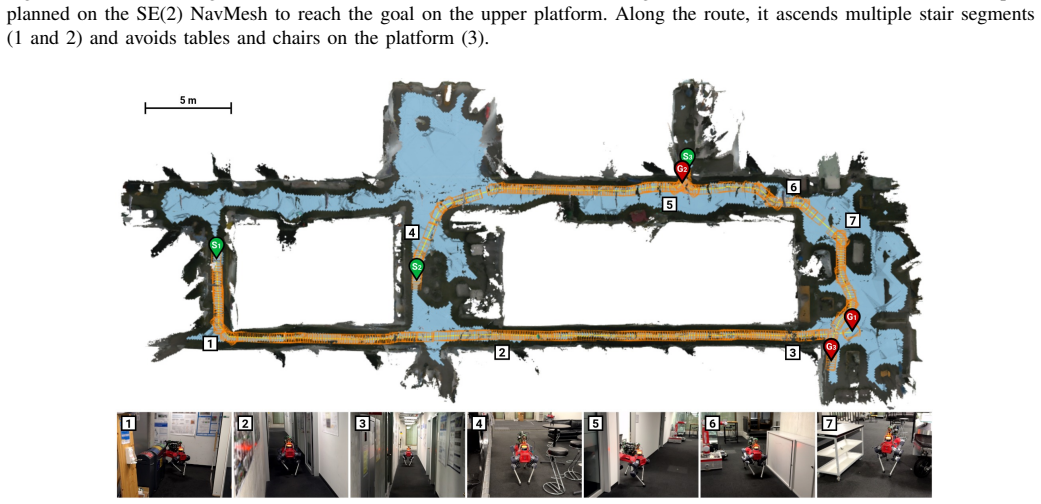

Figure 19. Figure 19: Real-world navigation in an indoor single-level environment. The reconstructed scene and generated SE(2) NavMesh [PITH_FULL_IMAGE:figures/full_fig_p017_19.png] view at source ↗
read the original abstract

Global navigation for ground robots in complex multi-level environments requires representations that accurately capture traversable regions while enabling efficient path planning. Current approaches present key limitations: Point clouds and volumetric occupancy maps lack explicit surface structure for traversability estimation, whereas direct pathfinding on dense triangle meshes is computationally prohibitive. Navigation meshes mitigate these challenges through polygonal abstraction of the underlying mesh, but assume yaw-invariant traversability, rendering them unsuitable for non-circular robots in constrained spaces. We propose SE(2) Navigation Mesh (SE(2) NavMesh), a polygonal representation of traversable regions that encodes yaw-dependent traversability. Our method evaluates traversability using footprint masks and constructs a graph over yaw-specific layers with explicit translational and rotational connectivity. Grounded in this representation, we develop an A*-String Pulling-A* (ASA) pathfinding strategy that hierarchically optimizes robot position and heading. We also present an online method that incrementally updates the SE(2) NavMesh from streaming point clouds during concurrent geometry reconstruction. In simulation, the SE(2) NavMesh captures over 50% more traversable area than classical NavMeshes, and the SE(2) NavMesh + ASA pipeline consistently outperforms sampling-based baselines in constrained environments. Extensive real-world experiments on a physical robot validate real-time online generation and successful navigation across multiple environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes the SE(2) Navigation Mesh, a polygonal abstraction of traversable space that encodes yaw-dependent traversability via footprint-mask evaluation on underlying geometry. It constructs a layered graph with explicit translational and rotational edges, introduces an A*-String Pulling-A* (ASA) hierarchical planner, and provides an incremental online update procedure from streaming point clouds. Simulation results claim >50% more traversable area than yaw-invariant NavMeshes and consistent outperformance versus sampling-based planners in constrained settings; real-robot experiments are said to confirm real-time generation and successful navigation.

Significance. If the footprint-based yaw modeling and performance claims are substantiated with quantitative controls, the representation could usefully extend classical navigation meshes to non-circular robots without incurring the cost of full SE(2) sampling or dense volumetric search. The online reconstruction component would be a practical addition for field deployment.

major comments (2)
  1. [Abstract / Method description] Abstract and method description: the central 50% area-gain and outperformance claims rest on footprint-mask traversability evaluation being an accurate proxy for yaw-specific collisions. No cross-validation against executed robot trajectories, sensor-noise injection, or partial-occlusion cases is reported, leaving open the possibility of systematic false-positive or false-negative area estimates.
  2. [Results / Experiments] Results section (implied by abstract claims): quantitative details on baselines, exact metrics (e.g., success rate, path length, clearance), environment selection criteria, number of trials, and statistical tests are absent, so the statements that the SE(2) NavMesh + ASA pipeline “consistently outperforms” sampling-based methods cannot be assessed for robustness.
minor comments (2)
  1. [Method] Clarify the precise discretization of yaw layers and the definition of inter-layer rotational edges; the connectivity construction is described at a high level but lacks an explicit algorithm or complexity statement.
  2. [Figures] Figure captions and axis labels should explicitly state the robot footprint dimensions and mask resolution used in the reported experiments.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on validation and experimental reporting. We address each major comment below and indicate the corresponding revisions.

read point-by-point responses

  1. Referee: [Abstract / Method description] Abstract and method description: the central 50% area-gain and outperformance claims rest on footprint-mask traversability evaluation being an accurate proxy for yaw-specific collisions. No cross-validation against executed robot trajectories, sensor-noise injection, or partial-occlusion cases is reported, leaving open the possibility of systematic false-positive or false-negative area estimates.

    Authors: The SE(2) NavMesh defines traversability directly via footprint-mask evaluation on the input geometry, which is the basis for both the simulated area comparison and the incremental point-cloud reconstruction. Real-robot experiments demonstrate collision-free navigation using paths from this representation, providing indirect support. We agree that explicit cross-validation against executed trajectories, injected sensor noise, and partial occlusions is not reported and would strengthen the claims. We will add a dedicated limitations subsection discussing these assumptions and the potential for discrepancies in noisy or occluded settings. revision: partial

  2. Referee: [Results / Experiments] Results section (implied by abstract claims): quantitative details on baselines, exact metrics (e.g., success rate, path length, clearance), environment selection criteria, number of trials, and statistical tests are absent, so the statements that the SE(2) NavMesh + ASA pipeline “consistently outperforms” sampling-based methods cannot be assessed for robustness.

    Authors: We will revise the results section to provide the requested quantitative details, including the specific baselines, metrics (success rate, path length, clearance), environment selection criteria, number of trials, and any statistical tests performed. This will enable a clearer assessment of the robustness of the reported outperformance. revision: yes

Circularity Check

0 steps flagged

No significant circularity; central claims rest on external empirical comparisons

full rationale

The SE(2) NavMesh is constructed directly from footprint-mask traversability checks on the input geometry and standard graph layering; the reported >50% area gain and navigation improvements are measured against the independently defined classical (yaw-invariant) NavMesh baseline in simulation and real-robot experiments. No equations, fitted parameters, or self-citations are shown to reduce these quantities to the inputs by construction. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available; no explicit free parameters, ad-hoc axioms, or invented physical entities are described. The representation itself is a new algorithmic construct rather than a postulated physical object.

axioms (1)
  • domain assumption Footprint masks evaluated against surface geometry yield reliable yaw-dependent traversability labels
    Central to the construction of yaw-specific layers as stated in the method overview.
