A VLM robot planner that mixes language with imagined future scenes succeeds more on constrained long-horizon kitchen tasks and learns when each mode is worth using.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-10 13:32 UTC pith:UKEQIJM2

load-bearing objection Solid embodied-planning methods paper: adaptive latent visual thoughts inside the planner’s own trace beat strong VLM and TAMP baselines on KitchenWorlds, with the biggest gains under tight free space; the adaptive story is real but tightly coupled to heuristic labels. the 3 major comments →

arxiv 2607.08024 v1 pith:UKEQIJM2 submitted 2026-07-09 cs.CV cs.AIcs.LGcs.RO

APIVOT: Adaptive Planning with Interleaved Vision-Language Thoughts

Emily Jin , Joy Hsu , Yiqing Xu , Weiyu Liu , Nick Haber , Jiajun Wu This is my paper
classification cs.CV cs.AIcs.LGcs.RO
keywords robot planningvision-language modelsvisual thoughtslong-horizon planningmodality selectiongeometric feasibilitytask and motion planningkitchen manipulation
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Long-horizon robot planning has to solve two coupled problems at once: semantic structure (what objects matter, which subgoals come first) and geometric feasibility (will things fit, collide, or leave later steps impossible). This paper introduces APIVOT, a vision-language planner that builds a reasoning trace interleaving ordinary language with visual thoughts—latent encodings of imagined future scenes—then emits a grounded action plan. It is trained with a three-stage curriculum that first teaches the model to use provided future images, then to generate them, then to emit them only when geometry is the bottleneck. On kitchen containment, sorting, and held-out leftover-storage tasks, the method beats strong general-purpose VLMs and planning frameworks, with the largest gains as free space tightens, while adaptive image use keeps most of the always-image success at substantially lower token cost. A sympathetic reader cares because the work argues that geometry need not stay outside the planner as a post-hoc check; it can shape the plan from inside the reasoning trace itself.

Core claim

APIVOT claims that adaptively interleaving language for semantic reasoning with visual thoughts as imagined future states for internal geometric verification improves long-horizon planning success and efficiency, outperforming language-centric VLMs and prior planning frameworks especially when spatial constraints are tight, and that the model learns to invoke visual thoughts selectively rather than uniformly.

What carries the argument

Visual thoughts: fixed-length latent visual token spans whose decoder hidden states are aligned, via a cosine loss, to features of ground-truth future RGB observations. They are taught by a three-stage supervised curriculum—comprehend provided thoughts, generate them, then select modality adaptively from heuristic-labeled traces.

Load-bearing premise

The method assumes that supervised traces whose image-use labels and future-scene targets come from simulator geometry heuristics plus an LLM rewrite will teach latent visual states that truly verify geometry and transfer beyond that labeled distribution.

What would settle it

Train a matched text-only fine-tune on the same tasks and expert plans; if it matches APIVOT under high occupancy, or if ablating visual alignment leaves success and selective image use unchanged on the same KitchenWorlds suites, the claim that imagined visual states drive the gains fails.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Internal geometric checks via imagined futures can beat external-verifier and language-only VLM planners on packing-style long-horizon tasks.
  • Selective visual-thought use can retain most of always-image success at much lower token cost.
  • Relative gains grow as occupancy and placement tightness increase.
  • Planning strategies learned on containment and sorting can transfer to a held-out compositional leftover-storage task.
  • Visual thoughts can encode spatial layout more compactly than long language descriptions of free space and collisions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If latent visual thoughts scale past simulation, high-level planners may need fewer early calls to external motion planners for geometric pruning.
  • The same learn-when-to-switch-modality idea may apply to other dual-mode reasoning (when to sketch a layout versus write a rule).
  • Premature episode termination and missed obstacle-clearing failures suggest progress tracking and geometric-precondition detection remain separate bottlenecks.
  • Sparse labels for when to use images can collapse visual use at inference, so modality selection may need denser or success-driven training signals.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 0 minor

Summary. The paper proposes APIVOT, a VLM-based long-horizon planner that interleaves language reasoning with latent visual thoughts (fixed-length image-pad hidden states aligned to ground-truth future RGB via cosine loss). A three-stage SFT curriculum teaches comprehension of provided visual thoughts, generation of latent visual states, and adaptive modality selection. On KitchenWorlds CONTAINMENT, SORTING, and held-out STORING LEFTOVERS, APIVOT reports average success 0.419 (about 8–9 points above the strongest VLM and planning baselines), with larger gains at high occupancy, better token-budget efficiency than language-only VLMs, and adaptive use retaining ~91% of always-image success at ~39% lower token cost. Ablations cover text-only SFT, training stages, train/inference modality, and heuristic vs random modality labeling.

Significance. If the results hold, the work is a clear contribution to multimodal robot planning: it internalizes geometric verification as imagined future states inside the planner’s trace rather than relying only on external TAMP/verifiers, and it treats modality choice as a learned, task-grounded decision. Strengths include a coherent three-stage curriculum, multiple complementary ablations (text-only SFT, stage removal, always/no/adaptive image, oracle GT images), occupancy-stratified analysis, token-budget curves, a held-out compositional task, and explicit efficiency–performance trade-offs. These make the paper more than a single-number leaderboard entry and give the community a concrete recipe for interleaved vision–language planning traces.

major comments (3)
  1. Table 1 and Figures 4–6 report single-point success rates with no seeds, confidence intervals, or statistical tests, despite modest eval sets (100 episodes per family). The headline 8.1/9.0-point gains and the occupancy gap widening from ~0.07 to ~0.17 are load-bearing for the central claim; without variance it is hard to judge robustness, especially given the large ID–OOD drops in Appendix Table 2 (relative gaps ~0.19–0.20 for APIVOT). Please report multi-seed means±std (or bootstrap CIs) for main tables and key ablations, or justify why single-run estimates are sufficient.
  2. Sections 3.2–3.3 and Appendix A.2 define Stage-3 modality labels and visual targets from the same simulator free-space / footprint / tightness heuristics that also define occupancy and constraint types used in evaluation (Fig. 4, Fig. 7). Appendix D.5 already shows heuristic 75% labeling beats random 75% (0.419 vs 0.371) and that sparser heuristics collapse visual-thought usage. This couples the “meaningful modality selection” narrative to the labeling rule rather than independently demonstrated geometric verification. The adaptive-efficiency claim (Fig. 6: 91% of Always-Image at 39% lower tokens) therefore needs stronger support: e.g., held-out labeling rules, analysis of whether latent states encode free-space/collision structure beyond RGB reconstruction, or RL/test-time selection optimized for success rather than SFT mimicry of the heuristic.
  3. Appendix D.4 Table 4 shows a persistent gap between generated visual thoughts (adaptive 0.419 / always-image 0.459) and GT-oracle images (0.482). Combined with the OOD hypothesis in D.1 that denser scenes hurt visual-thought generation, this suggests latent visual states may be imperfect geometric verifiers. The paper’s claim that visual thoughts enable “internal verification of geometric feasibility” (Abstract, §1, §5) would be more convincing with a direct diagnostic: when does attending to Hj change placement parameters or avert collisions versus merely correlating with heuristic-labeled steps? Without that, the geometric-verification interpretation remains partly inferential.

Circularity Check

1 steps flagged

Empirical SFT planner with external simulator success; only mild tautology in supervised modality-selection analysis, not in the main performance claims.

specific steps
  1. other [Sec. 3.2–3.3, Fig. 7, App. A.2 / D.5]
    "We assign modality labels based on simulator-derived geometric heuristics that identify subgoals constrained by limited free space, collision-sensitive placements, or downstream feasibility dependencies. ... When our model determines that a step does not require geometric reasoning ... it does not produce visual thoughts. On the other hand, it uses visual thoughts for 48.4% of steps involving limited free space and 56.2% of steps involving downstream feasibility constraints."

    Modality supervision is defined by the same free-space/tightness heuristics later used to stratify and interpret constraint-aware visual-thought use. Reporting that the model emits visual thoughts more on geometric steps partly restates the Stage-3 labeling rule rather than an independently discovered selection policy. This is a mild analysis tautology only; task success remains measured by simulator execution, not by reconstructing the heuristic labels.

full rationale

APIVOT’s load-bearing results are task success under closed-loop KitchenWorlds execution on held-out instances (Table 1, Fig. 4–6), compared to independent VLM and planning baselines. Success is not a fitted constant renamed as a prediction, nor is it defined in terms of the training modality labels. Reference traces are built from PDDLStream demos plus simulator geometric heuristics and LLM expansion (Sec. 3.2–3.3, App. A.2); that is standard imitation supervision, not a self-definitional derivation. Occupancy ratio is computed from object/target areas independently of the plan score. Always-Image vs Adaptive is an inference-time ablation of the same model, so the 91%/39% efficiency claim is an empirical tradeoff, not forced by construction. The only mild circularity is interpretive: Stage-3 SFT explicitly labels visual thoughts on geometrically tight steps, then Fig. 7 reports that the model uses visual thoughts more on geometric constraints—partly reproducing the supervised labeling rule. Appendix D.5’s heuristic-vs-random gap further shows coupling to the labeling policy, but that weakens the “discovered meaningful selection” narrative, not the external success metric. No self-citation uniqueness theorem, no ansatz smuggled as theorem, no renaming of a known closed-form result. Score 1 for that minor supervised-analysis tautology; main claims remain externally benchmarked.

Axiom & Free-Parameter Ledger

5 free parameters · 5 axioms · 2 invented entities

The central empirical claim rests on standard VLM/SFT machinery plus several paper-specific modeling choices: that latent pad-token states aligned by cosine similarity to a frozen vision encoder constitute usable ‘visual thoughts,’ that simulator-derived tightness heuristics correctly label when vision is needed, and that LLM-expanded skeletons are adequate reasoning targets. Free parameters are ordinary training and representation choices; invented entities are the latent visual-thought mechanism itself.

free parameters (5)
  • visual thought length K = 16
    Fixed at 16 pad tokens; controls capacity of each latent future-state representation and is not derived from first principles.
  • visual loss weight λ_vis = 5.0
    Set to 5.0 in stages 2–3; balances CE plan/trace losses against cosine alignment and is chosen by the authors.
  • geometric tightness threshold for modality labels = pre-defined threshold (value not numerically reported)
    Maps free-space / footprint metrics to text-only vs visual-thought labels in reference traces; directly shapes what ‘adaptive’ means.
  • LoRA rank and learning rate = r=16, lr=4e-5
    r=16, α=32, lr=4e-5; standard but free finetuning knobs that affect whether the curriculum succeeds.
  • Stage-3 visual-thought usage rate in reference data = 75%
    Heuristic dataset constructed at ~75% visual steps; ablations show performance collapses at 50%/25%, so the claim depends on this design choice.
axioms (5)
  • domain assumption Parameterized skills open/pick/place with image-space (u,v) placements lifted via depth and known camera extrinsics are a sufficient action interface for the tasks.
    Problem formulation Section 3; isolates planning from low-level control and perception.
  • ad hoc to paper Cosine alignment of decoder hidden states at image-pad tokens to average-pooled frozen vision-encoder features of ground-truth future RGB yields latent states that subsequent tokens can use for geometric planning.
    Visual alignment loss in Section 3.2; core mechanism of ‘visual thoughts.’
  • ad hoc to paper Simulator-derived free-space margins and future-feasibility metrics correctly identify steps that benefit from visual thoughts.
    Reference construction Section 3.2 and Appendix A.2; defines adaptive supervision.
  • domain assumption High-capacity LLM expansion of annotated skeletons produces reasoning traces that are valid SFT targets for the VLM’s natural style.
    Standard practice for synthetic CoT; used throughout data pipeline.
  • domain assumption KitchenWorlds + PDDLStream successful trajectories are representative enough that measured success rates support claims about long-horizon geometric planning.
    Experimental setup Section 4.1; all quantitative claims rest on this environment.
invented entities (2)
  • Latent visual thought (Hj span of K image-pad hidden states) no independent evidence
    purpose: Internal imagined future observation that conditions later reasoning and placement parameters without external rendering at inference.
    Defined in Section 3.1; the paper’s main technical object. Independent evidence is only the downstream planning gains and alignment loss, not an external measurement of the latent content.
  • Three-stage adaptive modality curriculum no independent evidence
    purpose: Progressively teach comprehension, generation, then selective emission of visual thoughts.
    Section 3.3; training procedure rather than a physical entity, but it is a new postulated training object the results depend on.

pith-pipeline@v1.1.0-grok45 · 30243 in / 3449 out tokens · 39065 ms · 2026-07-10T13:32:00.312960+00:00 · methodology

0 comments
read the original abstract

Long-horizon robot planning requires jointly reasoning over semantic task structure and geometric feasibility. To successfully execute a task, a robot must decompose goals, select task-relevant objects, and sequence actions, while ensuring that plans satisfy spatial constraints such as limited free space and object collisions. In this work, we propose APIVOT, a VLM-based planner that adaptively interleaves language and visual thoughts for long-horizon planning. APIVOT learns to leverage language for semantic reasoning, while using visual thoughts as imagined future states for internal verification of geometric feasibility. On long-horizon kitchen tasks, APIVOT outperforms general-purpose VLMs and prior planning frameworks, achieving the largest gains in spatially constrained settings. We find that APIVOT learns meaningful modality selection behavior, demonstrating that adaptive interleaving of vision-language thoughts improves both planning success and reasoning efficiency.

Figures

Figures reproduced from arXiv: 2607.08024 by Emily Jin, Jiajun Wu, Joy Hsu, Nick Haber, Weiyu Liu, Yiqing Xu.

Figure 1
Figure 1. Figure 1: APIVOT (above) plans for long-horizon tasks by interleaving language reasoning with visual thoughts. While a standard VLM planner (below) reasonsing in text may produce a semantically plausible but geometrically infeasible plan, APIVOT imagines future states inside its reasoning trace. These visual thoughts reveal potential collisions or constraints before execution, enabling the planner to verify geometri… view at source ↗
Figure 2
Figure 2. Figure 2: APIVOT produces a reasoning trace of interleaved language tokens (yellow) and visual￾thoughts (purple) followed by a plan, and is trained with a three-stage SFT curriculum. In all stages, we apply teacher-forced SFT to a reference reasoning trace and plan (blue border). Stage 1 teaches the model to plan with ground-truth visual thoughts, provided at every reasoning step; Stage 2 trains it to generate visua… view at source ↗
Figure 3
Figure 3. Figure 3: We show execution traces of APIVOT and the top-performing baseline on each task: CONTAINMENT (top) and SORTING (bottom). cases with ample free-space to harder ones requiring opening doors, removing obstacles, or carefully arranging objects under tight space. For each task instance, we use PDDLStream [21] to generate a successful trajectory and synthesize the corresponding reference output. We train on 2,00… view at source ↗
Figure 4
Figure 4. Figure 4: Success rate by occupancy ratio. Performance under increasing geometric complex￾ity. To understand where these gains arise, [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Success rates of VLMs at different token budgets. Performance under reasoning budgets. To assess whether visual thoughts encode spatial information more efficiently than language, we compare APIVOT against VLM baselines under matched maximum reasoning-token budgets ( [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Perf.-efficiency trade-off. Effective modality selection. To evaluate the ben￾efit of adaptive modality selection, we compare our method (Adaptive) against two inference-time abla￾tions: text-only reasoning (No-Image) and visual thoughts at every step (Always-Image). As shown in [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Adaptive reasoning behavior on a held-out STORING LEFTOVERS task. APIVOT reasons in language for semantic decisions such as food-to-container assignment, while selectively generating visual thoughts for geometry-sensitive steps, such as collision-free zucchini placement and final fridge storage. This shows that APIVOT invokes visual reasoning when spatial precision is needed, rather than using visual thoug… view at source ↗

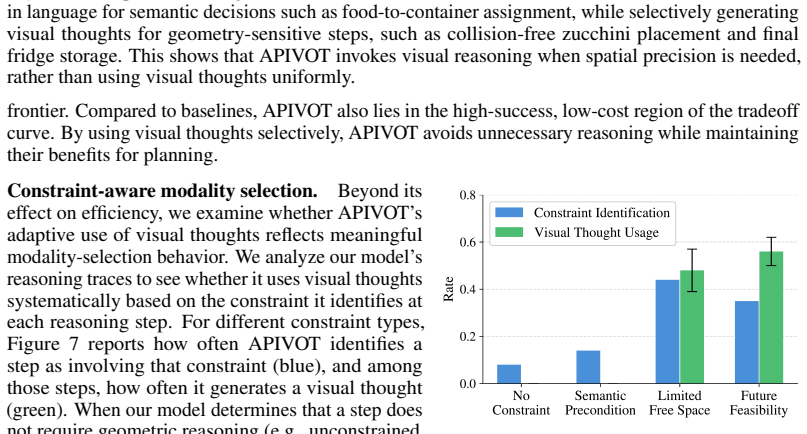

Figure 7
Figure 7. Figure 7: Visual thought usage by constraint. Constraint-aware modality selection. Beyond its effect on efficiency, we examine whether APIVOT’s adaptive use of visual thoughts reflects meaningful modality-selection behavior. We analyze our model’s reasoning traces to see whether it uses visual thoughts systematically based on the constraint it identifies at each reasoning step. For different constraint types, [PITH… view at source ↗
Figure 9
Figure 9. Figure 9: These families test different combinations of constraints, including semantic preconditions, [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
Figure 9
Figure 9. Figure 9: KitchenWorlds task suite with increasing complexity. CONTAINMENT (above) requires placing target objects into constrained storage regions, testing accessibility, obstruction handling, and free-space reasoning. SORTING (middle) requires semantic reasoning over object types to assign food objects to containers, while capacity constraints make some assignments geometrically infeasible. STORING LEFTOVERS (belo… view at source ↗
Figure 10
Figure 10. Figure 10: Training examples for CONTAINMENT, showing the inputs and reference outputs. 18 [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Training examples for SORTING, showing the inputs and reference outputs. 19 [PITH_FULL_IMAGE:figures/full_fig_p019_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Success rates across all task families. D.3 Training Stage Ablation Experiment Setup. APIVOT is trained through a three-stage curriculum that progressively teaches it to understand, generate, and adaptively use visual thoughts for planning (Section 3.3). To evaluate the contribution of each stage, we ablate one stage at a time starting from the full APIVOT training pipeline and evaluate on all tasks. This… view at source ↗

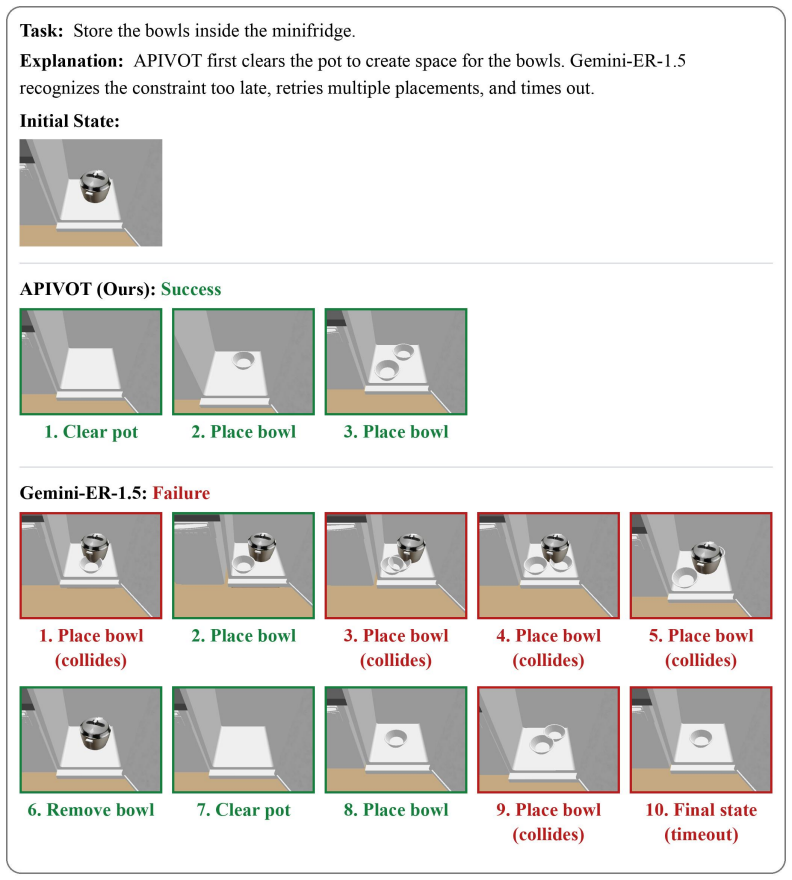

Figure 13
Figure 13. Figure 13: Qualitative comparison of CONTAINMENT: APIVOT clears an obstacle to complete the task, while Gemini-ER-1.5 recognizes the space constraint too late and times out. 27 [PITH_FULL_IMAGE:figures/full_fig_p027_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Qualitative comparison of CONTAINMENT: APIVOT preserves space for future bowl placements, while VLM-TAMP fails to anticipate the final placement constraint. 28 [PITH_FULL_IMAGE:figures/full_fig_p028_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Qualitative comparison of SORTING: APIVOT succeeds with the correct braiser assign￾ment, while Gemini-ER-1.5 fails and switches to an infeasible assignment. 29 [PITH_FULL_IMAGE:figures/full_fig_p029_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Qualitative comparison of SORTING: APIVOT succeeds by selecting a more spatially flexible braiser assignment, while VLM-TAMP chooses the opposite, leaving insufficient room for placement. 30 [PITH_FULL_IMAGE:figures/full_fig_p030_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Qualitative comparison of STORING LEFTOVERS: APIVOT sorts the objects and fits both large braisers in the fridge, while Gemini-ER-1.5 cannot place both braisers feasibly. 31 [PITH_FULL_IMAGE:figures/full_fig_p031_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Qualitative comparison of STORING LEFTOVERS: APIVOT completes sorting, obstacle removal, and placement in a constrained region, while VLM-TAMP times out after several errors. 32 [PITH_FULL_IMAGE:figures/full_fig_p032_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Prompt used to expand structured planning traces into natural-language reasoning traces. 34 [PITH_FULL_IMAGE:figures/full_fig_p034_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Planning prompt used for APIVOT. 36 [PITH_FULL_IMAGE:figures/full_fig_p036_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Text-only planning prompt used for VLM baselines. 37 [PITH_FULL_IMAGE:figures/full_fig_p037_21.png] view at source ↗
