Embodied-R1: Reinforced Embodied Reasoning for General Robotic Manipulation

Yifu Yuan , Haiqin Cui , Yaoting Huang , Yibin Chen , Fei Ni , Zibin Dong , Pengyi Li , Yan Zheng
show 2 more authors
Hongyao Tang Jianye Hao
This is my paper

Pith reviewed 2026-05-18 22:00 UTC · model grok-4.3

classification 💻 cs.RO cs.AIcs.LG
keywords embodied reasoningrobotic manipulationvision-language modelreinforced fine-tuningzero-shot generalizationpointing representationperception-action gapSIMPLEREnv
0
0 comments X p. Extension

The pith

Defining four core embodied pointing abilities and training a 3B model with reinforced fine-tuning bridges vision-language understanding to robot actions for zero-shot generalization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper targets the seeing-to-doing gap in embodied AI that comes from scarce specialized data and differences across robot bodies. It establishes pointing as a single intermediate format that works for any robot by defining four specific abilities that turn visual and language inputs into action steps. A large dataset of 200K pointing examples is assembled from embodied and general sources, then used to train Embodied-R1 through a two-stage reinforced fine-tuning process with multi-task rewards. A sympathetic reader would care because success here would mean robots can handle new tasks and physical setups using existing vision-language models without retraining for each case.

Core claim

Embodied-R1 pioneers pointing as an embodiment-agnostic intermediate representation through four core abilities that link high-level vision-language comprehension to low-level action primitives. The 3B model is trained with a two-stage reinforced fine-tuning curriculum on the Embodied-Points-200K dataset and reaches state-of-the-art results on 11 embodied spatial and pointing benchmarks. It further shows robust zero-shot generalization with 56.2 percent success in the SIMPLEREnv and 87.5 percent across eight real-world XArm tasks with no task-specific fine-tuning, a 62 percent gain over strong baselines, plus high robustness to visual disturbances.

What carries the argument

pointing as a unified embodiment-agnostic intermediate representation consisting of four core embodied pointing abilities that bridge high-level vision-language comprehension with low-level action primitives

If this is right

  • The model reaches state-of-the-art performance on 11 embodied spatial and pointing benchmarks.
  • It delivers 56.2 percent success in simulation and 87.5 percent on real XArm tasks without any task-specific fine-tuning.
  • Performance improves 62 percent over strong baselines on the real-world tasks.
  • The model remains robust under diverse visual disturbances.
  • A pointing-centric representation paired with reinforced fine-tuning supplies a generalizable route to closing the perception-action gap.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same pointing representation might transfer to other embodied domains such as navigation or object rearrangement without major redesign.
  • Increasing the size of the Embodied-Points dataset or the model could produce further gains on more complex multi-step tasks.
  • Direct comparison of the four abilities against alternative intermediate representations on the same robot hardware would clarify their relative contribution.

Load-bearing premise

That the four core embodied pointing abilities are sufficient to connect high-level vision-language comprehension to the low-level action primitives needed by heterogeneous robot embodiments and unseen tasks.

What would settle it

Running the model on a new manipulation task whose required actions fall outside the four defined pointing abilities and observing success rates drop well below the reported 56 percent in simulation or 87 percent in real settings would falsify the claim.

Figures

Figures reproduced from arXiv: 2508.13998 by Fei Ni, Haiqin Cui, Hongyao Tang, Jianye Hao, Pengyi Li, Yan Zheng, Yaoting Huang, Yibin Chen, Yifu Yuan, Zibin Dong.

Figure 1
Figure 1. Figure 1: The Embodied-R1 framework for zero-shot robotic manipulation through “pointing”. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

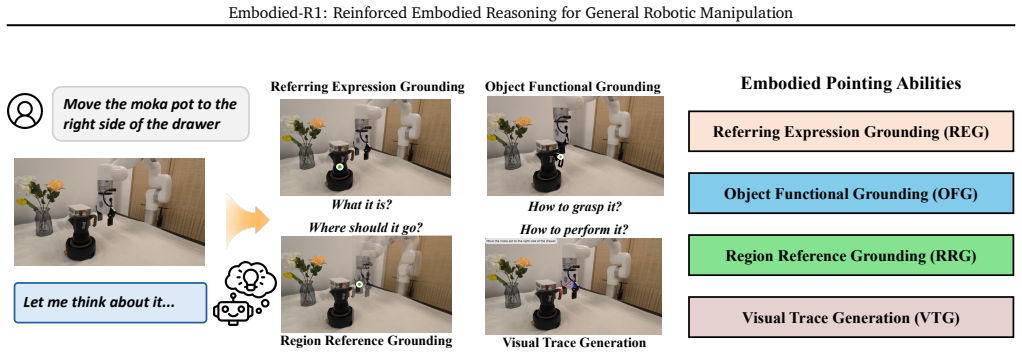

Figure 2. Figure 2: Overview of four embodied pointing abilities. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Overview of training data: In stage 1, we focus on improving the model’s spatial reasoning capability, while incorporating a small amount of general reasoning data. In stage 2, we train the model’s embodied pointing capabilities, which comprise four distinct capability items. 2.2. Enhancing the Embodied Reasoning Abilities of VLM To develop general embodied pointing capabilities, we train Embodied-R1 on th… view at source ↗
Figure 4
Figure 4. Figure 4: Visualizing Embodied-R1’s Performance on Various Pointing Tasks. [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

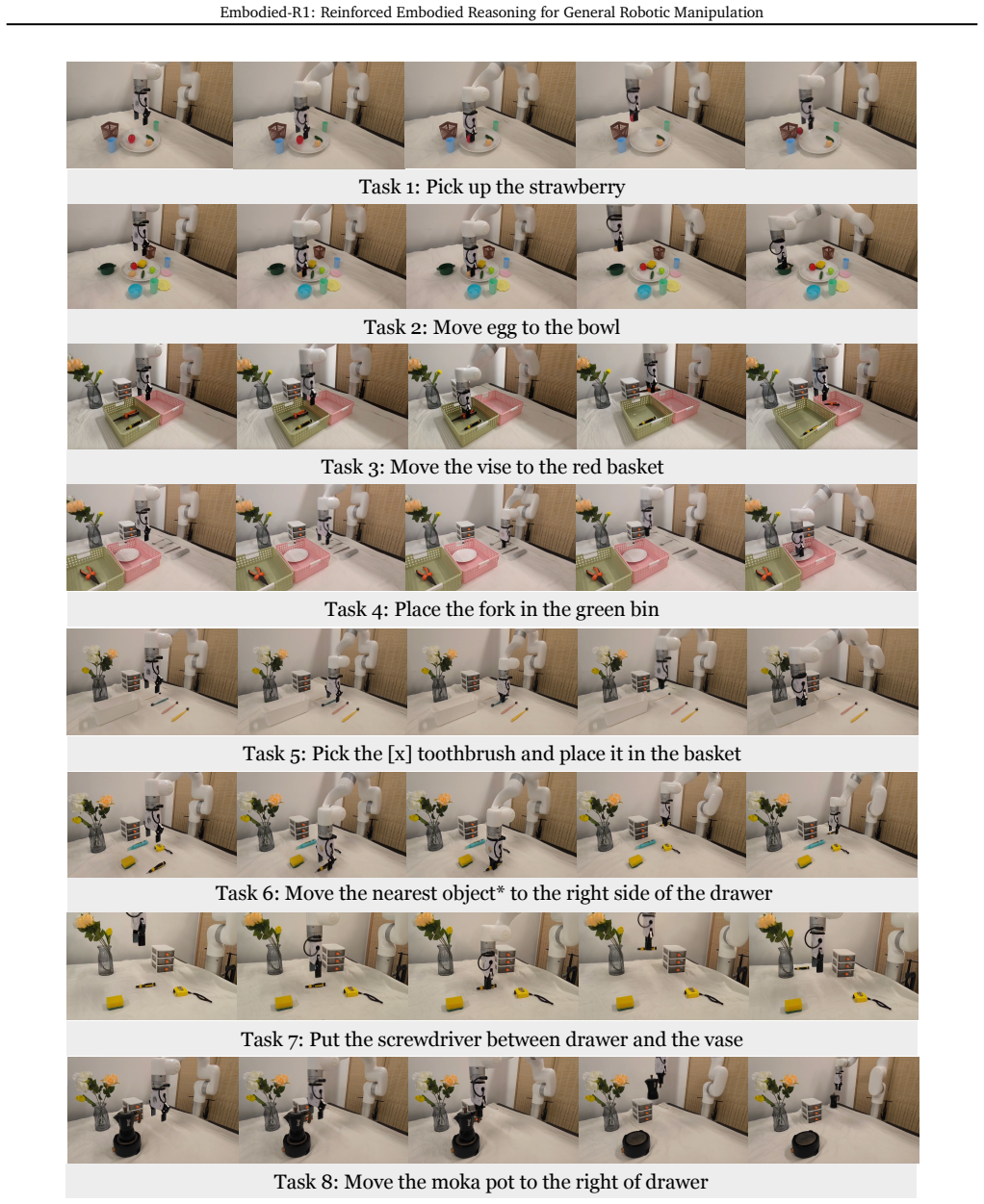

Figure 5. Figure 5: The process of Embodied-R1 performing real-world tasks. [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The process of Embodied-R1 performing Task 6 under different visual disturbances. [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Case Analysis: Embodied-R1 possesses embodied reasoning capabilities. It can progressively locate relevant objects and infer spatial relationships according to task instructions, and ultimately provide coordinates through pointing based on embodied scene analysis. to some performance drop. Models utilizing RL consistently outperformed those without (SFT), indicating that RL plays a key role in OOD generali… view at source ↗
Figure 8
Figure 8. Figure 8: Embodied-R1 exhibits strong generalization capabilities. [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Qualitative comparison of Embodied-R1 and the SFT baseline [PITH_FULL_IMAGE:figures/full_fig_p030_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Visualizing Embodied-R1’s Prediction on VTG Tasks across Various Scenarios [PITH_FULL_IMAGE:figures/full_fig_p030_10.png] view at source ↗
read the original abstract

Generalization in embodied AI is hindered by the "seeing-to-doing gap," which stems from data scarcity and embodiment heterogeneity. To address this, we pioneer "pointing" as a unified, embodiment-agnostic intermediate representation, defining four core embodied pointing abilities that bridge high-level vision-language comprehension with low-level action primitives. We introduce Embodied-R1, a 3B Vision-Language Model (VLM) specifically designed for embodied reasoning and pointing. We use a wide range of embodied and general visual reasoning datasets as sources to construct a large-scale dataset, Embodied-Points-200K, which supports key embodied pointing capabilities. We then train Embodied-R1 using a two-stage Reinforced Fine-tuning (RFT) curriculum with a specialized multi-task reward design. Embodied-R1 achieves state-of-the-art performance on 11 embodied spatial and pointing benchmarks. Critically, it demonstrates robust zero-shot generalization by achieving a 56.2% success rate in the SIMPLEREnv and 87.5% across 8 real-world XArm tasks without any task-specific fine-tuning, representing a 62% improvement over strong baselines. Furthermore, the model exhibits high robustness against diverse visual disturbances. Our work shows that a pointing-centric representation, combined with an RFT training paradigm, offers an effective and generalizable pathway to closing the perception-action gap in robotics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript introduces Embodied-R1, a 3B vision-language model for embodied reasoning that defines four core embodied pointing abilities as an embodiment-agnostic intermediate representation bridging high-level vision-language comprehension and low-level action primitives. It constructs the Embodied-Points-200K dataset from embodied and general visual reasoning sources, then trains the model via a two-stage Reinforced Fine-tuning (RFT) curriculum with a specialized multi-task reward. The model reports state-of-the-art results on 11 embodied spatial and pointing benchmarks and demonstrates zero-shot generalization, achieving 56.2% success in SIMPLEREnv and 87.5% across 8 real-world XArm tasks without task-specific fine-tuning (a claimed 62% relative improvement over strong baselines), plus robustness to visual disturbances.

Significance. If the central empirical claims hold after verification, the work could meaningfully advance embodied AI and robotics by offering a scalable pointing-centric pathway to close the perception-action gap across heterogeneous embodiments. The combination of large-scale dataset curation, RFT training, and real-robot zero-shot results on XArm tasks represents a concrete strength if baselines and ablations are properly documented; this could influence future generalizable manipulation systems.

major comments (3)
  1. [Abstract] Abstract: The headline zero-shot generalization claim (56.2% SIMPLEREnv success, 87.5% on 8 XArm tasks, 62% relative improvement) is presented as evidence that the four defined embodied pointing abilities close the seeing-to-doing gap, yet the manuscript provides no ablation isolating the contribution of each ability, no failure-case breakdown separating pointing errors from downstream execution errors, and no explicit verification that the 8 real tasks lie outside the Embodied-Points-200K distribution. This directly undermines assessment of whether the abilities are necessary and sufficient for the reported transfer.
  2. [Abstract] Abstract and training description: The multi-task reward design in the two-stage RFT curriculum is described as specialized, but the presence of free parameters (reward weights) is not analyzed for sensitivity; without this, it is unclear whether the reported cross-embodiment and cross-task generalization is robust or dependent on task-specific tuning that would not generalize to truly novel tasks.
  3. [Abstract] Abstract: Concrete performance numbers and the 62% relative improvement are reported without details on baseline implementations, statistical significance testing, data exclusion criteria, or ablation studies, preventing full verification of the central generalization claims from the provided text.
minor comments (1)
  1. [Abstract] Abstract: The specific list of the 11 embodied spatial and pointing benchmarks and their individual performance numbers are not provided, only the aggregate SOTA claim and the two generalization tasks.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thoughtful and constructive feedback. We address each major comment below in a point-by-point manner and have revised the manuscript accordingly to improve clarity and strengthen the empirical support for our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The headline zero-shot generalization claim (56.2% SIMPLEREnv success, 87.5% on 8 XArm tasks, 62% relative improvement) is presented as evidence that the four defined embodied pointing abilities close the seeing-to-doing gap, yet the manuscript provides no ablation isolating the contribution of each ability, no failure-case breakdown separating pointing errors from downstream execution errors, and no explicit verification that the 8 real tasks lie outside the Embodied-Points-200K distribution. This directly undermines assessment of whether the abilities are necessary and sufficient for the reported transfer.

    Authors: We agree that additional analysis would better substantiate the role of the four embodied pointing abilities. In the revised manuscript, we have added a dedicated ablation study (new Section 4.3) that isolates the performance contribution of each ability by training variants with individual abilities removed. We have also included a failure-case breakdown in the supplementary material that categorizes errors into pointing inaccuracies versus downstream execution issues. Finally, we have explicitly verified and stated in Section 5.2 that the eight real-world XArm tasks were held out from the Embodied-Points-200K dataset and represent novel scenarios, thereby supporting the zero-shot generalization claim. revision: yes

  2. Referee: [Abstract] Abstract and training description: The multi-task reward design in the two-stage RFT curriculum is described as specialized, but the presence of free parameters (reward weights) is not analyzed for sensitivity; without this, it is unclear whether the reported cross-embodiment and cross-task generalization is robust or dependent on task-specific tuning that would not generalize to truly novel tasks.

    Authors: We acknowledge the importance of demonstrating robustness to the reward weight choices. The weights in the original work were selected via preliminary validation experiments. To address the concern, the revised manuscript now includes a sensitivity analysis (new Figure 5 and expanded text in Section 3.2) in which we vary the reward weights over a range of values and report the resulting performance on both SIMPLEREnv and real-robot tasks. The analysis shows that generalization remains stable within the tested range, indicating that the reported results are not overly sensitive to precise weight tuning. revision: yes

  3. Referee: [Abstract] Abstract: Concrete performance numbers and the 62% relative improvement are reported without details on baseline implementations, statistical significance testing, data exclusion criteria, or ablation studies, preventing full verification of the central generalization claims from the provided text.

    Authors: We appreciate this request for greater transparency. Baseline implementation details, including how competing methods were adapted for fair comparison, are already described in Section 4.1; we have now expanded this description with additional implementation specifics. We have added statistical significance testing (paired t-tests with reported p-values) to the main results tables. Data exclusion criteria used during dataset curation are detailed in Section 3.1. As noted in our response to the first comment, we have also incorporated further ablation studies. These additions should enable full verification of the reported numbers and the 62% relative improvement. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical training and held-out evaluation pipeline

full rationale

The paper defines four embodied pointing abilities as an intermediate representation, constructs the Embodied-Points-200K dataset from external embodied and visual reasoning sources, applies a two-stage RFT training procedure with a multi-task reward, and reports measured success rates on separate benchmarks plus held-out SIMPLEREnv and real XArm tasks. These outcomes are direct empirical results from training and evaluation, not quantities that reduce to the inputs by construction via any equation or self-citation. No load-bearing step equates a claimed prediction or generalization to a fitted parameter or prior self-result; the derivation chain remains a standard ML pipeline with independent test distributions.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on the effectiveness of the pointing representation and the RFT training procedure; these are supported only by the reported empirical outcomes and the assumption that the chosen datasets and reward design capture the necessary variations.

free parameters (1)
  • multi-task reward weights
    The specialized multi-task reward design in the RFT curriculum requires choosing relative weights and functional forms for different pointing and reasoning objectives.
axioms (1)
  • domain assumption Pointing constitutes an embodiment-agnostic intermediate representation that bridges vision-language comprehension and low-level action primitives.
    This premise is invoked to justify the four core abilities and the overall architecture.
invented entities (1)
  • Embodied pointing abilities no independent evidence
    purpose: To structure the model's reasoning and training targets.
    Four abilities are newly defined for this work.
