Dense Reward for Multi-View 3D Reasoning with Global Maps and Local Views

Jiho Choi , Seonho Lee , Seojeong Park , Hyunjung Shim This is my paper

Pith reviewed 2026-06-26 08:36 UTC · model grok-4.3

classification 💻 cs.CV
keywords multi-view 3D VQAdense rewardglobal map constructionview trajectory planningpolicy optimizationprocess supervision
0
0 comments X

The pith

DR-MV3D supplies dense rewards from global map consistency and local view trajectories to supervise multi-view 3D visual question answering instead of sparse final-answer signals.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that multimodal LLMs trained only with answer-level supervision produce inconsistent cross-view reasoning and brittle view selection in multi-view 3D VQA tasks. It introduces DR-MV3D, which decomposes the task into allocentric global map construction, question-conditioned view-trajectory planning, and egocentric grounding, then supplies two verifiable intermediate rewards. A global consistency reward aligns predicted maps with pseudo targets from frozen 3D models, while a local trajectory reward guides ordered viewpoint selection; both are optimized with trajectory-level policy optimization. Experiments on MindCube, VSI-Bench, and BLINK (MV) show consistent gains over strong multi-image baselines.

Core claim

DR-MV3D decomposes MV3D-VQA into (i) allocentric global map construction, (ii) question-conditioned view-trajectory planning, and (iii) egocentric grounding for answer prediction. It supplies a global consistency reward that aligns the predicted map with geometry-consistent pseudo targets from frozen 3D vision foundation models and a local trajectory reward that supervises ordered viewpoint selection, then optimizes the full pipeline with trajectory-level policy optimization to make intermediate steps learnable without manual annotations.

What carries the argument

DR-MV3D framework that decomposes MV3D-VQA into global map construction, view-trajectory planning, and egocentric grounding, then supplies a global consistency reward from frozen 3D model pseudo targets plus a local trajectory reward, optimized via GRPO.

If this is right

  • The decomposition allows intermediate map construction and view planning steps to receive direct supervision without manual annotations.
  • Global consistency and local trajectory rewards together produce more coherent cross-view reasoning than answer-level signals alone.
  • Trajectory-level policy optimization enables end-to-end training of the full map-to-answer pipeline.
  • The same dense-reward structure yields measurable gains across three distinct MV3D-VQA benchmarks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The reliance on frozen foundation models for pseudo targets suggests the method could be applied to other spatial reasoning domains where reliable 3D geometry can be precomputed.
  • If the pseudo-target generators contain scene-type biases, performance on out-of-distribution environments may degrade even when in-distribution benchmarks improve.
  • Replacing the frozen models with jointly trained 3D components might remove one source of potential error propagation while preserving the dense-reward structure.

Load-bearing premise

Geometry-consistent pseudo targets generated by frozen 3D vision foundation models supply reliable supervision for the global consistency reward without introducing systematic errors that propagate to final answer accuracy.

What would settle it

An ablation that removes the dense rewards and trains only with answer-level supervision, resulting in performance on MindCube, VSI-Bench, and BLINK (MV) dropping to the level of the multi-image baselines, would falsify the effectiveness of process-level dense supervision.

Figures

Figures reproduced from arXiv: 2606.23557 by Hyunjung Shim, Jiho Choi, Seojeong Park, Seonho Lee.

Figure 1

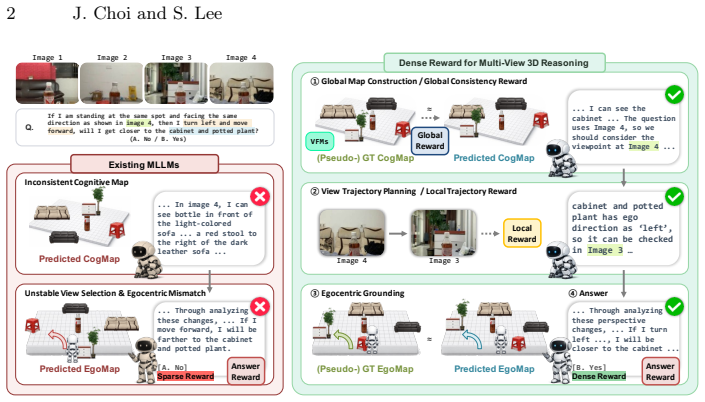

Figure 1. Figure 1: Overview of DR-MV3D. Existing MLLMs trained with sparse, answer￾level supervision (left) often build inconsistent cognitive maps and misread egocentric directions, leading to wrong answers despite plausible-looking reasoning. In contrast, DR-MV3D (right) supervises the reasoning process with dense, verifiable rewards: a global reward aligns the predicted allocentric cognitive map with a geometry-consistent… view at source ↗
Figure 2

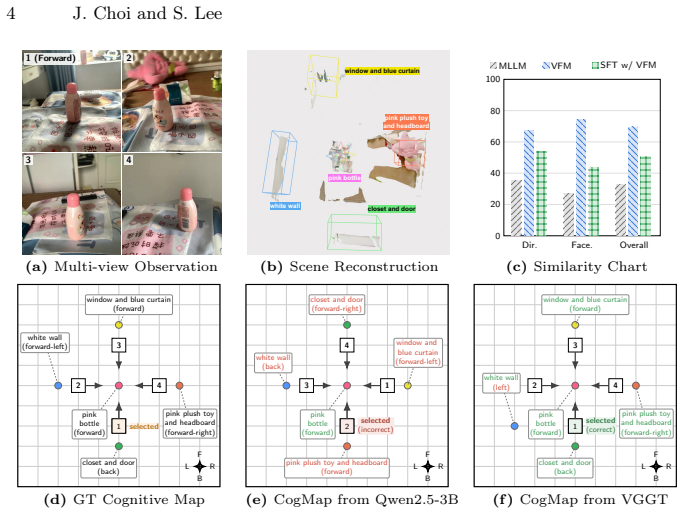

Figure 2. Figure 2: Cognitive map and metric comparison. Top: multi-view observations, VFM-based scene reconstruction (VGGT+SAM3), and similarity scores to the GT cognitive map. The similarity is reported from three aspects: Dir. measures inter￾object directional relations (relative spatial ordering between objects), Face. measures the facing orientation of the viewpoint, and Overall is a weighted combination of Dir. and Face… view at source ↗
Figure 3

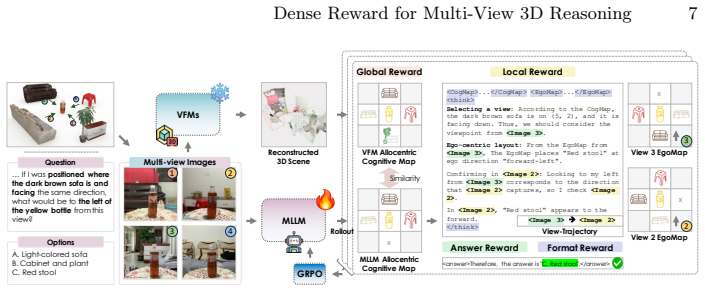

Figure 3. Figure 3: Overall framework with VFM-guided dense rewards. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

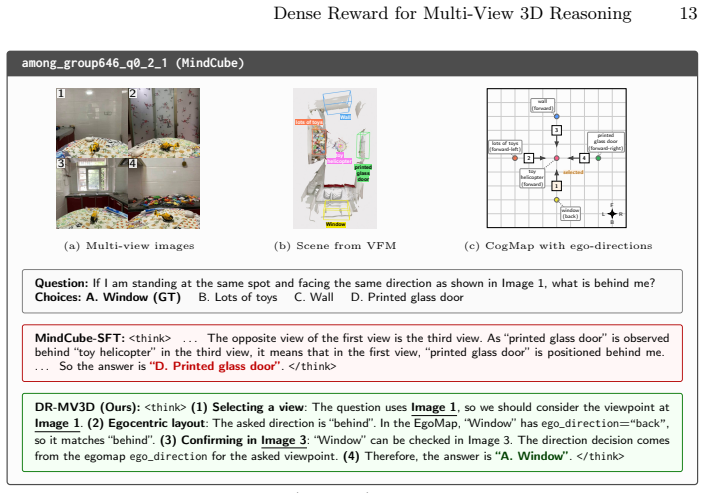

Figure 4. Figure 4: Qualitative comparison (Among). Multi-view observations and cognitive￾map-based reasoning for an Among query (MindCube). The baseline confuses ego￾centric directions and predicts an incorrect object, whereas our method follows the ego-direction cues in the predicted cognitive map step by step and selects the correct answer. Component ablation in SFT. As shown in [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

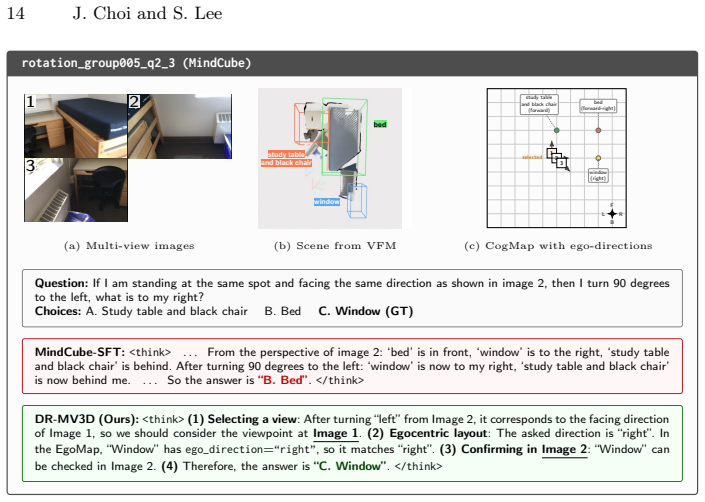

Figure 5. Figure 5: Qualitative comparison (Rotation). Multi-view observations and cognitive-map-based reasoning for a Rotation query (MindCube). The baseline fails to track the rotated egocentric frame and selects the wrong object, whereas our method maintains consistent ego-direction reasoning under rotation and predicts the correct answer. 5 Conclusion We presented DR-MV3D, a dense-reward learning framework for multi-view … view at source ↗
read the original abstract

Multi-view 3D Visual Question Answering (MV3D-VQA) requires integrating partial observations into a coherent 3D scene representation and selecting informative viewpoints for multi-step spatial reasoning. However, current multimodal LLMs are typically trained with sparse, answer-level supervision, which often yields inconsistent cross-view reasoning and brittle view selection. We present DR-MV3D (Dense Reward for MV3D-VQA), a map-grounded learning framework that provides dense, verifiable rewards to supervise the reasoning process. Our approach decomposes MV3D-VQA into (i) allocentric global map construction, (ii) question-conditioned view-trajectory planning, and (iii) egocentric grounding for answer prediction. To make intermediate steps learnable without manual annotations, we introduce two rewards: a global consistency reward that aligns the predicted map with geometry-consistent pseudo targets from frozen 3D vision foundation models (e.g., VGGT + SAM3), and a local trajectory reward that supervises ordered viewpoint selection. We optimize the full pipeline with trajectory-level policy optimization (GRPO). Experiments on MindCube, VSI-Bench, and BLINK (MV) show that DR-MV3D consistently improves over strong multi-image baselines, supporting the effectiveness of process-level dense supervision for multi-view 3D reasoning.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes DR-MV3D, a map-grounded framework for multi-view 3D visual question answering (MV3D-VQA) that decomposes the task into allocentric global map construction, question-conditioned view-trajectory planning, and egocentric grounding. It supplies dense rewards via a global consistency term that aligns intermediate maps to pseudo targets produced by frozen models (VGGT + SAM3) together with a local trajectory reward, and optimizes the pipeline end-to-end with GRPO. Experiments on MindCube, VSI-Bench, and BLINK (MV) are reported to show consistent gains over strong multi-image baselines, which the authors attribute to the use of process-level dense supervision.

Significance. If the pseudo targets can be shown to supply accurate, unbiased geometry signals, the work would supply concrete evidence that dense, verifiable process rewards can improve cross-view consistency and view selection in multimodal LLMs beyond sparse answer-level training. The explicit decomposition into global-map and local-trajectory stages is a useful organizing principle. At present, however, the absence of any quantitative check on pseudo-label fidelity leaves open the possibility that reported gains arise from alignment with the frozen models rather than genuine 3D reasoning gains.

major comments (2)
  1. [Abstract] Abstract: the central claim that 'DR-MV3D consistently improves over strong multi-image baselines' and that this supports 'the effectiveness of process-level dense supervision' rests on unshown experimental controls; no numerical deltas, ablation tables, error bars, or statistical tests are supplied, rendering the headline result impossible to evaluate.
  2. [Abstract] Abstract and implied Experiments section: the global consistency reward is defined directly in terms of pseudo targets from VGGT + SAM3, yet no alignment error, consistency metric, or comparison against available 3D ground truth on MindCube/VSI-Bench subsets is reported. Without such a check, it is impossible to rule out that the optimization simply teaches the model to reproduce biases of the frozen foundation models rather than to acquire independent 3D reasoning.
minor comments (1)
  1. [Abstract] The acronym MV3D-VQA is introduced in the abstract without an explicit expansion on first use, although context makes the meaning recoverable.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful comments, which highlight important aspects of clarity in the abstract and validation of our pseudo-target approach. We will revise the manuscript to strengthen these areas.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that 'DR-MV3D consistently improves over strong multi-image baselines' and that this supports 'the effectiveness of process-level dense supervision' rests on unshown experimental controls; no numerical deltas, ablation tables, error bars, or statistical tests are supplied, rendering the headline result impossible to evaluate.

    Authors: We agree that the abstract should provide more concrete evidence for the claims. Although the full manuscript contains detailed experimental results including performance tables, ablations, and comparisons in the Experiments section, the abstract itself does not include numerical deltas or references to them. We will revise the abstract to incorporate key quantitative results, such as accuracy improvements on MindCube, VSI-Bench, and BLINK (MV), along with mentions of ablation studies and statistical significance where applicable. This will allow readers to evaluate the headline results directly. revision: yes

  2. Referee: [Abstract] Abstract and implied Experiments section: the global consistency reward is defined directly in terms of pseudo targets from VGGT + SAM3, yet no alignment error, consistency metric, or comparison against available 3D ground truth on MindCube/VSI-Bench subsets is reported. Without such a check, it is impossible to rule out that the optimization simply teaches the model to reproduce biases of the frozen foundation models rather than to acquire independent 3D reasoning.

    Authors: We acknowledge this limitation in the current manuscript. The global consistency reward relies on pseudo targets from VGGT and SAM3 without an explicit fidelity check against ground truth. To address the referee's concern, we will add a quantitative analysis in the revised manuscript, including alignment error metrics and comparisons to 3D ground truth on available subsets of MindCube and VSI-Bench. This will help substantiate that the rewards encourage genuine 3D reasoning. We will also discuss potential biases and how the local trajectory reward and end-to-end optimization mitigate them. revision: yes

Circularity Check

0 steps flagged

No circularity: rewards and gains rest on external frozen models and benchmarks

full rationale

The derivation decomposes MV3D-VQA into map construction, trajectory planning, and grounding, then supplies rewards from geometry-consistent pseudo targets produced by independent frozen models (VGGT + SAM3) and optimizes via GRPO. These components are external to the present work and not defined in terms of the target predictions or fitted to the final answer accuracy. Gains are measured on separate held-out benchmarks (MindCube, VSI-Bench, BLINK) rather than by construction from the same signals. No self-citations, self-definitional equations, or fitted-input renamings appear in the provided derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the assumption that pseudo-labels from external foundation models are sufficiently accurate to serve as dense supervision targets; no free parameters or new entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Frozen 3D vision foundation models (VGGT + SAM3) produce geometry-consistent pseudo targets suitable for supervising global map construction without manual annotation.
    Invoked to define the global consistency reward.
