arxiv: 2512.21392 · v2 · submitted 2025-12-24 · 🌌 astro-ph.CO · astro-ph.IM· gr-qc

Recognition: 2 theorem links

· Lean Theorem

Sensitivity of Weak Lensing Surveys to Gravitational Waves from Inspiraling Supermassive Black Hole Binaries

Tal Adi , Kris Pardo , Olivier Dor\'e
Authors on Pith no claims yet

Pith reviewed 2026-05-16 19:23 UTC · model grok-4.3

classification 🌌 astro-ph.CO astro-ph.IMgr-qc
keywords weak lensinggravitational wavessupermassive black hole binariessensitivity curvescosmic varianceshear distortionsnanohertz frequencyLSST
0
0 comments X

The pith

An idealized weak lensing survey could access gravitational waves from supermassive black hole binaries in the nanohertz-microhertz band.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a signal-to-noise framework that folds in survey cadence, angular resolution, and depth to test whether weak lensing can register gravitational waves from inspiraling supermassive black hole binaries. It models the effective galaxy population to set the noise power spectral density and produces characteristic strain sensitivity curves for both realistic and perfect surveys. Real surveys such as LSST fall short because of resolution and measurement noise, yet a cosmic-variance-limited survey could in principle reach the target frequency range. The work therefore supplies an upper bound on the gravitational-wave information that weak lensing measurements can ever extract.

Core claim

We develop a signal-to-noise framework that incorporates survey characteristics such as cadence, angular resolution, and depth. Modeling the effective galaxy population yields the noise power spectral density, from which we derive characteristic strain sensitivity curves. Current surveys are limited by angular resolution and measurement noise, while an idealized cosmic-variance-limited survey could in principle probe the nanohertz to microhertz band. These results represent an ultimate limit on the information accessible through weak lensing measurements.

What carries the argument

The signal-to-noise framework that folds survey cadence, angular resolution, depth, and the modeled noise power spectral density from the effective galaxy population into sensitivity curves for GW-induced shear distortions.

Load-bearing premise

The modeling of the effective galaxy population used to evaluate the noise power spectral density, together with the applicability of the prior GW-induced shear distortions formalism to the nanohertz-microhertz band for SMBHBs.

What would settle it

A calculation or measurement showing that the noise power spectral density exceeds the expected gravitational-wave signal across the entire nanohertz-microhertz band even for a cosmic-variance-limited survey would falsify the claimed sensitivity.

Figures

Figures reproduced from arXiv: 2512.21392 by Kris Pardo, Olivier Dor\'e, Tal Adi.

Figure 1

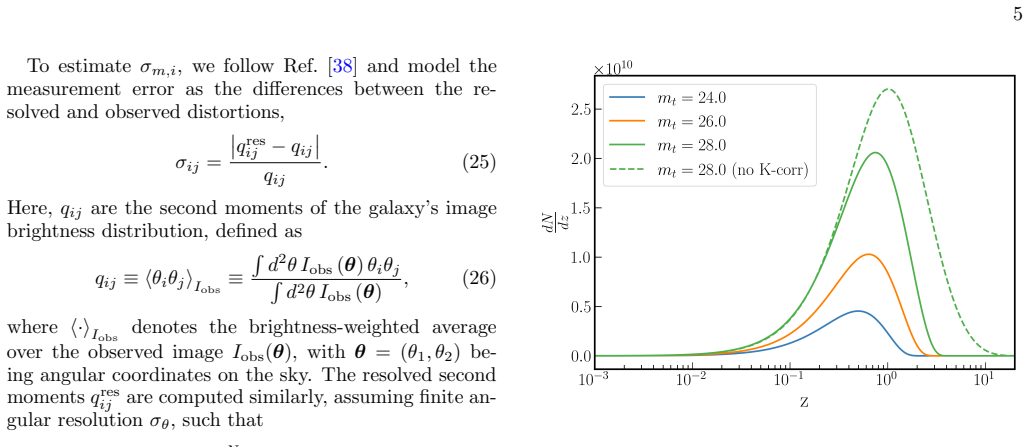

Figure 1. Figure 1: Redshift distribution of galaxies for different r-band [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The characteristic noise hn(f) is shown for two weak-lensing survey configurations: (i) an LSST-like sur￾vey (purple dashed line) and (ii) a cosmic-limit survey (gray dashed line). For comparison, we also plot the effective sen￾sitivity of NANOGrav 15yr [60], using hn = h0 p fT15yr with T15yr = 15 years. Straight solid lines show the characteristic strain hc(f) for circular inspiraling binaries with variou… view at source ↗
Figure 4
Figure 4. Figure 4: Contours of the characteristic noise hn at f = 10 nHz as a function of the survey r-band AB magnitude thresh￾old mt and angular resolution σθ, assuming full-sky cover￾age and cadence ∆t = 1 day. The top axis shows the corre￾sponding total number of observed galaxies Ngal in the survey. White dashed lines indicate the parameter values of Vera Ru￾bin’s LSST [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The relative difference in hn, with the baseline given by the σθ = 0.01 arcsec slice in [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Effective half-light radius r as a function of abso￾lute magnitude M in the r-band for early-type galaxies from Ref. [56] (blue points). The blue dashed line corresponds to the best-fit model in Ref. [56], while the orange dashed line shows our linear fit model. which is Eq. (14) in the main text. The last step is to average over the full sky. Using the response functions in Eq. (8), and their rotation pro… view at source ↗
Figure 7
Figure 7. Figure 7: Absolute magnitude limits MN=1 (red) and Mt (blue) as a function of redshift (top panel), together with their corresponding angular sizes (bottom panel). The re￾sults shown assume a full-sky configuration with mt = 28. The vertical dashed lines mark the redshifts at which the two magnitude limits intersect. The shaded region indicates the integration domain in Eq. (32). Appendix E: Treatment of Galaxy Size… view at source ↗
read the original abstract

We explore the sensitivity of weak lensing surveys to gravitational waves (GWs) emitted by inspiraling supermassive black hole binaries (SMBHBs) in the nanohertz to microhertz frequency band, bridging the gap between pulsar timing arrays and space-based interferometers. Building on the formalism for GW-induced shear distortions, we develop a signal-to-noise framework that incorporates survey characteristics such as cadence, angular resolution, and depth. We model the effective galaxy population to evaluate the noise power spectral density and derive characteristic strain sensitivity curves. Applying this framework to both LSST-like and idealized survey configurations, we show that current surveys are limited by angular resolution and measurement noise, while an idealized, cosmic-variance-limited survey could in principle probe this frequency range. We emphasize that such sensitivity requires observational capabilities far beyond those of existing or planned facilities, and our results should be interpreted as an ultimate limit on the information accessible through weak lensing measurements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript develops a signal-to-noise framework for weak lensing surveys to detect gravitational waves from inspiraling supermassive black hole binaries in the nanohertz-microhertz band. It builds on prior GW-induced shear distortion formalism, models the effective galaxy population to compute the noise power spectral density, and derives characteristic strain sensitivity curves for LSST-like and idealized cosmic-variance-limited survey configurations, concluding that only the latter could in principle access this frequency range as an ultimate limit on weak lensing information.

Significance. If the formalism and noise modeling hold, the paper supplies a concrete theoretical upper bound on weak lensing sensitivity in the frequency gap between pulsar timing arrays and space-based interferometers. The explicit sensitivity curves for realistic versus idealized surveys provide a useful benchmark for assessing future observational requirements, even if the idealized case remains aspirational.

major comments (2)
  1. [GW-induced shear distortions formalism] The direct application of the standard local transverse-traceless GW-induced shear expression (used to compute the signal) to the 10^{-9}–10^{-6} Hz band requires explicit validation. At these frequencies the GW wavelength spans light-years to ~0.002 AU, comparable to or exceeding the light-travel time across typical survey depths; the integrated, time-averaged distortion on galaxy images may not be captured by the local approximation.
  2. [Modeling of the effective galaxy population] The noise power spectral density is set by the adopted effective galaxy population model (number density, redshift distribution, ellipticity dispersion). In the cosmic-variance-limited case these parameters directly determine the shot-noise floor and thus the claimed sensitivity curves; without a sensitivity analysis or justification of the idealized values, the curves could be optimistic by an undetermined factor.
minor comments (1)
  1. [Abstract and conclusions] The abstract states that results 'should be interpreted as an ultimate limit,' but the main text should more explicitly flag the two key assumptions (shear formalism applicability and galaxy-population parameters) as the dominant sources of uncertainty.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and have incorporated revisions to strengthen the presentation of the formalism and noise modeling.

read point-by-point responses

  1. Referee: [GW-induced shear distortions formalism] The direct application of the standard local transverse-traceless GW-induced shear expression (used to compute the signal) to the 10^{-9}–10^{-6} Hz band requires explicit validation. At these frequencies the GW wavelength spans light-years to ~0.002 AU, comparable to or exceeding the light-travel time across typical survey depths; the integrated, time-averaged distortion on galaxy images may not be captured by the local approximation.

    Authors: We agree that explicit validation of the local transverse-traceless approximation is warranted at these frequencies. The formalism we employ follows from the geodesic deviation equation in the TT gauge and is standard in the literature for GW-induced shear. In the revised manuscript we will add a dedicated subsection (and supporting appendix) that derives the applicability conditions, compares the GW wavelength to survey depth and light-travel time across the integration period, and demonstrates that the time-averaged local shear expression remains a valid leading-order approximation for the effective distortion signal under the survey parameters considered. revision: yes

  2. Referee: [Modeling of the effective galaxy population] The noise power spectral density is set by the adopted effective galaxy population model (number density, redshift distribution, ellipticity dispersion). In the cosmic-variance-limited case these parameters directly determine the shot-noise floor and thus the claimed sensitivity curves; without a sensitivity analysis or justification of the idealized values, the curves could be optimistic by an undetermined factor.

    Authors: We thank the referee for highlighting this point. The idealized cosmic-variance-limited parameters are chosen to represent theoretical upper bounds on information content rather than any specific survey. In the revision we will add a new subsection that justifies the adopted values by reference to cosmic-variance limits in the literature and will include an explicit sensitivity analysis in which the galaxy number density and ellipticity dispersion are varied by factors of two to three around the fiducial values, showing the resulting range in the sensitivity curves. revision: yes

Circularity Check

0 steps flagged

No significant circularity; framework applies prior shear formalism and independent galaxy-population modeling to derive sensitivity limits

full rationale

The derivation constructs a signal-to-noise ratio by taking the GW-induced shear distortion formalism as an external input, then computes the noise power spectral density from an explicit model of effective galaxy number density, redshift distribution, and ellipticity dispersion. Sensitivity curves are obtained by combining these quantities with survey parameters such as cadence and depth; neither the signal expression nor the noise floor is obtained by fitting to the target sensitivity itself or by renaming a self-derived quantity. The idealized cosmic-variance-limited case is presented as an upper-bound limit rather than a fitted prediction, and no load-bearing step reduces to a self-citation chain or self-definitional loop.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Abstract provides insufficient detail to enumerate specific free parameters or invented entities; the work relies on an existing formalism for GW-induced shear and a modeled effective galaxy population whose details are not stated.

free parameters (1)
  • effective galaxy population parameters
    Used to evaluate the noise power spectral density; specific values or fitting procedure not given in abstract.
axioms (1)
  • domain assumption formalism for GW-induced shear distortions
    The framework builds directly on this prior formalism without re-deriving it.

pith-pipeline@v0.9.0 · 5474 in / 1331 out tokens · 46339 ms · 2026-05-16T19:23:50.164125+00:00 · methodology
